GSU75R-ARZNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

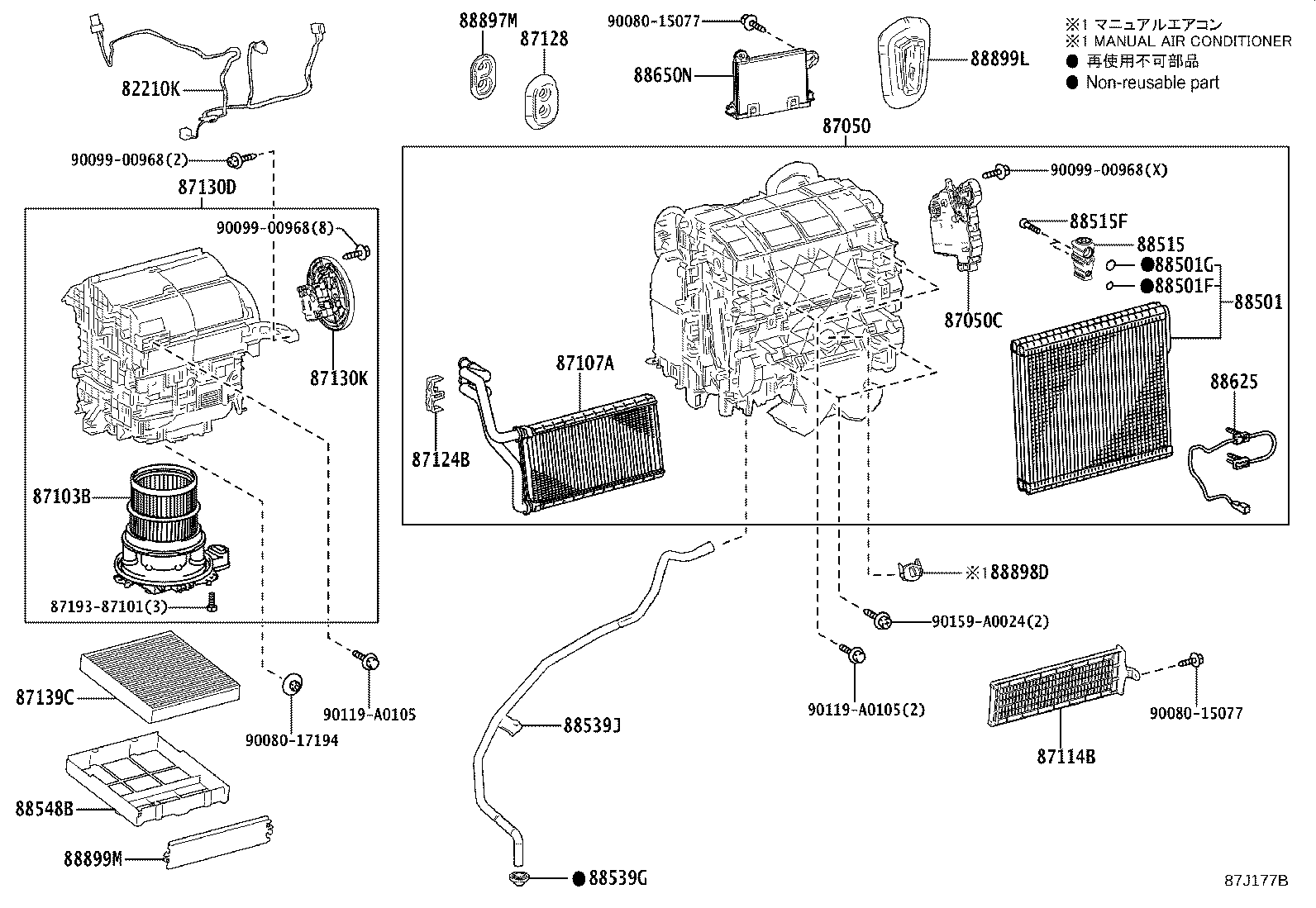

ILLUST NO. 1 OF 2(2012- )GSU7#..ARL

Click highlighted areas on diagram

FRONT

diagram 82210K 87050 87050C 87103B 87107A 87114B 87124B 87128 87130D 87130K 87139C 8719387101 88501 88501F 88501G 88515 88515F 88539G 88539J 88548B 88625 88650N 88897M 88898D 88899L 88899M 9008015077 9008015077 9008017194 9009900968 9009900968 9009900968 90119A0105 90119A0105 90159A0024
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-0E070

GSU7#..ARL

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0E330

GSU7#..LE..ARL

 1
87050-0E320

GSU7#..LE..ARL

LEATHER PACKAGE

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-06360

GSU7#..LE..ARL

 1
87106-06420

GSU7#..LE..ARL

LEATHER PACKAGE

 1
87114B - COVER, HEATER
87114-06090

AXUH7#,GSU7#..ARL,EUR,GCC

 1
87124B - CLAMP, HEATER
87124-07030

AXUH7#,GSU7#

 1
87128 - GROMMET, HEATER
87128-06010

AXUH7#,GSU7#

 1
87139C - FILTER, CLEAN AIR
87139-58010

AXUH7#,GSU7#

DEODORANT FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0E220

GSU7#..ARL

 1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90069-08007

AXUH7#,GSU7#

ID=10.8,OD=15.6

 1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90069-08009

AXUH7#,GSU7#

ID=13.4,OD=18.2

 1
88515 - VALVE, COOLER EXPANSION
88515-0E160

GSU7#;AXUH7#..GCC

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

AXUH7#,GSU7#

 2
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-06020

AXUH7#,GSU7#

 1
88548B - CASE, AIR FILTER
88899-0R010

AXUH7#,GSU7#

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0R010

GSU7#..ARL

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0E500

AXUH7#,GSU7#..ARL,GCC,RUS

 1
88897M - GROMMET (FOR HEATER PIPE)
87128-28010

AXUH7#,GSU7#

 1
88898D - GROMMET
88899-06260

GSU7#..LE..ARL

 1
88899L - PARTS, COOLING UNIT
88899-06280

GSU7#;AXUH7#..GCC

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-06310

AXUH7#,GSU7#

 1
Common parts
87193-87101
90080-15077
90080-17194
90099-00968
90119-A0105
90159-A0024
