GSU75R-ARZNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(2012- )GSU7#..ARL

Click highlighted areas on diagram

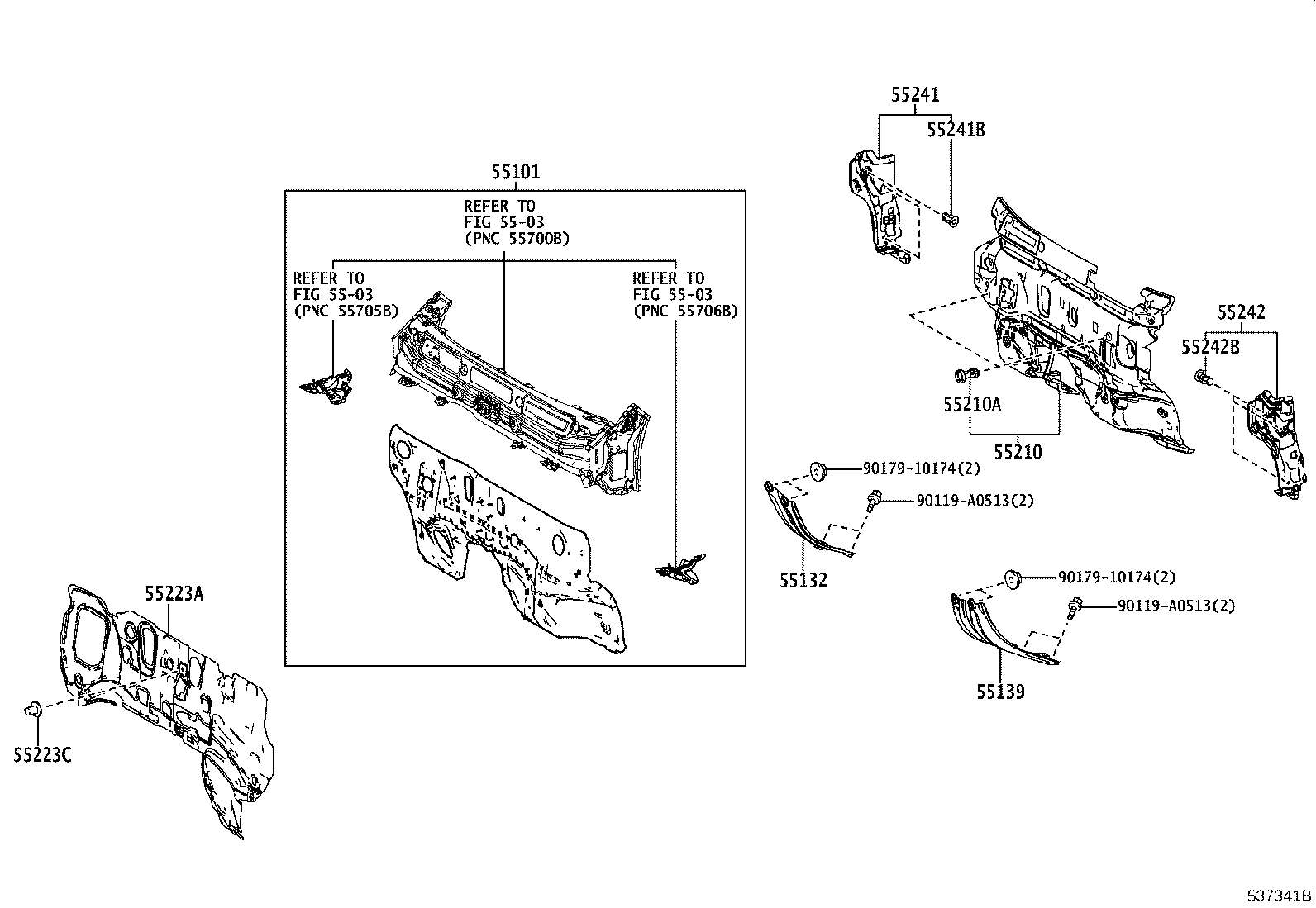

DASH PANEL

diagram 5503 5503 5503 55101 55132 55139 55210 55210A 55223A 55223C 55241 55241B 55242 55242B 90119A0513 90119A0513 9017910174 9017910174
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-0E901

GSU7#..ARL

 1
55132 - REINFORCEMENT, DASH PANEL, NO.2
55132-0E040

AXUH7#,GSU7#

 1
55139 - REINFORCEMENT, DASH TO FRAME BRACE
55139-0E070

AXUH7#,GSU7#

 1
55210A - CLIP
90467-11122

AXUH7#,GSU7#

 2
55223C - CLIP
90467-06197

AXUH7#,GSU7#

 1
55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-0E010

AXUH7#,GSU7#

 1
55241B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

AXUH7#,GSU7#

 3
55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-0E010

AXUH7#,GSU7#

 1
55242B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

AXUH7#,GSU7#

 3
Common parts
90119-A0513
90179-10174
Linked diagrams
5503
