GSU75R-ARZNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )GSU7#..ARL

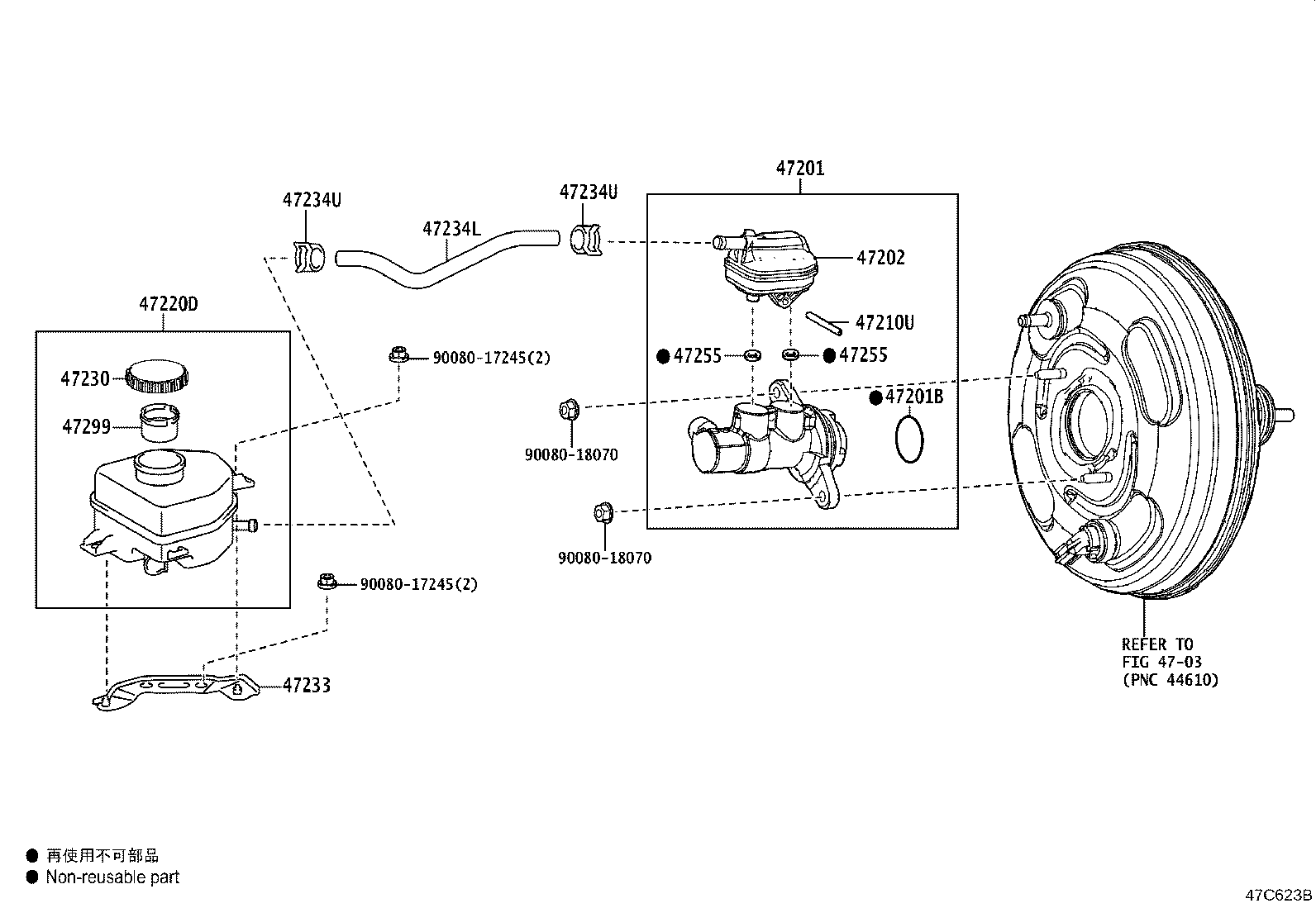

Click highlighted areas on diagram

diagram 4703 47201 47201B 47202 47210U 47220D 47230 47233 47234L 47234U 47234U 47255 47255 47299 9008017245 9008017245 9008018070 9008018070
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-0E050

GSU7#..ARL

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-0E150

GSU7#..ARL

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-47090

AXUH7#,GSU7#

 1
47233 - BRACKET, RESERVOIR
47233-48230

GSU7#..ARL

 1
47234L - HOSE, RESERVOIR, NO.1
47234-0E150

GSU7#..ARL

 1
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
90466-A0017

GSU7#;AXUH7#..LHD

 2
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
90466-A0017

GSU7#;AXUH7#..LHD

 2
Common parts
90080-17245
90080-18070
Linked diagrams
4703
