GSU75R-ARZNHQ (2020)

Toyota Highlander/Kluger

Production Dec 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )2GRFKS..ARL

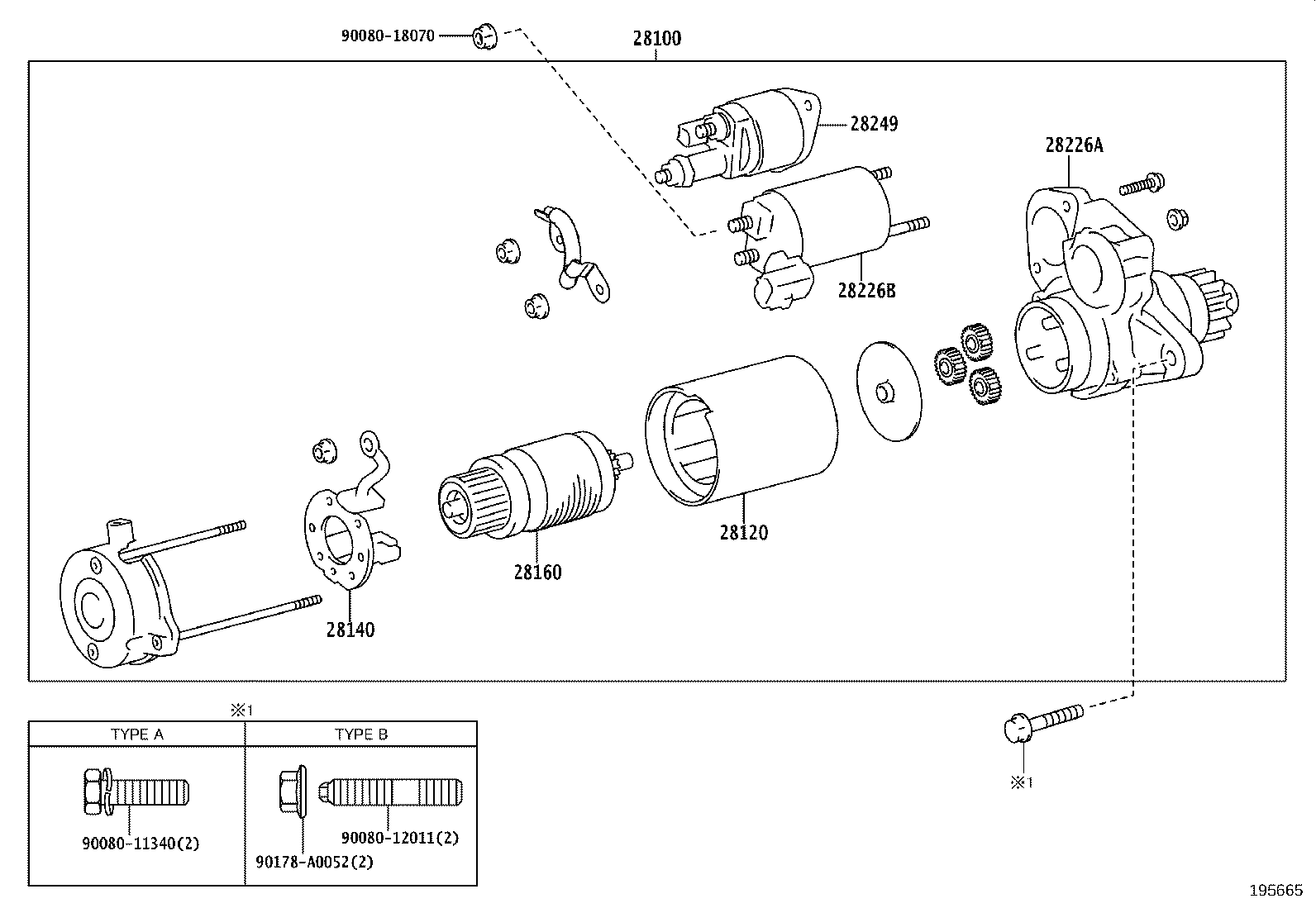

Click highlighted areas on diagram

12V 1.7KW;W(STOP & START SYSTEM)

diagram 28100 28120 28140 28160 28226A 28226B 28249 9008011340 9008012011 9008018070 90178A0052
Part # Description Qty Price
28100 - STARTER ASSY
28100-0P090

2GRFKS..GSU7#..ARL

12V 1.7KW

 1
28120 - YOKE ASSY, STARTER
28120-31260

2GRFKS..GSU7#..ARL

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-36110

2GRFKS..GSU7#..ARL

 1
28160 - ARMATURE ASSY, STARTER
28160-36110

2GRFKS..GSU7#..ARL

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-31260

2GRFKS..GSU7#..ARL

 1
28226B - STARTER KIT, REPAIR SERVICE
28150-47240

2GRFKS..GSU7#..ARL

 1
28249 - RELAY, STARTER INRUSH CURRENT REDUCTION
28249-36110

2GRFKS..GSU7#..ARL

 1
Common parts
90080-11340
90080-12011
90080-18070
90178-A0052
