GSU75L-ARZNHX (2020)

Toyota Highlander/Kluger

Production Mar 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2003- )EUR,RUS

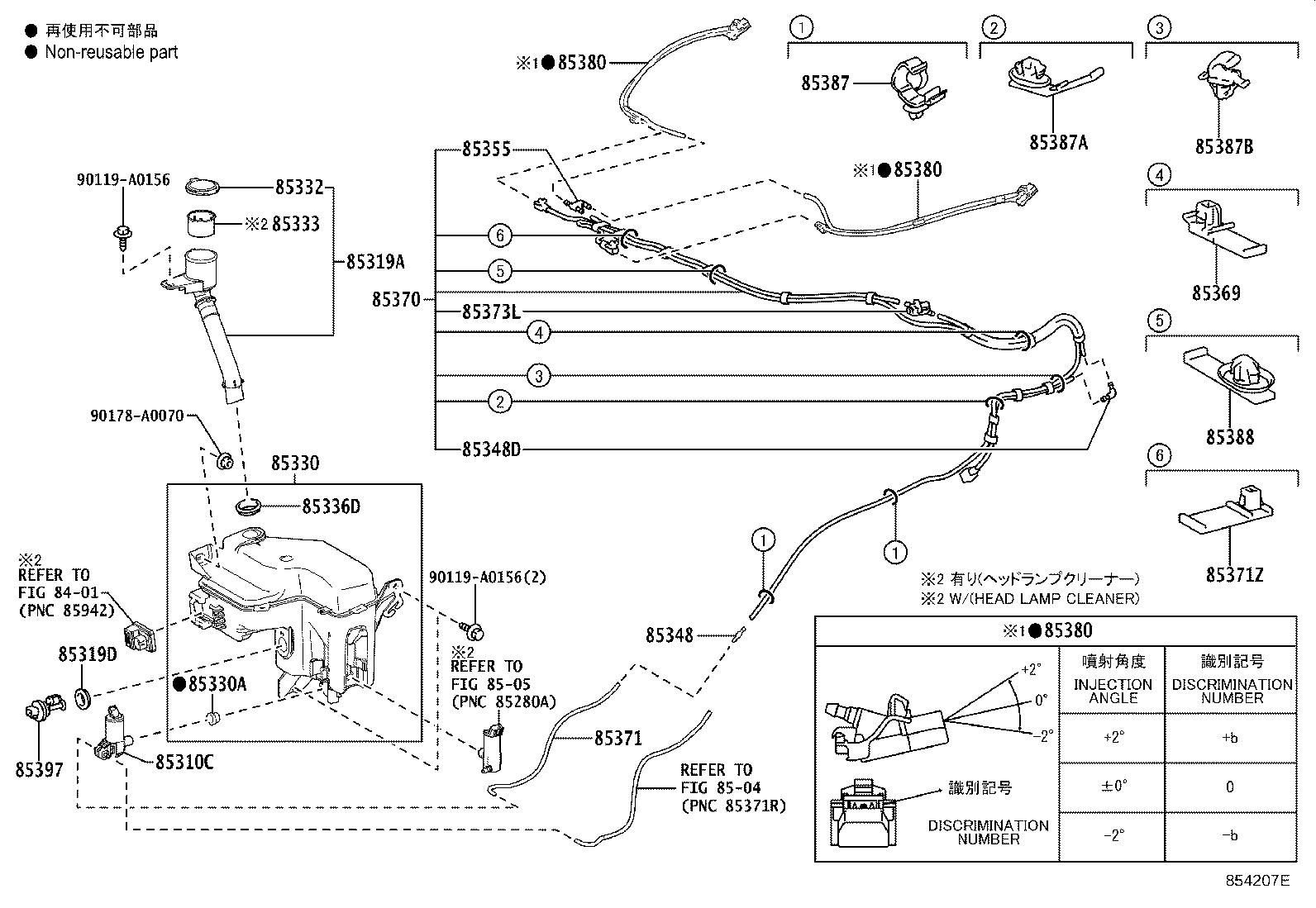

Click highlighted areas on diagram

W(HEATER)

diagram 8401 8504 8505 85310C 85319A 85319D 85330 85330A 85332 85333 85336D 85348 85348D 85355 85369 85370 85371 85371Z 85373L 85380 85380 85380 85387 85387A 85387B 85388 85397 90119A0156 90119A0156 90178A0070
Part # Description Qty Price
85310C - MOTOR & PUMP ASSY, WASHER
85330-0E031

AXUH7#,GSU7#

 1
85319A - HOSE, INLET
85301-0E030

AXUH7#,GSU7#

 1
85319D - PACKING, FRONT WASHER
85319-AA020

AXUH78,GSU75..EUR,RUS

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-0E080

AXUH78,GSU75..(LE,LIMD)..(EUR,RUS)

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AXUH78,GSU75..(LE,LIMD)..(EUR,RUS)

 2
85332 - CAP, WINDSHIELD WASHER JAR
85316-0E030

AXUH7#,GSU7#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-60050

AXUH78,GSU75..(LE,LIMD)..(EUR,RUS)

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

AXUH78,GSU75..(LE,LIMD)..(EUR,RUS)

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-0E010

AXUH7#,GSU7#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

GSU75..RUS;AXUH78..RHD..EUR

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AXUH7#,GSU7#

 1
85369 - CLAMP
82711-3A640

GSU75..RUS;AXUH78..RHD..EUR

 1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-0E410

GSU75..RUS;AXUH78..RHD..EUR

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33360

AXUH7#,GSU7#

L=375

 1
85371Z - CLAMP, WASHER HOSE
85387-22540

GSU75..RUS;AXUH78..RHD..EUR

 1
85373L - GROMMET, WASHER
85379-0E410

GSU75..RUS;AXUH78..RHD..EUR

 1
85380 - NOZZLE & HOSE ASSY, FR WASHER
85380-0E280

GSU75..RUS;AXUH78..RHD..EUR

ANGLE +2

 2
85380-0E290

GSU75..RUS;AXUH78..RHD..EUR

ANGLE -2

 2
85380-0E270

GSU75..RUS;AXUH78..RHD..EUR

ANGLE 0

 2
85380 - NOZZLE & HOSE ASSY, FR WASHER
85380-0E280

GSU75..RUS;AXUH78..RHD..EUR

ANGLE +2

 2
85380-0E290

GSU75..RUS;AXUH78..RHD..EUR

ANGLE -2

 2
85380-0E270

GSU75..RUS;AXUH78..RHD..EUR

ANGLE 0

 2
85380 - NOZZLE & HOSE ASSY, FR WASHER
85380-0E280

GSU75..RUS;AXUH78..RHD..EUR

ANGLE +2

 2
85380-0E290

GSU75..RUS;AXUH78..RHD..EUR

ANGLE -2

 2
85380-0E270

GSU75..RUS;AXUH78..RHD..EUR

ANGLE 0

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-1E350

AXUH7#,GSU7#

 2
85387A - CLAMP, WASHER, NO.2
82711-48070

GSU75..RUS;AXUH78..RHD..EUR

 1
85387B - CLAMP, WASHER, NO.3
85371-12040

GSU75..RUS;AXUH78..RHD..EUR

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
82711-52090

GSU75..RUS;AXUH78..RHD..EUR

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-AA040

AXUH78,GSU75..EUR,RUS

 1
Common parts
90119-A0156
90178-A0070
Linked diagrams
8401
8504
8505
