GSU75L-ARZGHX (2020)

Toyota Highlander/Kluger

Production Mar 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2003- )GSU7#

Click highlighted areas on diagram

UA80E,UA80F

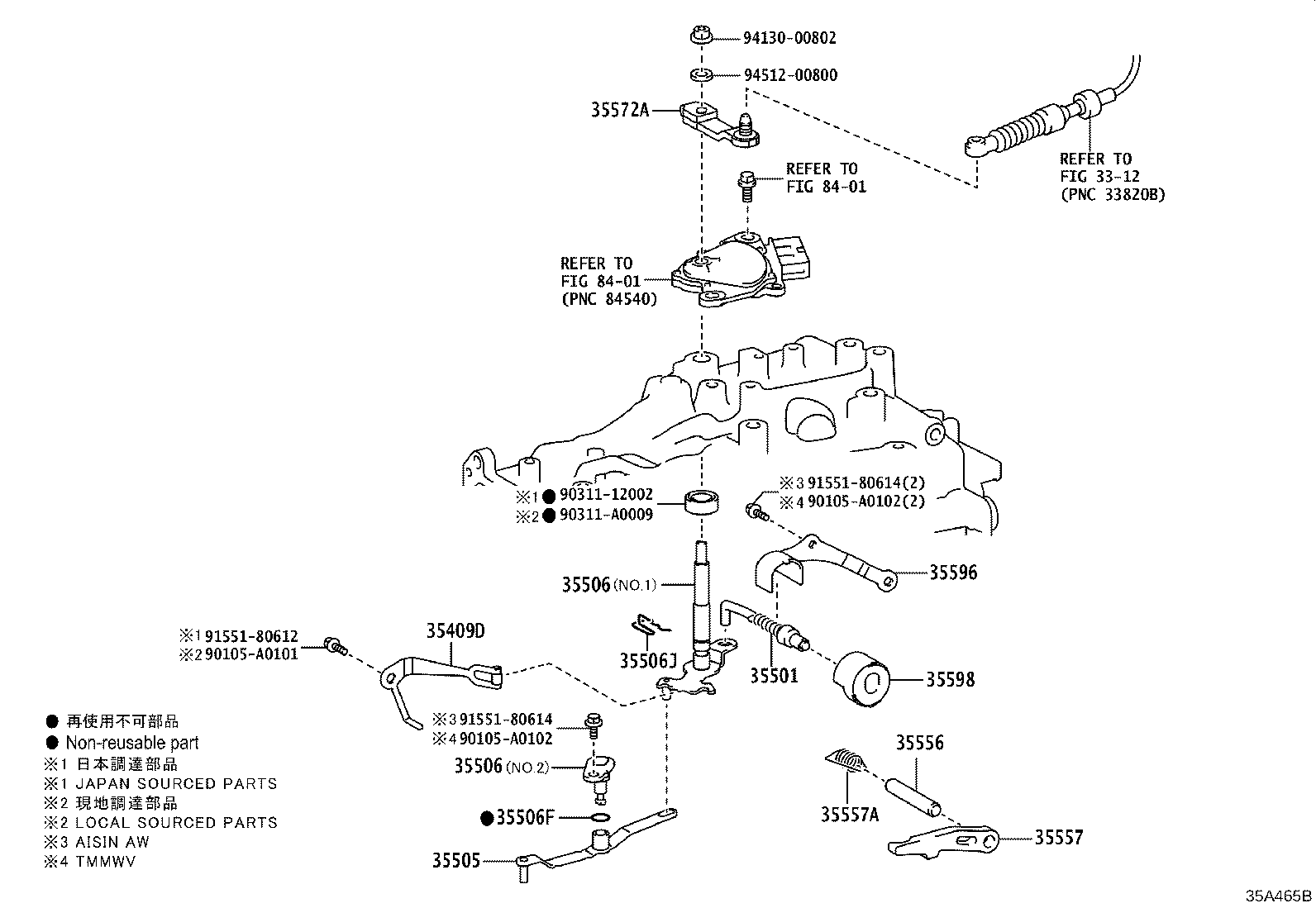

diagram 3312 35409D 35501 35505 35506 35506 35506F 35506J 35556 35557 35557A 35572A 35596 35598 8401 8401 90105A0101 90105A0102 90105A0102 9031112002 90311A0009 9155180612 9155180614 9155180614 9413000802 9451200800
Part # Description Qty Price
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-48060

GSU7#

 1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-48040

GSU7#

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35502-48010

GSU7#

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506-06021

GSU7#

NO.1,TMMWV:SEE 35-01

 1
35506-48021

GSU75

NO.1,AISIN:SEE 35-01

 1
35503-48010

GSU7#

NO.2

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506-06021

GSU7#

NO.1,TMMWV:SEE 35-01

 1
35506-48021

GSU75

NO.1,AISIN:SEE 35-01

 1
35503-48010

GSU7#

NO.2

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90301-A0063

GSU7#

(L)

 1
90301-09173

GSU75

(J)

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09004

GSU7#

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-06010

GSU75

TMMWV:REFER 35-01

 1
35556-48030

GSU7#

TMMWV:REFER 35-01

 1
35556-48040

GSU75

AISIN AW:REFER 35-01

 1
35557 - PAWL, PARKING LOCK
35557-48040

GSU7#

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-29030

GSU7#

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-48050

GSU7#

 1
35596 - PLATE, PAWL STOPPER
35596-48030

GSU75

(J)

 1
35596-06010

GSU7#

(L)

 1
35598 - SLEEVE, PARKING LOCK
35598-48040

GSU75

(J)

 1
35598-06020

GSU7#

(L)

 1
Common parts
90105-A0101
90105-A0102
90311-12002
90311-A0009
91551-80612
91551-80614
94130-00802
94512-00800
Linked diagrams
3312
8401
