GSU55R-ARTNKQ (2013)

Toyota Highlander/Kluger

Production Dec 2013 - Nov 2016
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ARL

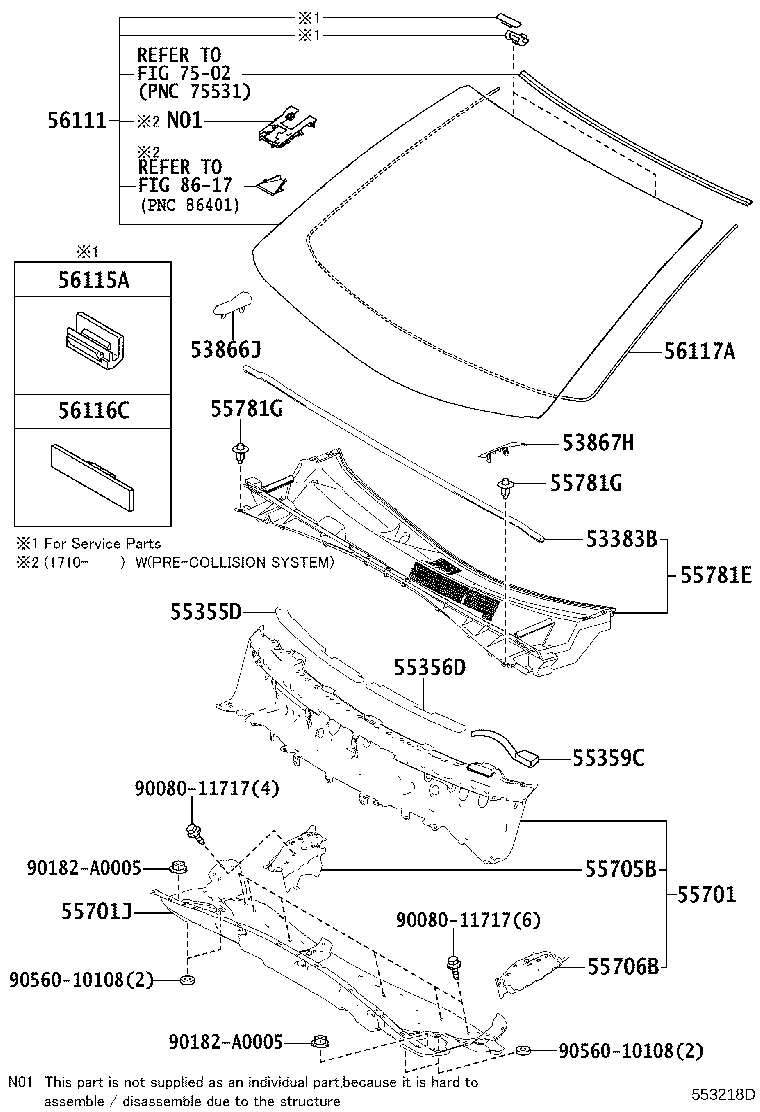

Click highlighted areas on diagram

diagram 53383B 53866J 53867H 55355D 55356D 55359C 55701 55701J 55705B 55706B 55781E 55781G 55781G 56111 56115A 56116C 56117A 7502 8617 9008011717 9008011717 90182A0005 90182A0005 9056010108 9056010108
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-0E050

ASU50,GSU5#

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0E060

ASU50,GSU5#

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0E060

ASU50,GSU5#

 1
55355D - CUSHION, INSTRUMENT PANEL, NO.1
55359-0E090

ASU50,GSU5#

 1
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55359-0E100

ASU50,GSU5#

 1
55359C - COSHION, INSTRUMENT PANEL, NO.5
55359-0E160

ASU50,GSU5#

 1
55701 - PANEL SUB-ASSY, COWL
55700-0E060

GSU5#..ARL

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-0E070

GSU5#..ARL

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-0E050

ASU50,GSU5#

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-0E050

ASU50,GSU5#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0E080

GSU5#..ARL

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-A0035

ASU50,GSU5#

 2
90467-08180

ASU50,GSU5#

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-A0035

ASU50,GSU5#

 2
90467-08180

ASU50,GSU5#

 2
56111 - GLASS, WINDSHIELD
56101-0E290

GSU5#..ARL

*LAM,T=4.76,GREEN

 1
56101-0E292

GSU5#..ARL

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

ASU50,GSU5#

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ASU50,GSU5#

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-0E060

ASU50,GSU5#

L=3025

 1
Common parts
90080-11717
90182-A0005
90560-10108
Linked diagrams
7502
8617
