GSU55L-ARZNHX (2016)

Toyota Highlander/Kluger

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )GSU5#

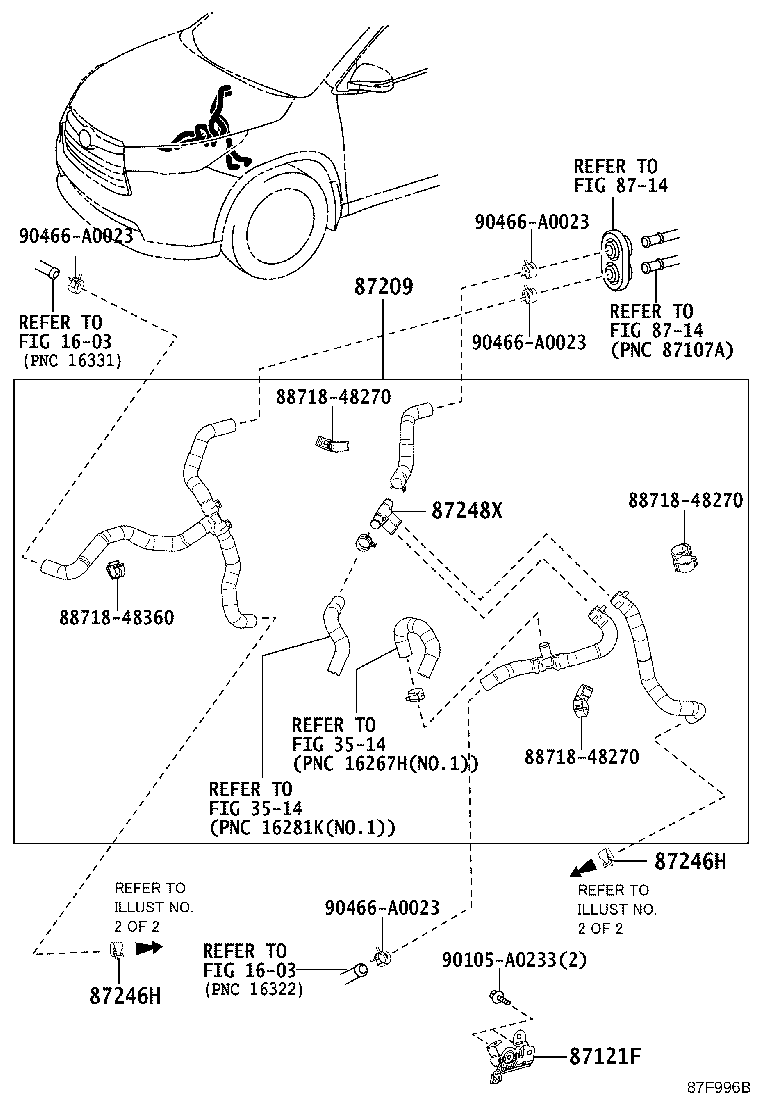

Click highlighted areas on diagram

diagram 1603 1603 3514 3514 87121F 8714 8714 87209 87246H 87246H 87248X 8871848270 8871848270 8871848270 8871848360 90105A0233 90466A0023 90466A0023 90466A0023 90466A0023
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-0E040

GSU5#

 1
87209 - HOSE SUB-ASSY, WATER
87209-0E400

GSU5#

 1
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90466-A0022

ASU50,GSU5#

 2
90466-A0022

ASU50,GSU5#

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90466-A0022

ASU50,GSU5#

 2
90466-A0022

ASU50,GSU5#

 2
87248X - PIPE, HEATER WATER
87248-0E150

GSU5#

 1
Common parts
88718-48270
88718-48360
90105-A0233
90466-A0023
Linked diagrams
1603
3514
8714

(1611- )

Click highlighted areas on diagram

REAR

diagram 8714 8718 8718 8718 8718 8718 8718 8718 87245A 87245B 87246B 87246G 87248A 87248B 87249A 87249B 885690E250 885690E290 9008017245 9008017245 9009900264 90466A0022 90466A0022 90466A0022 90466A0022 9613452100 9613452100 9613452100 9613452100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-0E280

ASU50,GSU5#

 1
87245-0E280

ASU50,GSU5#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-0E300

ASU50,GSU5#

 1
87245-0E300

ASU50,GSU5#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-0E310

ASU50,GSU5#

 1
87245-0E310

ASU50,GSU5#

 1
87246G - HOSE, HEATER WATER, OUTLET G
87245-0E290

ASU50,GSU5#

 1
87245-0E290

ASU50,GSU5#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-0E070

ASU50,GSU5#

 1
87208-0E150

ASU50,GSU5#

 1
87248B - PIPE, HEATER WATER INLET, B
87208-0E160

ASU50,GSU5#

 1
87208-0E080

ASU50,GSU5#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-0E160

ASU50,GSU5#

 1
87248-0E110

ASU50,GSU5#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-0E090

ASU50,GSU5#

 1
87208-0E170

ASU50,GSU5#

 1
Common parts
88569-0E250
88569-0E290
90080-17245
90099-00264
90466-A0022
96134-52100
Linked diagrams
8714
8718
