GSU55L-ARZNHX (2016)

Toyota Highlander/Kluger

Production Nov 2016 - Nov 2019
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )2GRFKS

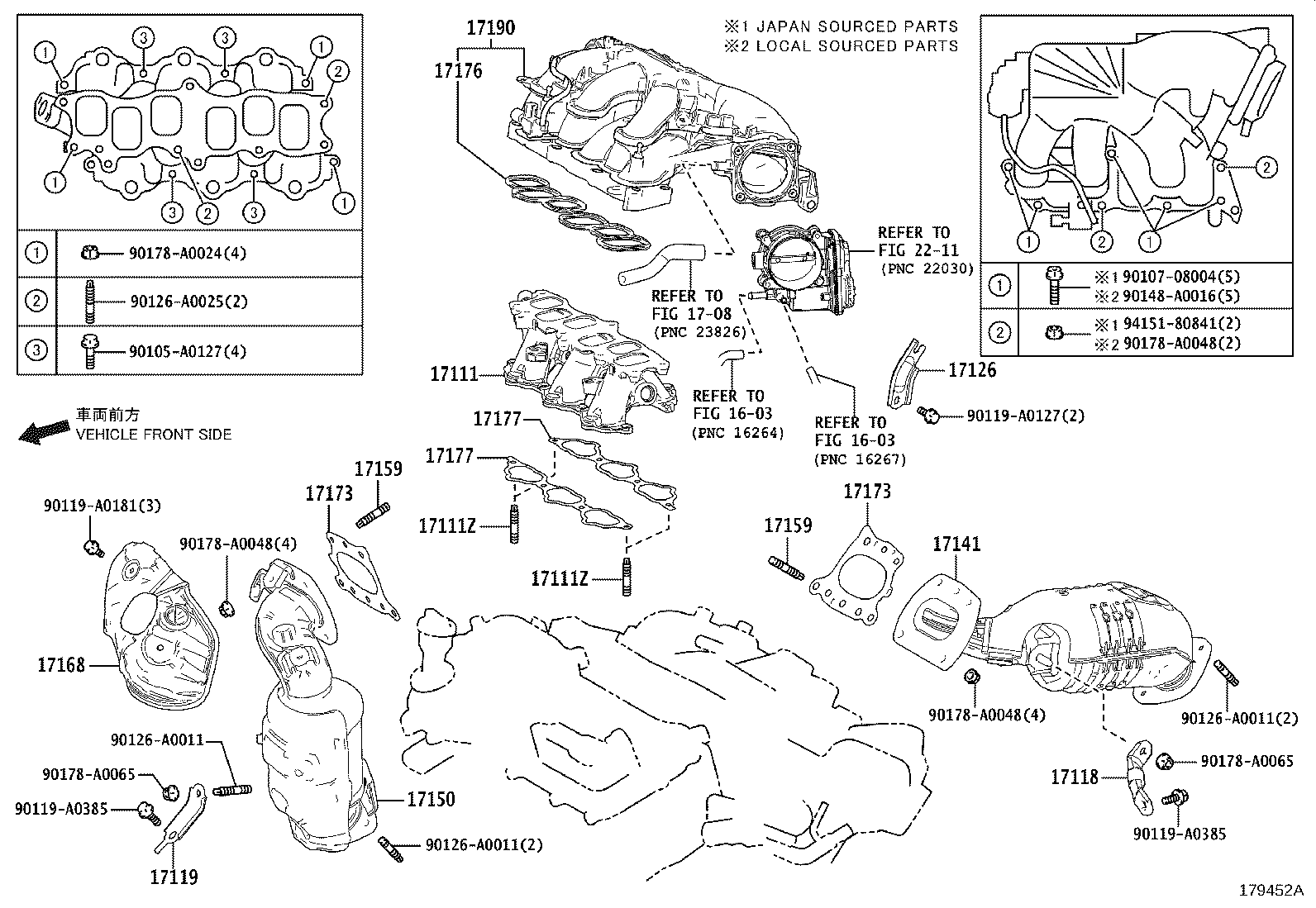

Click highlighted areas on diagram

diagram 1603 1603 1708 17111 17111Z 17111Z 17118 17119 17126 17141 17150 17159 17159 17168 17173 17173 17176 17177 17177 17190 2211 90105A0127 9010708004 90119A0127 90119A0181 90119A0385 90119A0385 90126A0011 90126A0011 90126A0011 90126A0025 90148A0016 90178A0024 90178A0048 90178A0048 90178A0048 90178A0065 90178A0065 9415180841
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-0P060

2GRFKS..GSU5#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-A0019

2GRFKS..GSU5#

 4
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-A0019

2GRFKS..GSU5#

 4
17118 - STAY, MANIFOLD
17118-0P060

2GRFKS..GSU55

 1
17119 - STAY, MANIFOLD, NO.2
17119-0P180

2GRFKS..GSU5#

 1
17126 - STAY, SURGE TANK, NO.2
17126-0P040

2GRFKS..GSU5#

 1
17141 - MANIFOLD, EXHAUST
17140-0P330

2GRFKS..GSU5#

*114=TOYOTA/R0P330/Y

 1
17150 - MANIFOLD ASSY, EXHAUST, LH
17150-0P330

2GRFKS..GSU5#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-A0019

2GRFKS..GSU5#

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-A0019

2GRFKS..GSU5#

 8
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0P040

2GRFKS..GSU5#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0P040

2GRFKS..GSU5#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0P040

2GRFKS..GSU5#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31130

2GRFKS..GSU5#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0P030

2GRFKS..GSU5#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0P030

2GRFKS..GSU5#

 2
17190 - TANK ASSY, INTAKE AIR SURGE
17190-0P110

2GRFKS..GSU5#

 1
Common parts
90105-A0127
90107-08004
90119-A0127
90119-A0181
90119-A0385
90126-A0011
90126-A0025
90148-A0016
90178-A0024
90178-A0048
90178-A0065
94151-80841
Linked diagrams
1603
1708
2211
