GSU50R-ARZNHQ (2016)
Toyota Highlander/Kluger

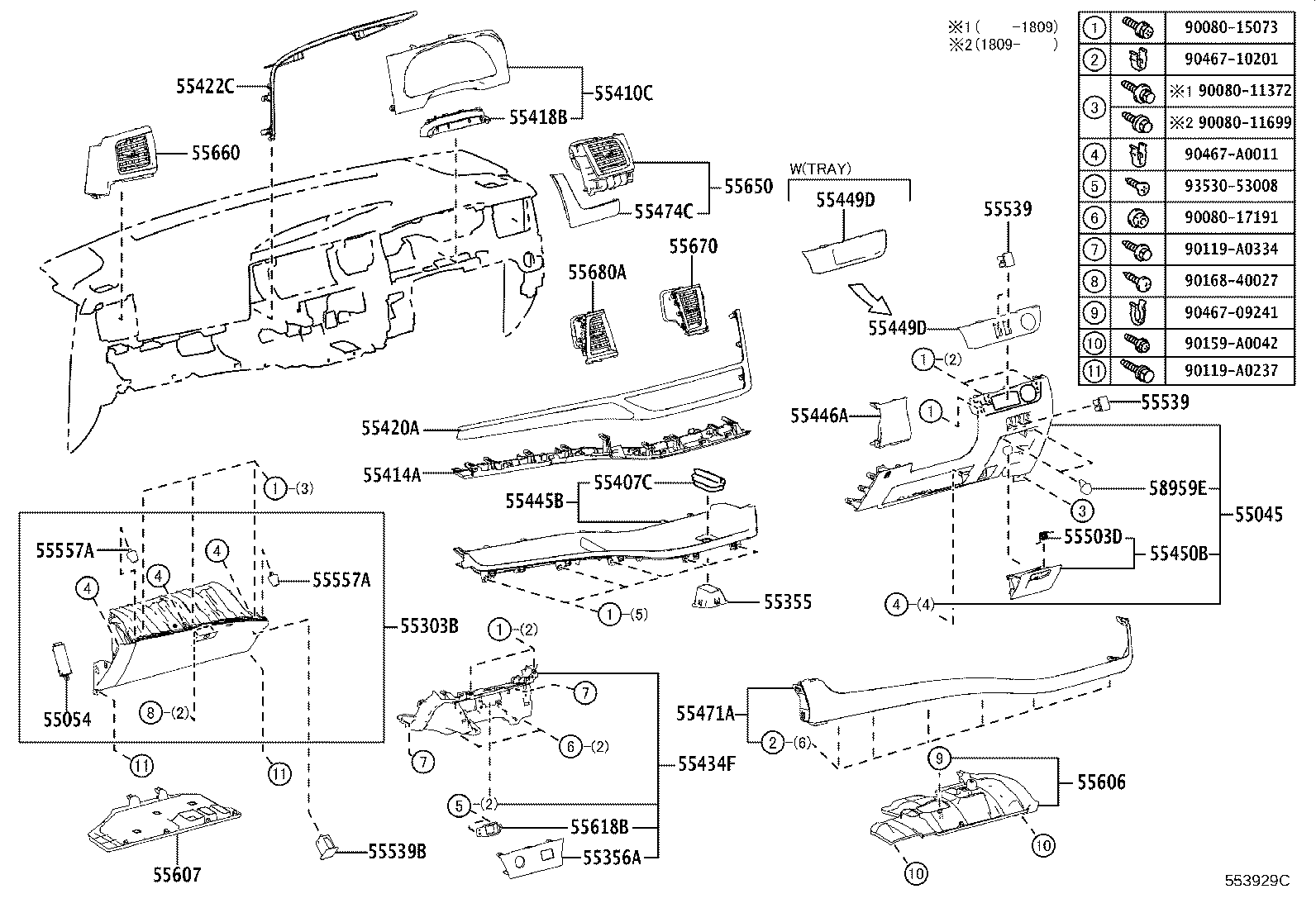

ILLUST NO. 2 OF 2(1611- )LE..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0E070C0 |
GSU5#..ARL BLACK,TRIM2# |
1 | ||
| 55045-0E070C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75020 |
ASU50,GSU5# |
1 | ||
| 55054-47010 |
ASU50,GSU5# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0E060C0 |
GSU5#..ARL BLACK,TRIM2# |
1 | ||
| 55303-0E061C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55303-0E061C1 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0E030C0 |
ASU50,GSU5# BLACK,TRIM2# |
1 | ||
| 55355-0E030C0 |
ASU50,GSU5#..LE BLACK,TRIM2# |
1 | ||
| 55356A - PLATE, INSTRUMENT PANEL, LOWER | ||||
| 55356-0E030C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55356-0E030C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-0E010E0 |
GSU5#..LE..ARL DARK CLOVE,TRIM2# |
1 | ||
| 55407-0E010E0 |
GSU5#..LE..ARL DARK CLOVE,TRIM2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0E040 |
GSU5#..ARL |
1 | ||
| 55410-0E040 |
GSU5#..ARL |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-0E060 |
GSU5#..LE..ARL |
1 | ||
| 55414-0E060 |
GSU5#..LE..ARL |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-0E040 |
GSU5#..ARL |
1 | ||
| 55418-0E040 |
GSU5#..ARL |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-0E180 |
GSU5#..LE..ARL |
1 | ||
| 55420-0E180 |
GSU5#..LE..ARL |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-0E030E0 |
GSU5#..LE..ARL DARK CLOVE,TRIM2# |
1 | ||
| 55422-0E030E0 |
GSU5#..LE..ARL DARK CLOVE,TRIM2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0E030C0 |
GSU5#..ARL BLACK,TRIM2# |
1 | ||
| 55434-0E030C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-0E030E0 |
GSU5#..LE..ARL DARK CLOVE,TRIM2# |
1 | ||
| 55445-0E030E0 |
GSU5#..LE..ARL DARK CLOVE,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0E050C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55446-0E050C0 |
GSU5#..ARL BLACK,TRIM2# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0E140C0 |
GSU5#..LE..ARL WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),BLACK,TRIM2# |
1 | ||
| 55449-0E150C0 |
GSU5#..LE..ARL LEATHER PACKAGE & BLACK PACKAGE,BLACK,TRIM2# |
1 | ||
| 55449-0E130C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55449-0E130C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55449-0E150C0 |
GSU5#..LE..ARL LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0E140C0 |
GSU5#..LE..ARL WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),BLACK,TRIM2# |
1 | ||
| 55449-0E150C0 |
GSU5#..LE..ARL LEATHER PACKAGE & BLACK PACKAGE,BLACK,TRIM2# |
1 | ||
| 55449-0E130C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55449-0E130C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55449-0E150C0 |
GSU5#..LE..ARL LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-0E040C0 |
GSU5#..ARL BLACK,TRIM2# |
1 | ||
| 55450-0E040C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-0E030C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55471-0E030C0 |
GSU5#..ARL BLACK,TRIM2# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-0E060 |
GSU5#..ARL |
1 | ||
| 55474-0E060 |
GSU5#..ARL |
1 | ||
| 55503D - SPRING(FOR GLOVE COMPARTMENT) | ||||
| 55518-0E020 |
ASU50,GSU5# |
1 | ||
| 55518-0E020 |
ASU50,GSU5# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E070 |
ASU50,GSU5# |
1 | ||
| 55539-0E070 |
GSU55..RUS;ASU50,GSU50 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E070 |
ASU50,GSU5# |
1 | ||
| 55539-0E070 |
GSU55..RUS;ASU50,GSU50 |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-0E010 |
GSU55..LE..ARL;ASU50,GSU50..LE LEATHER PACKAGE |
1 | ||
| 55539-0E010 |
ASU50,GSU5#..LE |
1 | ||
| 55539-0E010 |
GSU5#..LE..ARL LEATHER PACKAGE & BLACK PACKAGE |
1 | ||
| 55539-0E010 |
GSU55..LE..ARL;ASU50,GSU50..LE |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASU50,GSU5# |
2 | ||
| 55557-60050 |
ASU50,GSU5# |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASU50,GSU5# |
2 | ||
| 55557-60050 |
ASU50,GSU5# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0E030 |
GSU5#..ARL |
1 | ||
| 55606-0E030 |
GSU5#..ARL |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0E080 |
GSU5#..ARL |
1 | ||
| 55607-0E080 |
GSU5#..ARL |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-0E150C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55618-0E150C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0E060C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55650-0E060C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0E060C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55660-0E060C0 |
GSU5#..LE..ARL BLACK,TRIM2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0E080 |
GSU5#..ARL |
1 | ||
| 55670-0E080 |
GSU5#..ARL |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0E050 |
GSU5#..ARL |
1 | ||
| 55680-0E050 |
GSU5#..ARL |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ASU50,GSU5# |
2 | ||
| 58959-60060 |
ASU50,GSU5# |
2 | ||
| Common parts | ||||
| 90080-11372 | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-17191 | ||||
| 90119-A0237 | ||||
| 90119-A0334 | ||||
| 90159-A0042 | ||||
| 90168-40027 | ||||
| 90467-09241 | ||||
| 90467-10201 | ||||
| 90467-A0011 | ||||
| 93530-53008 | ||||
