AXUH78L-ARXNHV (2020)

Toyota Highlander/Kluger

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

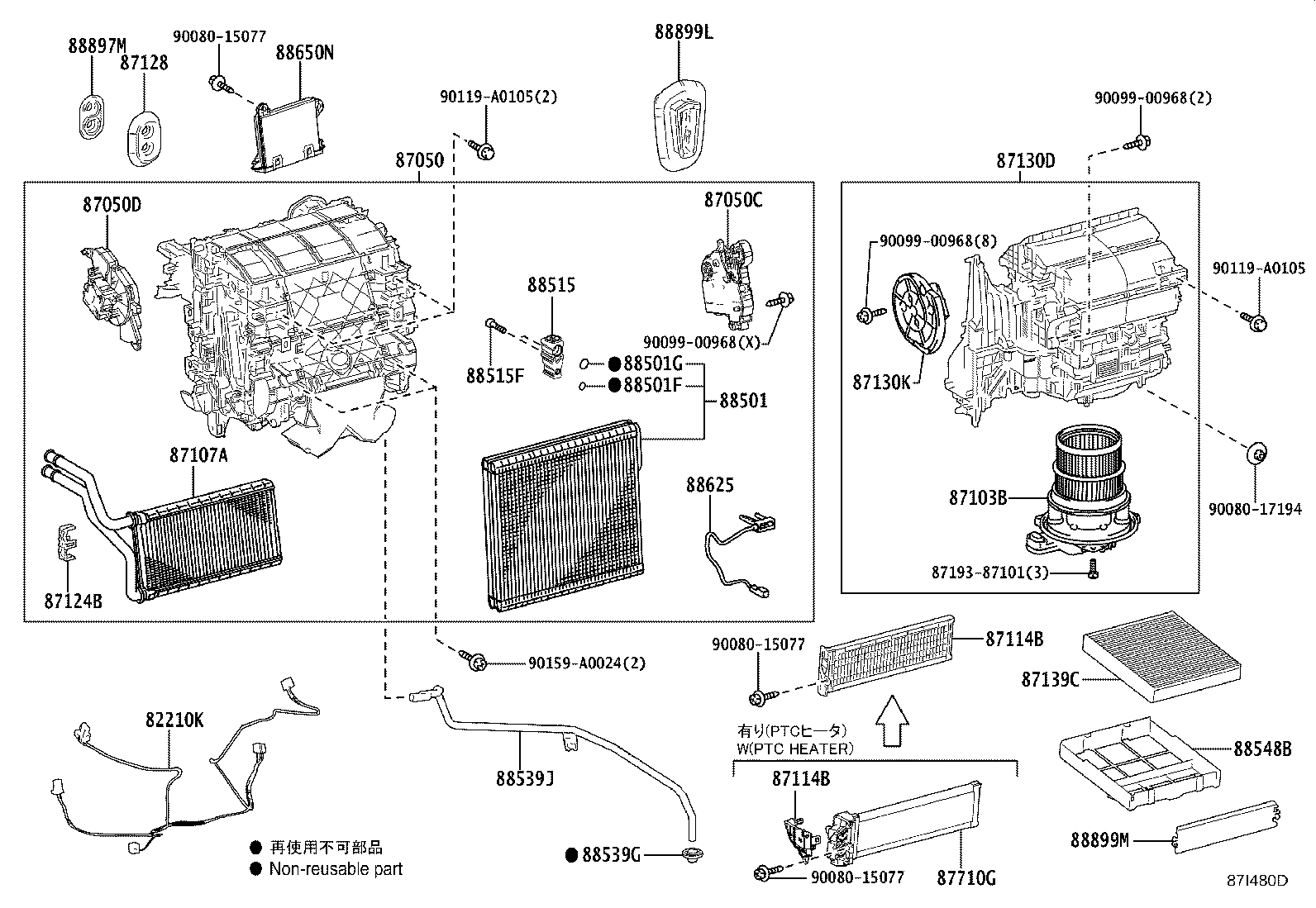

ILLUST NO. 1 OF 2(2002- )GCC,RUS

Click highlighted areas on diagram

FRONT

diagram 82210K 87050 87050C 87050D 87103B 87107A 87114B 87114B 87124B 87128 87130D 87130K 87139C 8719387101 87710G 88501 88501F 88501G 88515 88515F 88539G 88539J 88548B 88625 88650N 88897M 88899L 88899M 9008015077 9008015077 9008015077 9008017194 9009900968 9009900968 9009900968 90119A0105 90119A0105 90159A0024
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-0E060

AXUH7#,GSU75..LHD

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0E350

AXUH7#..GCC

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-06420

AXUH7#;GSU7#..LIMD;GSU75..LE..RUS

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-0E110

AXUH7#,GSU75..LHD

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0E090

AXUH7#,GSU75..LHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-06100

AXUH7#,GSU75..LHD

 1
87114B - COVER, HEATER
87114-06090

AXUH7#,GSU7#..ARL,EUR,GCC

 1
87114B - COVER, HEATER
87114-06090

AXUH7#,GSU7#..ARL,EUR,GCC

 1
87124B - CLAMP, HEATER
87124-07030

AXUH7#,GSU7#

 1
87128 - GROMMET, HEATER
87128-06010

AXUH7#,GSU7#

 1
87130D - BLOWER ASSY
87130-06410

AXUH7#,GSU75..LHD

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-0E130

AXUH7#,GSU75..LHD

 1
87139C - FILTER, CLEAN AIR
87139-58010

AXUH7#,GSU7#

DEODORANT FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0E190

AXUH7#..GCC

 1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90069-08007

AXUH7#,GSU7#

ID=10.8,OD=15.6

 1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90069-08009

AXUH7#,GSU7#

ID=13.4,OD=18.2

 1
88515 - VALVE, COOLER EXPANSION
88515-0E160

GSU7#;AXUH7#..GCC

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

AXUH7#,GSU7#

 2
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-06020

AXUH7#,GSU7#

 1
88539J - HOSE, DRAIN COOLER
88539-0E100

AXUH7#,GSU75..LHD

 1
88548B - CASE, AIR FILTER
88899-0R010

AXUH7#,GSU7#

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0E050

AXUH7#,GSU75..GCC,RUS

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0E500

AXUH7#,GSU7#..ARL,GCC,RUS

 1
88897M - GROMMET (FOR HEATER PIPE)
87128-28010

AXUH7#,GSU7#

 1
88899L - PARTS, COOLING UNIT
88899-06280

GSU7#;AXUH7#..GCC

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-06310

AXUH7#,GSU7#

 1
Common parts
87193-87101
90080-15077
90080-17194
90099-00968
90119-A0105
90159-A0024

ILLUST NO. 2 OF 2(2002- )

Click highlighted areas on diagram

REAR

diagram 82210L 87030A 87103D 87106W 87106X 87107B 87165C 8719387101 87417A 88501J 88501L 88501R 88539K 8889120240 88892Q 88897L 88899K 9009900968 9009904542 90119A0105 90119A0105 90119A0105 90119A0105
Part # Description Qty Price
82210L - HARNESS ASSY, AIR CONDITIONER, NO.2
82212-0E090

AXUH7#,GSU7#

 1
87030A - UNIT ASSY, COOLING, REAR
87030-0E090

AXUH7#

 1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-0C061

AXUH7#,GSU7#

 1
87106W - SERVO SUB-ASSY, DAMPER(FOR AIRMIX REAR)
87106-0E190

AXUH7#,GSU7#

 1
87106X - SERVO SUB-ASSY, DAMPER(FOR MODE REAR)
87106-0E160

AXUH7#,GSU7#

 1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-0E060

AXUH7#,GSU7#

 1
87165C - CONTROL, BLOWER MOTOR
87165-36010

AXUH7#,GSU7#

 1
87417A - PACKING, AIR DUCT
87417-0E010

AXUH7#,GSU7#

 1
88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION)
90069-08009

AXUH7#,GSU7#

ID=13.4,OD=18.2

 1
88501L - O-RING, COOLER EVAPORATOR NO.2(LIQUID)
90069-08007

AXUH7#,GSU7#

ID=10.8,OD=15.6

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-0C120

AXUH7#

 1
88501-0E200

AXUH7#

A/C OIL:ND-OIL11

 1
88539K - HOSE, DRAIN COOLER
88539-0E120

AXUH7#,GSU7#

 1
88892Q - PLATE, COOLER
88892-0C030

AXUH7#,GSU7#

 1
88897L - GROMMET (FOR DRAIN HOSE)
90480-26030

AXUH7#,GSU7#

 1
88899K - PLATE, COVER
88899-60450

AXUH7#,GSU7#

 1
Common parts
87193-87101
88891-20240
90099-00968
90099-04542
90119-A0105
