AXUH78L-ARXNHV (2020)
Toyota Highlander/Kluger
ILLUST NO. 1 OF11(2002- )AXUH7#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-33V10 |
AXUH7# |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-42K60 |
AXUH7# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
AXUH7# |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-10010 |
AXUH7# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0E280 |
AXUH7# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-0R100 |
AXUH7# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33051 |
AXUH7# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
AXUH7# (J) |
1 | ||
| 89615-06010 |
AXUH7# (L) |
1 | ||
| Common parts | ||||
| 90105-A0120 | ||||
| 90105-A0127 | ||||
| 90119-06A23 | ||||
| 90119-A0160 | ||||
| 90119-A0476 | ||||
| 90178-A0023 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 2 OF11(2002- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-F0040 |
A25AFXS,2GRFKS..AXUH7#,GSU7#..ARL,EUR,GCC |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-F0070 |
A25AFXS..AXUH7# |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-A0507 | ||||
| 90178-06025 | ||||
| 90178-A0103 | ||||
| 90178-A0112 | ||||
ILLUST NO. 3 OF11(2002- )AXUH7#
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
A25AFXS,2GRFKS..AXUH7#,GSU7# (J) |
1 | ||
| 90080-87026 |
A25AFXS,2GRFKS..AXUH7#,GSU7# (L) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08312 |
AXUH7#,GSU7# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08308 |
AXUH7#,GSU7# 40A-30A-30A,FEMALE |
1 | ||
| 90982-08302 |
AXUH7#,GSU7# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08298 |
AXUH7#,GSU7# 30A,TERMINAL:FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
AXUH7#,GSU7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
AXUH7#,GSU7# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
AXUH7#,GSU7# 25A,MINI FUSE |
1 | ||
| 90982-09019 |
AXUH7#,GSU7# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AXUH7#,GSU7# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
AXUH7#,GSU7# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
AXUH7#,GSU7# 15A,MINI FUSE,BLUE |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0E050 |
AXUH7# |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-0E060 |
AXUH7#;GSU7#..LE;GSU75..LIMD..RUS |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0E070 |
AXUH7# |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87026 |
AXUH7#,GSU7# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0E050 |
AXUH7#,GSU7# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0E060 |
AXUH7#,GSU7# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0E080 |
AXUH7# |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0E090 |
AXUH7#;GSU7#..LE;GSU75..LIMD..RUS |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0E060 |
AXUH7#,GSU7# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0E370 |
AXUH7#..EUR,GCC |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0E460 |
AXUH7#,GSU7# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-0E410 |
AXUH7#,GSU75..(LE,XLE)..(EUR,GCC,RUS) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0E110 |
AXUH7#,GSU7# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0E080 |
AXUH7# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-0E130 |
AXUH7# |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-0E090 |
AXUH7#;GSU7#..LE;GSU75..LIMD..RUS |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0E240 |
AXUH7#,GSU7# |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-0E070 |
AXUH7#,GSU7# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-0E010 |
AXUH7#;GSU7#..LE;GSU75..LIMD..RUS |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90080-87026 |
AXUH7#,GSU7# (L) |
1 | ||
| 90987-02027 |
AXUH7#,GSU7# (J) |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90080-87026 |
AXUH7#,GSU7#..LE,XLE |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90084-98032 |
AXUH7#,GSU7# |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90080-87026 |
AXUH7# (L) |
1 | ||
| 90987-02027 |
AXUH7# (J) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87026 |
AXUH7#,GSU7# |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90080-87026 |
AXUH7#,GSU7# |
1 | ||
| 85960D - RELAY, HEADLAMP, RH | ||||
| 90080-87026 |
AXUH7#,GSU7# |
1 | ||
| 85960E - RELAY, HEADLAMP, LH | ||||
| 90080-87026 |
AXUH7#,GSU7# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
AXUH7#,GSU7# |
1 | ||
| 87989A - RELAY, MIRROR NO.1 | ||||
| 90084-98032 |
AXUH7#,GSU7#..LE,XLE |
1 | ||
| 87989B - RELAY, MIRROR NO.2 | ||||
| 90084-98032 |
AXUH7#,GSU7#..LE,XLE |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90080-87026 |
AXUH7#,GSU7# (L) |
1 | ||
| 90987-02027 |
AXUH7#,GSU7# (J) |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90080-87026 |
AXUH7# (L) |
1 | ||
| 90987-02027 |
AXUH7# (J) |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90080-87024 |
AXUH7# (L) |
1 | ||
| 90987-02025 |
AXUH7# (J) |
1 | ||
| G1167A - RELAY (FOR OIL PUMP MOTOR) | ||||
| 90987-02027 |
AXUH7# (J) |
1 | ||
| 90080-87026 |
AXUH7# (L) |
1 | ||
| G9020E - RELAY, HYBRID WATER PUMP | ||||
| 90080-87026 |
AXUH7# MARK 90080-87026 |
1 | ||
| 90987-02027 |
AXUH7# MARK 90987-02027 |
1 | ||
| Common parts | ||||
| 90178-A0023 | ||||
| 94151-80600 | ||||

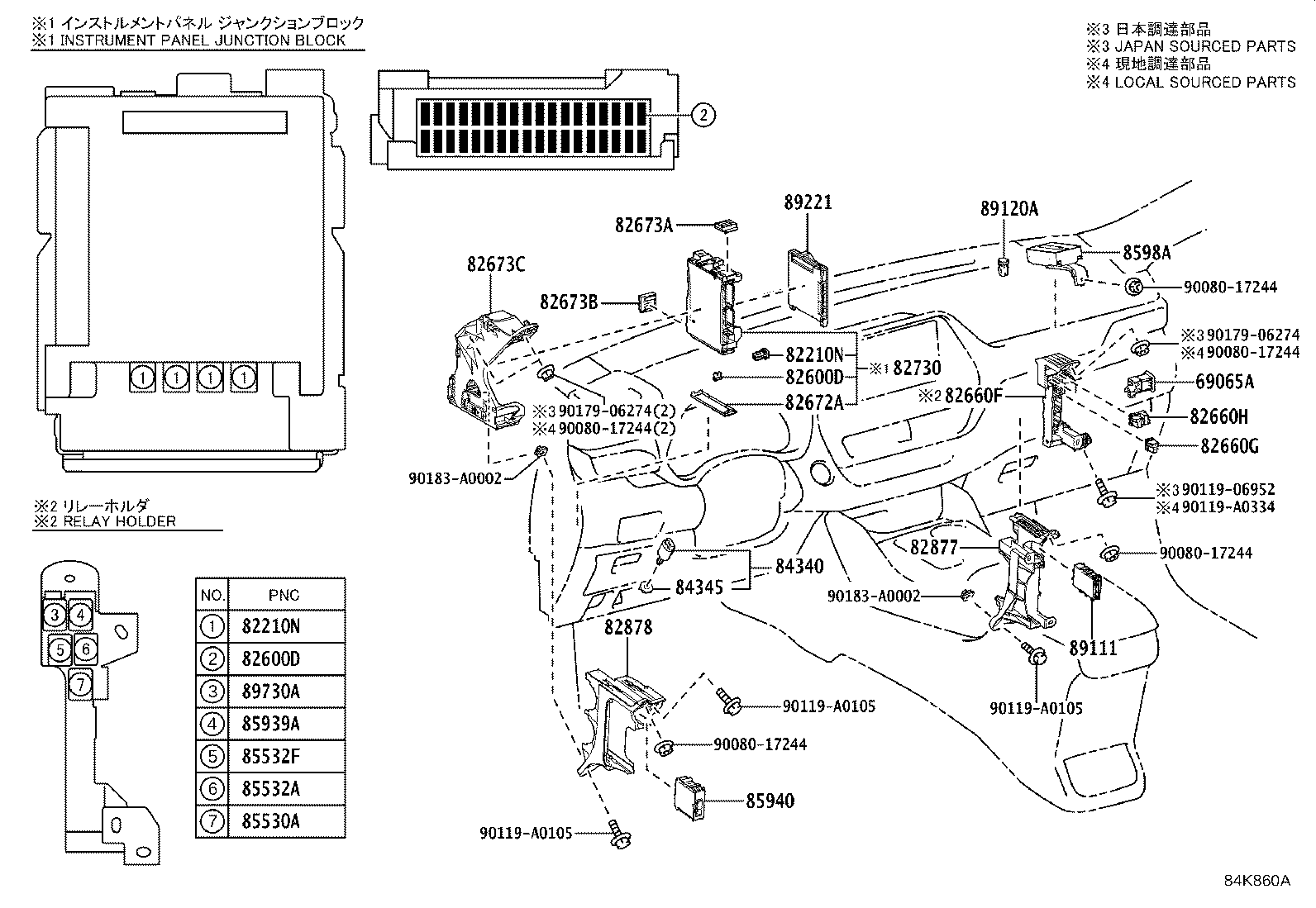

ILLUST NO. 4 OF11(2002- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXUH7#,GSU7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXUH7#,GSU7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
AXUH7#,GSU7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
AXUH7#,GSU7# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AXUH7#,GSU7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXUH7#,GSU7# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
AXUH7#,GSU7# 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
AXUH7#,GSU7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
AXUH7#,GSU7# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AXUH7#,GSU7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXUH7#,GSU7# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
AXUH7#,GSU7# 10A,MINI FUSE,RED |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0E020 |
AXUH7#,GSU75..LHD |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-0E010 |
AXUH7#,GSU7# |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
AXUH7#,GSU7# |
2 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0E120 |
AXUH7#,GSU7# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E090 |
AXUH7#,GSU75..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E120 |
AXUH7#,GSU75..LHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E150 |
AXUH7#,GSU75..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0EB20 |
AXUH7#,GSU75..EUR,GCC,RUS |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-06030 |
AXUH7#,GSU75..LHD |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-0E030 |
AXUH7#,GSU75..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09291 |
AXUH7#,GSU7# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
AXUH7#,GSU7# |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90080-87026 |
AXUH7#,GSU7# |
1 | ||
| 85532A - RELAY, USB | ||||
| 90080-87026 |
AXUH7#,GSU7# |
1 | ||
| 85532F - RELAY, USB, NO.2 | ||||
| 90080-87026 |
AXUH7#,GSU7# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-48080 |
AXUH7#,GSU75..LHD |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-0E120 |
AXUH7# |
1 | ||
| 89111-0E060 |
AXUH7# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-0E060 |
AXUH7#,GSU7# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0E720 |
AXUH7#..LE..GCC LEBANON SPEC |
1 | ||
| 89220-0E700 |
AXUH7#..LE..GCC |
1 | ||
| 89220-0E710 |
AXUH7#..LE..GCC JORDAN SPEC |
1 | ||
| Common parts | ||||
| 90080-17244 | ||||
| 90119-06952 | ||||
| 90119-A0105 | ||||
| 90119-A0334 | ||||
| 90179-06274 | ||||
| 90183-A0002 | ||||

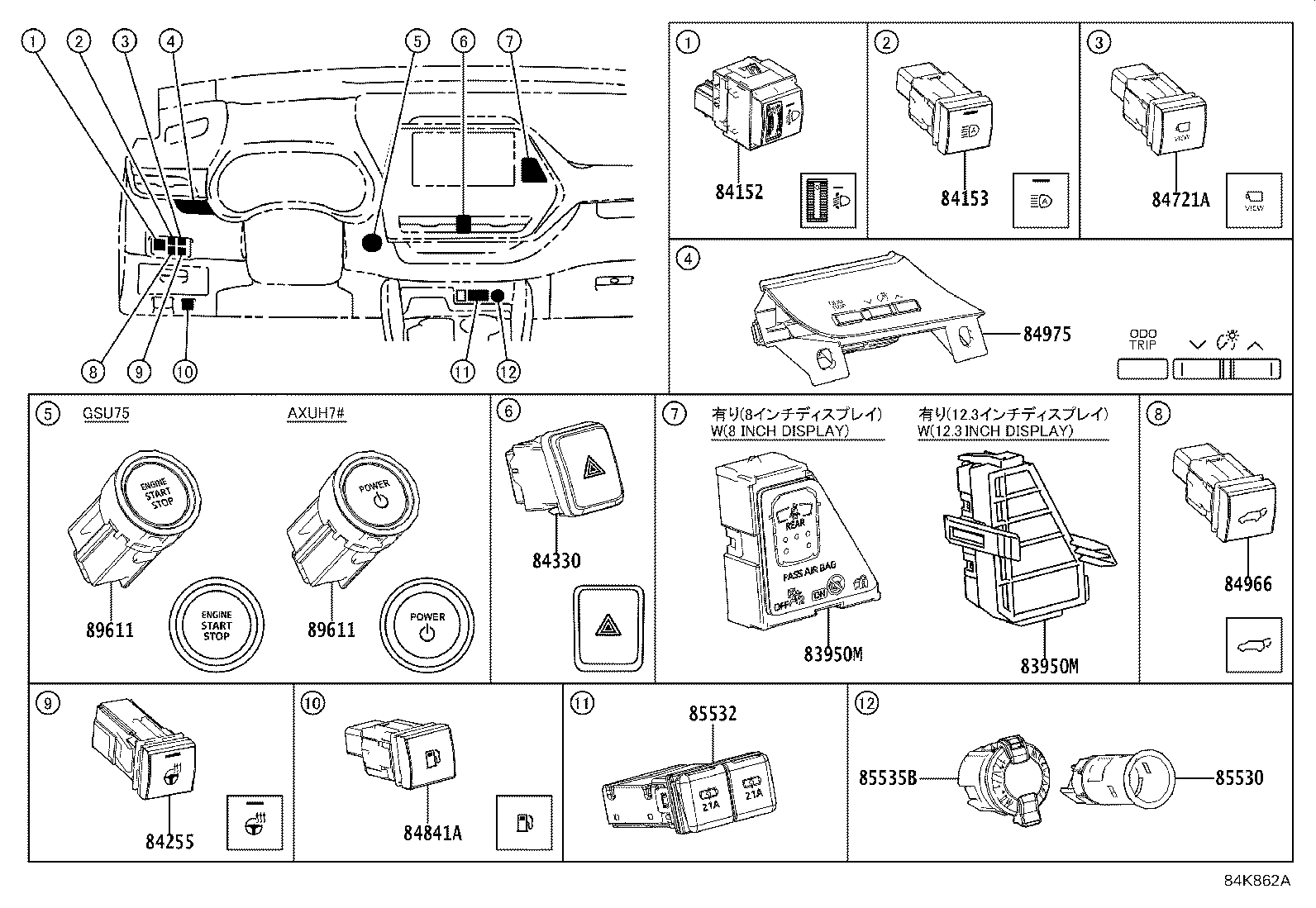

ILLUST NO. 5 OF11(2002- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0E100 |
AXUH7#..GCC |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0E100 |
AXUH7#..GCC |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0E050 |
AXUH7#,GSU7# |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-0R010 |
GSU75..LIMD..RUS;AXUH7#,GSU7#..ARL,EUR,GCC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-48060 |
AXUH7#,GSU7# |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-0R020 |
AXUH7#,GSU7# |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-0E020 |
AXUH7#,GSU75..LHD |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-06030 |
AXUH7#,GSU7# |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-0E010 |
AXUH7#,GSU7# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0R030 |
AXUH7#,GSU7# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0E070 |
AXUH7# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0E070 |
AXUH7# |
1 | ||

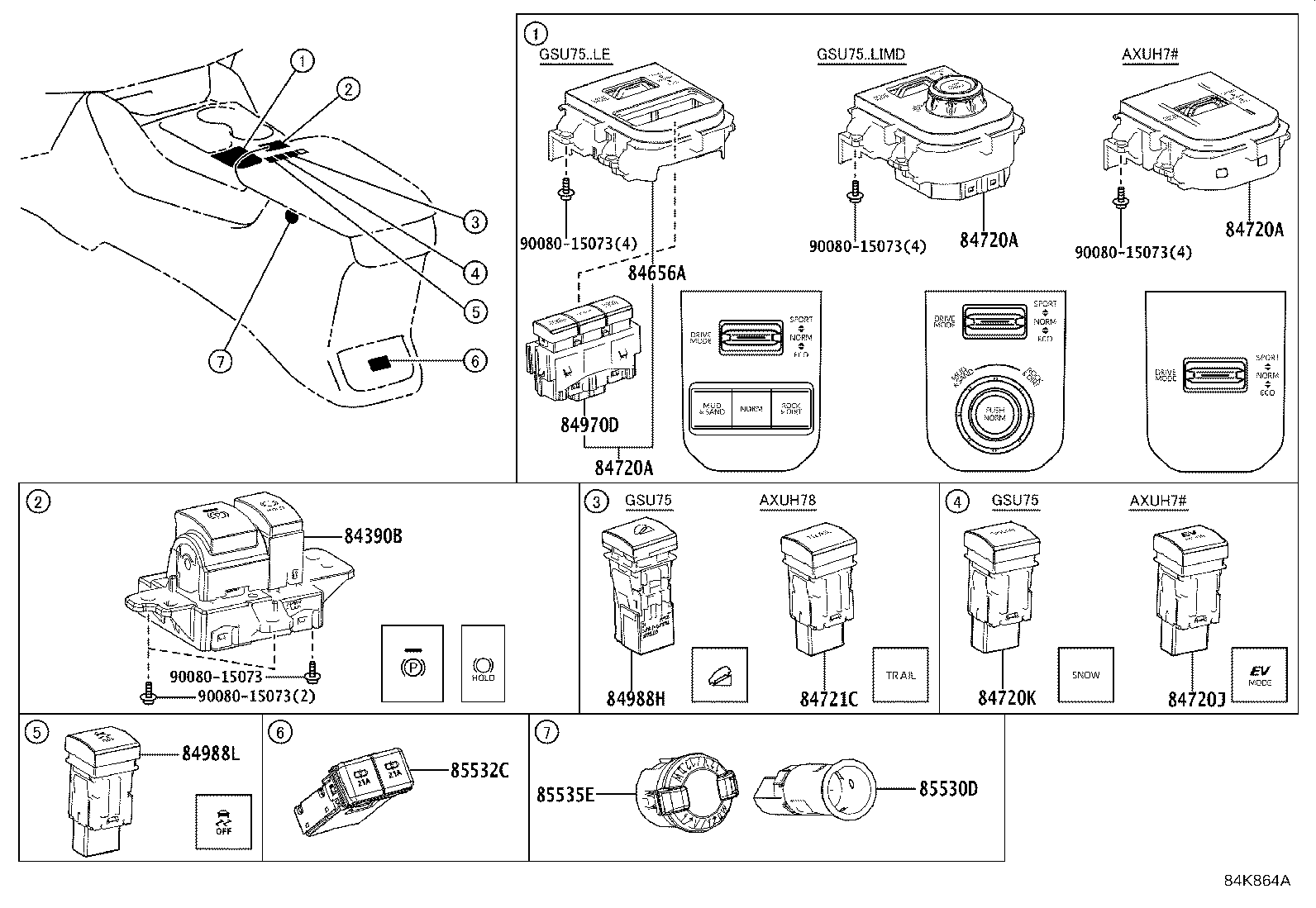

ILLUST NO. 6 OF11(2002- )LHD
CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-0E020 |
AXUH7#,GSU75..LHD |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84721-0E030 |
AXUH7#..LHD |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84721-0E030 |
AXUH7#..LHD |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84721-0E030 |
AXUH7#..LHD |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-0E080 |
AXUH7# |
1 | ||
| 84721C - SWITCH, PATTERN SELECT | ||||
| 84721-0E090 |
AXUH78 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0E120 |
AXUH7#,GSU7# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-06030 |
AXUH7#,GSU7# |
1 | ||
| 85532C - SOCKET, USB CHARGER, NO.2 | ||||
| 85532-0E010 |
AXUH7#,GSU7# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0R030 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
ILLUST NO. 7 OF11(2002- )LHD

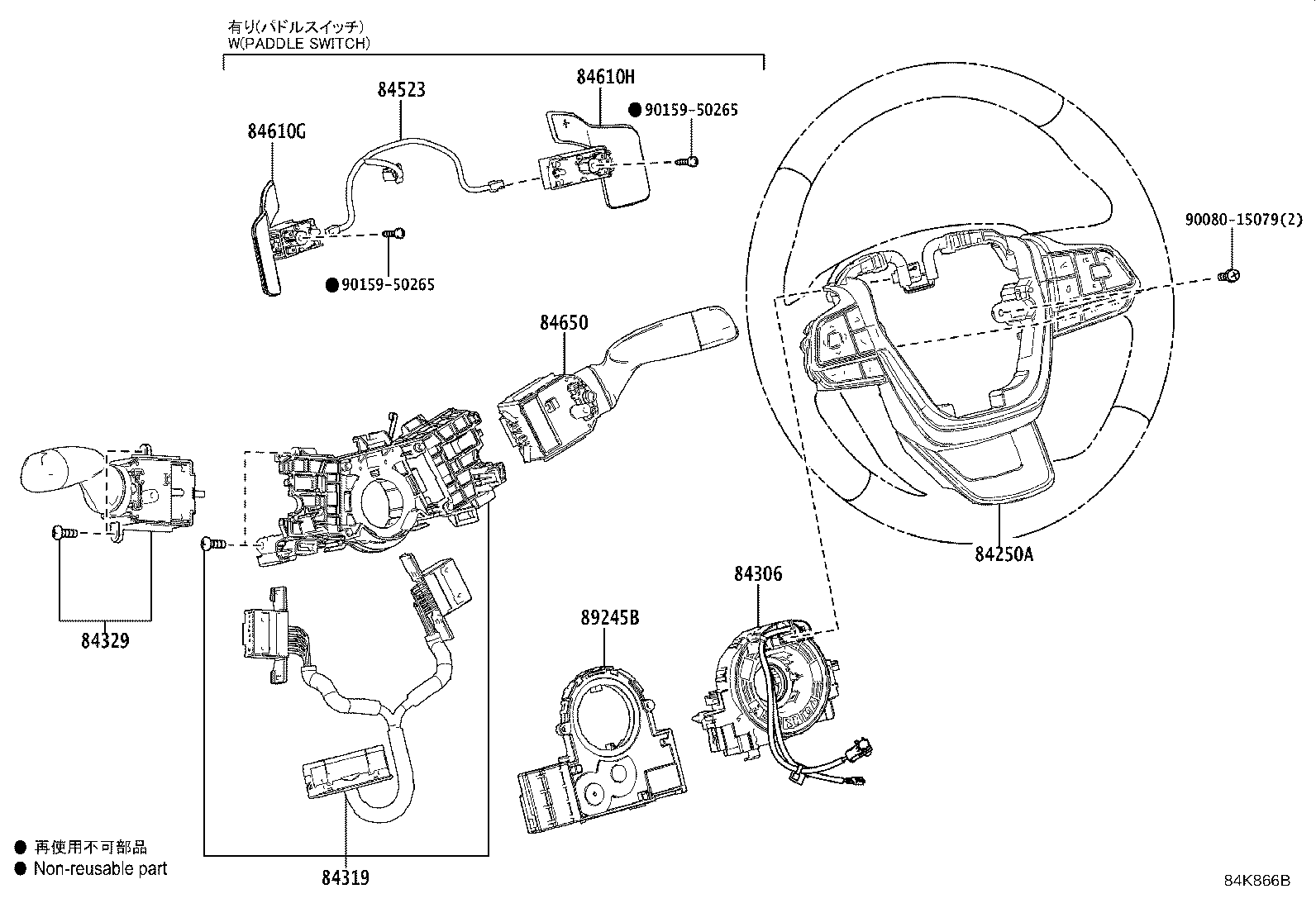

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0E470 |
GSU75..LIMD..RUS;AXUH7#,GSU7#..ARL,EUR,GCC |
1 | ||
| 84250-0E460 |
AXUH7#..(LE,XLE)..GCC IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-0E010 |
AXUH78..LHD..EUR;AXUH7#,GSU7#..ARL,GCC |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-02020 |
AXUH7#,GSU75..EUR,GCC,RUS |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-0E010 |
AXUH7#..GCC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0R120 |
AXUH7#..(LE,XLE)..GCC |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-06170 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90159-50265 | ||||
ILLUST NO. 8 OF11(2002- )LHD

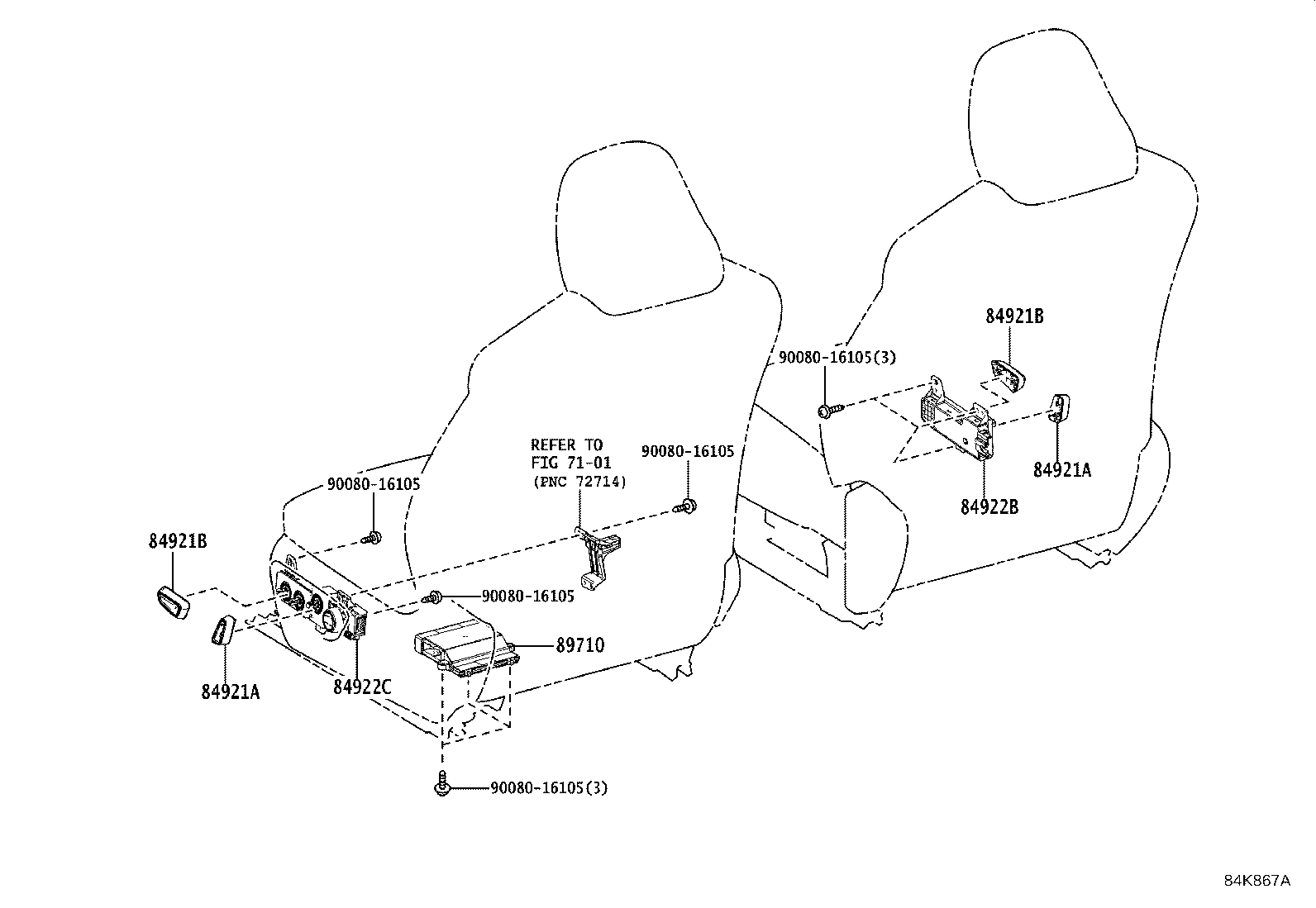

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-06190C0 |
AXUH7#..GCC;AXUH78,GSU75..LHD..(LE,XLE)..(EUR,RUS) BLACK,TRIM2#,LH |
1 | ||
| 84921-06190B1 |
AXUH70;AXUH78,GSU7#..LIMD;AXUH78,GSU75..LHD..(LE,XLE) GRAY,TRIM1#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-06190C0 |
AXUH7#..GCC;AXUH78,GSU75..LHD..(LE,XLE)..(EUR,RUS) BLACK,TRIM2#,LH |
1 | ||
| 84921-06190B1 |
AXUH70;AXUH78,GSU7#..LIMD;AXUH78,GSU75..LHD..(LE,XLE) GRAY,TRIM1#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-06100B1 |
AXUH70;AXUH78,GSU7#..LIMD;AXUH78,GSU75..LHD..(LE,XLE) GRAY,TRIM1#,LH |
1 | ||
| 84921-06100C0 |
AXUH7#..GCC;AXUH78,GSU75..LHD..(LE,XLE)..(EUR,RUS) BLACK,TRIM2#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-06100B1 |
AXUH70;AXUH78,GSU7#..LIMD;AXUH78,GSU75..LHD..(LE,XLE) GRAY,TRIM1#,LH |
1 | ||
| 84921-06100C0 |
AXUH7#..GCC;AXUH78,GSU75..LHD..(LE,XLE)..(EUR,RUS) BLACK,TRIM2#,LH |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-06180C0 |
AXUH7#,GSU75..LHD..(LE,XLE) BLACK,TRIM2# |
1 | ||
| 84922-06180B1 |
AXUH7#,GSU75..LHD..(LE,XLE) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90080-16105 | ||||
| Linked diagrams | ||||
| 7101 | ||||
ILLUST NO. 9 OF11(2002- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0E130 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0E130 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
AXUH7#,GSU7# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
AXUH7#,GSU7# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
AXUH7#,GSU7# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-08030 |
AXUH7#,GSU7# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E120 |
AXUH7#,GSU7#..LE,XLE |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E120 |
AXUH7#,GSU7#..LE,XLE |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E120 |
AXUH7#,GSU7#..LE,XLE |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E120 |
AXUH7#,GSU7#..LE,XLE |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0E120 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0E120 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| Common parts | ||||
| 90080-15074 | ||||
| 90080-16098 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90189-06227 | ||||
ILLUST NO.10 OF11(2002- )AXUH7#
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-F0040 |
A25AFXS,2GRFKS..AXUH7#,GSU7#..ARL,EUR,GCC |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-F0070 |
A25AFXS..AXUH7# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0E060 |
AXUH7# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47060 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90080-17245 | ||||
| 90080-18062 | ||||
| 90119-06952 | ||||
| 90119-A0334 | ||||
| 90177-06001 | ||||
| 90178-A0112 | ||||
| Linked diagrams | ||||
| 5202 | ||||
ILLUST NO.11 OF11(2002- )AXUH7#
FLOOR RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210R - LUGGAGE ROOM FUSIBLE LINK | ||||
| 90982-08298 |
AXUH7# |
1 | ||
| 82600L - LUGGAGE ROOM FUSE | ||||
| 90982-09020 |
AXUH7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AXUH7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AXUH7# 10A,MINI FUSE,RED |
1 | ||
| 82610D - BLOCK ASSY, FUSE | ||||
| 82610-0E030 |
AXUH7# |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0E050 |
AXUH7# |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-0E030 |
AXUH7# |
1 | ||
| 82660K - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
AXUH7# |
1 | ||
| 82663D - COVER, RELAY BLOCK, LOWER, NO.5 | ||||
| 82663-0E100 |
AXUH7# |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02031 |
AXUH7# |
1 | ||
| G9230A - RELAY, BATTERY FAN, NO.1 | ||||
| 90080-87026 |
AXUH7# |
1 | ||
| G9230B - RELAY, BATTERY FAN, NO.2 | ||||
| 90080-87026 |
AXUH7# |
1 | ||
| Common parts | ||||
| 90080-17244 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
