AXUH78L-ARXNHV (2020)

Toyota Highlander/Kluger

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )LHD

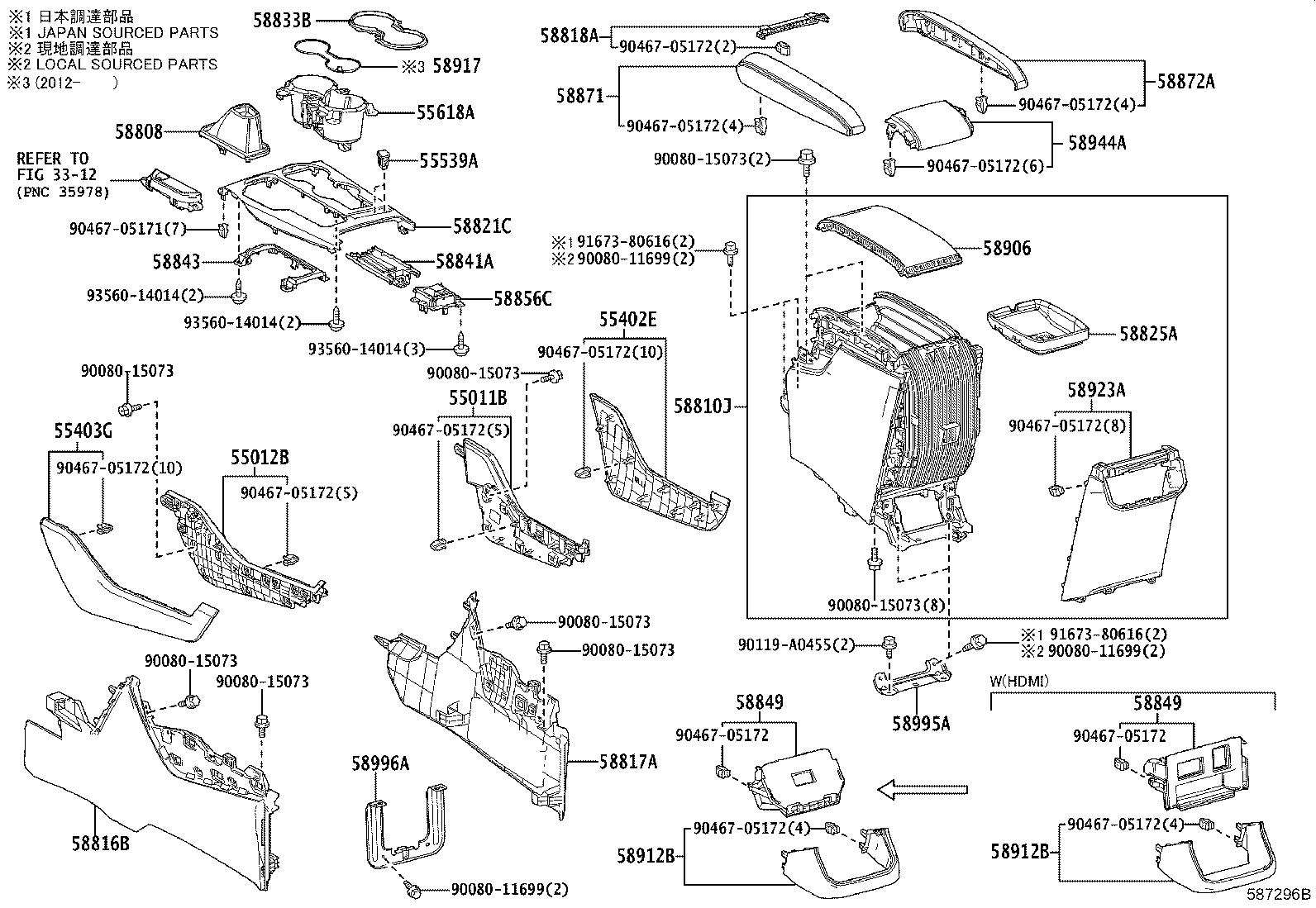

Click highlighted areas on diagram

diagram 3312 55011B 55012B 55402E 55403G 55539A 55618A 58808 58810J 58816B 58817A 58818A 58821C 58825A 58833B 58841A 58843 58849 58849 58856C 58871 58872A 58906 58912B 58912B 58917 58923A 58944A 58995A 58996A 9008011699 9008011699 9008011699 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 90119A0455 9046705171 9046705172 9046705172 9046705172 9046705172 9046705172 9046705172 9046705172 9046705172 9046705172 9046705172 9046705172 9046705172 9046705172 9167380616 9167380616 9356014014 9356014014 9356014014
Part # Description Qty Price
55011B - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1
55011-0E010

AXUH7#,GSU7#..LE,XLE

 1
55012B - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-0E010

AXUH7#,GSU7#..LE,XLE

 1
55402E - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
55402-0E030C0

AXUH7#,GSU7#..LE,XLE

BLACK,TRIM2#

 1
55402-0E030B0

AXUH7#,GSU7#..LE,XLE

GRAY,TRIM1#

 1
55403G - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
55403-0E070C0

AXUH7#,GSU7#..LE,XLE

BLACK,TRIM2#

 1
55403-0E070B0

AXUH7#,GSU7#..LE,XLE

GRAY,TRIM1#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-60350

GSU75..RUS;AXUH7#,GSU70

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-0E230

AXUH7#,GSU75..LHD

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-0E070C0

AXUH7#..(LE,XLE)..GCC

BLACK/GRAY,TRIM1#,2#

 1
58810J - BOX ASSY, CONSOLE
58810-0E330C0

AXUH7#,GSU7#

BLACK/GRAY,TRIM1#

 1
58810-0E330C1

AXUH7#,GSU7#

BLACK/BLACK,TRIM2#

 1
58816B - INSERT, CONSOLE BOX
58816-0E110C0

AXUH7#,GSU75..LHD

BLACK,TRIM1#,2#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-0E120C0

AXUH7#,GSU75..LHD

BLACK,TRIM1#,2#

 1
58818A - COVER, CONSOLE BOX, FR
58818-0E060C0

GSU7#;AXUH7#..EUR,GCC

BLACK,TRIM10,2#

 1
58818-0E060B0

GSU7#;AXUH7#..EUR,GCC

GRAY,TRIM10

 1
58821C - PANEL, CONSOLE, UPPER
58821-0E160

AXUH7#,GSU75..LHD..(LE,XLE)

 1
58825A - POCKET, CONSOLE BOX
58825-0E070

AXUH7#,GSU7#

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58831-0E090

AXUH7#,GSU75..LHD

 1
58841A - COVER, SHIFTING HOLE
58841-0E050

AXUH7#,GSU75..LHD

 1
58843 - BEZEL, SHIFTING HOLE
58843-0E070

AXUH7#,GSU75..LHD

 1
58849 - COVER, CONSOLE BOX HOLE, NO.2
58849-0E200

AXUH7#,GSU7#

 1
58849 - COVER, CONSOLE BOX HOLE, NO.2
58849-0E200

AXUH7#,GSU7#

 1
58856C - HOLDER, CONSOLE
58856-0E010

AXUH7#,GSU75..LHD

 1
58871 - CUSHION, CONSOLE BOX
58871-0E010B0

AXUH7#,GSU7#

GRAY/GRAY,TRIM1#

 1
58871-0E010C1

AXUH7#,GSU7#

BLACK/GRAY,TRIM2#

 1
58872A - CUSHION, CONSOLE BOX, NO.2
58872-0E010C1

AXUH7#,GSU7#

BLACK/GRAY,TRIM2#

 1
58872-0E010B0

AXUH7#,GSU7#

GRAY/GRAY,TRIM1#

 1
58906 - DOOR SUB-ASSY, UPPER CONSOLE
58906-0E050C0

AXUH7#,GSU7#

BLACK,TRIM2#

 1
58906-0E050B0

AXUH7#,GSU7#

GRAY,TRIM1#

 1
58912B - BOX, REAR CONSOLE, LOWER
58912-0E130C0

AXUH7#,GSU7#

BLACK,TRIM1#,2#

 1
58912B - BOX, REAR CONSOLE, LOWER
58912-0E130C0

AXUH7#,GSU7#

BLACK,TRIM1#,2#

 1
58917 - MAT, BOX BOTTOM, NO.2
58917-06140

AXUH7#,GSU7#

 1
58923A - PANEL, CONSOLE REAR END
58923-0E190

AXUH7#,GSU7#

 1
58944A - COVER, CONSOLE, REAR
58944-0E030C0

GSU7#;AXUH7#..EUR,GCC

BLACK,TRIM10,2#

 1
58944-0E030B0

GSU7#;AXUH7#..EUR,GCC

GRAY,TRIM10

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-0E090

AXUH7#,GSU7#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-0E040

AXUH7#,GSU7#

 1
Common parts
90080-11699
90080-15073
90119-A0455
90467-05171
90467-05172
91673-80616
93560-14014
Linked diagrams
3312
