AXUH78L-ARXMHV (2020)
Toyota Highlander/Kluger
Production
Feb 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

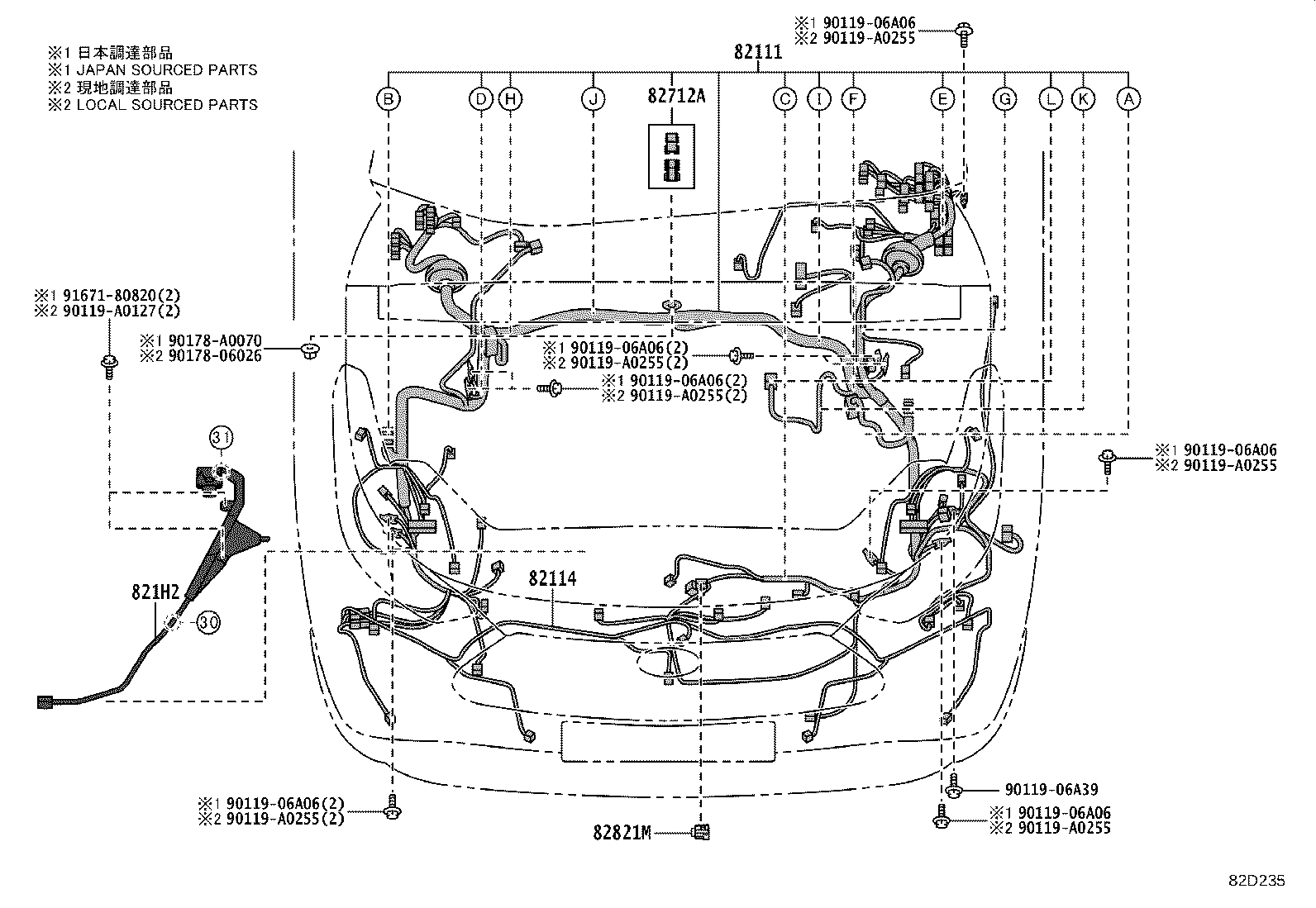

ILLUST NO. 1 OF29(2002- )AXUH7#..LHD
Click highlighted areas on diagram
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0EV80 |
AXUH78..(LE,XLE)..GCC |
1 | ||
| 82111-0EV50 |
AXUH78..(LE,XLE)..GCC IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-0E220 |
AXUH7#..(LE,XLE)..(EUR,GCC) |
1 | ||
| 82114-0E220 |
AXUH7#..(LE,XLE)..GCC IRAQ SPEC |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-0E030 |
AXUH7# |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-0E030 |
AXUH7# |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-0E040 |
AXUH7#..LE..GCC |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A39 | ||||
| 90119-A0127 | ||||
| 90119-A0255 | ||||
| 90178-06026 | ||||
| 90178-A0070 | ||||
| 91671-80820 | ||||

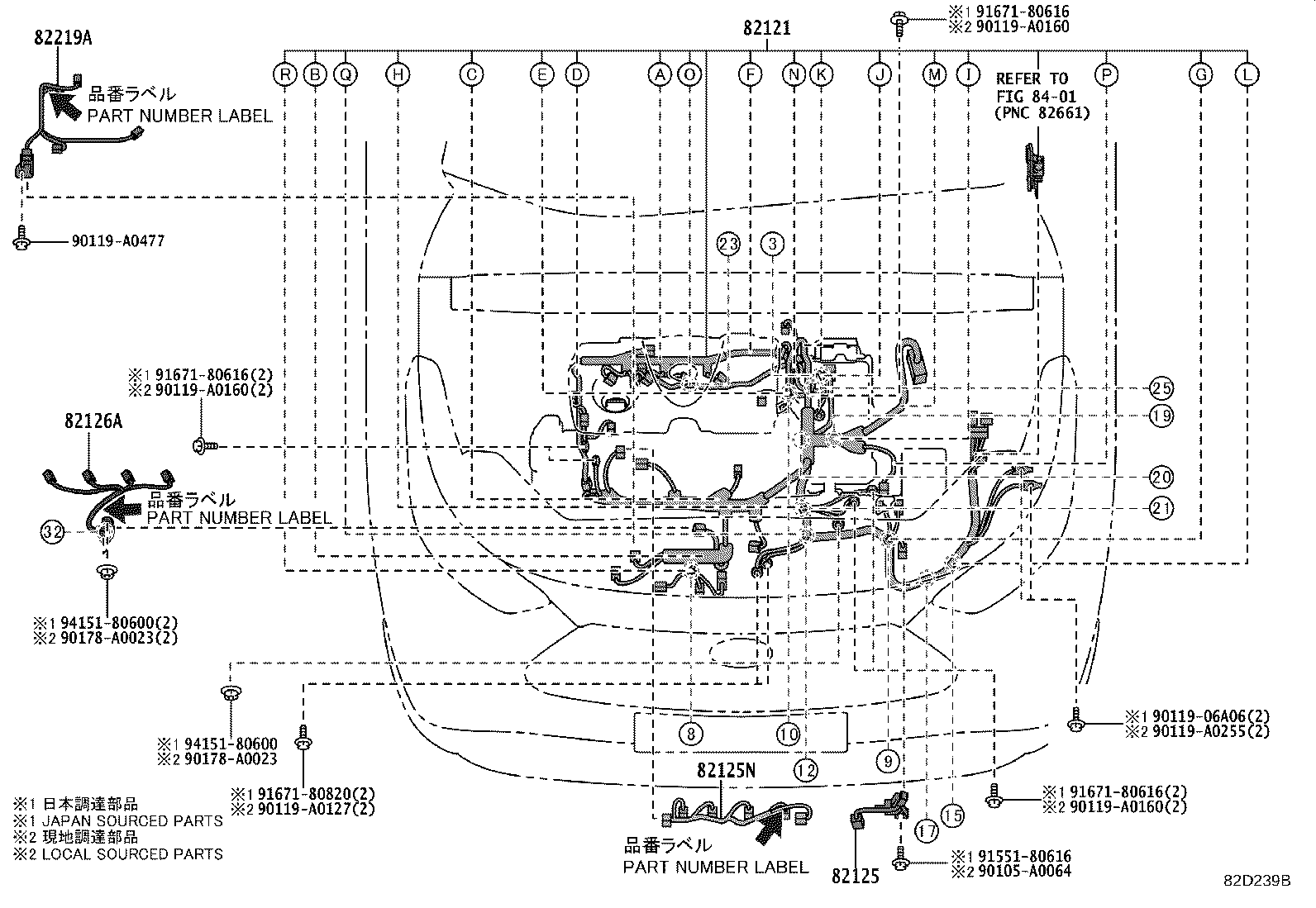

ILLUST NO. 9 OF29(2002- )AXUH7#..LHD
Click highlighted areas on diagram
ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0E350 |
AXUH7#..GCC |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-0E050 |
AXUH7# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-33180 |
AXUH7# P/N LABEL=8212533180 |
1 | ||
| 82125-06080 |
AXUH7# P/N LABEL=8212506080 |
1 | ||
| 82125-06060 |
AXUH7# P/N LABEL=8212506060 |
1 | ||
| 82125-33220 |
AXUH7# P/N LABEL=8212533220 |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-33050 |
AXUH7# P/N LABEL=8212633050 |
1 | ||
| 82126-06010 |
AXUH7# P/N LABEL=8212606010 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-06100 |
AXUH7# P/N LABEL=8221906100 |
1 | ||
| 82219-33140 |
AXUH7# P/N LABEL=8221933140 |
1 | ||
| Common parts | ||||
| 90105-A0064 | ||||
| 90119-06A06 | ||||
| 90119-A0127 | ||||
| 90119-A0160 | ||||
| 90119-A0255 | ||||
| 90119-A0477 | ||||
| 90178-A0023 | ||||
| 91551-80616 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

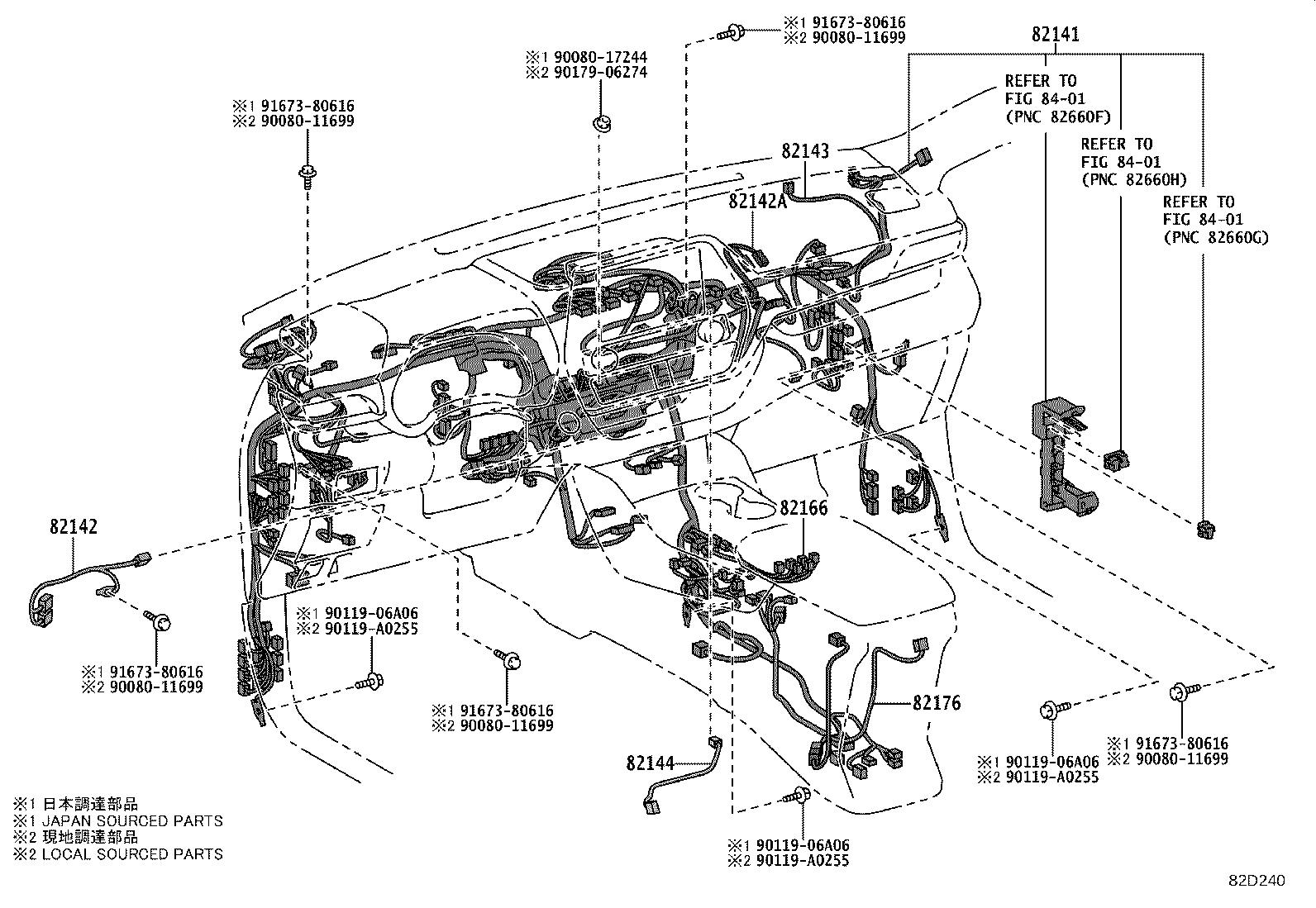

ILLUST NO.17 OF29(2002- )LHD
Click highlighted areas on diagram
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0EP80 |
AXUH7#..(LE,XLE)..GCC |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0E030 |
AXUH7#,GSU7# |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-0E030 |
AXUH7#,GSU75..LHD |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-0E280 |
AXUH7#,GSU7# |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-0E170 |
AXUH78..LHD |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-0E200 |
AXUH7#,GSU7# |
1 | ||
| 82176-0E210 |
AXUH7#,GSU7#..(LIMD,XLE)..(ARL,GCC) TELEVISION & DVD PLAYER-WITH |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90119-06A06 | ||||
| 90119-A0255 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.22 OF29(2002- )AXUH7#
Click highlighted areas on diagram
HIGH VOLTAGE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-0E050 |
AXUH78 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-0E020 |
AXUH7# |
1 | ||
| G921G - PROTECTOR, INVERTER | ||||
| G921G-42010 |
AXUH78 |
1 | ||
| Common parts | ||||
| 90080-17244 | ||||
| 90119-A0264 | ||||
| 90119-A0296 | ||||
| 90178-06026 | ||||
| 90178-A0070 | ||||
| 90178-A0112 | ||||
| 90179-06274 | ||||
| 91673-80620 | ||||
| 91673-A0616 | ||||
| 94151-80801 | ||||
ILLUST NO.24 OF29(2002- )
Click highlighted areas on diagram
REAR SEAT
| Part # | Description | Qty | Price |
|---|
ILLUST NO.27 OF29(2002- )
Click highlighted areas on diagram
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-0E050 |
AXUH7# |
1 | ||
| Common parts | ||||
| 90119-A0255 | ||||
ILLUST NO. 2 OF29(2002- )AXUH7#..LHD
Click highlighted areas on diagram
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0E600 |
AXUH7#,GSU75..LHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0E550 |
AXUH7#..LHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-0E590 |
AXUH7#..LHD |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-0E570 |
AXUH7# |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-0E860 |
AXUH7# |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-0E870 |
AXUH7# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0EB50 |
AXUH7#,GSU7# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-0EB60 |
AXUH7#,GSU7# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0ED20 |
AXUH7#,GSU7# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-0EA50 |
AXUH7# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-0EA20 |
AXUH7#,GSU75..LHD |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0EA80 |
AXUH7#,GSU75..LHD |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-0EA70 |
AXUH7#..LHD |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-0EB00 |
AXUH7#..LHD |
1 | ||
| 82819J - PROTECTOR, WIRING HARNESS, NO.25 | ||||
| 82817-0EE00 |
AXUH7# |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-42010 |
AXUH7# |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-A0507 | ||||
| Linked diagrams | ||||
| 8401 | ||||

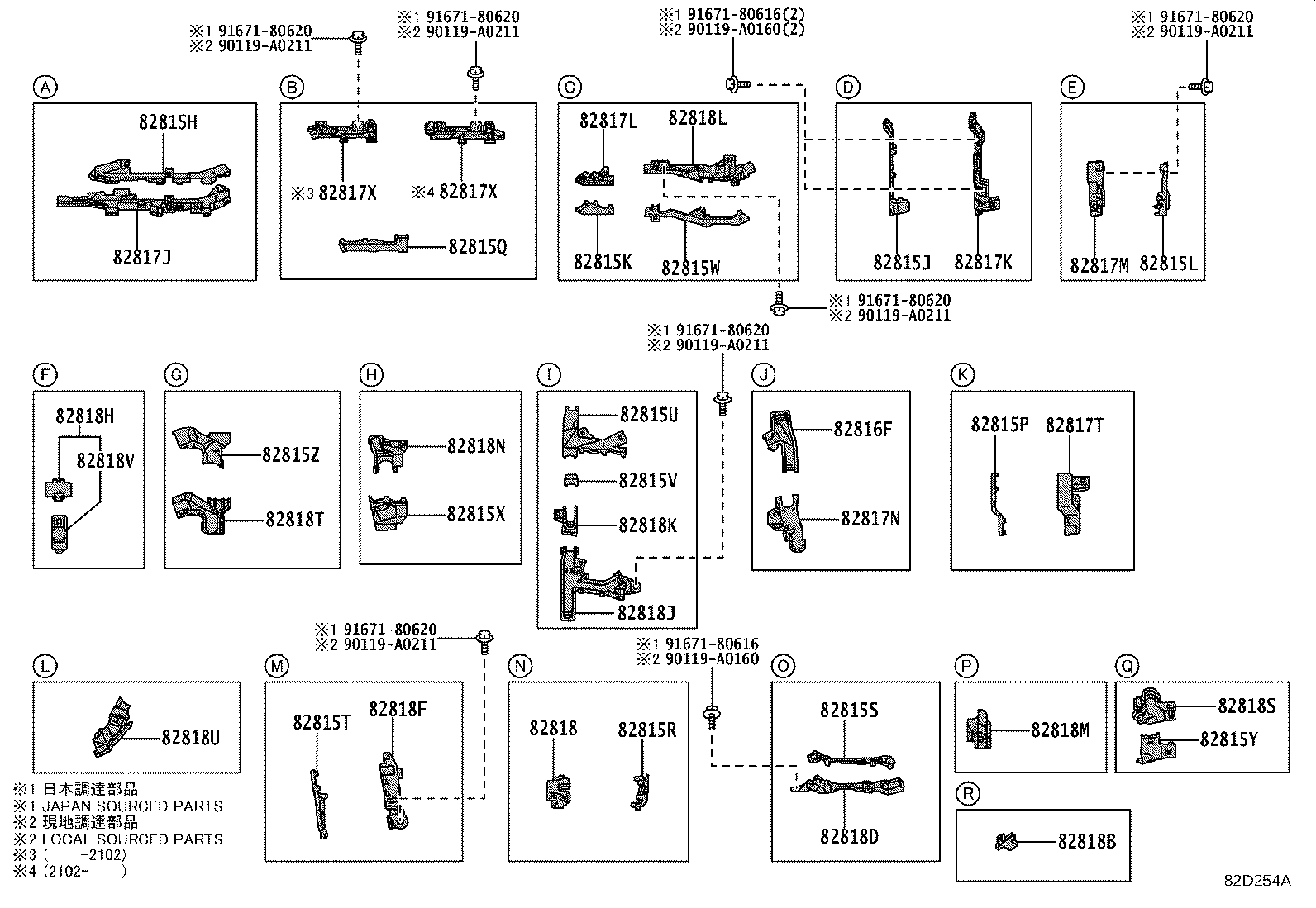

ILLUST NO.10 OF29(2002- )AXUH7#..LHD
Click highlighted areas on diagram
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-0E790 |
AXUH7# |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-33J00 |
AXUH7# |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33F70 |
AXUH7# |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-33M90 |
AXUH7# |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-42560 |
AXUH7# |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-0E800 |
AXUH7# |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-42540 |
AXUH7#,GSU7# |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-42680 |
AXUH7#..LHD |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-42530 |
AXUH7# |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-42510 |
AXUH7# |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-42C90 |
AXUH7# |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33F60 |
AXUH7# |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-0E690 |
AXUH7# |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-0E700 |
AXUH7# |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-0E710 |
AXUH7# |
1 | ||
| 82816F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-42520 |
AXUH7# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-0ED50 |
AXUH7# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33S60 |
AXUH7# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-33R30 |
AXUH7# |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-3T240 |
AXUH7# |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-42F40 |
AXUH7# |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-42F80 |
AXUH7# |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-0ED60 |
AXUH7# |
1 | ||
| 82817-78730 |
AXUH7# |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-0ED60 |
AXUH7# |
1 | ||
| 82817-78730 |
AXUH7# |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-42F60 |
AXUH7#,GSU7# |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0EB40 |
AXUH7# |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-42G70 |
AXUH7#..LHD |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-42F50 |
AXUH7# |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-33Y50 |
AXUH7# |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-42F30 |
AXUH7# |
1 | ||
| 82818K - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-42P60 |
AXUH7# |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-33R20 |
AXUH7# |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-42N60 |
AXUH7# |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-0EB70 |
AXUH7# |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-0EB80 |
AXUH7# |
1 | ||
| 82818T - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-0EB90 |
AXUH7# |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-0EC00 |
AXUH7# |
1 | ||
| 82818V - PROTECTOR, WIRING HARNESS, NO.18 | ||||
| 82817-33Z40 |
AXUH7# |
1 | ||
| Common parts | ||||
| 90119-A0160 | ||||
| 90119-A0211 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
ILLUST NO.19 OF29(2002- )
Click highlighted areas on diagram
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0E770 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0E510 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0E150 |
AXUH7#,GSU7#..LE,XLE |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0E150 |
AXUH7#,GSU7#..LE,XLE |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0E620 |
AXUH78..LE..GCC;AXUH78..(LE,XLE)..(ARL,EUR);AXUH70,GSU7#..LE..(ARL,GCC) |
1 | ||
| 82184-0E630 |
AXUH7#..XLE..GCC |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82189-0E070 |
AXUH78..LE..GCC;AXUH78..(LE,XLE)..(ARL,EUR);AXUH70,GSU7#..LE..(ARL,GCC) |
1 | ||
| 82189-0E080 |
AXUH7#..XLE..GCC |
1 | ||
| 82819G - PROTECTOR, WIRING HARNESS, NO.23 | ||||
| 82817-0E680 |
AXUH7#,GSU7# |
1 | ||
| 82819H - PROTECTOR, WIRING HARNESS, NO.24 | ||||
| 82817-0E680 |
AXUH7#,GSU7# |
1 | ||
ILLUST NO.20 OF29(2002- )AXUH7#
Click highlighted areas on diagram
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0EJ60 |
AXUH7#..(LE,XLE)..GCC |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0EG70 |
AXUH7#..(LE,XLE)..GCC P/N LABEL=821620EG70 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-0E270 |
AXUH78 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-0E040 |
AXUH7# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0EK40 |
AXUH7#..XLE..GCC IRAQ SPEC |
1 | ||
| 82171-0EQ30 |
AXUH7#..XLE..GCC |
1 | ||
| 82171-0EJ10 |
AXUH7#..LE..GCC IRAQ SPEC |
1 | ||
| 82171-0EQ00 |
AXUH7#..LE..GCC |
1 | ||
| 82171-0EQ50 |
AXUH7#..XLE..GCC TELEVISION & DVD PLAYER-WITH |
1 | ||
| 82177 - WIRE, REAR BODY | ||||
| 82177-0E020 |
AXUH7#,GSU75..EUR,GCC,RUS |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-0E110 |
AXUH7#..(LE,XLE)..GCC |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-0E070 |
AXUH7# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-21040 |
AXUH7#,GSU7# |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-0E070 |
AXUH78,GSU75 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-0E080 |
AXUH78,GSU75 |
1 | ||
| Common parts | ||||
| 82711-34490 | ||||
| 82711-48240 | ||||
| 82711-52130 | ||||
| 90080-10099 | ||||
| 90080-11699 | ||||
| 90080-17244 | ||||
| 90119-06A06 | ||||
| 90119-06A31 | ||||
| 90119-A0120 | ||||
| 90119-A0255 | ||||
| 90119-A0296 | ||||
| 90179-06274 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.23 OF29(2002- )
Click highlighted areas on diagram
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0R180 |
AXUH7#..(LE,XLE)..GCC |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0R180 |
AXUH7#..(LE,XLE)..GCC |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-0E110 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-0E110 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
ILLUST NO.25 OF29(2002- )
Click highlighted areas on diagram
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-06Q90 | ||||
| 82715-06R70 | ||||
| 82715-06T80 | ||||
| 82715-06V00 | ||||
| 82715-06V30 | ||||
| 82715-06V40 | ||||
| 82715-06V70 | ||||
| 82715-06W10 | ||||
| 82715-06W20 | ||||
| 82715-06W50 | ||||
| 82715-06W60 | ||||
| 82715-06X70 | ||||
| 82715-07200 | ||||
| 82715-0ED80 | ||||
| 82715-0EG10 | ||||
| 82715-0EG20 | ||||
| 82715-0EG70 | ||||
| 82715-0EG90 | ||||
| 82715-0R420 | ||||
| 82715-0R430 | ||||
| 82715-0R550 | ||||
| 82715-0R590 | ||||
| 82715-0XF90 | ||||
| 82715-33790 | ||||
| 82715-33L00 | ||||
| 82715-33L60 | ||||
| 82715-33N10 | ||||
| 82715-33N80 | ||||
| 82715-33P30 | ||||
| 82715-33Q70 | ||||
| 82715-33Q90 | ||||
| 82715-33R20 | ||||
| 82715-33T10 | ||||
| 82715-33U70 | ||||
| 82715-42L70 | ||||
| 82715-42L90 | ||||
| 82715-42M10 | ||||
| 82715-42M60 | ||||
| 82715-42M70 | ||||
| 82715-48770 | ||||
| 82715-48R50 | ||||
| 90080-11699 | ||||
| 90119-06A12 | ||||
| 90119-A0127 | ||||
| 90119-A0142 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0416 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
ILLUST NO.26 OF29(2002- )
Click highlighted areas on diagram
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-06R30 | ||||
| 82715-08221 | ||||
| 82715-0EC90 | ||||
| 82715-0ED70 | ||||
| 82715-0EG30 | ||||
| 82715-0EG80 | ||||
| 82715-0EJ20 | ||||
| 82715-0R440 | ||||
| 82715-0R600 | ||||
| 82715-0R630 | ||||
| 82715-0R710 | ||||
| 82715-33L40 | ||||
| 82715-42K00 | ||||
| 82715-42L60 | ||||
| 82715-42M40 | ||||
| 82715-48L90 | ||||
| 82715-48R30 | ||||
| 82716-48010 | ||||
| 82717-48010 | ||||
| 90080-17244 | ||||
| 90119-06A12 | ||||
| 90119-A0127 | ||||
| 90119-A0142 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0264 | ||||
| 90178-06026 | ||||
| 90178-A0070 | ||||
| 90179-06274 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-A0616 | ||||
ILLUST NO.28 OF29(2002- )
Click highlighted areas on diagram
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10825 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11194 | ||||
| 90980-11255 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
ILLUST NO.29 OF29(2002- )
Click highlighted areas on diagram
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-12366 | ||||
| 90980-12380 | ||||
| 90980-12520 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12728 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12C06 | ||||
| 90980-12C39 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
