AXUH78L-ARXMHV (2020)

Toyota Highlander/Kluger

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )LHD

Click highlighted areas on diagram

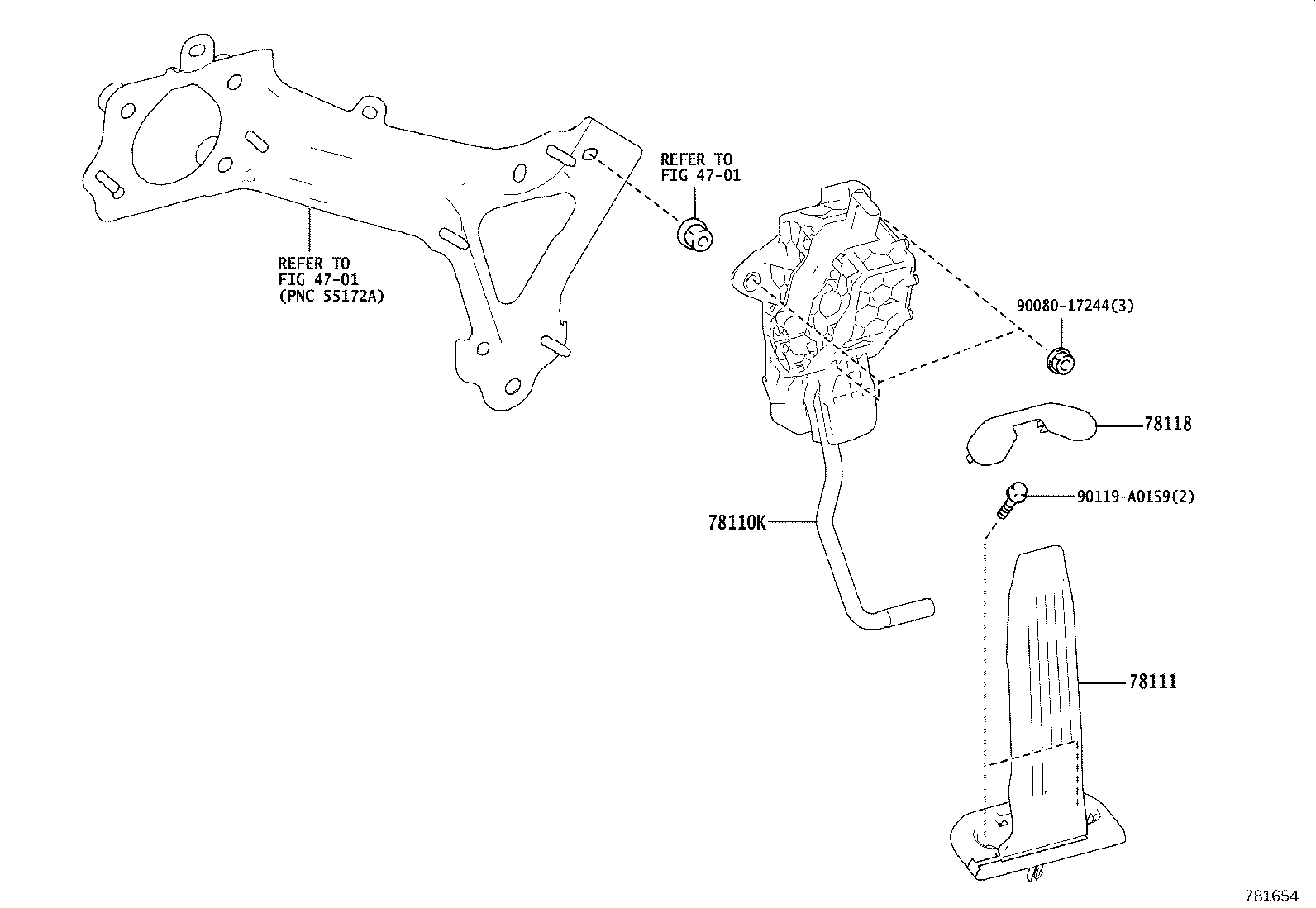

diagram 4701 4701 78110K 78111 78118 9008017244 90119A0159
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-06060

AXUH7#,GSU75

 1
78110-06061

AXUH7#,GSU75..LHD

 1
78111 - PEDAL, ACCELERATOR
78101-06010

AXUH7#,GSU7#

 1
78118 - PAD, ACCELERATOR PEDAL
78117-06010

AXUH7#,GSU7#

 1
Common parts
90080-17244
90119-A0159
Linked diagrams
4701
