AXUH78L-ARXMHV (2020)
Toyota Highlander/Kluger

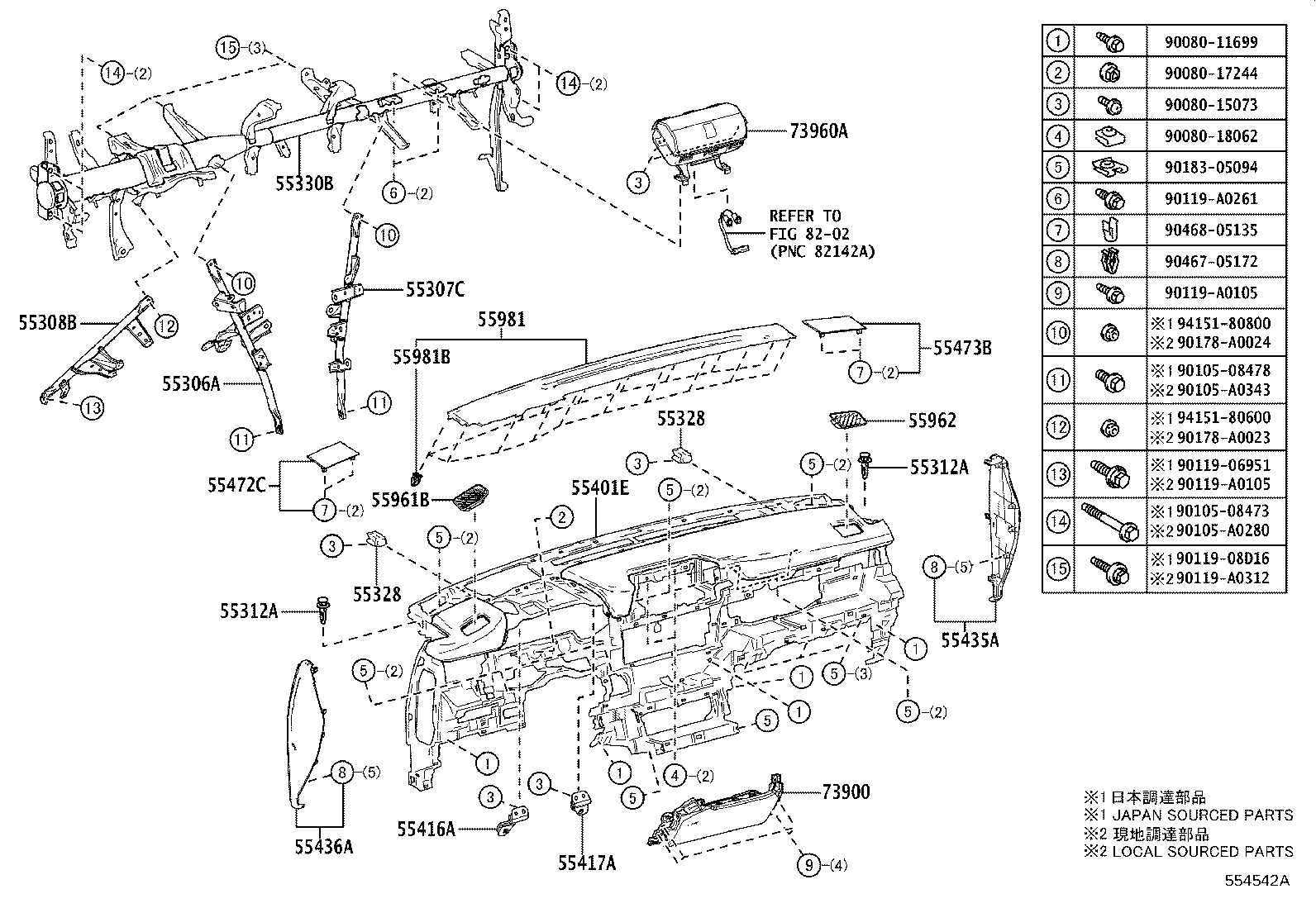

ILLUST NO. 1 OF 2(2002- )LHD..LE,XLE ; (2002- )LHD..LIMD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0E100 |
AXUH7#,GSU75..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-0E100 |
AXUH7#,GSU75..LHD |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-0E080 |
AXUH7#,GSU75..LHD |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02020 |
AXUH7#,GSU7# |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02020 |
AXUH7#,GSU7# |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E060 |
AXUH7#,GSU7# |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E060 |
AXUH7#,GSU7# |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-0E130 |
AXUH78..LHD..LIMD..EUR;AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-0E130C0 |
AXUH7#,GSU75..LHD..(LE,XLE) SOFT BLACK,TRIM1#,2# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-0E090 |
AXUH7#,GSU7# |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55416-0E130 |
AXUH7#,GSU7# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-0E100C1 |
AXUH78..RHD;AXUH78..GCC;AXUH70,GSU7#..ARL,GCC BLACK,TRIM1#,2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-0E110C1 |
AXUH78..LHD..EUR;AXUH7#,GSU7#..ARL,GCC,RUS BLACK,TRIM1#,2# |
1 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-0E090C1 |
AXUH7#..(LE,XLE)..GCC BLACK,TRIM1#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-0E080C1 |
AXUH7#..(LE,XLE)..GCC BLACK,TRIM1#,2# |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-0E070C1 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-0E070C1 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-0E080C0 |
AXUH7#..(LE,XLE)..GCC BLACK,TRIM1#,2# |
1 | ||
| 55981B - CLIP(FOR DEFROSTER NOZZLE GARNISH) | ||||
| 90467-05171 |
AXUH7#,GSU7# |
17 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0E090C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0E110 |
AXUH7#,GSU7# |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-17244 | ||||
| 90080-18062 | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-A0280 | ||||
| 90105-A0343 | ||||
| 90119-06951 | ||||
| 90119-08D16 | ||||
| 90119-A0105 | ||||
| 90119-A0261 | ||||
| 90119-A0312 | ||||
| 90178-A0023 | ||||
| 90178-A0024 | ||||
| 90183-05094 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

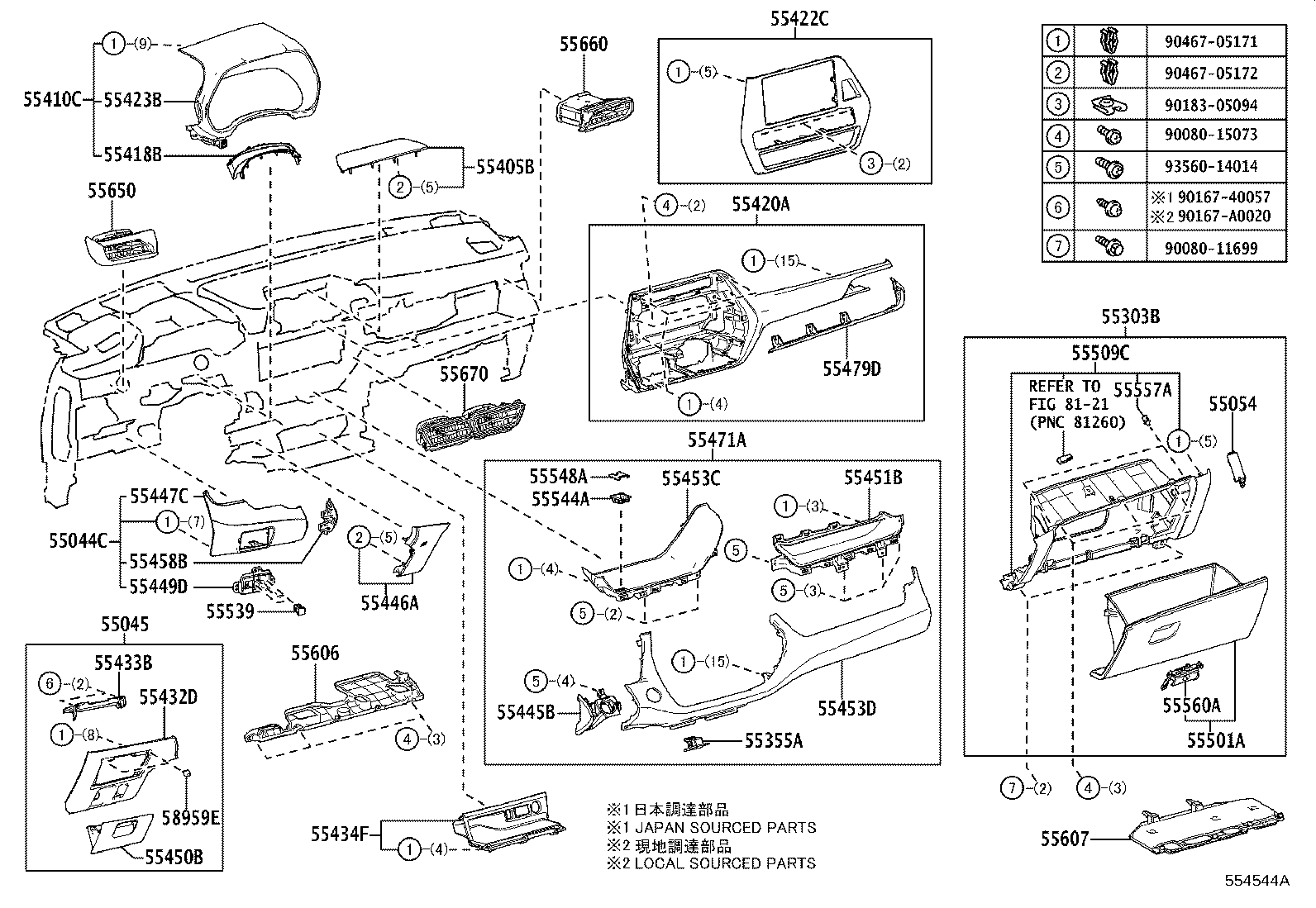

ILLUST NO. 2 OF 2(2002- )LHD..LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044C - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55044-0E020C1 |
AXUH7#,GSU75..LHD BLACK, GRAY 166,TRIM2# |
1 | ||
| 55044-0E020B1 |
AXUH7#,GSU75..LHD GRAY, GRAY 166,TRIM1# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0E160C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AXUH7#,GSU7# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0E090C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55355A - PLATE, INSTRUMENT PANEL | ||||
| 55355-0E080B0 |
AXUH7#,GSU7# GRAY,TRIM1# |
1 | ||
| 55355-0E080C0 |
AXUH7#,GSU7# BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0E060C1 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0E060C0 |
AXUH7#..XLE..GCC BLACK,TRIM1#,2# |
1 | ||
| 55410-0E100C0 |
AXUH7#..LE..GCC BLACK,TRIM1#,2# |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-0E070C0 |
AXUH7#..(LE,XLE)..GCC BLACK,TRIM1#,2# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-0E290 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-0E050 |
AXUH7#,GSU75..LHD |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-0E070C0 |
AXUH7#..XLE..GCC BLACK,TRIM1#,2# |
1 | ||
| 55423-0E110C0 |
AXUH7#..LE..GCC BLACK,TRIM1#,2# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-0E230C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55455-0E150 |
AXUH7#,GSU75..LHD |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0E110 |
AXUH7#,GSU75..LHD |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-0E070B0 |
AXUH7#,GSU75..LHD GRAY,TRIM1# |
1 | ||
| 55445-0E070C0 |
AXUH7#,GSU75..LHD BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0E080C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-0E060C1 |
AXUH7#,GSU75..LHD BLACK, GRAY 166,TRIM2# |
1 | ||
| 55447-0E060B1 |
AXUH7#,GSU75..LHD GRAY, GRAY 166,TRIM1# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0E220 |
AXUH7#,GSU75..LHD |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-0E070C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55451B - COVER, INSTRUMENT PANEL SAFETY PAD | ||||
| 554B3-0E030B0 |
AXUH7#,GSU75..LHD..(LE,XLE) GRAY,TRIM1# |
1 | ||
| 554B3-0E030C0 |
AXUH7#,GSU75..LHD..(LE,XLE) BLACK,TRIM2# |
1 | ||
| 55453C - COVER, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55453-0E150C0 |
AXUH7#,GSU75..LHD..(LE,XLE) BLACK,TRIM2# |
1 | ||
| 55453-0E150B0 |
AXUH7#,GSU75..LHD..(LE,XLE) GRAY,TRIM1# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55456-0E050B1 |
AXUH7#,GSU75..LHD GRAY, GRAY 166,TRIM1# |
1 | ||
| 55456-0E050C1 |
AXUH7#,GSU75..LHD BLACK, GRAY 166,TRIM2# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-0E050B0 |
AXUH7#,GSU75..LHD GRAY,TRIM1# |
1 | ||
| 55458-0E050C0 |
AXUH7#,GSU75..LHD BLACK,TRIM2# |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-0E080C0 |
AXUH7#,GSU75..LHD..(LE,XLE) BLACK, GRAY 166,TRIM2# |
1 | ||
| 55471-0E080B0 |
AXUH7#,GSU75..LHD..(LE,XLE) GRAY, GRAY 166,TRIM1# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-0E020 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-0E050C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55509-0E020C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60350 |
GSU75..LE..RUS;AXUH7#,GSU7#..ARL,EUR,GCC |
1 | ||
| 55544A - RETAINER, INSTRUMENT PANEL HOLE COVER | ||||
| 55544-0E020C0 |
AXUH7#,GSU7# BLACK,TRIM2# |
1 | ||
| 55544-0E020B0 |
AXUH7#,GSU7# GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-0E080B0 |
AXUH7#,GSU7# GRAY,TRIM1# |
1 | ||
| 55548-0E080C0 |
AXUH7#,GSU7# BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
AXUH7#,GSU7# |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-0E020C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0E060 |
AXUH7#,GSU75..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0E130 |
AXUH7#,GSU75..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0E110 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0E090 |
AXUH7#,GSU75..LHD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0E110 |
AXUH7#,GSU75..LHD |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AXUH7#,GSU7# |
2 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90167-40057 | ||||
| 90167-A0020 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 8121 | ||||

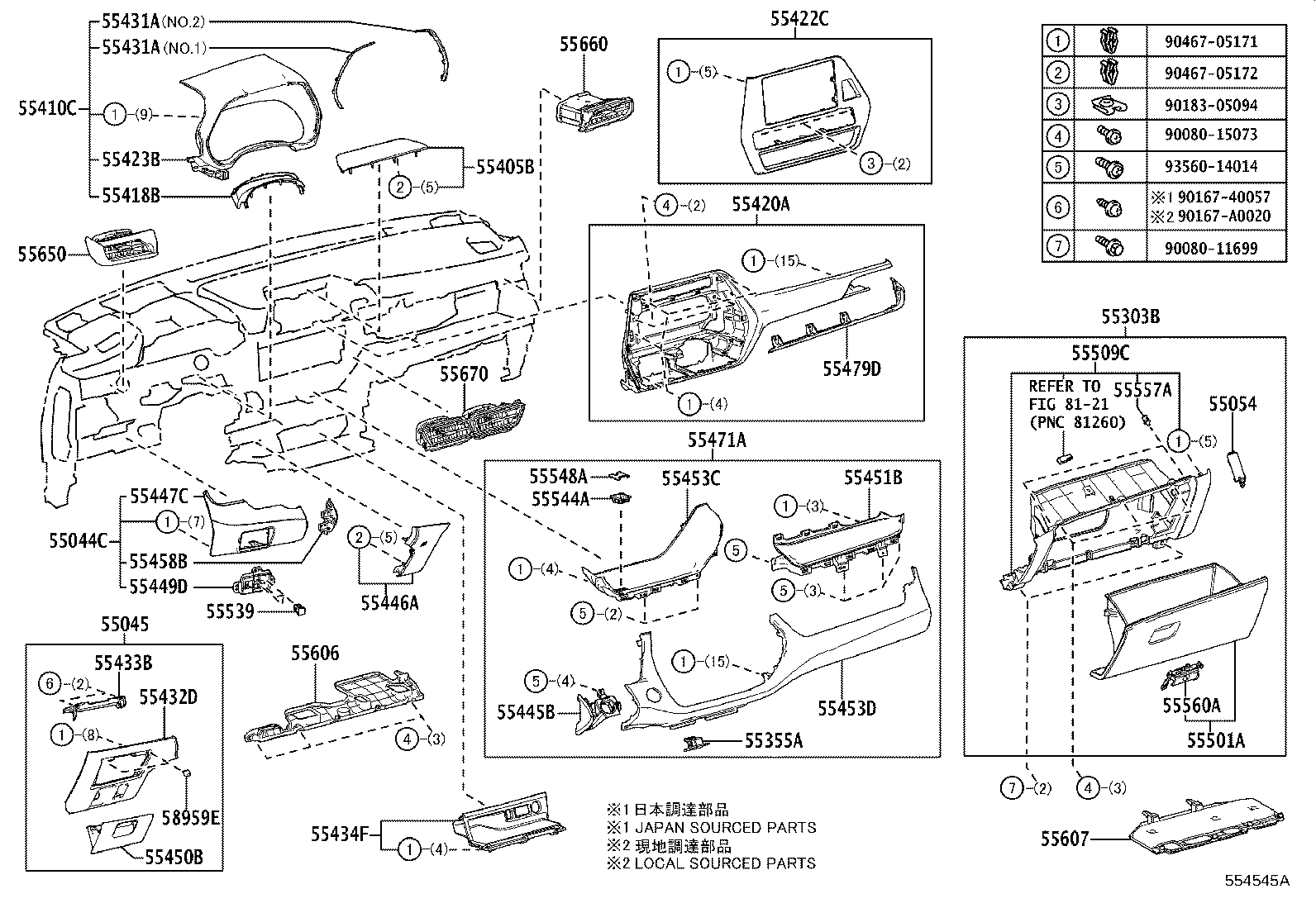

ILLUST NO. 2 OF 2(2002- )LHD..XLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044C - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55044-0E020C1 |
AXUH7#,GSU75..LHD BLACK, GRAY 166,TRIM2# |
1 | ||
| 55044-0E020B1 |
AXUH7#,GSU75..LHD GRAY, GRAY 166,TRIM1# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-0E160C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AXUH7#,GSU7# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0E090C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55355A - PLATE, INSTRUMENT PANEL | ||||
| 55355-0E080B0 |
AXUH7#,GSU7# GRAY,TRIM1# |
1 | ||
| 55355-0E080C0 |
AXUH7#,GSU7# BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0E060C1 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0E060C0 |
AXUH7#..XLE..GCC BLACK,TRIM1#,2# |
1 | ||
| 55410-0E100C0 |
AXUH7#..LE..GCC BLACK,TRIM1#,2# |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-0E070C0 |
AXUH7#..(LE,XLE)..GCC BLACK,TRIM1#,2# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-0E290 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-0E050 |
AXUH7#,GSU75..LHD |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-0E070C0 |
AXUH7#..XLE..GCC BLACK,TRIM1#,2# |
1 | ||
| 55423-0E110C0 |
AXUH7#..LE..GCC BLACK,TRIM1#,2# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-0E030 |
AXUH7#..XLE..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR) NO.1 |
1 | ||
| 55431-0E040 |
AXUH7#..XLE..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR) NO.2 |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-0E030 |
AXUH7#..XLE..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR) NO.1 |
1 | ||
| 55431-0E040 |
AXUH7#..XLE..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR) NO.2 |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-0E230C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55455-0E150 |
AXUH7#,GSU75..LHD |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0E110 |
AXUH7#,GSU75..LHD |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-0E070B0 |
AXUH7#,GSU75..LHD GRAY,TRIM1# |
1 | ||
| 55445-0E070C0 |
AXUH7#,GSU75..LHD BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0E080C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-0E060C1 |
AXUH7#,GSU75..LHD BLACK, GRAY 166,TRIM2# |
1 | ||
| 55447-0E060B1 |
AXUH7#,GSU75..LHD GRAY, GRAY 166,TRIM1# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0E220 |
AXUH7#,GSU75..LHD |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-0E070C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55451B - COVER, INSTRUMENT PANEL SAFETY PAD | ||||
| 554B3-0E030B0 |
AXUH7#,GSU75..LHD..(LE,XLE) GRAY,TRIM1# |
1 | ||
| 554B3-0E030C0 |
AXUH7#,GSU75..LHD..(LE,XLE) BLACK,TRIM2# |
1 | ||
| 55453C - COVER, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55453-0E150C0 |
AXUH7#,GSU75..LHD..(LE,XLE) BLACK,TRIM2# |
1 | ||
| 55453-0E150B0 |
AXUH7#,GSU75..LHD..(LE,XLE) GRAY,TRIM1# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55456-0E050B1 |
AXUH7#,GSU75..LHD GRAY, GRAY 166,TRIM1# |
1 | ||
| 55456-0E050C1 |
AXUH7#,GSU75..LHD BLACK, GRAY 166,TRIM2# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-0E050B0 |
AXUH7#,GSU75..LHD GRAY,TRIM1# |
1 | ||
| 55458-0E050C0 |
AXUH7#,GSU75..LHD BLACK,TRIM2# |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-0E080C0 |
AXUH7#,GSU75..LHD..(LE,XLE) BLACK, GRAY 166,TRIM2# |
1 | ||
| 55471-0E080B0 |
AXUH7#,GSU75..LHD..(LE,XLE) GRAY, GRAY 166,TRIM1# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-0E020 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-0E050C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55509-0E020C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60350 |
GSU75..LE..RUS;AXUH7#,GSU7#..ARL,EUR,GCC |
1 | ||
| 55544A - RETAINER, INSTRUMENT PANEL HOLE COVER | ||||
| 55544-0E020C0 |
AXUH7#,GSU7# BLACK,TRIM2# |
1 | ||
| 55544-0E020B0 |
AXUH7#,GSU7# GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-0E080B0 |
AXUH7#,GSU7# GRAY,TRIM1# |
1 | ||
| 55548-0E080C0 |
AXUH7#,GSU7# BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
AXUH7#,GSU7# |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-0E020C0 |
AXUH7#,GSU75..LHD BLACK,TRIM1#,2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0E060 |
AXUH7#,GSU75..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0E130 |
AXUH7#,GSU75..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0E110 |
AXUH7#,GSU75..LHD..(LE,XLE) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0E090 |
AXUH7#,GSU75..LHD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0E110 |
AXUH7#,GSU75..LHD |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AXUH7#,GSU7# |
2 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90167-40057 | ||||
| 90167-A0020 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
