AXUH78L-ARXGHV (2020)

Toyota Highlander/Kluger

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

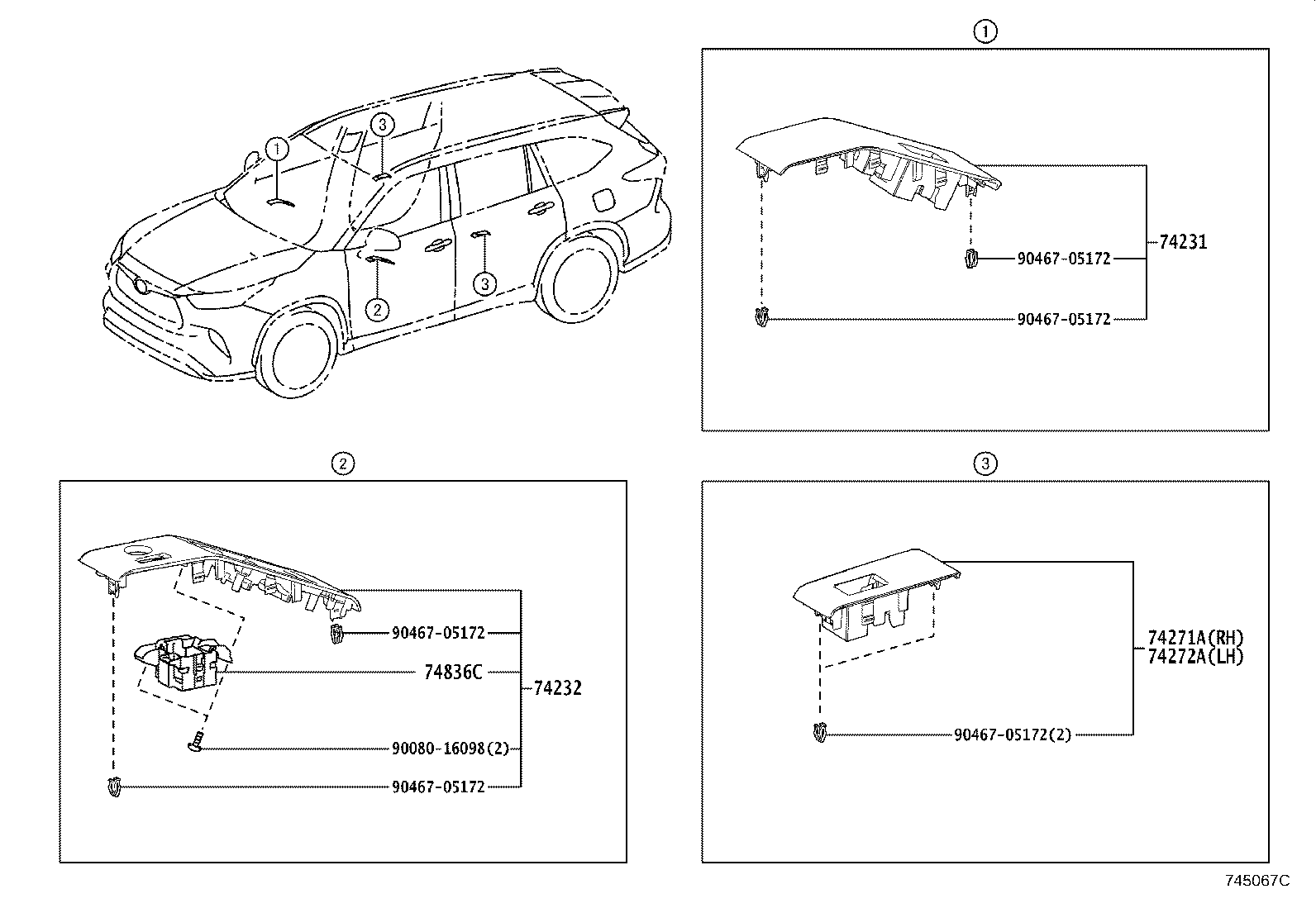

ILLUST NO. 1 OF 2(2002- )LHD

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74271A 74272A 74836C 9008016098 9046705172 9046705172 9046705172 9046705172 9046705172
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0E120

AXUH7#,GSU75..LHD

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0E140

AXUH7#,GSU75..LHD

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-0E080

AXUH7#,GSU7#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-0E080

AXUH7#,GSU7#

 1
74836C - BRACKET, SEPARATOR, LOWER LH
74836-0E020

AXUH7#,GSU75..LHD

 1
Common parts
90080-16098
90467-05172

ILLUST NO. 2 OF 2(2002- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74325 74348 74610A 74610A 74612 74612 74612 74612 74612D 74612D 74612D 74612D 74620C 74630E 9014950009
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0E170B0

AXUH7#..LIMD..GCC;AXUH78,GSU75..LHD..(LE,XLE)..(EUR,RUS)

LT. GRAY,TRIM1#,2#,4#

 1
74320 - VISOR ASSY, LH
74320-0E170B0

AXUH7#..LIMD..GCC;AXUH78,GSU75..LHD..(LE,XLE)..(EUR,RUS)

LT. GRAY,TRIM1#,2#,4#

 1
74325 - COVER, VISOR BRACKET
74317-60020B1

AXUH7#..LIMD

LT.GRAY,TRIM1#,2#,4#

 2
74348 - HOLDER, VISOR
74348-47010B3

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-0E070B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-0E070B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 2
74612 - COVER, ASSIST GRIP
74612-06160B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 4
74612 - COVER, ASSIST GRIP
74612-06160B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 4
74612 - COVER, ASSIST GRIP
74612-06160B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 4
74612 - COVER, ASSIST GRIP
74612-06160B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 4
74612D - COVER, ASSIST GRIP
74611-06170B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 4
74612D - COVER, ASSIST GRIP
74611-06170B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 4
74612D - COVER, ASSIST GRIP
74611-06170B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 4
74612D - COVER, ASSIST GRIP
74611-06170B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 4
74620C - GRIP ASSY, ASSIST, REAR RH
74610-0E080B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-0E090B0

AXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,XLE)..(ARL,EUR,RUS)

LT.GRAY,TRIM1#,2#,4#

 1
Common parts
90149-50009
