AXUH70L-ARXMHV (2020)

Toyota Highlander/Kluger

Production Feb 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002-2110)A25AFXS

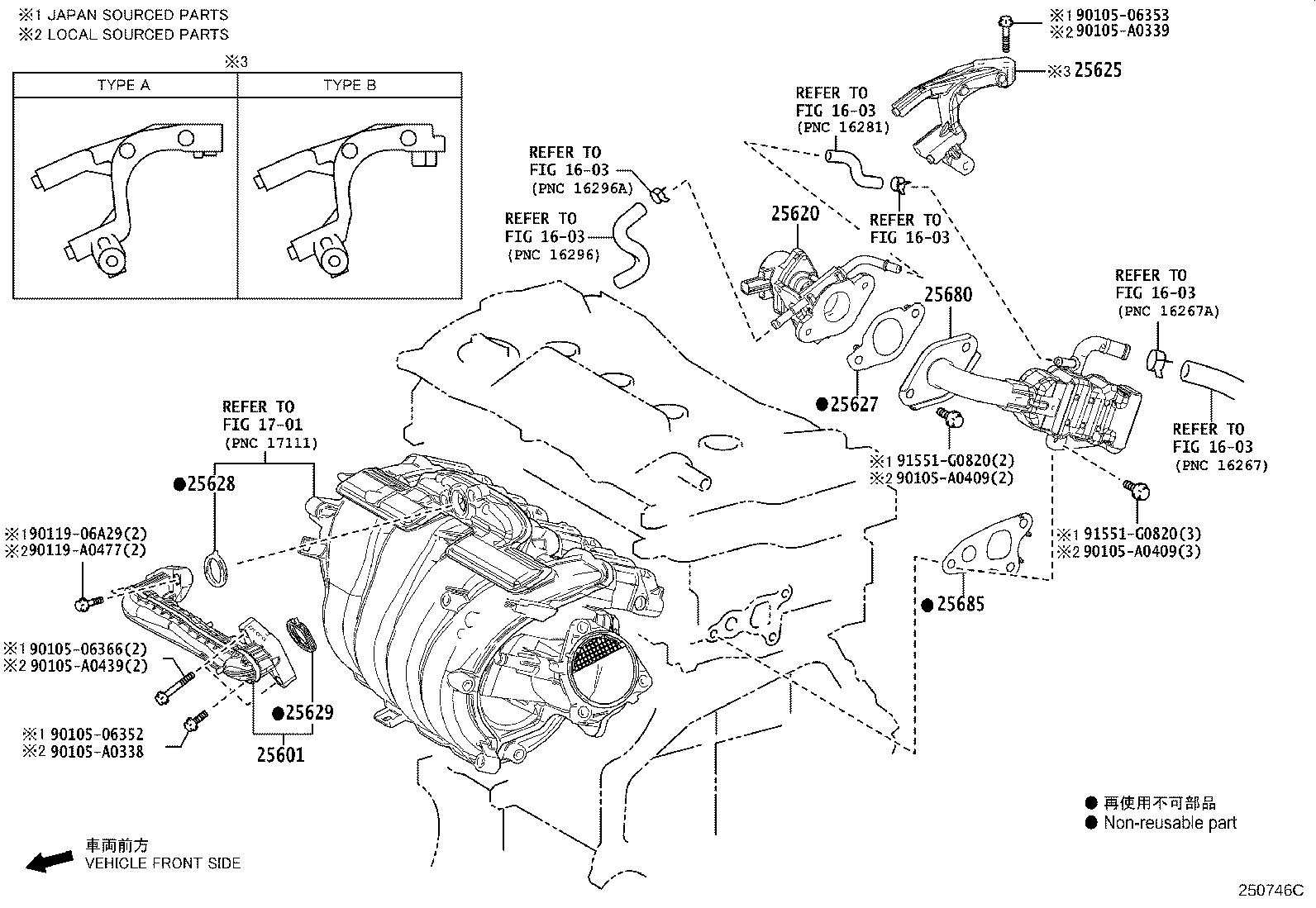

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1701 25601 25620 25625 25627 25628 25629 25680 25685 9010506352 9010506353 9010506366 90105A0338 90105A0339 90105A0409 90105A0409 90105A0439 9011906A29 90119A0477 91551G0820 91551G0820
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-25011

A25AFXS..AXUH7#

*636

 1
25601-F0010

A25AFXS..AXUH7#

*489

 1
25620 - VALVE ASSY, EGR
25620-F0020

A25AFXS..AXUH7#

*489

 1
25620-25040

A25AFXS..AXUH7#

*636

 1
25625 - BRACKET, EGR VALVE
25625-F0010

A25AFXS..AXUH7#

*489T/P A:REF.ILLUST

 1
25625-25030

A25AFXS..AXUH7#

*636T/P B:REF.ILLUST

 1
25625-F0020

A25AFXS..AXUH7#

*489T/P B:REF.ILLUST

 1
25625-25010

A25AFXS..AXUH7#

*636T/P A:REF.ILLUST

 1
25627 - GASKET, EGR VALVE
25627-25010

A25AFXS..AXUH7#

*636

 1
25627-F0010

A25AFXS..AXUH7#

*489

 1
25628 - GASKET, EGR INLET
25628-25010

A25AFXS..AXUH7#

*636,*489

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-25010

A25AFXS..AXUH7#

*489,*636

 1
25680 - COOLER ASSY, EGR
25680-25030

A25AFXS..AXUH7#

*636

 1
25680-F0020

A25AFXS..AXUH7#

*489

 1
25685 - GASKET, EGR COOLER, NO.1
25685-25011

A25AFXS..AXUH7#

*489,*636

 1
Common parts
90105-06352
90105-06353
90105-06366
90105-A0338
90105-A0339
90105-A0409
90105-A0439
90119-06A29
90119-A0477
91551-G0820
Linked diagrams
1603
1701
