ASU50L-ARTGKX (2016)
Toyota Highlander/Kluger
Production
Nov 2016
-
Nov 2019
Engine
1ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )

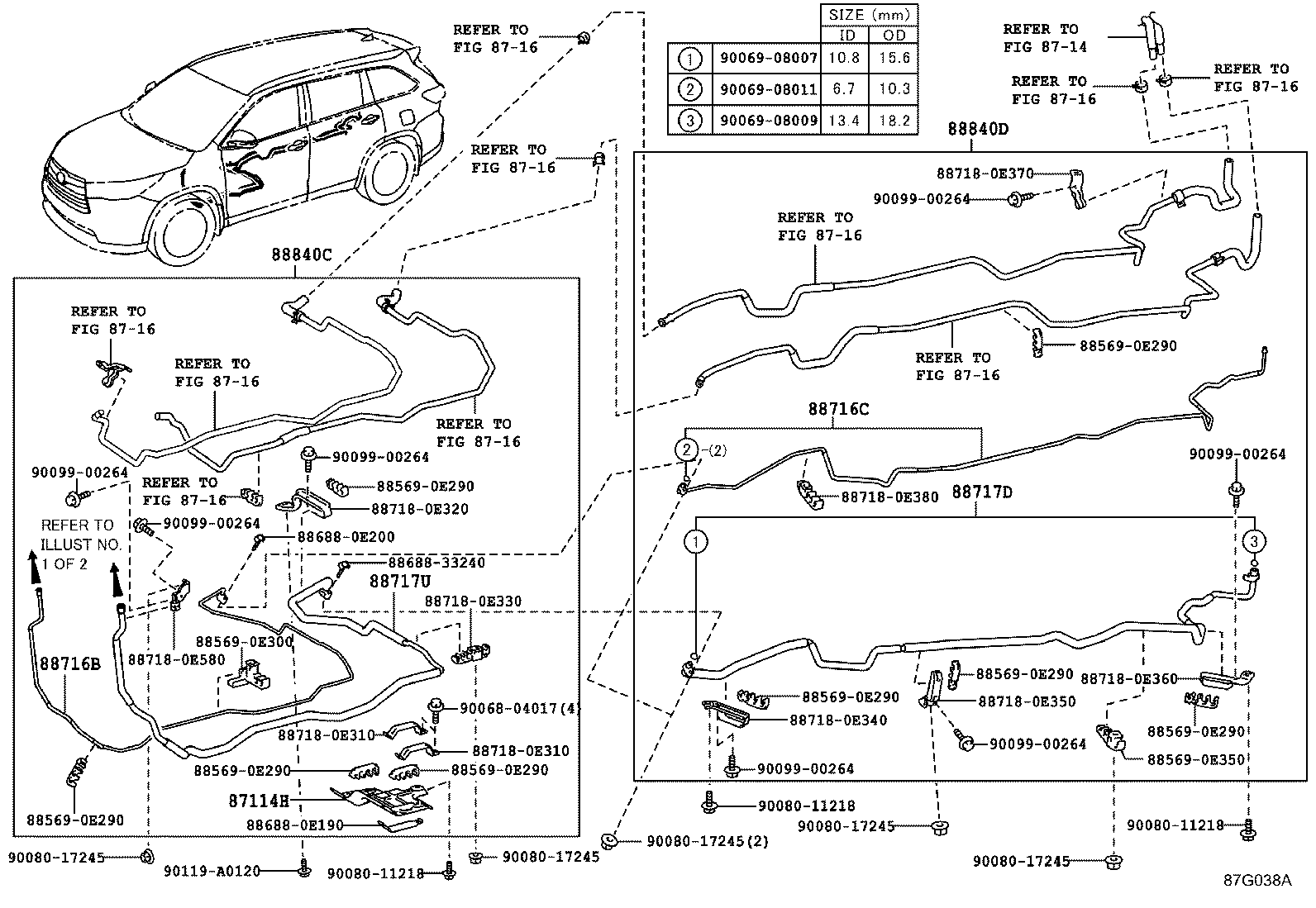

Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87114H - COVER, HEATER | ||||
| 87114-0E050 |
ASU50,GSU5# |
1 | ||
| 87114-0E050 |
ASU50,GSU5# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-0E440 |
ASU50,GSU5# |
1 | ||
| 88716-0E350 |
ASU50,GSU5# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-0E450 |
ASU50,GSU5# |
1 | ||
| 88716-0E360 |
ASU50,GSU5# |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-0E260 |
ASU50,GSU5# |
1 | ||
| 88717-0E200 |
ASU50,GSU5# |
1 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-0E190 |
ASU50,GSU5# |
1 | ||
| 88717-0E300 |
ASU50,GSU5# |
1 | ||
| 88840C - ACCESSORY ASSY, AIR CONDITIONER, NO.1 | ||||
| 88710-0E320 |
ASU50,GSU5# |
1 | ||
| 88840-0E070 |
ASU50,GSU5# |
1 | ||
| 88840D - ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88840-0E080 |
ASU50,GSU5# |
1 | ||
| 88710-0E330 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 88569-0E290 | ||||
| 88569-0E300 | ||||
| 88569-0E350 | ||||
| 88688-0E190 | ||||
| 88688-0E200 | ||||
| 88688-33240 | ||||
| 88718-0E310 | ||||
| 88718-0E320 | ||||
| 88718-0E330 | ||||
| 88718-0E340 | ||||
| 88718-0E350 | ||||
| 88718-0E360 | ||||
| 88718-0E370 | ||||
| 88718-0E380 | ||||
| 88718-0E580 | ||||
| 90068-04017 | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||
| 90080-11218 | ||||
| 90080-17245 | ||||
| 90099-00264 | ||||
| 90119-A0120 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8716 | ||||
