ASU50L-ARTGKX (2016)

Toyota Highlander/Kluger

Production Nov 2016 - Nov 2019
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )GSU5# ; (1611- )ASU50..LIMD

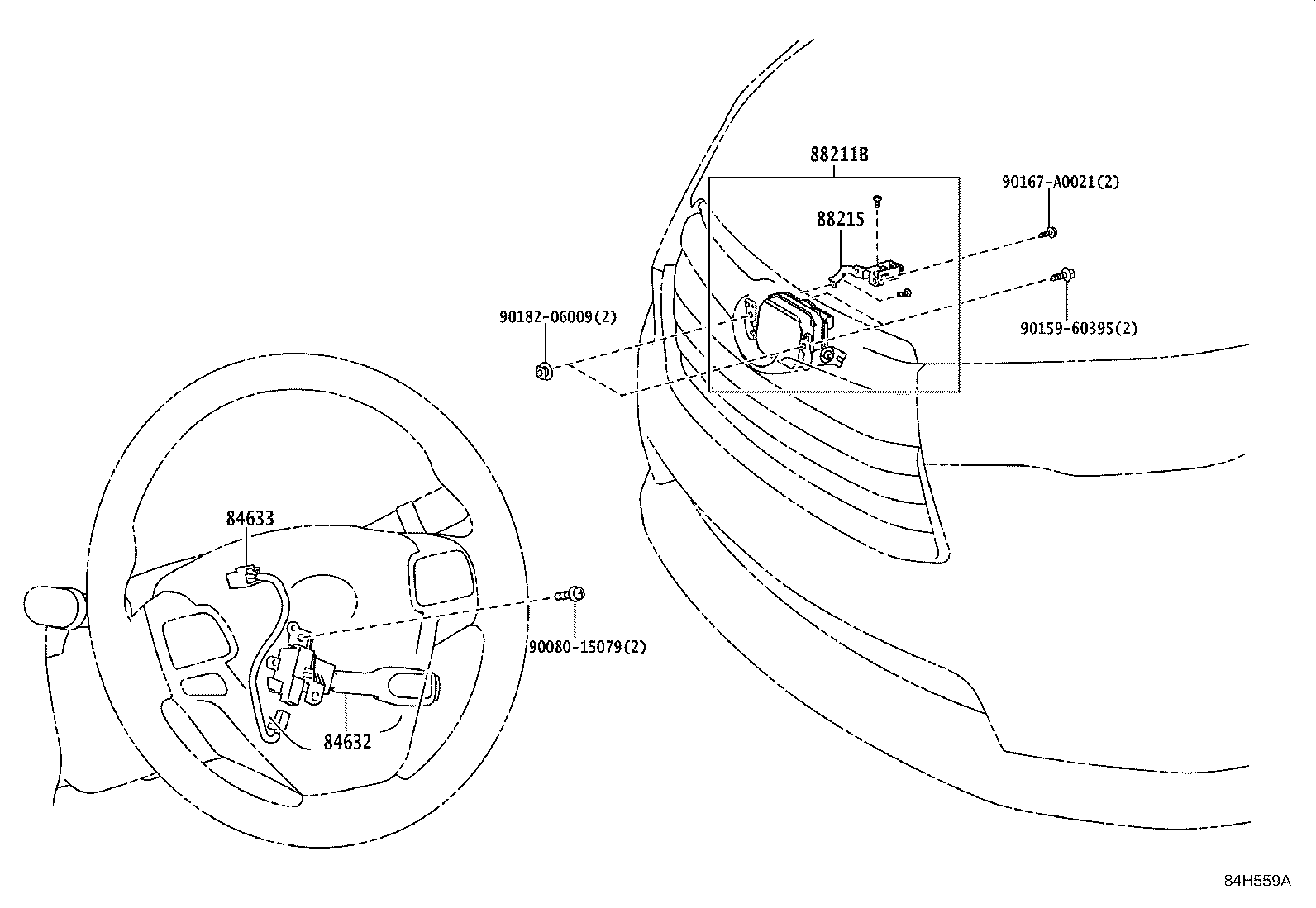

Click highlighted areas on diagram

diagram 84632 84633 88211B 88215 9008015079 9015960395 90167A0021 9018206009
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-0R011

ASU50,GSU55..LIMD..RUS

PACKAGE OPTION 1-GSP WITH TSR

 1
84632-0R030

ASU50,GSU55..RUS

 1
84632-0E020

ASU50,GSU5#

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-0R030

ASU50,GSU55..RUS

 1
84633-0E040

ASU50,GSU5#

 1
84633-0R021

ASU50,GSU55..LIMD..RUS

PACKAGE OPTION 1-GSP WITH TSR

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-0E010

ASU50,GSU55..LIMD..RUS

PACKAGE OPTION 1-GSP WITH TSR

 1
88215 - BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1
88201-60010

ASU50,GSU55..LIMD..RUS

PACKAGE OPTION 1-GSP WITH TSR

 1
Common parts
90080-15079
90159-60395
90167-A0021
90182-06009
