ASU50L-ARTGKX (2016)
Toyota Highlander/Kluger

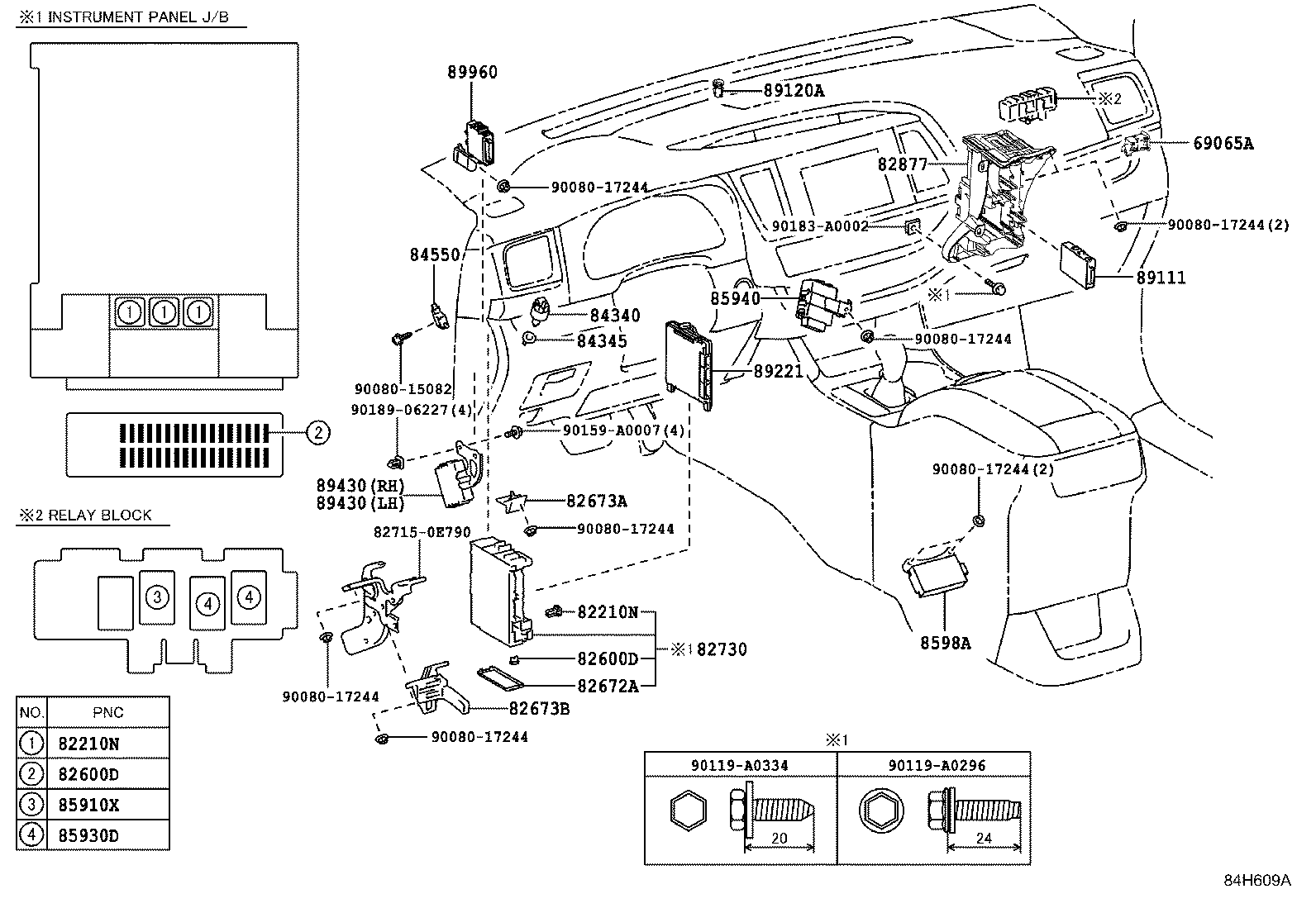

ILLUST NO. 4 OF 9(1611- )RUS
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-12460 |
ASU50,GSU55..RUS |
1 | ||
| 69065-12460 |
ASU50,GSU55..RUS |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASU50,GSU5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ASU50,GSU5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASU50,GSU5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ASU50,GSU5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASU50,GSU5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ASU50,GSU5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
ASU50,GSU5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASU50,GSU5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ASU50,GSU5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ASU50,GSU5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ASU50,GSU5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASU50,GSU5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASU50,GSU5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ASU50,GSU5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
ASU50,GSU5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASU50,GSU5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ASU50,GSU5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ASU50,GSU5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ASU50,GSU5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASU50,GSU5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0E090 |
ASU50,GSU5# |
1 | ||
| 82672-0E090 |
ASU50,GSU5# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E030 |
ASU50,GSU55..RUS |
1 | ||
| 82673-0E030 |
ASU50,GSU55..RUS |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 82673-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0EA90 |
ASU50,GSU55..RUS |
1 | ||
| 82730-0EA90 |
ASU50,GSU55..RUS |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-0E020 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 82877-0E050 |
ASU50,GSU55..RUS |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09280 |
ASU50,GSU5# |
1 | ||
| 84340-09070 |
ASU50,GSU5# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
ASU50,GSU5# |
1 | ||
| 84345-08010 |
ASU50,GSU5# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-0E010 |
ASU50,GSU5# |
1 | ||
| 84550-0E010 |
ASU50,GSU5# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-48040 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 85940-48060 |
GSU55..RUS;ASU50..LIMD |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-48010 |
ASU50,GSU55..RUS |
1 | ||
| 8598A-48030 |
ASU50,GSU55..RUS |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-0E080 |
ASU50,GSU5# |
1 | ||
| 89111-0E010 |
ASU50,GSU5#..LIMD |
1 | ||
| 89111-0E040 |
ASU50,GSU5# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ASU50,GSU5# |
1 | ||
| 89121-0E060 |
ASU50,GSU5# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0E170 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 89220-0E470 |
ASU50,GSU55..RUS |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-0E080 |
ASU50,GSU5#..LIMD LH |
1 | ||
| 89430-0E140 |
ASU50,GSU5#..LIMD LH |
1 | ||
| 89430-0E070 |
ASU50,GSU5#..LIMD RH |
1 | ||
| 89430-0E130 |
ASU50,GSU5#..LIMD RH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-0E080 |
ASU50,GSU5#..LIMD LH |
1 | ||
| 89430-0E140 |
ASU50,GSU5#..LIMD LH |
1 | ||
| 89430-0E070 |
ASU50,GSU5#..LIMD RH |
1 | ||
| 89430-0E130 |
ASU50,GSU5#..LIMD RH |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-48270 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 89960-48240 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| Common parts | ||||
| 82715-0E790 | ||||
| 90080-15082 | ||||
| 90080-17244 | ||||
| 90119-A0296 | ||||
| 90119-A0334 | ||||
| 90159-A0007 | ||||
| 90183-A0002 | ||||
| 90189-06227 | ||||

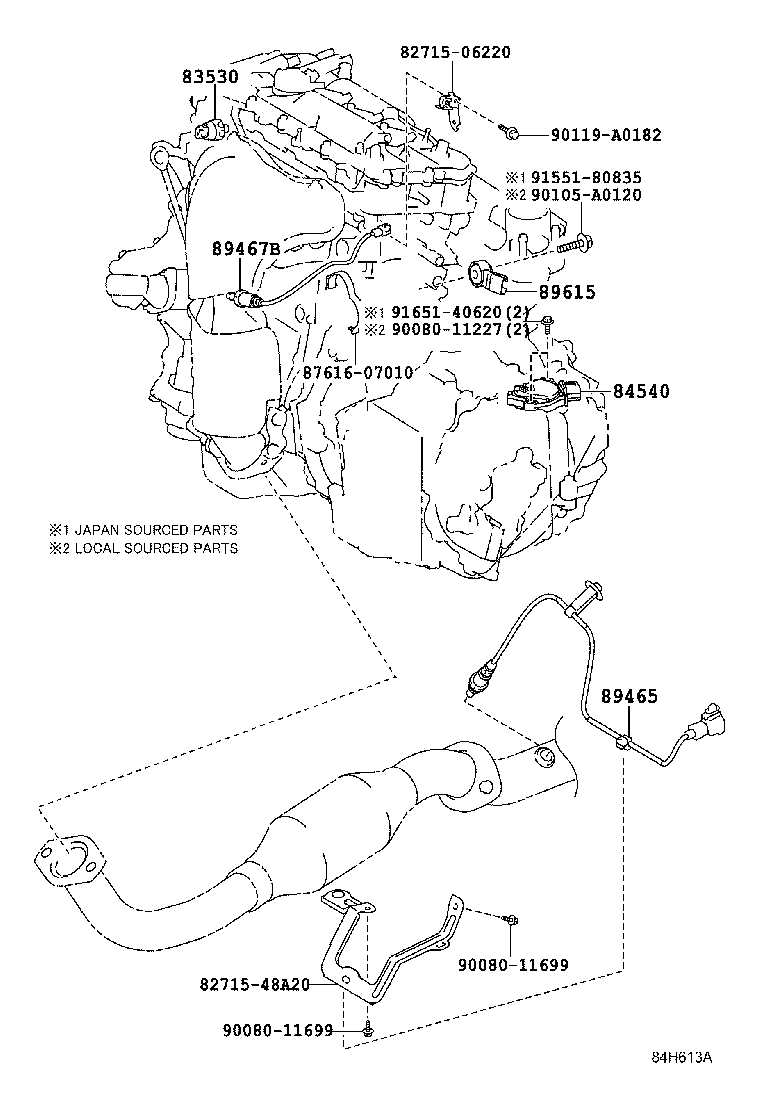

ILLUST NO. 1 OF 9(1611- )ASU50
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ASU50,GSU5# DENSO JAPAN |
1 | ||
| 83530-0E010 |
ASU50,GSU5# DENSO USA |
1 | ||
| 83530-28020 |
ASU50,GSU5# DENSO JAPAN |
1 | ||
| 83530-0E010 |
ASU50,GSU5# DENSO USA |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-07010 |
ASU50 |
1 | ||
| 84540-07010 |
ASU50 (L) |
1 | ||
| 84540-33010 |
ASU50 (J) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0E110 |
ASU50 |
1 | ||
| 89465-0E110 |
ASU50 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-06120 |
ASU50 |
1 | ||
| 89467-06120 |
ASU50 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
ASU50 DENSO USA |
1 | ||
| 89615-06010 |
ASU50 DENSO USA |
1 | ||
| 89615-20090 |
ASU50 DENSO JAPAN |
1 | ||
| 89615-20090 |
ASU50 DENSO JAPAN |
1 | ||
| Common parts | ||||
| 82715-06220 | ||||
| 82715-48A20 | ||||
| 87616-07010 | ||||
| 90080-11227 | ||||
| 90080-11699 | ||||
| 90105-A0120 | ||||
| 90119-A0182 | ||||
| 91551-80835 | ||||
| 91651-40620 | ||||

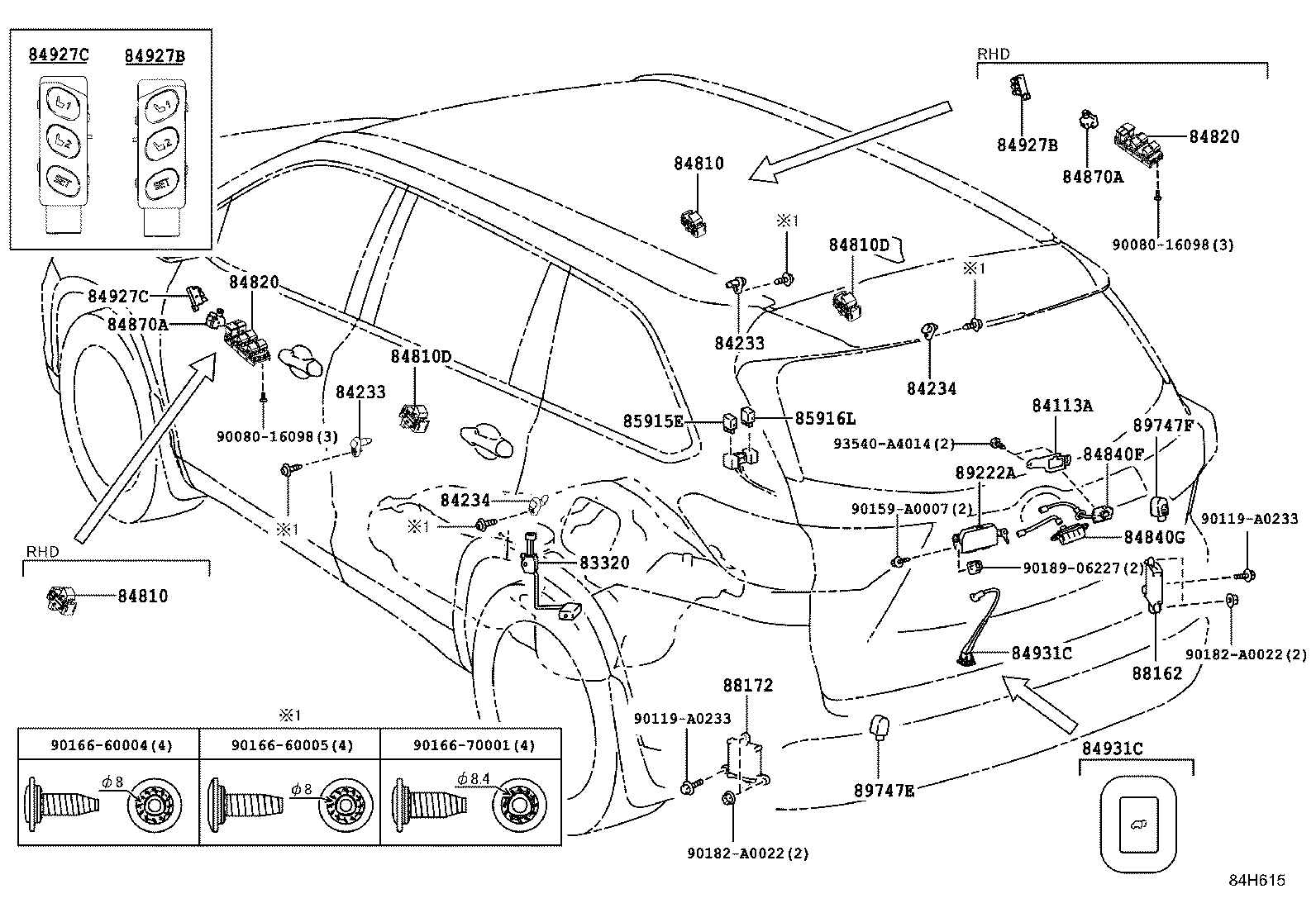

ILLUST NO. 9 OF 9(1611- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0E030 |
ASU50,GSU5# |
1 | ||
| 83320-48140 |
ASU50 FOR ROSSIA |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-0E050 |
GSU55..LE..RUS;ASU50,GSU5#..LIMD |
1 | ||
| 84113-0E050 |
ASU50,GSU5#..LIMD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
ASU50,GSU5# |
2 | ||
| 84231-08030 |
ASU50,GSU5# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
ASU50,GSU5# |
2 | ||
| 84231-08030 |
ASU50,GSU5# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-AA030 |
ASU50,GSU5# |
2 | ||
| 84231-AA030 |
ASU50,GSU5# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-AA030 |
ASU50,GSU5# |
2 | ||
| 84231-AA030 |
ASU50,GSU5# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E060 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
1 | ||
| 84810-0E060 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E060 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
1 | ||
| 84810-0E060 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E060 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
2 | ||
| 84810-0E060 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0E060 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
2 | ||
| 84810-0E060 |
ASU50;GSU5#..LIMD;GSU55..LE..RUS |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 84040-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 84040-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 84840F - SWITCH ASSY, GLASS HATCH OPENER | ||||
| 84840-0E050 |
GSU55..LE..RUS;ASU50,GSU5#..LIMD |
1 | ||
| 84840-0E050 |
ASU50,GSU5#..LIMD |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-0T020 |
ASU50,GSU5#..LIMD |
1 | ||
| 84840-0T020 |
GSU55..LE..RUS;ASU50,GSU5#..LIMD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0E050 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 84872-0E050 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0E050 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 84872-0E050 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 84927C - SWITCH, SEAT MEMORY, LH | ||||
| 84927-0E030 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 84927-0E030 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 84927C - SWITCH, SEAT MEMORY, LH | ||||
| 84927-0E030 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 84927-0E030 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-0E150 |
ASU50,GSU5#..LIMD |
1 | ||
| 84930-0E151 |
GSU55..LE..RUS;ASU50,GSU5#..LIMD |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-0E150 |
ASU50,GSU5#..LIMD |
1 | ||
| 84930-0E151 |
GSU55..LE..RUS;ASU50,GSU5#..LIMD |
1 | ||
| 85915E - RELAY | ||||
| 90084-98032 |
GSU55..LE..RUS;ASU50,GSU5#..LIMD |
1 | ||
| 90084-98032 |
ASU50,GSU5#..LIMD |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90080-87026 |
ASU50,GSU55..RUS |
1 | ||
| 90080-87026 |
ASU50,GSU55..RUS |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0E051 |
ASU50,GSU5#..LIMD |
1 | ||
| 88162-0E020 |
ASU50,GSU5#..LIMD |
1 | ||
| 88162-0E050 |
ASU50,GSU5#..LIMD |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0E050 |
ASU50,GSU5#..LIMD |
1 | ||
| 88162-0E051 |
ASU50,GSU5#..LIMD |
1 | ||
| 88162-0E020 |
ASU50,GSU5#..LIMD |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-0E081 |
GSU55..LE..RUS;ASU50,GSU5#..LIMD |
1 | ||
| 89222-0E080 |
ASU50,GSU5#..LIMD |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-0R020 |
ASU50,GSU5#..LIMD |
1 | ||
| 89747-0R020 |
GSU55..LE..RUS;ASU50,GSU5#..LIMD |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-02010 |
ASU50,GSU5#..LIMD |
1 | ||
| Common parts | ||||
| 90080-16098 | ||||
| 90119-A0233 | ||||
| 90159-A0007 | ||||
| 90166-60004 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90182-A0022 | ||||
| 90189-06227 | ||||
| 93540-A4014 | ||||

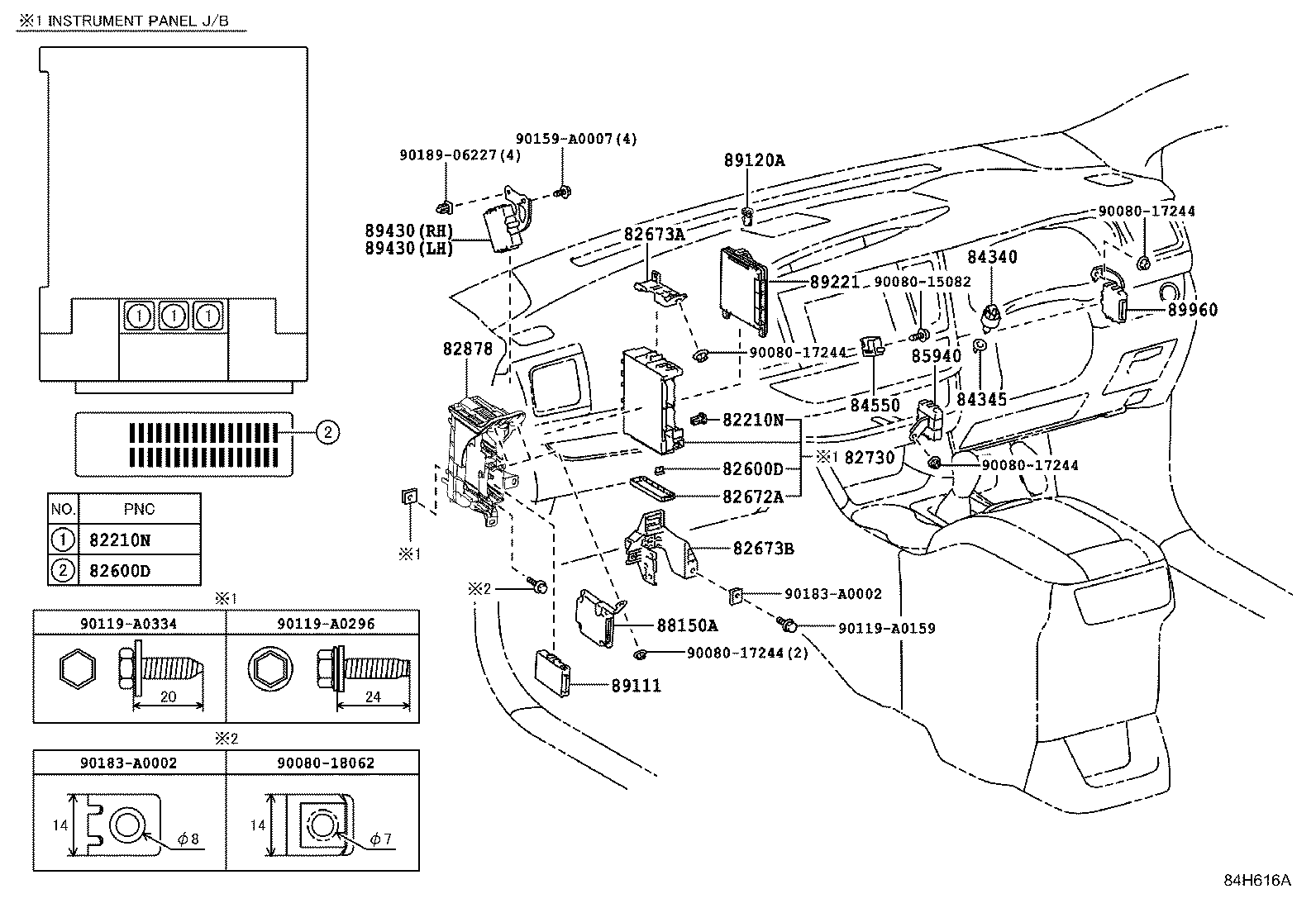

ILLUST NO. 4 OF 9(1611- )ARL ; (1611- )LIMD..RUS
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASU50,GSU5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ASU50,GSU5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASU50,GSU5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ASU50,GSU5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASU50,GSU5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ASU50,GSU5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
ASU50,GSU5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASU50,GSU5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ASU50,GSU5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ASU50,GSU5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ASU50,GSU5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASU50,GSU5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASU50,GSU5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ASU50,GSU5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
ASU50,GSU5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ASU50,GSU5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ASU50,GSU5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ASU50,GSU5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ASU50,GSU5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASU50,GSU5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0E090 |
ASU50,GSU5# |
1 | ||
| 82672-0E090 |
ASU50,GSU5# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E030 |
ASU50,GSU55..RUS |
1 | ||
| 82673-0E030 |
ASU50,GSU55..RUS |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 82673-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0EA90 |
ASU50,GSU55..RUS |
1 | ||
| 82730-0EA90 |
ASU50,GSU55..RUS |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09280 |
ASU50,GSU5# |
1 | ||
| 84340-09070 |
ASU50,GSU5# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
ASU50,GSU5# |
1 | ||
| 84345-08010 |
ASU50,GSU5# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-0E010 |
ASU50,GSU5# |
1 | ||
| 84550-0E010 |
ASU50,GSU5# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-48040 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 85940-48060 |
GSU55..RUS;ASU50..LIMD |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-0E030 |
ASU50,GSU55..LIMD..RUS PACKAGE OPTION 1-GSP WITH TSR |
1 | ||
| 88150-0E031 |
ASU50,GSU55..LIMD..RUS PACKAGE OPTION 1-GSP WITH TSR |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-0E080 |
ASU50,GSU5# |
1 | ||
| 89111-0E010 |
ASU50,GSU5#..LIMD |
1 | ||
| 89111-0E040 |
ASU50,GSU5# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ASU50,GSU5# |
1 | ||
| 89121-0E060 |
ASU50,GSU5# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0E170 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 89220-0E470 |
ASU50,GSU55..RUS |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-0E080 |
ASU50,GSU5#..LIMD LH |
1 | ||
| 89430-0E140 |
ASU50,GSU5#..LIMD LH |
1 | ||
| 89430-0E070 |
ASU50,GSU5#..LIMD RH |
1 | ||
| 89430-0E130 |
ASU50,GSU5#..LIMD RH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-0E080 |
ASU50,GSU5#..LIMD LH |
1 | ||
| 89430-0E140 |
ASU50,GSU5#..LIMD LH |
1 | ||
| 89430-0E070 |
ASU50,GSU5#..LIMD RH |
1 | ||
| 89430-0E130 |
ASU50,GSU5#..LIMD RH |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-48270 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 89960-48240 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| Common parts | ||||
| 90080-15082 | ||||
| 90080-17244 | ||||
| 90080-18062 | ||||
| 90119-A0159 | ||||
| 90119-A0296 | ||||
| 90119-A0334 | ||||
| 90159-A0007 | ||||
| 90183-A0002 | ||||
| 90189-06227 | ||||
ILLUST NO. 2 OF 9(1611- )

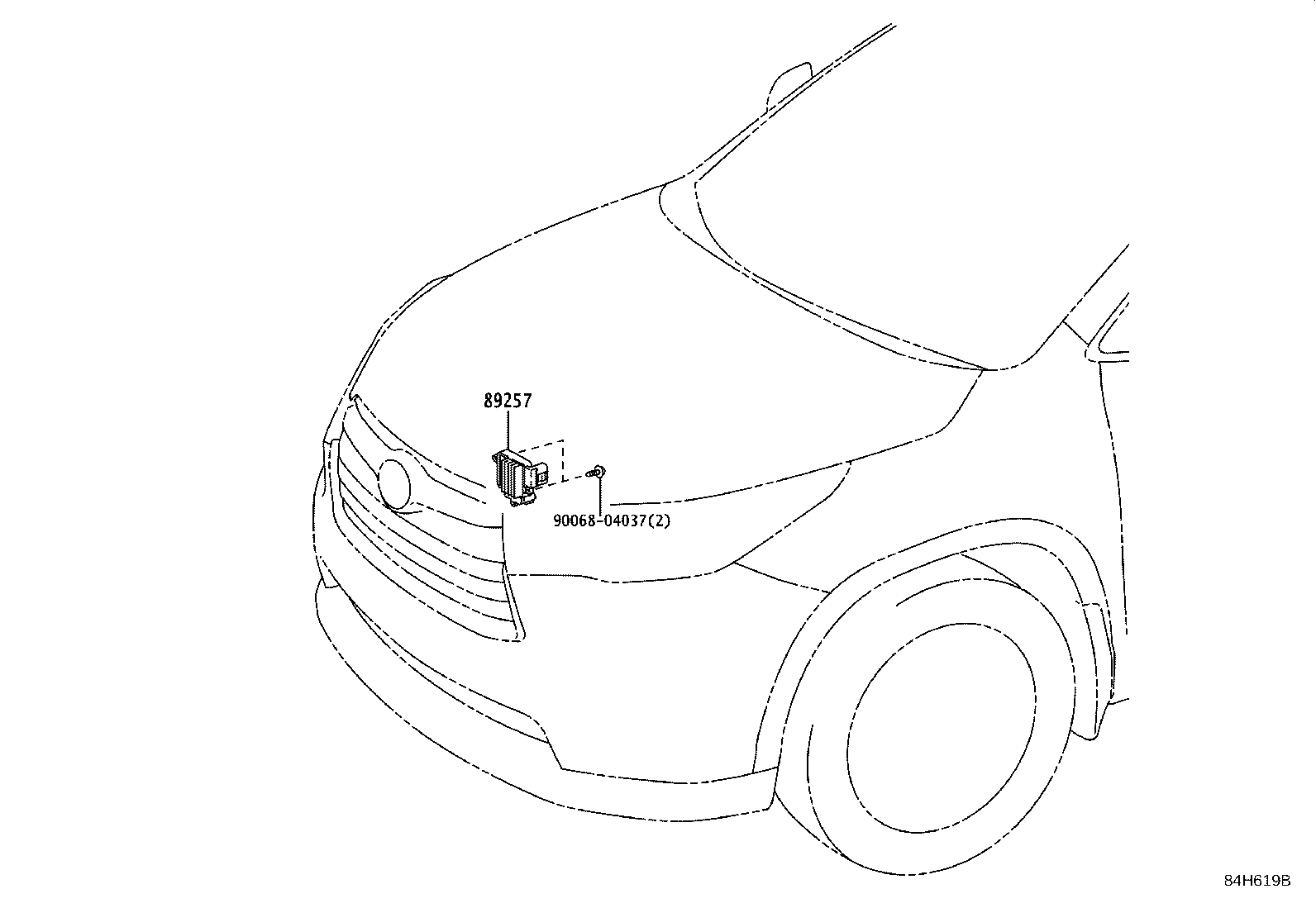

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30060 |
ASU50 |
1 | ||
| 89257-30060 |
ASU50 |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
ILLUST NO. 3 OF 9(1611- )

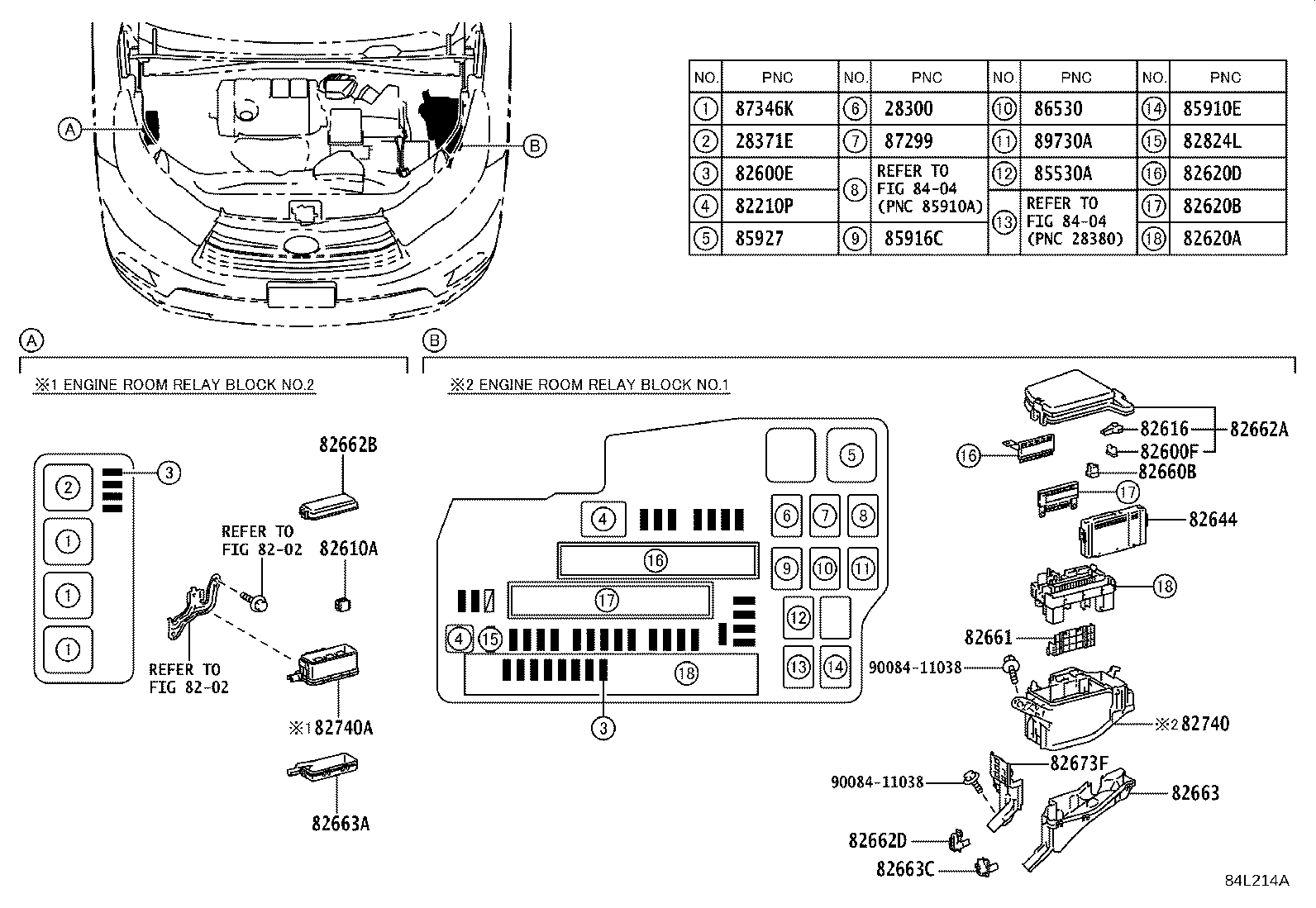

ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A011 |
1ARFE,2GRFKS..ASU50,GSU5# |
1 | ||
| 28300-0A010 |
1ARFE,2GRFE..ASU50,GSU5# |
1 | ||
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90080-87024 |
1ARFE..ASU50;2GRFKS..GSU5#..LIMD;2GRFKS..GSU55..LE..RUS DENSO USA |
1 | ||
| 90987-02025 |
1ARFE..ASU50;2GRFKS..GSU5#..LIMD;2GRFKS..GSU55..LE..RUS DENSO JAPAN |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08203 |
ASU50,GSU5# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08228 |
ASU50,GSU5# 50A,TERM.:MALE,RED |
1 | ||
| 90982-08294 |
GSU55..ARL;ASU50,GSU50;GSU55..LIMD..RUS 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ASU50,GSU5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08228 |
GSU50..LE;ASU50,GSU55 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
ASU50,GSU5# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08203 |
GSU50..LE;ASU50,GSU55 80A,TERM.:MALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
GSU50..LE;ASU50,GSU55 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GSU50..LE;ASU50,GSU55 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
GSU50..LE;ASU50,GSU55 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GSU50..LE;ASU50,GSU55 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ASU50,GSU5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
GSU50..LE;ASU50,GSU55 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ASU50,GSU5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GSU50..LE;ASU50,GSU55 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASU50,GSU5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
ASU50,GSU5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09025 |
GSU50..LE;ASU50,GSU55 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ASU50,GSU5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASU50,GSU5# 25A,MINI FUSE |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
ASU50,GSU5# 10A,MINI FUSE,RED |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0E020 |
ASU50,GSU5# |
1 | ||
| 82610-0E020 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ASU50,GSU5# |
1 | ||
| 82616-58010 |
ASU50,GSU5# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0E010 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82620-0E010 |
ASU50 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0E030 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82620-0E030 |
ASU50,GSU5# |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-48100 |
ASU50 |
1 | ||
| 82620-48100 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-0E030 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82644-0E031 |
ASU50,GSU5# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0E010 |
ASU50,GSU5# |
1 | ||
| 82660-0E010 |
ASU50;GSU50..LE;GSU55..ARL |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0E030 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82661-0E030 |
ASU50,GSU5# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0E171 |
ASU50 |
1 | ||
| 82662-0E170 |
ASU50 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0E190 |
ASU50,GSU5# |
1 | ||
| 82662-0E190 |
ASU50,GSU5# |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-0E150 |
ASU50,GSU5# |
1 | ||
| 82662-0E150 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0E020 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82663-0E020 |
ASU50,GSU5# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0E050 |
ASU50,GSU5# |
1 | ||
| 82663-0E050 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-0E010 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82663-0E010 |
ASU50,GSU5# |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-0E010 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82673-0E010 |
ASU50,GSU5# |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-0E010 |
ASU50,GSU5# |
1 | ||
| 82740-0E010 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82740A - BLOCK ASSY, ENGINE ROOM RELAY, NO.2 | ||||
| 82740-0E040 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 82740-0E040 |
ASU50,GSU5# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ASU50,GSU5# |
1 | ||
| 82824-41010 |
GSU50..LE;ASU50,GSU55 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90080-87026 |
ASU50,GSU55..RUS |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90080-87026 |
ASU50,GSU5# |
1 | ||
| 90080-87026 |
ASU50,GSU5# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87024 |
ASU50,GSU5# |
1 | ||
| 90080-87024 |
ASU50,GSU5# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
ASU50,GSU5# |
1 | ||
| 90080-87026 |
ASU50,GSU5# |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90080-87026 |
ASU50,GSU55..RUS |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90080-87024 |
ASU50,GSU55..RUS |
3 | ||
| 90080-87024 |
ASU50,GSU55..RUS |
3 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90080-87026 |
ASU50,GSU5# |
1 | ||
| 90080-87026 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 90084-11038 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
