ASU50L-ARTGKX (2016)
Toyota Highlander/Kluger

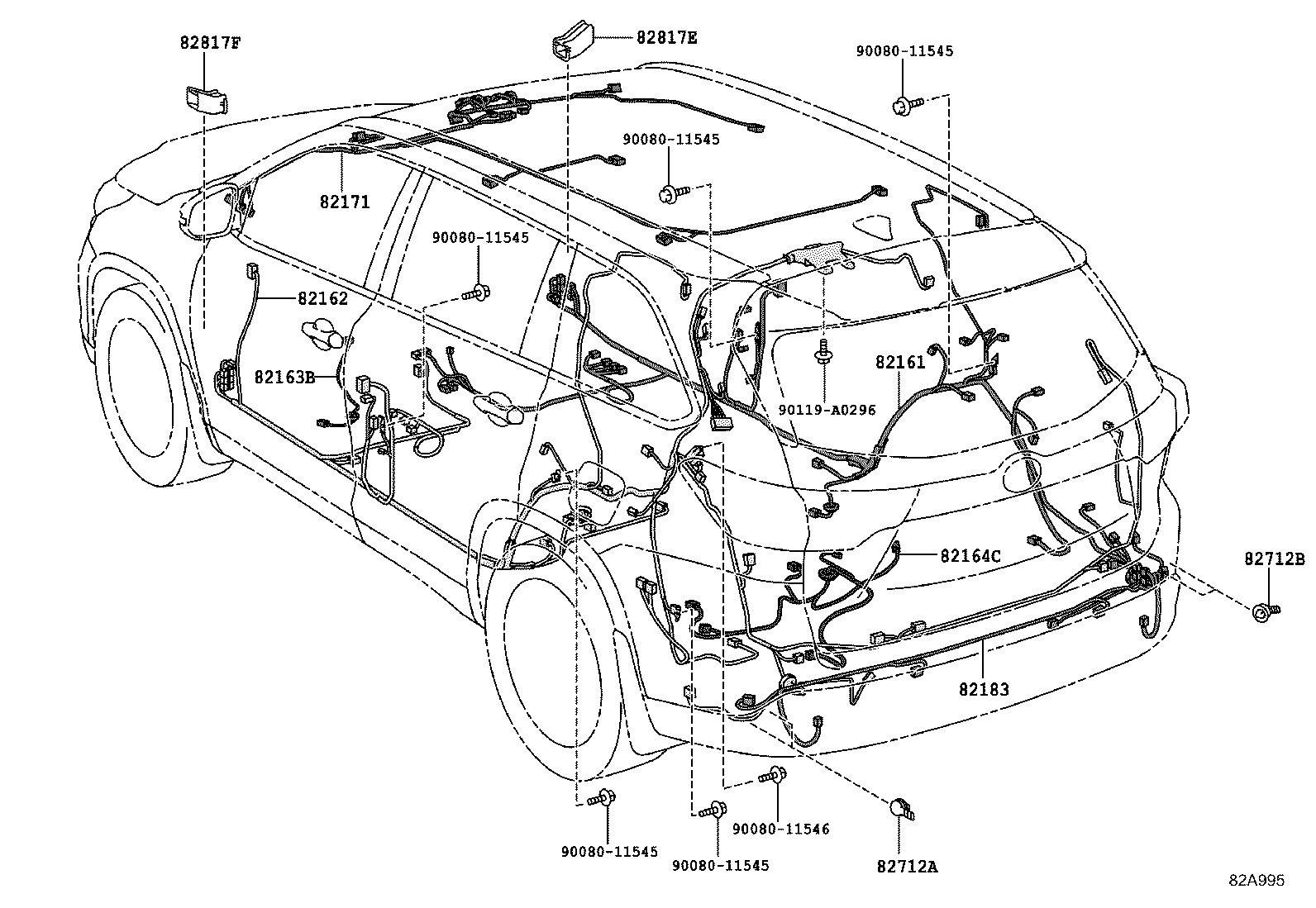

ILLUST NO. 5 OF 9(1611- )
FLOOR, FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0EA40 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 82161-0EE41 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 82161-0EE40 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0EB00 |
ASU50..LIMD |
1 | ||
| 82162-0EB01 |
ASU50..LIMD |
1 | ||
| 82162-0E570 |
ASU50..LIMD |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-0E030 |
ASU50,GSU5# |
1 | ||
| 82165-0E030 |
ASU50,GSU5# |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-0E140 |
ASU50,GSU50..LIMD |
1 | ||
| 82164-0E140 |
ASU50..LIMD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0E680 |
ASU50,GSU55..LIMD..RUS LANE KEEPING SYSTEM-WITH |
1 | ||
| 82171-0E710 |
ASU50,GSU55..LIMD..RUS MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82171-0E700 |
ASU50,GSU55..LIMD..RUS MOON ROOF-WITH(TILT & SLIDE)&LANE KEEPING SYSTEM-WITH |
1 | ||
| 82171-0E690 |
ASU50,GSU55..LIMD..RUS |
1 | ||
| 82171-0ED20 |
GSU55..RUS;ASU50..LIMD |
1 | ||
| 82171-0ED30 |
ASU50,GSU55..LIMD..RUS MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82171-0EF60 |
ASU50,GSU55..LIMD..RUS PACKAGE OPTION 1-GSP WITH TSR&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82171-0EF50 |
ASU50,GSU55..LIMD..RUS PACKAGE OPTION 1-GSP WITH TSR |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-0E070 |
GSU55..RUS;ASU50..LIMD |
1 | ||
| 82183-0E040 |
ASU50,GSU55..RUS |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0E360 |
ASU50,GSU5# |
1 | ||
| 82817-0E360 |
ASU50,GSU5# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-0E360 |
ASU50,GSU5# |
1 | ||
| 82817-0E360 |
ASU50,GSU5# |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-11546 | ||||
| 90119-A0296 | ||||

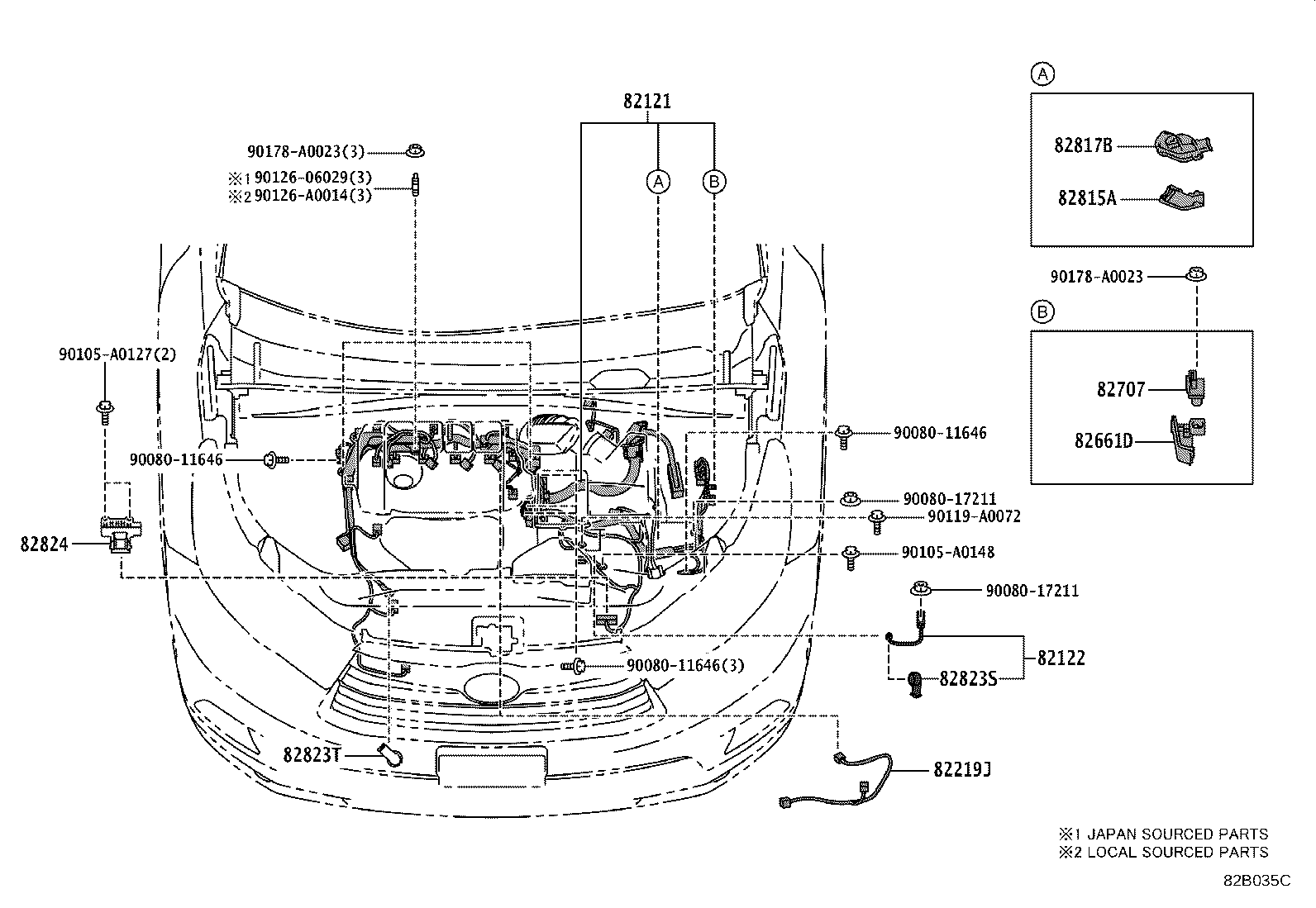

ILLUST NO. 2 OF 9(1611- )ASU50
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0E230 |
ASU50 |
1 | ||
| 82121-0E232 |
ASU50 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0E020 |
ASU50,GSU5# |
1 | ||
| 82122-0E020 |
ASU50 |
1 | ||
| 82219J - WIRE, KNOCK SENSOR | ||||
| 82219-73010 |
ASU50 (J) |
1 | ||
| 82219-0T020 |
ASU50 (L) |
1 | ||
| 82219-73010 |
ASU50 (J) |
1 | ||
| 82219-0T020 |
ASU50 (L) |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-0E010 |
ASU50,GSU5# |
1 | ||
| 82661-0E080 |
ASU50,GSU5# |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82712-0E010 |
ASU50,GSU5# |
1 | ||
| 82712-0E010 |
ASU50,GSU5# |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0E010 |
ASU50 |
1 | ||
| 82815-0E010 |
ASU50,GSU5# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0E170 |
ASU50 |
1 | ||
| 82817-0E170 |
ASU50,GSU5# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
ASU50,GSU5# |
1 | ||
| 82823-12090 |
ASU50 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-60040 |
ASU50 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-33360 |
ASU50 |
1 | ||
| 82824-33360 |
ASU50 |
1 | ||
| Common parts | ||||
| 90080-11646 | ||||
| 90080-17211 | ||||
| 90105-A0127 | ||||
| 90105-A0148 | ||||
| 90119-A0072 | ||||
| 90126-06029 | ||||
| 90126-A0014 | ||||
| 90178-A0023 | ||||
