ASU50L-ARTGKX (2016)

Toyota Highlander/Kluger

Production Nov 2016 - Nov 2019
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

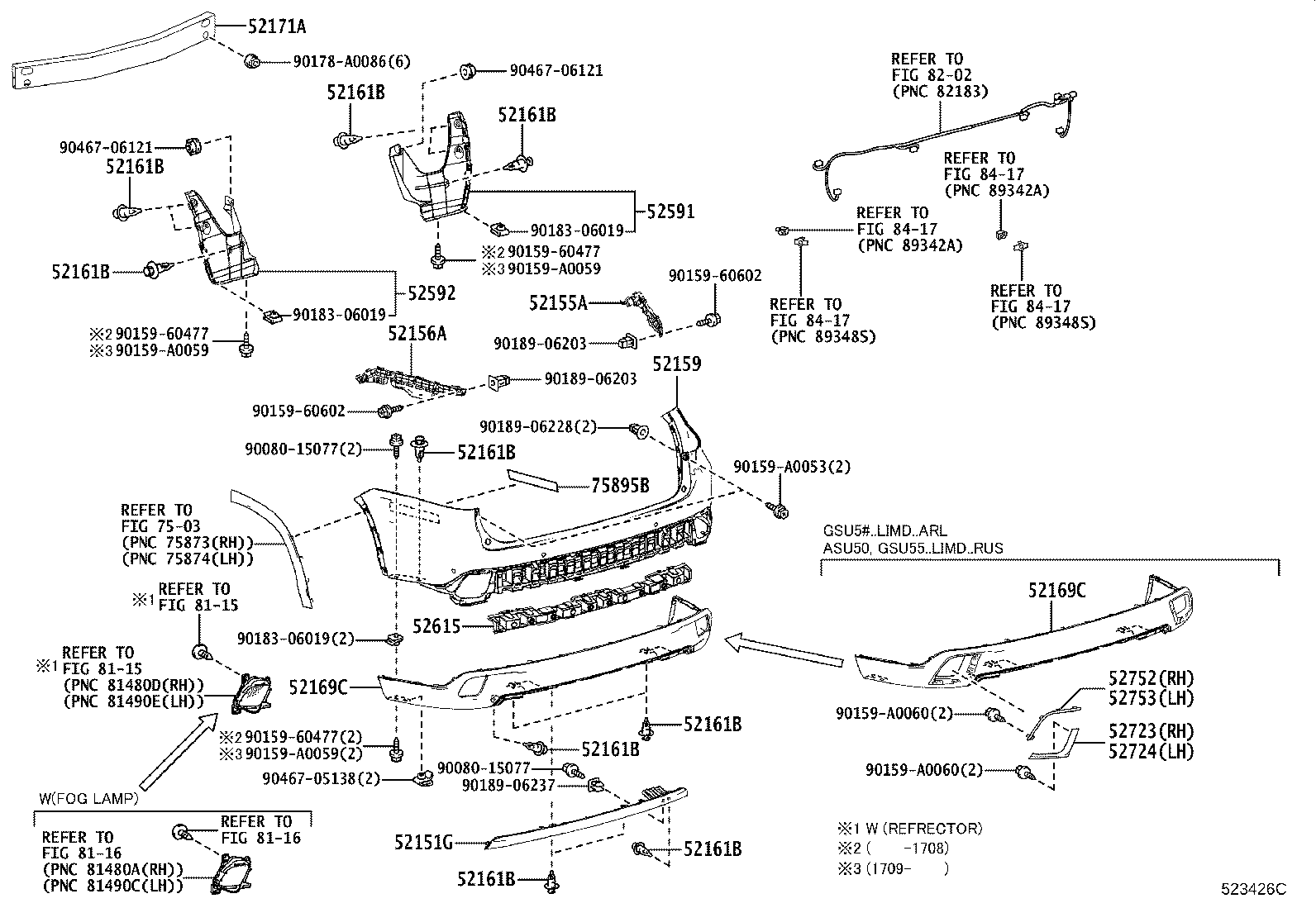

Click highlighted areas on diagram

diagram 52151G 52155A 52156A 52159 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52169C 52169C 52171A 52591 52592 52615 52723 52724 52752 52753 7503 75895B 8115 8115 8116 8116 8202 8417 8417 8417 8417 9008015077 9008015077 9015960477 9015960477 9015960477 9015960602 9015960602 90159A0053 90159A0059 90159A0059 90159A0059 90159A0060 90159A0060 90178A0086 9018306019 9018306019 9018306019 9018906203 9018906203 9018906228 9018906237 9046705138 9046706121 9046706121
Part # Description Qty Price
52151G - EXTENSION, REAR BUMPER
52151-0E040

ASU50,GSU5#

 1
52151-0E080

ASU50,GSU5#..LIMD

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-0E070

ASU50,GSU5#

 1
52155-0E070

ASU50,GSU5#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-0E070

ASU50,GSU5#

 1
52156-0E070

ASU50,GSU5#

 1
52159 - COVER, REAR BUMPER
52159-0E911

ASU50,GSU55..RUS

PAINT REQ.

 1
52159-0E918

GSU5#;ASU50..LIMD

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#

 15
52161-02020

ASU50,GSU5#

 15
52161B - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#

 15
52161-02020

ASU50,GSU5#

 15
52161B - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#

 15
52161-02020

ASU50,GSU5#

 15
52161B - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#

 15
52161-02020

ASU50,GSU5#

 15
52161B - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#

 15
52161-02020

ASU50,GSU5#

 15
52161B - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#

 15
52161-02020

ASU50,GSU5#

 15
52161B - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#

 15
52161-02020

ASU50,GSU5#

 15
52161B - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#

 15
52161-02020

ASU50,GSU5#

 15
52161B - PIECE, REAR BUMPER
52161-02020

ASU50,GSU5#

 15
52161-02020

ASU50,GSU5#

 15
52169C - COVER, REAR BUMPER, LOWER
52169-0E100

ASU50,GSU5#..LIMD

NO PAINT REQ.

 1
52169-0E070

ASU50,GSU5#

NO PAINT REQ.

 1
52169C - COVER, REAR BUMPER, LOWER
52169-0E100

ASU50,GSU5#..LIMD

NO PAINT REQ.

 1
52169-0E070

ASU50,GSU5#

NO PAINT REQ.

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-0E080

ASU50,GSU5#

 1
52171-0E080

ASU50,GSU5#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0E060

ASU50,GSU5#

 1
52591-0E060

ASU50,GSU5#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0E060

ASU50,GSU5#

 1
52592-0E060

ASU50,GSU5#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-0E080

ASU50,GSU5#

 1
52615-0E080

ASU50,GSU5#

 1
52723 - MOULDING, REAR BUMPER EXTENSION, RH
52723-0E020

ASU50,GSU55..LIMD..RUS

 1
52724 - MOULDING, REAR BUMPER EXTENSION, LH
52724-0E020

ASU50,GSU55..LIMD..RUS

 1
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-0E040

ASU50,GSU55..LIMD..RUS

 1
52753 - MOULDING, REAR BUMPER SIDE, LH
52753-0E040

ASU50,GSU55..LIMD..RUS

 1
75895B - TAPE, MOULDING, NO.2
75895-0E010

ASU50,GSU5#

 2
75895-0E010

ASU50,GSU5#

 2
Common parts
90080-15077
90159-60477
90159-60602
90159-A0053
90159-A0059
90159-A0060
90178-A0086
90183-06019
90189-06203
90189-06228
90189-06237
90467-05138
90467-06121
