ASU50L-ARTGKX (2016)

Toyota Highlander/Kluger

Production Nov 2016 - Nov 2019
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1611- )

Click highlighted areas on diagram

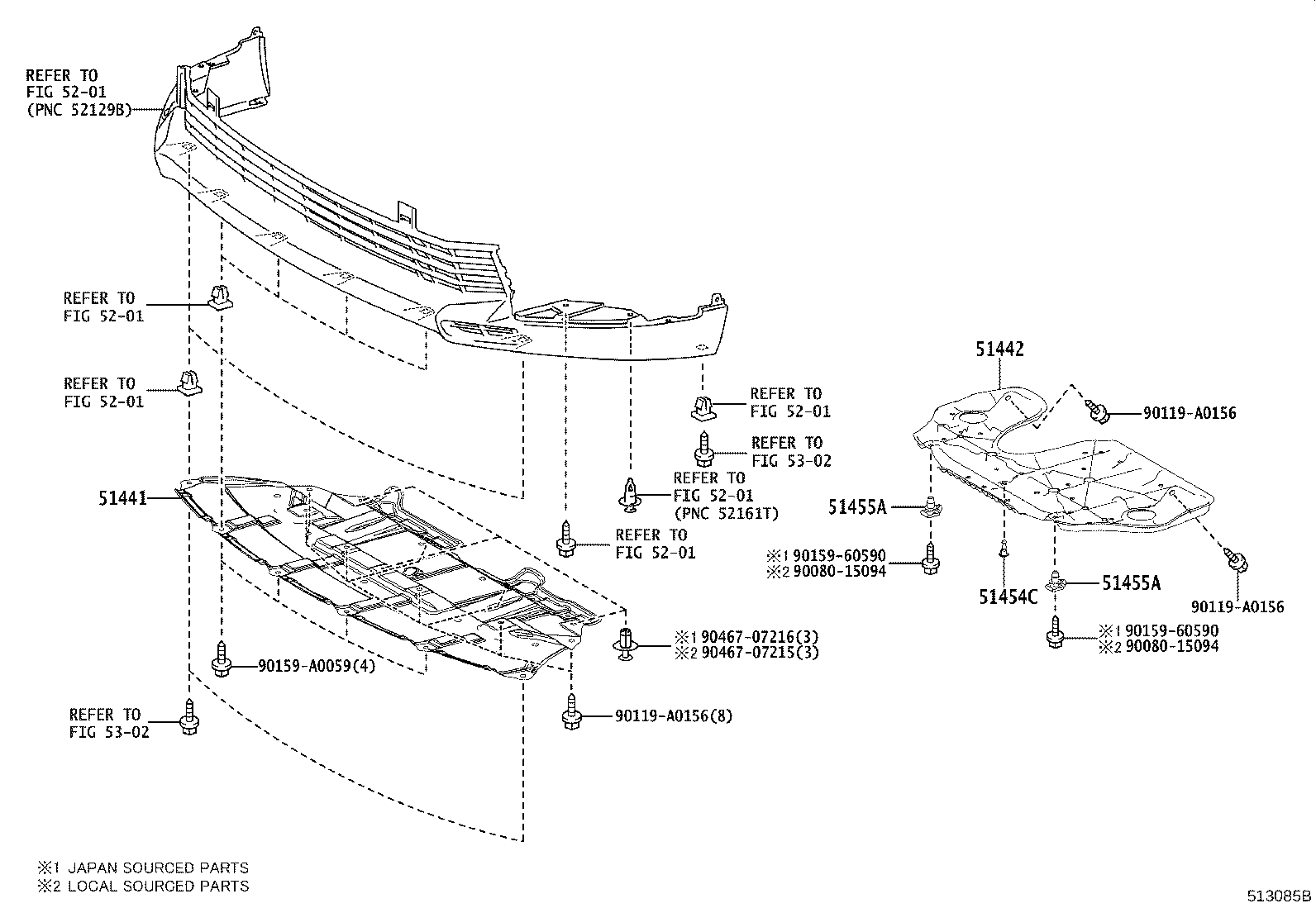

ENGINE UNDER COVER

diagram 51441 51442 51454C 51455A 51455A 5201 5201 5201 5201 5201 5201 5302 5302 9008015094 9008015094 90119A0156 90119A0156 90119A0156 9015960590 9015960590 90159A0059 9046707215 9046707216
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-0E091

ASU50,GSU5#

 1
51441-0E090

ASU50,GSU5#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-0E020

ASU50,GSU5#

 1
51442-0E020

ASU50

 1
51454C - SILENCER, ENGINE UNDER COVER, REAR
51454-0E010

ASU50,GSU5#

 1
51454-0E010

ASU50,GSU5#

 1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-0E010

ASU50,GSU5#

 2
51455-0E010

ASU50,GSU5#

 2
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-0E010

ASU50,GSU5#

 2
51455-0E010

ASU50,GSU5#

 2
Common parts
90080-15094
90119-A0156
90159-60590
90159-A0059
90467-07215
90467-07216
Linked diagrams
5201
5302
