YH66LV-MRRW (1986)

Toyota Hiace Van,Commuter

Production Dec 1986 - Aug 1987
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )4Y..YH56,66

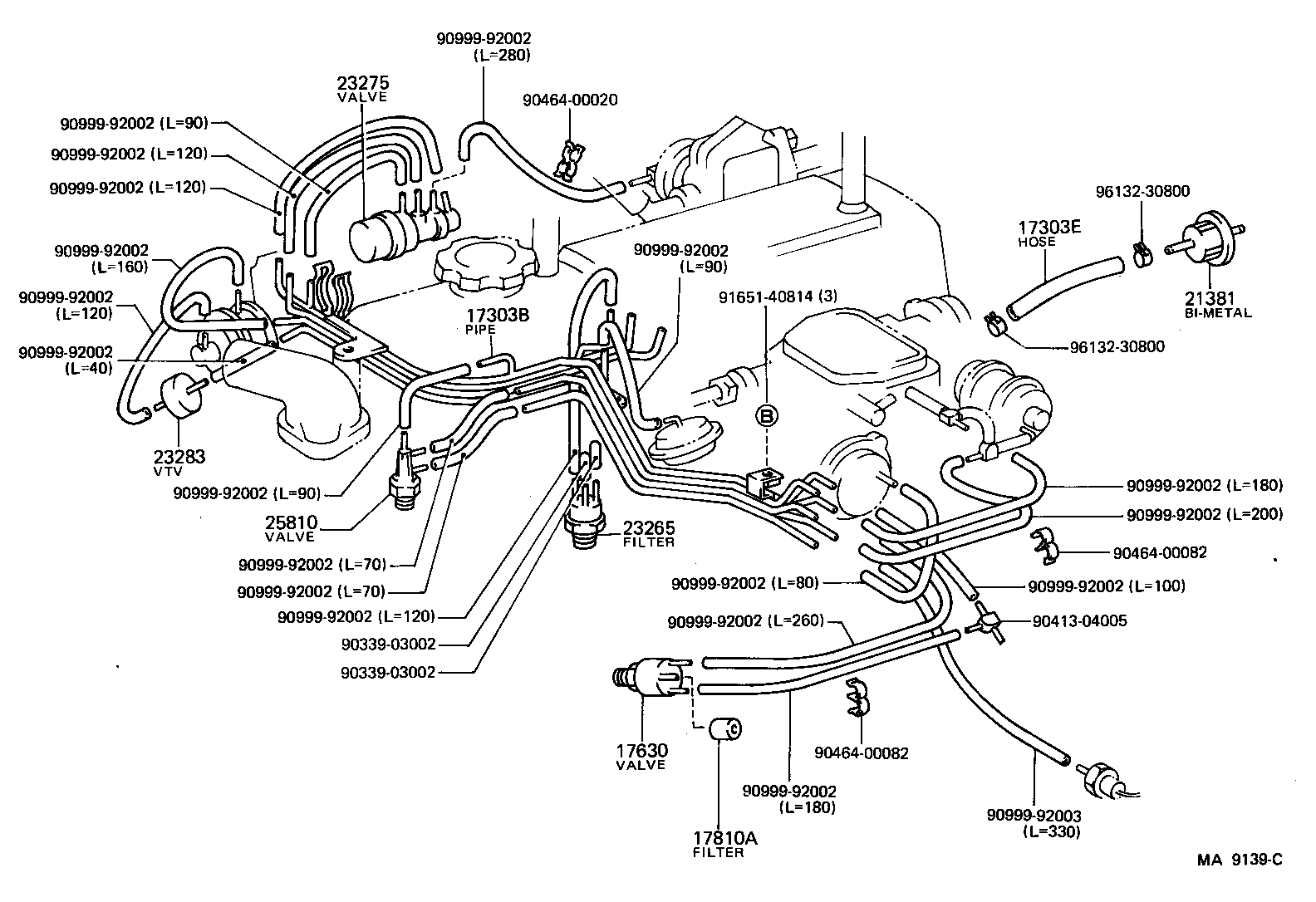

Click highlighted areas on diagram

diagram 17303B 17303E 17630 17810A 21381 23265 23275 23283 25810 9033903002 9033903002 9041304005 9046400020 9046400082 9046400082 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9165140814 9613230800 9613230800
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-73060

4Y..YH56,66

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14104

3Y..YH51..4HC..(03S,06S,09S)..N1;3Y..YH51..(4FC,4H,5F,5H)..(ARL,EUR);2Y#,3Y,4Y..YH50,53,56,6#,71..ARL,EUR

 1
17630 - VALVE ASSY, AIR CONTROL
17630-28020

4Y..YH56,66

W/PS

 1
17810A - FILTER ASSY, AIR
90925-06007

4Y..YH56,66

W/PS

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01014

4Y..YH56,66

 1
Common parts
90339-03002
90413-04005
90464-00020
90464-00082
90999-92002
90999-92003
91651-40814
96132-30800
