YH66LV-MRBFW (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH56,66,YH56,66

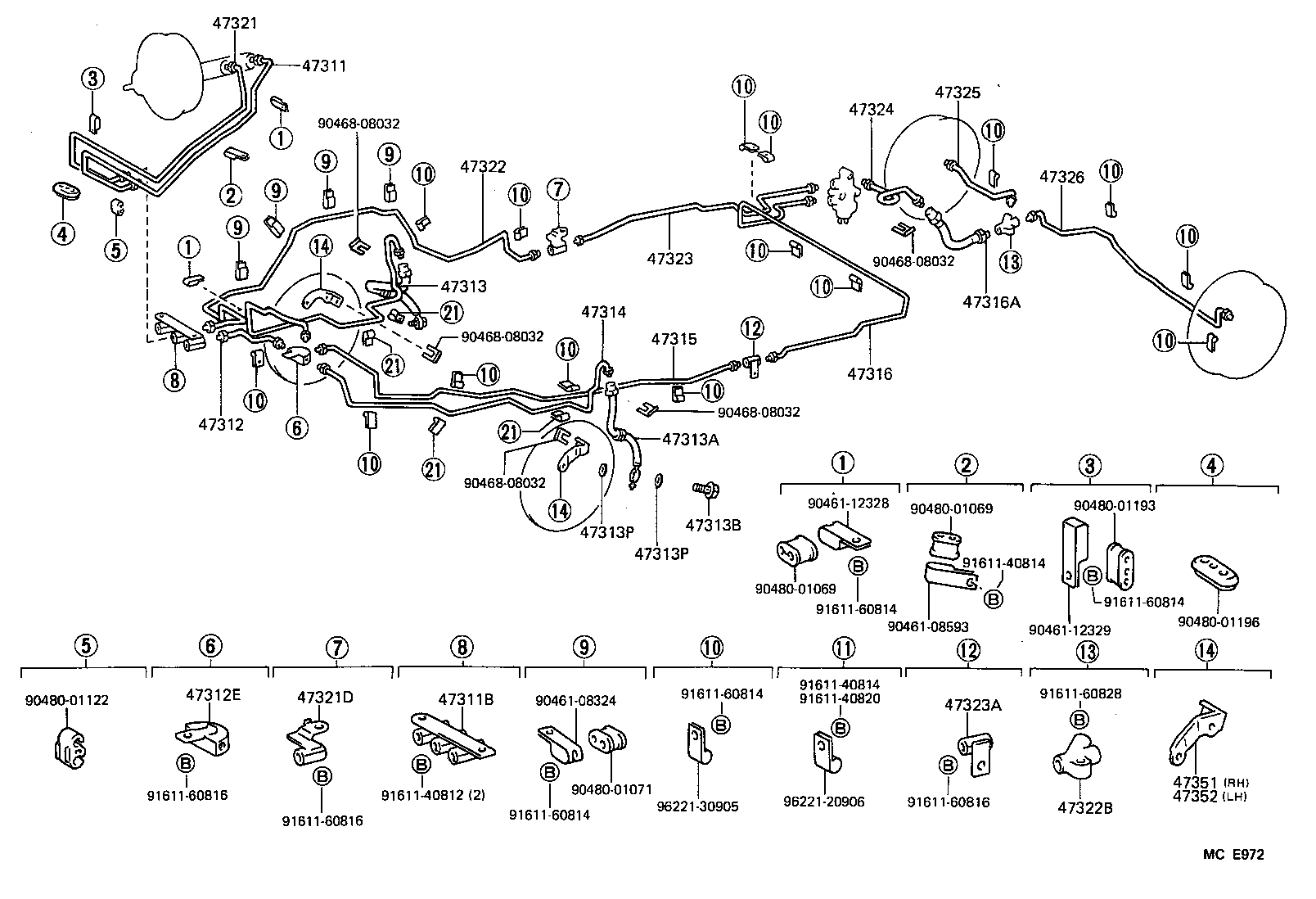

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313B 47313P 47313P 47314 47315 47316 47316A 47321 47321D 47322 47322B 47323 47323A 47324 47325 47326 47351 47352 9046108324 9046108593 9046112328 9046112329 9046808032 9046808032 9046808032 9046808032 9046808032 9048001069 9048001069 9048001071 9048001122 9048001193 9048001196 9161140812 9161140814 9161140814 9161140820 9161160814 9161160814 9161160814 9161160814 9161160816 9161160816 9161160816 9161160828 9622120906 9622130905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26290

LH5#,6#,YH5#,6#..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10105

LH5#,6#,YH5#,6#..MTM

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26230

LH56,66,YH56,66

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10012

LH5#,6#,YH5#,6#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26120

LH56,66,YH56,66

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02534

YH56,66

 2
90947-02502

LH56,66

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

LH56,66,YH56,66

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH56,66,YH56,66

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH56,66,YH56,66

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-26120

LH56,66,YH56,66

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26100

LH56,66,YH56,66

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-26101

LH6#,YH6#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33505

LH56,66

 1
90947-02535

YH56,66

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26200

LH5#,6#,YH5#,6#..LHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10103

LH5#,6#,YH5#,6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26150

LH56,66,YH56,66

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LH5#,6#,YH5#,6#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26211

LH6#,YH6#

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-10006

LH5#,6#,YH5#,6#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26101

LH5#,6#,YH5#,6#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26220

LH56,66,YH56,66

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26210

LH56,66,YH56,66

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26090

LH56,66,YH56,66

 1
47351-26090

LH56,66,YH56,66

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26090

LH56,66,YH56,66

 1
47352-26090

LH56,66,YH56,66

 1
Common parts
90461-08324
90461-08593
90461-12328
90461-12329
90468-08032
90480-01069
90480-01071
90480-01122
90480-01193
90480-01196
91611-40812
91611-40814
91611-40820
91611-60814
91611-60816
91611-60828
96221-20906
96221-30905

(8708- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160814 9161160814 9411040800 9411040800 9411040800 9411040800 9414140800 9451200800 9451200800 9451200800 9451200800 9451200800 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

LH5#,6#,YH5#,6#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26141

LH56,66,YH56,66..02S,R,U

 1
47920 - SPRING ASSY, LOAD SENSING
47920-26040

LH5#,6#,YH5#,6#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH5#,6#,YH5#,6#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LH5#,6#,YH5#,6#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LH5#,6#,YH5#,6#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH5#,6#,YH5#,6#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LH5#,6#,YH5#,6#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-26060

LH5#,6#,YH5#,6#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26040

LH5#,6#,YH5#,6#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

LH5#,6#,YH5#,6#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LH5#,6#,YH5#,6#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH5#,6#,YH5#,6#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH5#,6#,YH5#,6#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LH5#,6#,YH5#,6#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

LH5#,6#,YH5#,6#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LH5#,6#,YH5#,6#

 1
Common parts
90201-23360
91131-50840
91611-60814
94110-40800
94141-40800
94512-00800
95381-02020
