YH63RB-JRN (1986)

Toyota Hiace Van,Commuter

Production Aug 1986 - Jul 1988
Engine 4Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )3Y,4Y

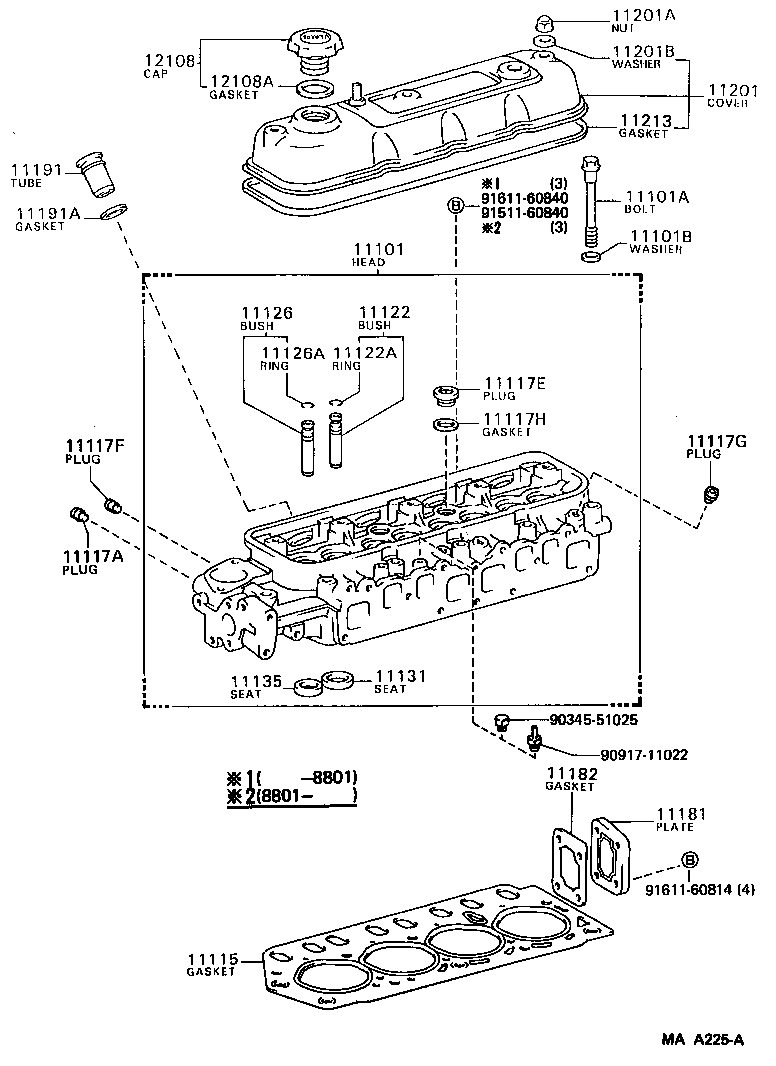

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11117A 11117E 11117F 11117G 11117H 11122 11122A 11126 11126A 11131 11135 11181 11182 11191 11191A 11201 11201A 11201B 11213 12108 12108A 9034551025 9091711022 9151160840 9161160814 9161160840
Part # Description Qty Price
Common parts
90345-51025
90917-11022
91511-60840
91611-60814
91611-60840
