YH61RV-QRBW (1987)
Toyota Hiace Van,Commuter
Production
Aug 1987
-
Aug 1989
Engine
3Y
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )LH51,61,YH51,61

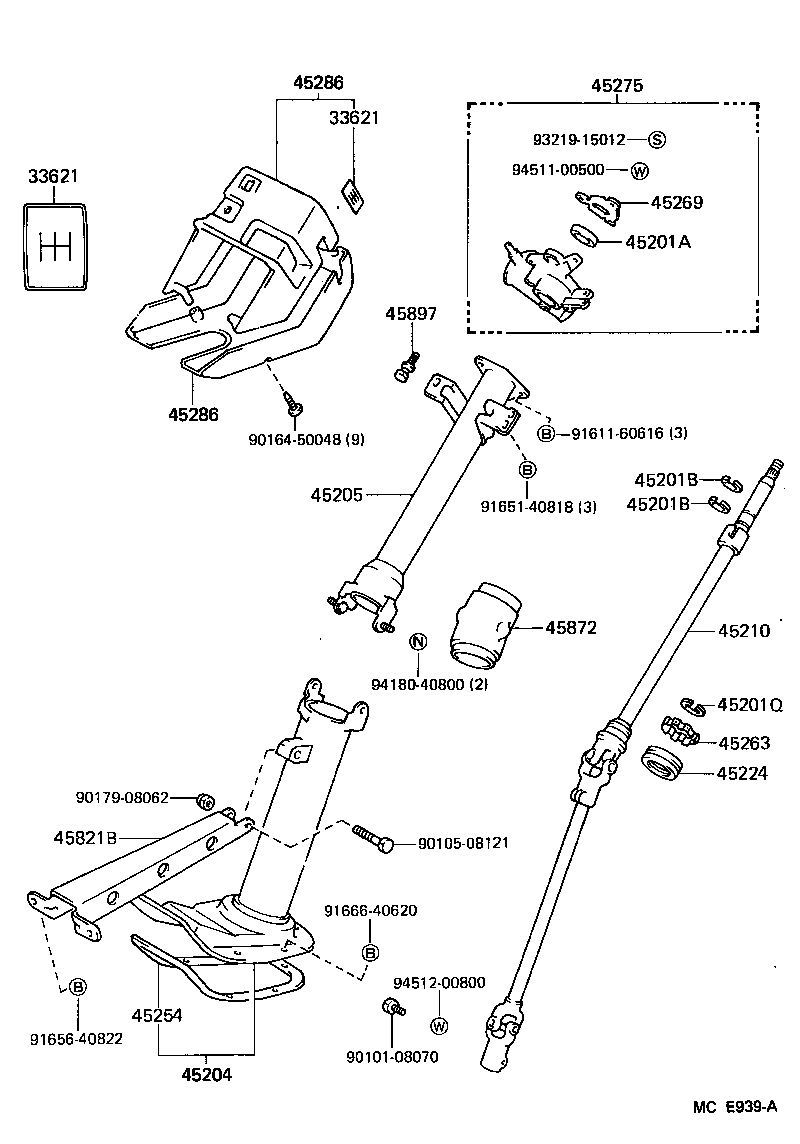

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36020 |
LH51,61,YH61..RHD |
1 | ||
| 33621 - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-36020 |
LH51,61,YH61..RHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LH5#,6#,YH5#,6# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH5#,6#,YH5#,6# T=1.20 |
1 | ||
| 90520-17269 |
LH5#,6#,YH5#,6# T=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH5#,6#,YH5#,6# T=1.20 |
1 | ||
| 90520-17269 |
LH5#,6#,YH5#,6# T=1.20 |
1 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
LH5#,6#,YH5#,6# |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-26050 |
LH51,61,YH51,61..RHD |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-26081 |
LH51,61,YH51,61..RHD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-26010 |
LH51,61,YH51,61 |
1 | ||
| 45210-26020 |
LH51,61,YH51,61 W(POWER STEERING) |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
LH5#,6#,YH5#,6# L=16 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-26050 |
LH5#,6#,YH5#,6# |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
LH5#,6#,YH5#,6# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LH5#,6#,YH5#,6# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-26081 |
LH51,61,YH51,61..RHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2609116 |
LH51,61,YH51,61..RHD BROWN,TRIM4#,LWR |
1 | ||
| 45023-2621206 |
LH51,61,YH61..RHD BROWN,TRIM4#,UPR |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2609116 |
LH51,61,YH51,61..RHD BROWN,TRIM4#,LWR |
1 | ||
| 45023-2621206 |
LH51,61,YH61..RHD BROWN,TRIM4#,UPR |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-26011 |
LH51,61,YH51,61..RHD |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-26010 |
LH5#,6#,YH5#,6# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
LH5#,6#,YH5#,6# |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-08121 | ||||
| 90164-50048 | ||||
| 90179-08062 | ||||
| 91611-60616 | ||||
| 91651-40818 | ||||
| 91656-40822 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 94180-40800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
