YH61LB-QRW (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1988
Engine 3Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )3Y,4Y

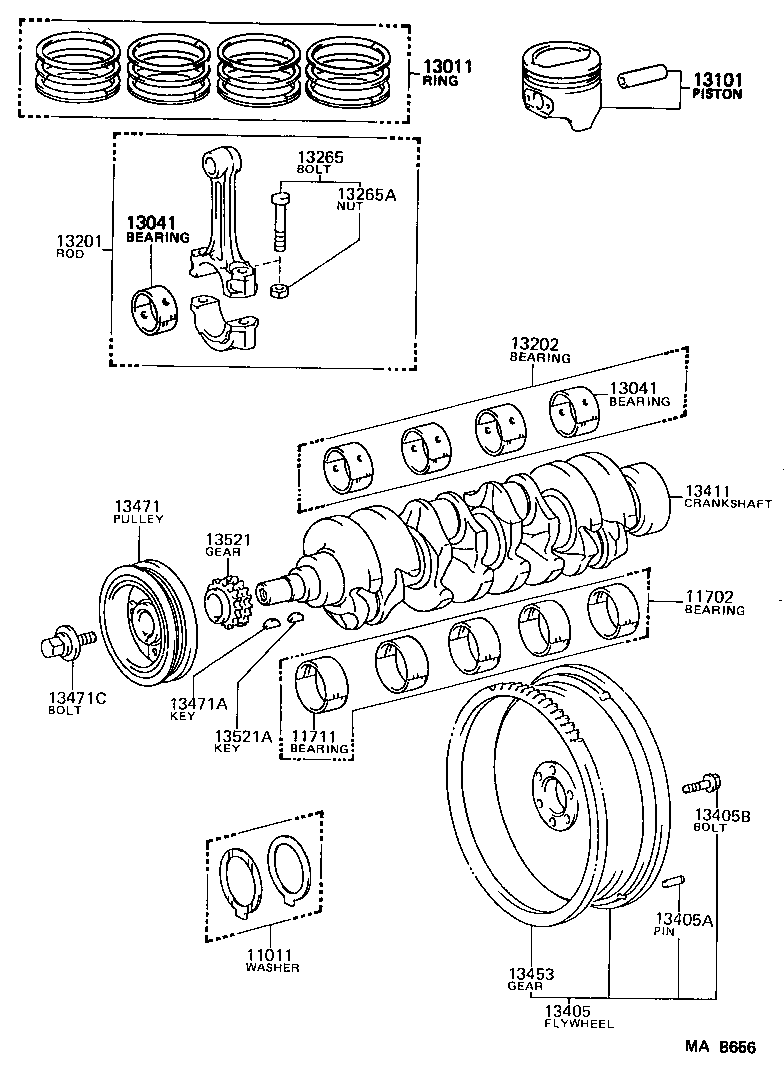

Click highlighted areas on diagram

diagram 11011 11702 11711 13011 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13521 13521A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010

3Y,4Y..YH5#,6#

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-71020

3Y,4Y..YH5#,6#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-7102003

3Y,4Y..YH5#,6#

MARK 3

 5
11701-7102002

3Y,4Y..YH5#,6#

MARK 2

 5
11701-7102001

3Y,4Y..YH5#,6#

MARK 1

 5
13011 - RING SET, PISTON
13013-71031

3Y..YH51,61

O/S 0.50

 1
13014-71031

3Y..YH51,61

O/S 0.75

 1
13015-71031

3Y..YH51,61

O/S 1.00

 1
13011-71031

3Y..YH51,61

STD

 1
13041 - BEARING, CONNECTING ROD
13041-7102107

3Y,4Y..YH5#,6#

MARK 7

 4
13041-7102106

3Y,4Y..YH5#,6#

MARK 6

 4
13041-7102108

3Y,4Y..YH5#,6#

MARK 8

 4
13041 - BEARING, CONNECTING ROD
13041-7102107

3Y,4Y..YH5#,6#

MARK 7

 4
13041-7102106

3Y,4Y..YH5#,6#

MARK 6

 4
13041-7102108

3Y,4Y..YH5#,6#

MARK 8

 4
13101 - PISTON SUB-ASSY, W/PIN
13103-73010

3Y..YH51,61

O/S 0.50

 4
13101-73010

3Y..YH51,61

STD

 4
13104-73010

3Y..YH51,61

O/S 0.75

 4
13105-73010

3Y..YH51,61

O/S 1.00

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-79045

3Y,4Y..YH5#,6#

 4
13202 - BEARING SET, CONNECTING ROD
13204-71021

3Y,4Y..YH5#,6#

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-29025

3Y,4Y..YH5#,6#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09001

3Y,4Y..YH5#,6#

 8
13405 - FLYWHEEL SUB-ASSY
13405-79065

3Y,4Y..YH5#,6#..MTM

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

3Y,4Y..YH5#,6#..MTM

L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10042

3Y,4Y..YH5#,6#..MTM

 6
13411 - CRANKSHAFT
13411-73010

3Y,4Y..YH5#,6#

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

3Y,4Y..YH5#,6#..MTM

 1
13471 - PULLEY, CRANKSHAFT
13408-71010

3Y,4Y..YH5#,6#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

3Y,4Y..YH5#,6#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14013

3Y,4Y..YH5#,6#

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

3Y,4Y..YH5#,6#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

3Y,4Y..YH5#,6#

 1
