YH56LV-MRRW (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH56,66,YH56,66

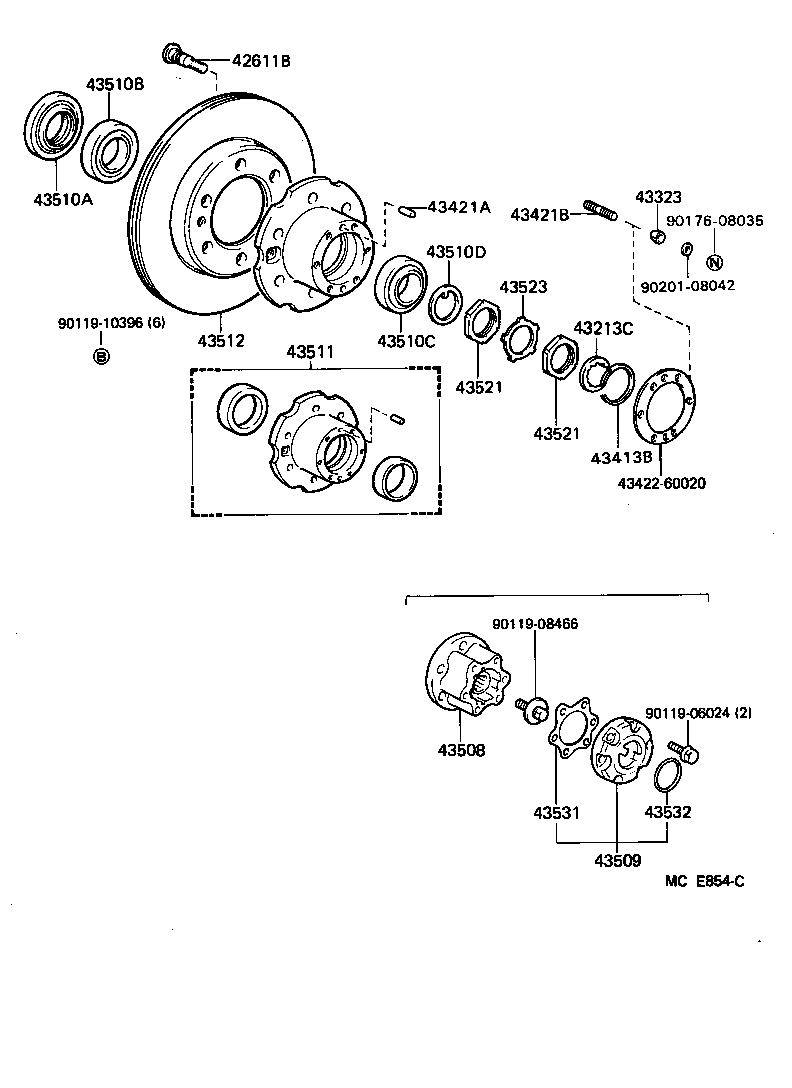

Click highlighted areas on diagram

diagram 42611B 43213C 43323 43413B 43421A 43421B 4342260020 43508 43509 43510A 43510B 43510C 43510D 43511 43512 43521 43521 43523 43531 43532 9011906024 9011908466 9011910396 9017608035 9020108042
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02049

LH56,66,YH56,66

 1
90942-02049

LH56,66,YH56,66

 1
43213C - SPACER (FOR DRIVE SHAFT)
90560-27005

LH56,66,YH56,66

T=2.0

 2
90560-27010

LH56,66,YH56,66

T=1.8

 2
90560-27011

LH56,66,YH56,66

T=2.25

 2
90560-27005

LH56,66,YH56,66

T=2.0

 2
43323 - WASHER, CONE (FOR FRONT AXLE SHAFT)
42323-60010

LH56,66,YH56,66

 12
42323-60010

LH56,66,YH56,66

 12
43413B - RING, DRIVE SHAFT SNAP
90520-27023

LH56,66,YH56,66

 2
90520-27023

LH56,66,YH56,66

 2
43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)
90250-07057

LH56,66,YH56,66

 1
90250-07057

LH56,66,YH56,66

 1
43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)
90116-08325

LH56,66,YH56,66

 12
90116-08325

LH56,66,YH56,66

 12
43508 - BODY SUB-ASSY, FREE WHEEL HUB
43508-35010

LH56,66,YH56,66

 2
43508-35010

LH56,66,YH56,66

 2
43509 - COVER SUB-ASSY, FREE WHEEL HUB
43509-35030

LH56,66,YH56,66

 2
43509-35030

LH56,66,YH56,66

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-66001

LH56,66,YH56,66

 2
90311-66001

LH56,66,YH56,66

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-49084

LH56,66,YH56,66

 2
90368-49084

LH56,66,YH56,66

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-45087

LH56,66,YH56,66

 2
90368-45087

LH56,66,YH56,66

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-42030

LH56,66,YH56,66

 2
90214-42030

LH56,66,YH56,66

 2
43511 - HUB, FRONT AXLE
43511-35904

LH56,66,YH56,66

 1
43511-35904

LH56,66,YH56,66

 1
43512 - DISC, FRONT
43512-26081

LH56,66,YH56,66

 2
43512-26081

LH56,66,YH56,66

 1
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

LH56,66,YH56,66

 4
43521-60011

LH56,66,YH56,66

 4
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

LH56,66,YH56,66

 4
43521-60011

LH56,66,YH56,66

 4
43523 - WASHER, FRONT WHEEL ADJUSTING LOCK
90215-42025

LH56,66,YH56,66

 2
90215-42025

LH56,66,YH56,66

 2
43531 - GASKET, FREE WHEEL HUB
43531-60010

LH56,66,YH56,66

 2
43531-60010

LH56,66,YH56,66

 2
43532 - RING, FREE WHEEL HUB
43532-60010

LH56,66,YH56,66

 2
43532-60010

LH56,66,YH56,66

 2
Common parts
43422-60020
90119-06024
90119-08466
90119-10396
90176-08035
90201-08042
