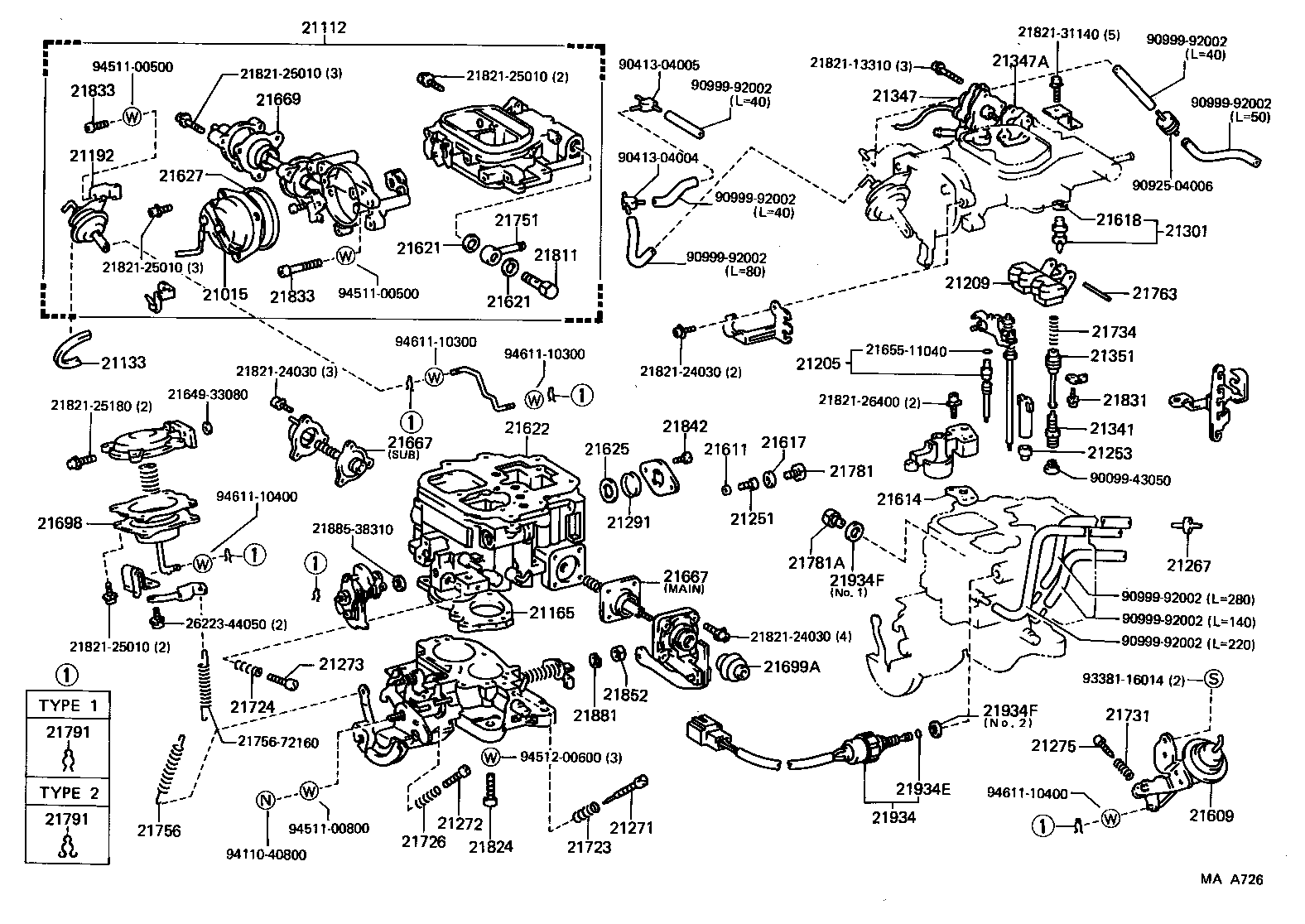

YH53RV-QNJN (1986)
Toyota Hiace Van,Commuter
(8608- )3Y,4Y..YH51,53,61,63,73..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-72150 |
3Y,4Y..YH51,53,61,63,73..ARL,GEN,SA |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-72150 |
3Y,4Y..YH51,53,61,63,73..ARL,GEN,SA |
1 | ||
| 21165 - INSULATOR | ||||
| 21165-72160 |
4Y..YH53,56,63,66,73 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-35210 |
3Y,4Y..YH51,53,61,63,73..ARL,GEN,SA |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-72160 |
4Y..YH53,56,63,66,73 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41103 |
3Y,4Y..YH51,53,61,63,73..ARL,GEN,SA |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-73230 |
3Y,4Y..YH51,53,61,63,73..ARL,GEN,SA |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-15230 |
3Y..YH51..4HC..SA;3Y..YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);2Y#,3Y,4Y..YH50,53,60,61,63,71..ARL,GEN,SA |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21272-71010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-72160 |
4Y..YH53,56,63,66,73 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-35010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
4Y..YH53,56,63,66,73 |
1 | ||
| 21347A - GASKET(FOR VALVE, SOLENOID) | ||||
| 21641-35010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-37040 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-72160 |
4Y..YH53,56,63,66,73 |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y#,3Y,4Y..YH5#,6#,71 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2Y#,3Y,4Y..YH5#,6#,71 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-73230 |
4Y..YH53,56,63,66,73 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28150 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21669 - DIAPHRAGM | ||||
| 21669-37040 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21698 - DIAPHRAGM | ||||
| 21667-72170 |
4Y..YH53,56,63,66,73 |
1 | ||
| 21699A - BOOT(FOR ACCELERATION PUMP) | ||||
| 21699-37040 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-38330 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-38310 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-22010 |
3Y,4Y..YH51,53,61,63,73..ARL,GEN,SA |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-71010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21869-71110 |
4Y..YH53,56,63,66,73 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-34320 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21781A - PLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET) | ||||
| 21781-72151 |
4Y..YH53,56,63,66,73 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2Y#,3Y,4Y..YH5#,6#,71 TYPE 1 |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
2Y#,3Y,4Y..YH5#,6#,71 TYPE 1 |
4 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 21844-26400 |
2Y#,3Y,4Y..YH5#,6#,71 |
3 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
2Y#,3Y,4Y..YH5#,6#,71 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2Y#,3Y,4Y..YH5#,6#,71 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-72150 |
3Y,4Y..YH51,53,61,63,73..ARL,GEN,SA |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
2Y#,3Y,4Y..YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 21649-33080 | ||||
| 21655-11040 | ||||
| 21756-72160 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 26223-44050 | ||||
| 90925-04006 | ||||
| 90999-43050 | ||||
| 90999-92002 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10400 | ||||
| Linked diagrams | ||||
| 2102 | ||||
(8708- )4Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 21649-33080 | ||||
| 21655-11040 | ||||
| 21756-72160 | ||||
| 21821-13310 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-31140 | ||||
| 21885-38310 | ||||
| 26223-44050 | ||||
| 90099-43050 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90925-04006 | ||||
| 90999-92002 | ||||
| 93381-16014 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
