YH51RV-PNEQ (1985)

Toyota Hiace Van,Commuter

Production Aug 1985 - Aug 1986
Engine 3Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )05S

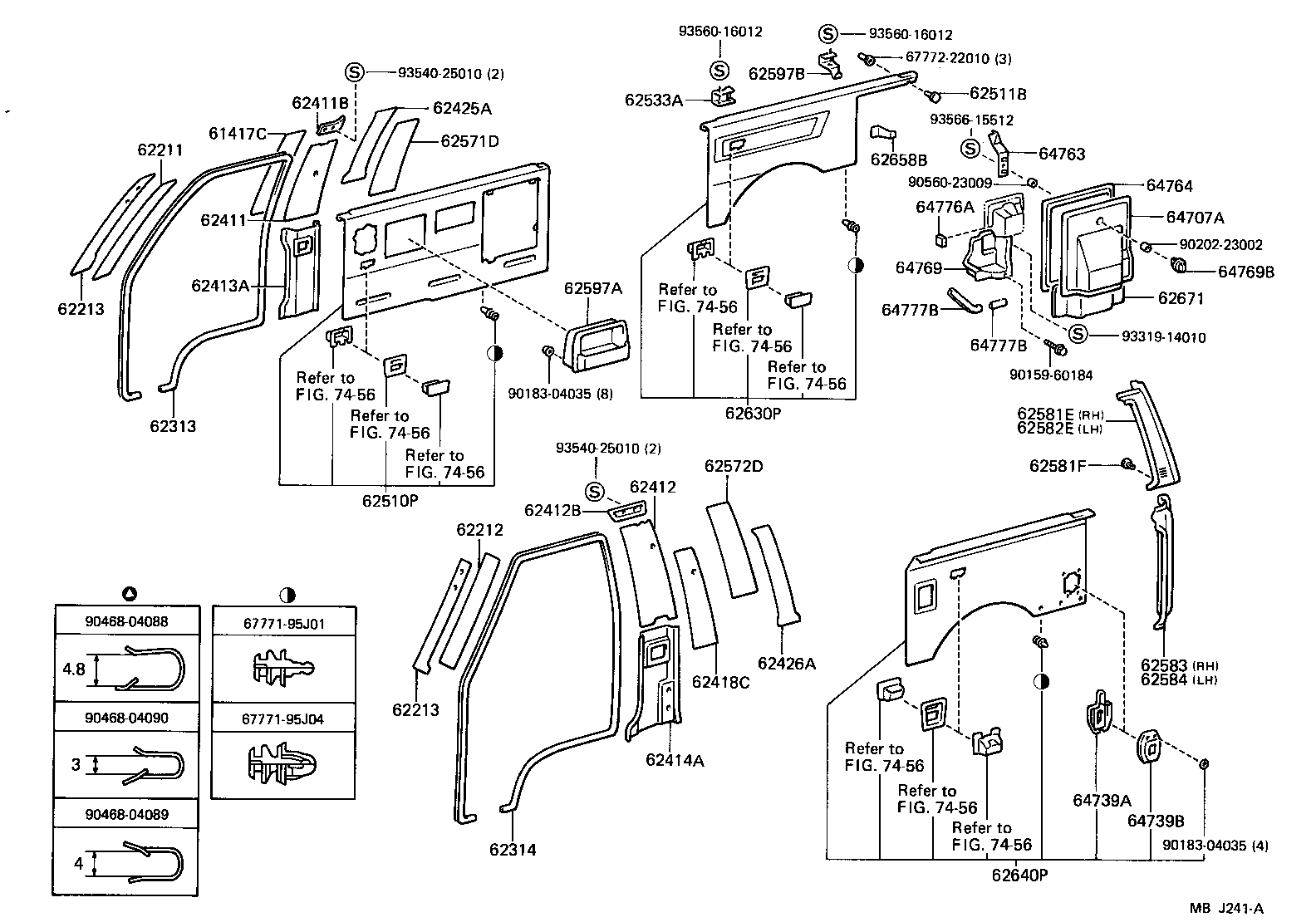

Click highlighted areas on diagram

diagram 61417C 62211 62212 62213 62213 62313 62314 62411 62411B 62412 62412B 62413A 62414A 62418C 62425A 62426A 62510P 62511B 62533A 62571D 62572D 62581E 62581F 62582E 62583 62584 62597A 62597B 62630P 62640P 62658B 62671 64707A 64739A 64739B 64763 64764 64769 64769B 64776A 64777B 64777B 6777195J01 6777195J04 6777222010 7456 7456 7456 7456 7456 7456 7456 7456 7456 9015960184 9018304035 9018304035 9020223002 9046804088 9046804089 9046804090 9056023009 9331914010 9354025010 9354025010 9356016012 9356016012 9356615512
Part # Description Qty Price
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95J0005

LH5#,6#,7#,YH5#,6#,71

BEIGE,BEIGE

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95J0005

LH5#,6#,7#,YH5#,6#,71

BEIGE,BEIGE

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J04

YH50..V4D..R;LH51,YH51..R,U;LH51,YH50..03S,06S;YH51..4HC..(03S,06S)..N1;LH50,56,YH53,56..V..(ARL,EUR,GEN);YH51..(4FC,4H,5F,5H)..(03S,05S,06S)

W/O ASH RECEPTACLE

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J05

YH50..V4D..R;LH51,YH51..R,U;LH51,YH50..03S,06S;YH51..4HC..(03S,06S)..N1;LH50,56,YH53,56..V..(ARL,EUR,GEN);YH51..(4FC,4H,5F,5H)..(03S,05S,06S)

W/O ASH RECE PTACLE

 1
64707A - COVER SUB-ASSY, QUARTER TRIM TOOL
64707-95J01

LH5#,6#,7#,YH5#,6#,7#

 1
64763 - STOPPER, TOOL COVER
64763-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
64764 - PACKING, TOOL COVER
64764-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
64769 - CASE SUB-ASSY, TOOL BAG
64709-95J00

LH50,51,YH50,51

 1
64769B - KNOB, TOOL COVER
64769-1301001

LH5#,6#,7#,YH5#,6#,7#

BLACK,BLACK

 1
64776A - SPACER, TOOL BAG CASE
64776-95J00

LH50,51,60,61,7#,YH50,51,60,61,71

 1
64777B - PROTECTOR, QUARTER, INNER
58426-95700

LH50,51,60,61,7#,YH50,51,60,61,71

L=170

 1
58426-95701

LH50,51,60,61,7#,YH50,51,60,61,71

L=40

 1
64777B - PROTECTOR, QUARTER, INNER
58426-95700

LH50,51,60,61,7#,YH50,51,60,61,71

L=170

 1
58426-95701

LH50,51,60,61,7#,YH50,51,60,61,71

L=40

 1
Common parts
67771-95J01
67771-95J04
67772-22010
90159-60184
90183-04035
90202-23002
90468-04088
90468-04089
90468-04090
90560-23009
93319-14010
93540-25010
93560-16012
93566-15512
Linked diagrams
7456
