YH51RV-PNEQ (1985)

Toyota Hiace Van,Commuter

Production Aug 1985 - Aug 1986
Engine 3Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )GL

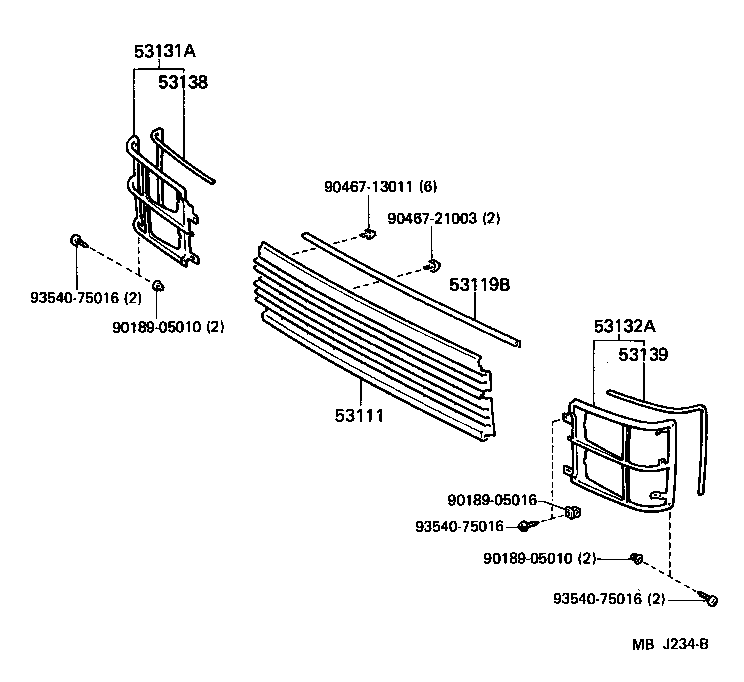

Click highlighted areas on diagram

diagram 53111 53119B 53131A 53132A 53138 53139 9018905010 9018905010 9018905016 9046713011 9046721003 9354075016 9354075016 9354075016
Part # Description Qty Price
53119B - PROTECTOR, RADIATOR GRILLE
53119-95J00

LH50,60,70,YH5#,6#,71

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53148-95J00

LH50,60,70,YH5#,6#,71

L=285

 1
53138-95J00

LH50,60,70,YH5#,6#,71

L=370

 1
53138-95J03

YH51..GL

L=380

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53138-95J00

LH50,60,70,YH5#,6#,71

L=370

 1
53138-95J03

LH51,61,71,YH5#,6#,71

L=380

 1
53149-95J00

LH50,60,70,YH5#,6#,71

L=285

 1
Common parts
90189-05010
90189-05016
90467-13011
90467-21003
93540-75016
