YH51RV-PNEQ (1985)

Toyota Hiace Van,Commuter

Production Aug 1985 - Aug 1986
Engine 3Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8608)05S ; (8608- )GL

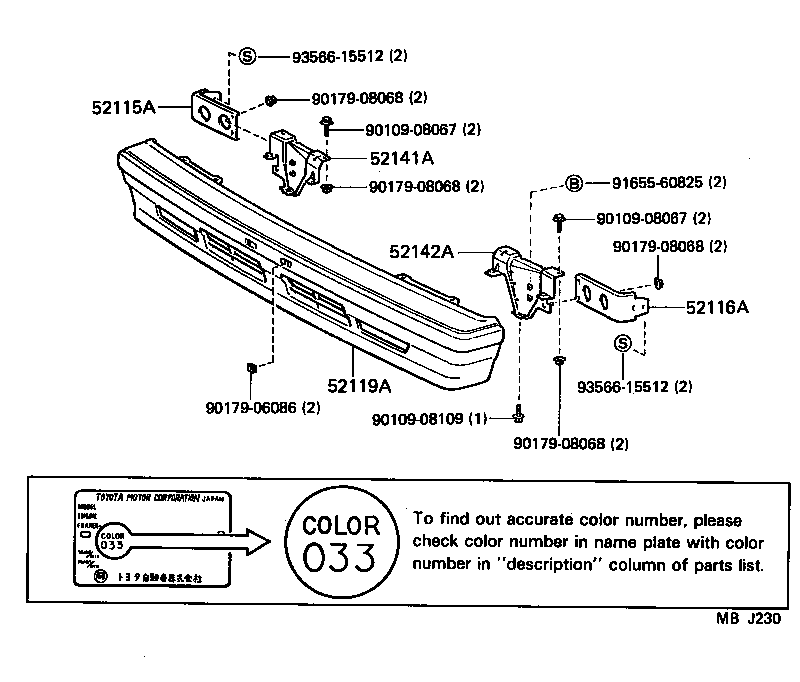

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52141A 52142A 9010908067 9010908067 9010908109 9017906086 9017908068 9017908068 9017908068 9017908068 9165560825 9356615512 9356615512
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-95J00

YH51..05S

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-95J00

YH51..05S

 1
52119A - COVER, FRONT BUMPER
52119-95J0604

YH51..05S

BLUE-M,BLUE METALLIC,2Y3

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95J03

YH51..05S

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95J03

YH51..05S

 1
Common parts
90109-08067
90109-08109
90179-06086
90179-08068
91655-60825
93566-15512
