YH51RV-MNEQ (1985)

Toyota Hiace Van,Commuter

Production Aug 1985 - Aug 1986
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )05S

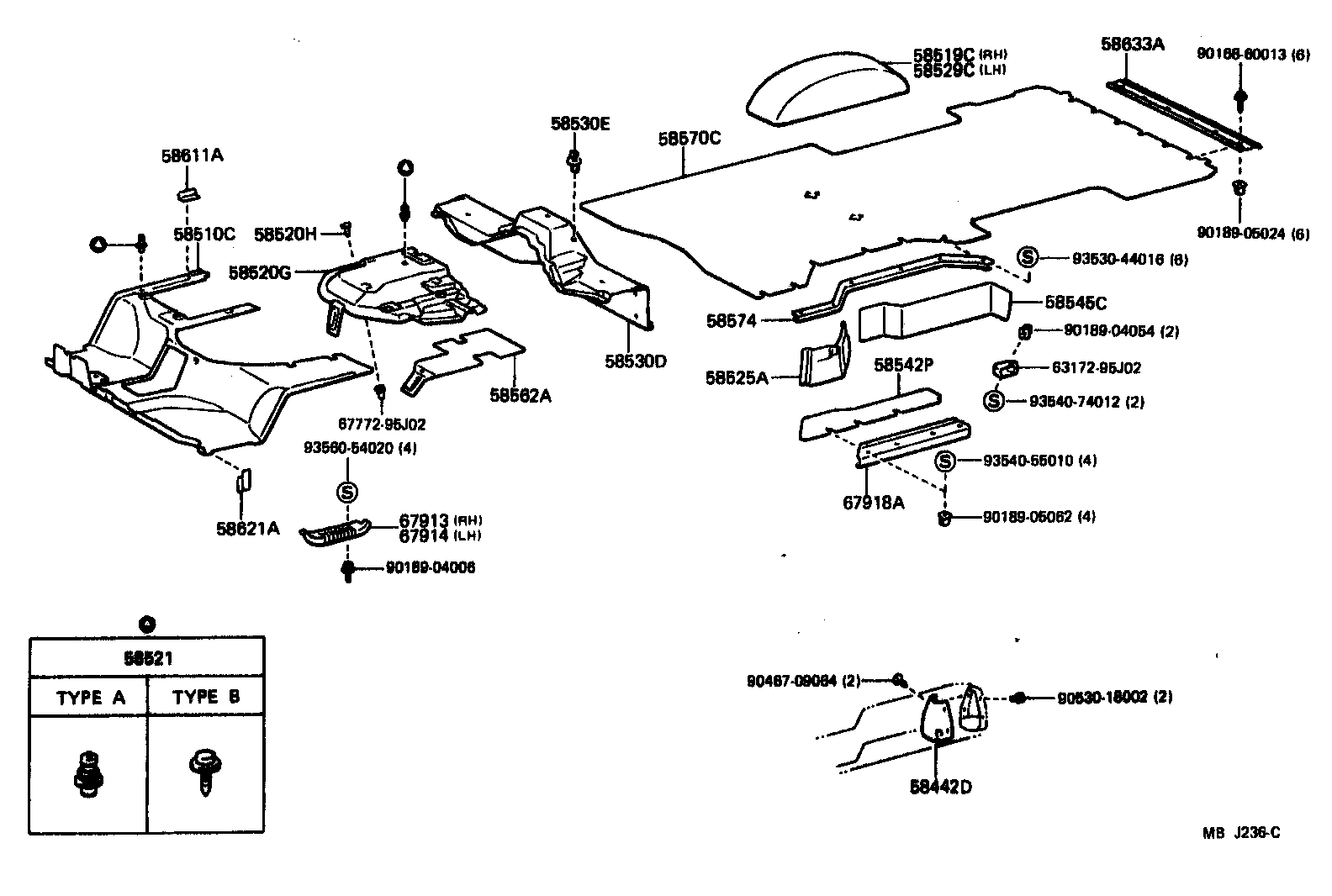

Click highlighted areas on diagram

diagram 58442D 58510C 58519C 58520G 58520H 58521 58525A 58529C 58530D 58530E 58542P 58545C 58562A 58570C 58574 58611A 58621A 58633A 6317295J02 6777295J02 67913 67914 67918A 9016860013 9018904006 9018904054 9018905024 9018905062 9046709064 9053018002 9353044016 9354055010 9354074012 9356054020
Part # Description Qty Price
58633A - PLATE, BACK DOOR SCUFF
58633-95J00

LH5#,6#,7#,YH5#,6#,71

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-95J0005

LH5#,6#,7#,YH5#,6#,71

BEIGE,BEIGE

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95J0005

LH5#,6#,7#,YH5#,6#,71

BEIGE,BEIGE

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-95J01

YH51..05S

 1
Common parts
63172-95J02
67772-95J02
90168-60013
90189-04006
90189-04054
90189-05024
90189-05062
90467-09064
90530-18002
93530-44016
93540-55010
93540-74012
93560-54020
