YH51LV-QRUW (1987)

Toyota Hiace Van,Commuter

Production Aug 1987 - Aug 1989
Engine 3Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 63311A 63312A 63313A
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63311-95J1008

LH5#,6#,YH5#,6#

IVORY,TRIM4#

 1
63312A - HEADLINING, ROOF, NO.2
63312-95J0308

LH5#,6#,YH5#,6#

IVORY,TRIM4#

 1
63313A - HEADLINING, ROOF, NO.3
63313-95J1508

LH5#,YH5#

IVORY,TRIM4#

 1

(8708- )YH51..U

Click highlighted areas on diagram

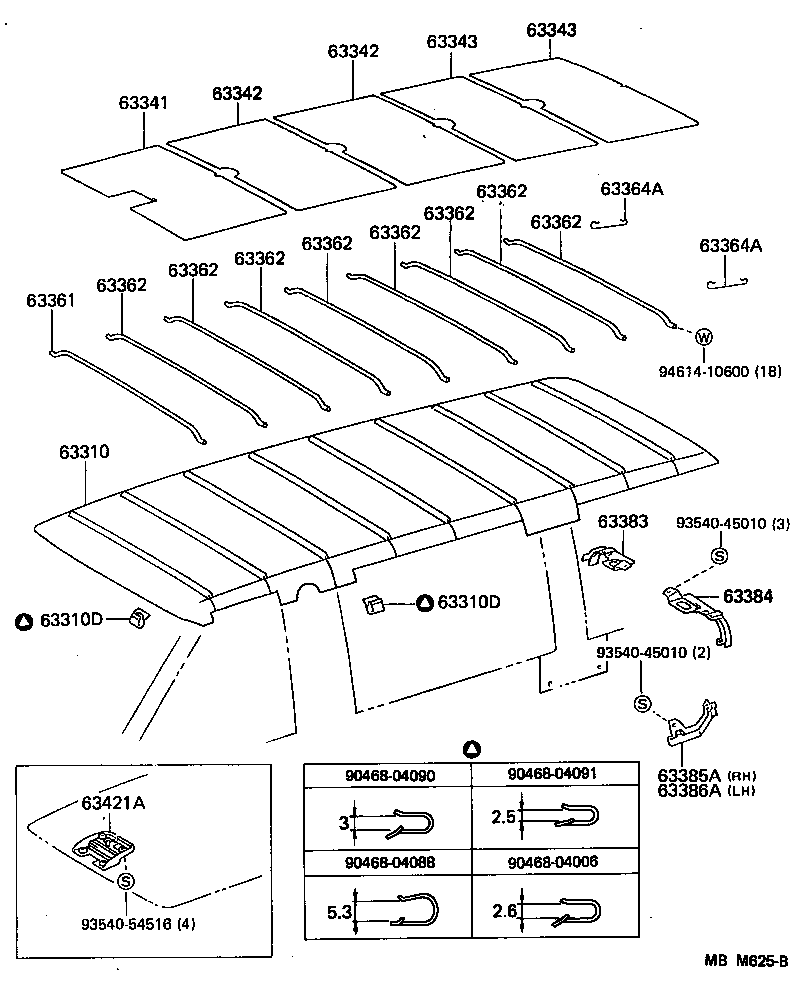

diagram 63310 63310D 63310D 63341 63342 63342 63343 63343 63361 63362 63362 63362 63362 63362 63362 63362 63362 63364A 63364A 63383 63384 63385A 63386A 63421A 9046804006 9046804088 9046804090 9046804091 9354045010 9354045010 9354054516 9461410600
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-95J1503

YH51..U

NORWAY SPEC,GRAY,TRIM8#

 1
63310D - CLIP, ROOF HEADLINING
90468-04090

YH51..U

NORWAY SPEC

 48
90468-04091

YH51..U

NORWAY SPEC

 50
90468-04088

YH51..U

NORWAY SPEC

 12
90468-04006

YH51..U

NORWAY SPEC

 6
63310D - CLIP, ROOF HEADLINING
90468-04090

YH51..U

NORWAY SPEC

 48
90468-04091

YH51..U

NORWAY SPEC

 50
90468-04088

YH51..U

NORWAY SPEC

 12
90468-04006

YH51..U

NORWAY SPEC

 6
63341 - PAD, ROOF SILENCER, NO.1
63341-95J00

YH51..U

NORWAY SPEC

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-95J00

YH51..U

NORWAY SPEC

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-95J00

YH51..U

NORWAY SPEC

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-95J00

YH51..U

NORWAY SPEC

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-95J00

YH51..U

NORWAY SPEC

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-95J02

YH51..U

NORWAY SPEC

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J01

YH51..U

NORWAY SPEC

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J01

YH51..U

NORWAY SPEC

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J01

YH51..U

NORWAY SPEC

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J01

YH51..U

NORWAY SPEC

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J01

YH51..U

NORWAY SPEC

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J01

YH51..U

NORWAY SPEC

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J01

YH51..U

NORWAY SPEC

 8
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-95J01

YH51..U

NORWAY SPEC

 8
63364A - HOOK, ROOF HEADLINING
63364-95J00

YH51..U

NORWAY SPEC

 2
63364A - HOOK, ROOF HEADLINING
63364-95J00

YH51..U

NORWAY SPEC

 2
63383 - RETAINER, ROOF HEADLINING, REAR RH
63383-95J00

YH51..U

NORWAY SPEC

 1
63384 - RETAINER, ROOF HEADLINING, REAR LH
63384-95J00

YH51..U

NORWAY SPEC

 1
63385A - RETAINER, ROOF HEADLINING TRIM SIDE, RH
63385-95J00

YH51..U

NORWAY SPEC

 1
63386A - RETAINER, ROOF HEADLINING TRIM SIDE, LH
63386-95J00

YH51..U

NORWAY SPEC

 1
63421A - ORNAMENT, ROOF CONSOLE
63421-95J0103

YH51..U

NORWAY SPEC,GRAY,TRIM8#

 1
Common parts
90468-04006
90468-04088
90468-04090
90468-04091
93540-45010
93540-54516
94614-10600
