YH51LV-JRBFW (1987)
Toyota Hiace Van,Commuter
Production
Aug 1987
-
Aug 1989
Engine
3Y
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )3Y,4Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

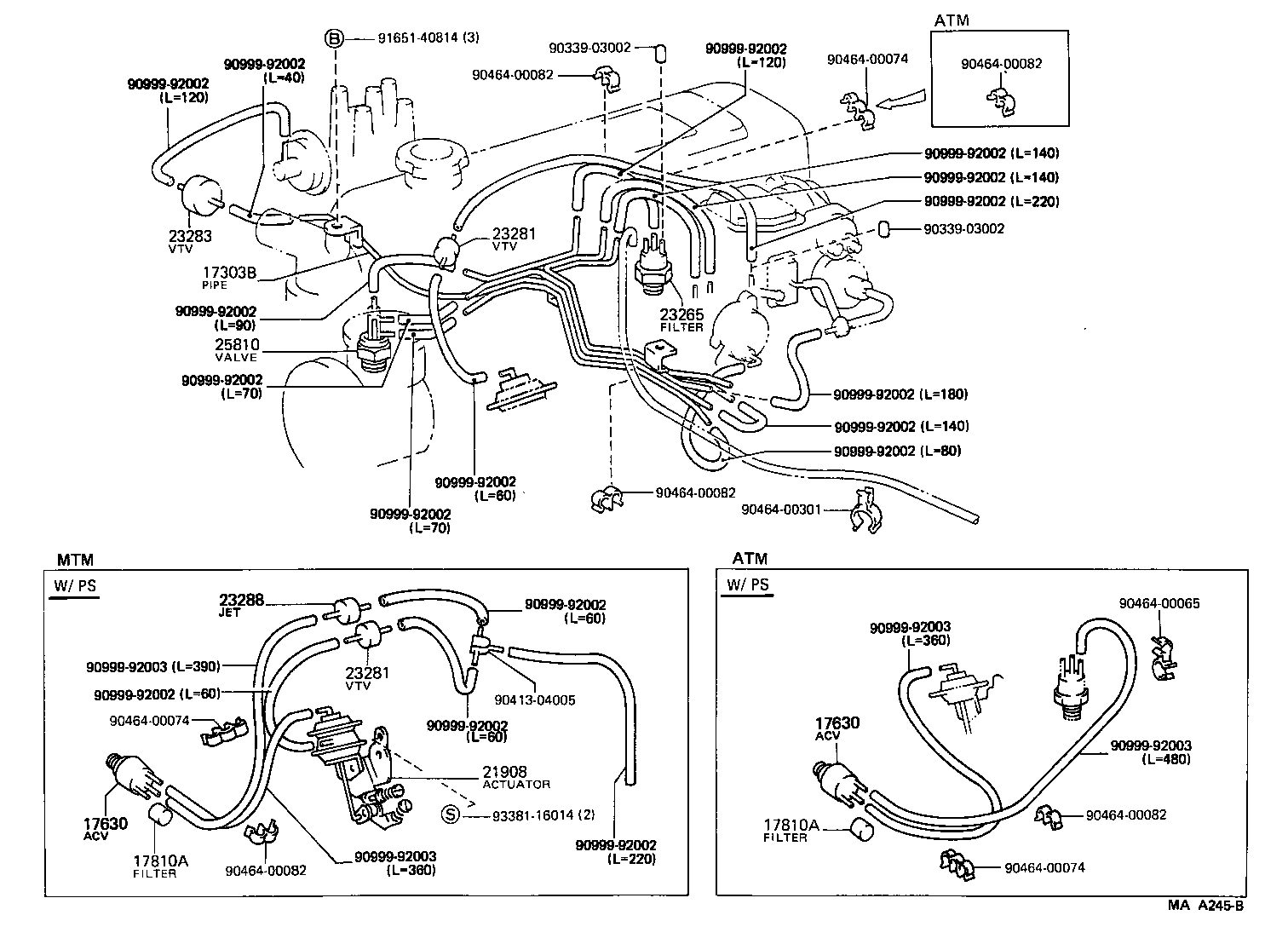

(8708- )3Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71030 |
3Y..YH51,61 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
3Y..YH51,61 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
3Y..YH51,61 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
3Y..YH51,61 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
3Y..YH51,61 |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-71020 |
3Y..YH51,61..MTM |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3Y,4Y..YH5#,6# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01075 |
3Y..YH51,61..MTM |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01075 |
3Y..YH51,61..MTM |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01027 |
3Y..YH51,61 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04004 |
3Y..YH51,61..MTM |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-27010 |
3Y,4Y..YH5#,6# |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00065 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00301 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
| 93381-16014 | ||||
