YH50RV-JRE (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Aug 1986
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)

Click highlighted areas on diagram

diagram 74805A 74805A 74805A 74805A 74820B 74821B 74822C 74823B 74826A 74828A 74855 74860 74862C 74862C 74863C 74863C 74864C 74864C 74865C 74865C 74869A 74878B 74879B 74881B 74881B 74882B 74882B 74885B 74885B 74891B 74892B 74893B 9011908171 9011908171 9011908427 9011908427 9014940007 9014940007 9015440009 9015440009 9015940093 9015940093 9016750016 9016750016 9016750017 9016750017 9017608015 9017608267 9020108267 9020108267 9053006001 9161140616 9162140820 9162140820 9354055012
Part # Description Qty Price
74805A - GROMMET (FOR SEPARATOR)
90480-3200705

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 2
90480-3200705

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 2
74805A - GROMMET (FOR SEPARATOR)
90480-3200705

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 2
90480-3200705

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 2
74805A - GROMMET (FOR SEPARATOR)
90480-3200705

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 2
90480-3200705

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 2
74805A - GROMMET (FOR SEPARATOR)
90480-3200705

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 2
90480-3200705

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 2
74855 - PLATE, SEPARATOR CURTAIN SET
74862-95661

LH5#,6#,YH50,6#..V..GEN

 6
74860 - CURTAIN ASSY, SEPARATE
74870-95J02

LH51,61,YH50,6#..RHD..V..GEN

 1
74870-95J00

LH50,60,YH50,60..RHD..V..GEN

 1
74862C - BRACKET, SEPARATOR BAR, NO.2
74862-95J0005

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 1
74872-95J0005

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 1
74862C - BRACKET, SEPARATOR BAR, NO.2
74862-95J0005

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 1
74872-95J0005

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 1
74863C - BRACKET, SEPARATOR BAR, NO.3
74863-95J0005

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 1
74863-95J0005

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 1
74863C - BRACKET, SEPARATOR BAR, NO.3
74863-95J0005

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 1
74863-95J0005

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 1
74864C - BRACKET, SEPARATOR BAR, NO.4
74864-95J0005

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 1
74864-95J0005

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 1
74864C - BRACKET, SEPARATOR BAR, NO.4
74864-95J0005

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 1
74864-95J0005

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 1
74865C - BRACKET, SEPARATOR BAR, NO.5
74865-95J0005

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 1
74865-95J0005

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 1
74865C - BRACKET, SEPARATOR BAR, NO.5
74865-95J0005

YH50,61..G;YH51..4H..ARL;LH5#,6#,YH50,61..03S..(ARL,SA)

BEIGE,BEIGE

 1
74865-95J0005

LH5#,6#,YH50,60..V..GEN

BEIGE,BEIGE

 1
74869A - PROTECTOR, SEPARATOR BAR
74869-95J01

YH50,61..G

 2
74878B - BRACKET, SEPARATOR BAR, LOWER RH
74878-95J0105

LH5#,6#,YH50,60..RHD..V..GEN

BEIGE,BEIGE

 1
74879B - BRACKET, SEPARATOR BAR, LOWER LH
74879-95J00

YH50,61..G;LH5#,6#,YH50,60..LHD..V..GEN

 1
74881B - BAR, SEPARATOR, NO.1
74881-95J01

YH50,61..G;LH5#,6#,YH50,60..LHD..V..GEN

 1
74881-95J0005

LH5#,6#,YH50,60..RHD..V..GEN

BEIGE,BEIGE

 1
74881B - BAR, SEPARATOR, NO.1
74881-95J01

YH50,61..G;LH5#,6#,YH50,60..LHD..V..GEN

 1
74881-95J0005

LH5#,6#,YH50,60..RHD..V..GEN

BEIGE,BEIGE

 1
74882B - BAR, SEPARATOR, NO.2
74882-95J0005

LH5#,6#,YH50,60..RHD..V..GEN

BEIGE,BEIGE

 1
74882-95J02

YH50,61..G;LH5#,6#,YH50,60..LHD..V..GEN

 1
74882B - BAR, SEPARATOR, NO.2
74882-95J0005

LH5#,6#,YH50,60..RHD..V..GEN

BEIGE,BEIGE

 1
74882-95J02

YH50,61..G;LH5#,6#,YH50,60..LHD..V..GEN

 1
74885B - BAR, SEPARATOR, NO.5
74885-95J0005

LH5#,6#,YH50,60..RHD..V..GEN

BEIGE,BEIGE

 1
74885-95J01

YH50,61..G;LH5#,6#,YH50,60..LHD..V..GEN

 1
74885B - BAR, SEPARATOR, NO.5
74885-95J0005

LH5#,6#,YH50,60..RHD..V..GEN

BEIGE,BEIGE

 1
74885-95J01

YH50,61..G;LH5#,6#,YH50,60..LHD..V..GEN

 1
Common parts
90119-08171
90119-08427
90149-40007
90154-40009
90159-40093
90167-50016
90167-50017
90176-08015
90176-08267
90201-08267
90530-06001
91611-40616
91621-40820
93540-55012

(8508- )

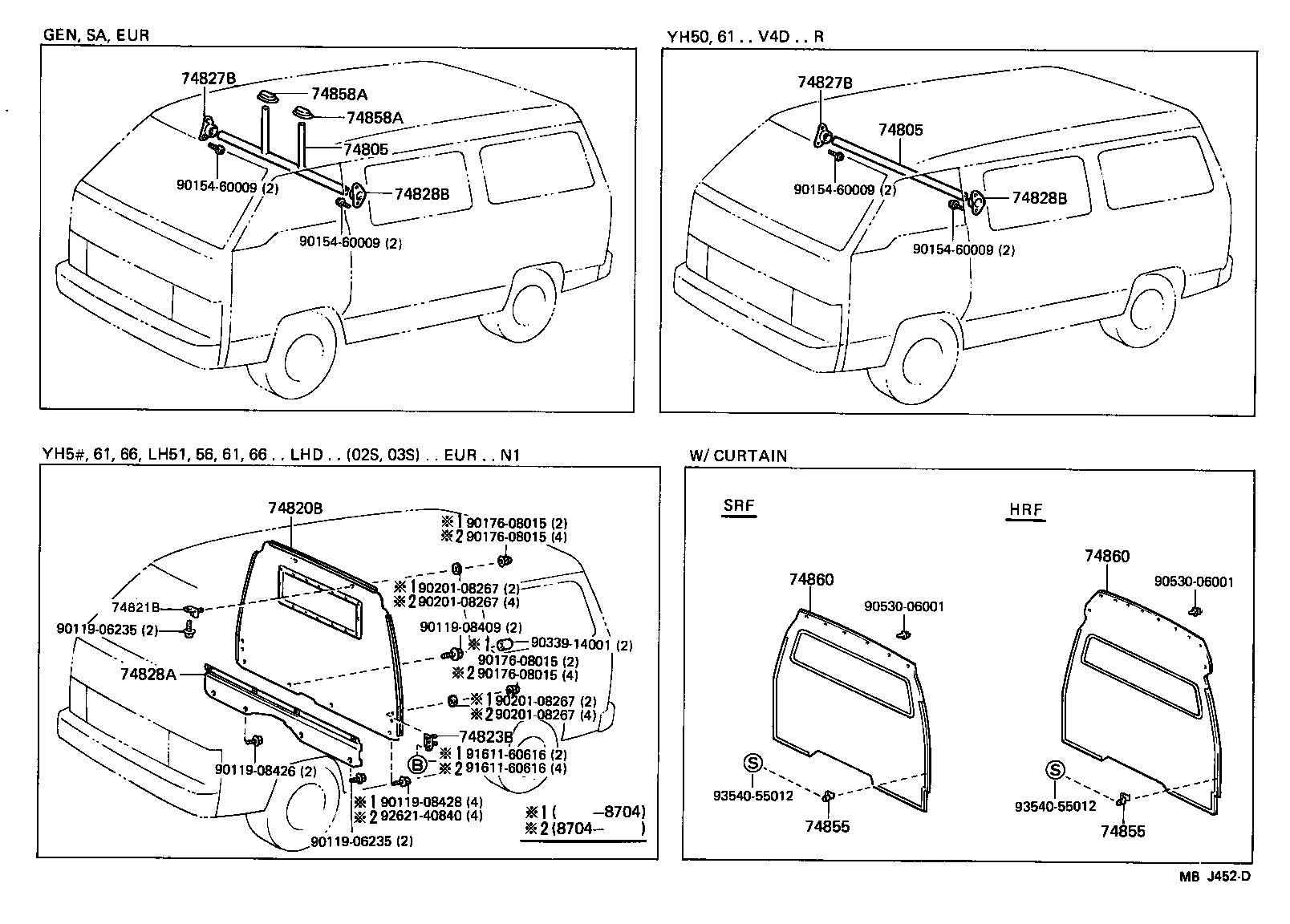

Click highlighted areas on diagram

diagram 74805 74805 74820B 74821B 74823B 74827B 74827B 74828A 74828B 74828B 74855 74855 74858A 74858A 74860 74860 9011906235 9011906235 9011908409 9011908426 9011908428 9015460009 9015460009 9015460009 9015460009 9017608015 9017608015 9017608015 9017608015 9020108267 9020108267 9020108267 9020108267 9033914001 9053006001 9053006001 9161160616 9161160616 9262140840 9354055012 9354055012
Part # Description Qty Price
74855 - PLATE, SEPARATOR CURTAIN SET
74862-95661

LH5#,6#,YH50,6#..V..GEN

 6
74855 - PLATE, SEPARATOR CURTAIN SET
74862-95661

LH5#,6#,YH50,6#..V..GEN

 6
74860 - CURTAIN ASSY, SEPARATE
74870-95J02

LH51,61,YH50,6#..RHD..V..GEN

 1
74870-95J00

LH50,60,YH50,60..RHD..V..GEN

 1
74860 - CURTAIN ASSY, SEPARATE
74870-95J02

LH51,61,YH50,6#..RHD..V..GEN

 1
74870-95J00

LH50,60,YH50,60..RHD..V..GEN

 1
Common parts
90119-06235
90119-08409
90119-08426
90119-08428
90154-60009
90176-08015
90201-08267
90339-14001
90530-06001
91611-60616
92621-40840
93540-55012
