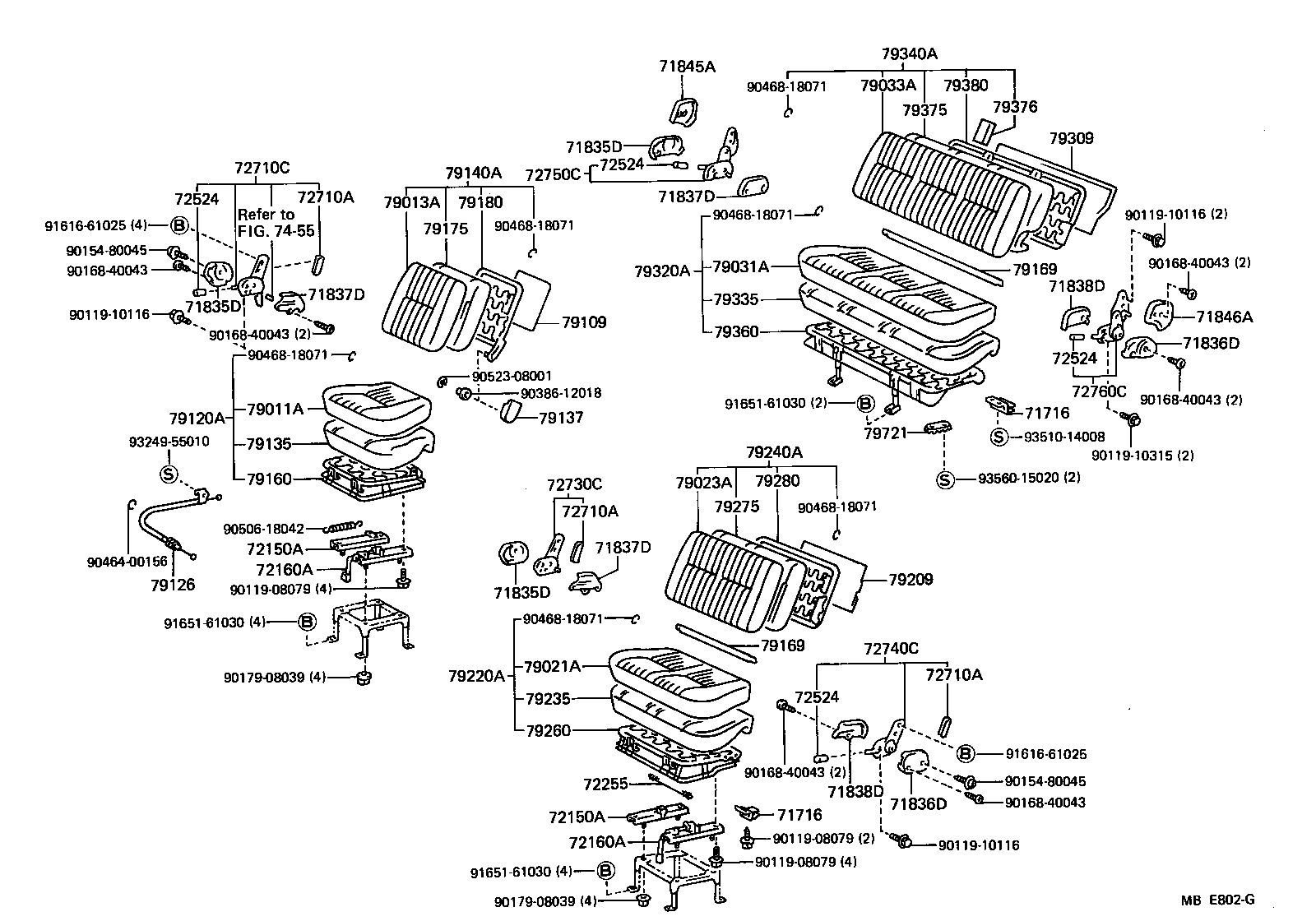

YH50RV-JRBW (1982)
Toyota Hiace Van,Commuter
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95J00 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 71012-95J01 |
YH51..4H..ARL;LH5#,6#,YH50,6#..RHD..(ARL,EUR) W/RECLINING |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71150-95J02 |
LH5#,6#,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 71150-95J01 |
YH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..RHD..(ARL,EUR,GEN) W/*HR |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71160-95J04 |
LH50,51,60,61,YH50,51,60,61..RHD..EUR W/RECLINING |
1 | ||
| 71160-95J01 |
YH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR);LH50,51,60,61,YH50,60,61,63..RHD..(ARL,EUR) W/*HR & RECLINING |
1 | ||
| 71160-95J03 |
LH50,51,60,61,YH50,51,53,60,61,63..RHD..STD..(EUR,GEN,SA) |
1 | ||
| 71160-95J05 |
YH61..03S..ARL;YH61..RHD..(EUR,GEN);YH51..RHD..MTM..STD..(ARL,EUR,GEN);LH50,51,60,61,7#,YH50,53,60,63,7#..RHD..STD..(ARL,EUR,GEN) W/*HR |
1 | ||
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-95J0705 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,BEIGE,BEIGE |
1 | ||
| 71031-95J0815 |
LH51,61,71,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71031-95J11 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB |
1 | ||
| 71031-95J0805 |
LH50,60,70,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71035-95J0705 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,BEIGE,BEIGE |
1 | ||
| 71035-95J0805 |
LH50,60,70,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71035-95J14 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB |
1 | ||
| 71035-95J0815 |
LH51,61,71,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J0705 |
LH50,60,70,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71071-95J0905 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,BEIGE,BEIGE |
1 | ||
| 71071-95J25 |
LH51,61,71,YH5#,6#,71..RHD F-VL |
1 | ||
| 71071-95J26 |
YH51..4H..ARL;LH51,61,YH50,61..RHD..V..(ARL,EUR) FB |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J0705 |
LH50,60,70,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71072-95J1705 |
LH50,60,YH50,60..RHD..EUR F-VL,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71072-95J1805 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71072-95J0805 |
LH50,60,YH50,60..RHD..N1 FB,BEIGE,BEIGE |
1 | ||
| 71072-95J27 |
LH51,61,YH50,61..RHD..EUR F-VL,W/RECLINING |
1 | ||
| 71072-95J30 |
LH51,61,71,YH5#,6#,71..RHD F-VL |
1 | ||
| 71072-95J32 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB,W/RECLINING |
1 | ||
| 71072-95J4806 |
LH51,61,YH50,61..RHD..N1 FB,W/RECLINING,BROWN,BROWN |
1 | ||
| 71072-95J31 |
LH51,61,YH50,61..RHD..N1 FB |
1 | ||
| 71072-95J4606 |
LH51,61,YH5#,61..RHD..EUR F-VL,W/RECLINING,BROWN,BROWN |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J0705 |
LH50,60,70,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71072-95J1705 |
LH50,60,YH50,60..RHD..EUR F-VL,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71072-95J1805 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71072-95J0805 |
LH50,60,YH50,60..RHD..N1 FB,BEIGE,BEIGE |
1 | ||
| 71072-95J27 |
LH51,61,YH50,61..RHD..EUR F-VL,W/RECLINING |
1 | ||
| 71072-95J30 |
LH51,61,71,YH5#,6#,71..RHD F-VL |
1 | ||
| 71072-95J32 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB,W/RECLINING |
1 | ||
| 71072-95J4806 |
LH51,61,YH50,61..RHD..N1 FB,W/RECLINING,BROWN,BROWN |
1 | ||
| 71072-95J31 |
LH51,61,YH50,61..RHD..N1 FB |
1 | ||
| 71072-95J4606 |
LH51,61,YH5#,61..RHD..EUR F-VL,W/RECLINING,BROWN,BROWN |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95J0705 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) F-VL,BEIGE,BEIGE |
1 | ||
| 71073-95J0805 |
LH50,60,70,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71073-95J2505 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 71073-95J1105 |
LH50,60,YH50,60..RHD..N1 FB,BEIGE,BEIGE |
1 | ||
| 71073-95J1205 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71073-95J2305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 71073-95J40 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 71073-95J37 |
YH51..4H..ARL;LH51,61,71,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR |
1 | ||
| 71073-95J2605 |
LH60,YH50,60..J FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71073-95J45 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB,W/*HR |
1 | ||
| 71073-95J43 |
LH51,61,YH5#,6#..RHD..(EUR,GEN,SA) F-VL |
1 | ||
| 71073-95J41 |
LH51,61,YH5#,61..J..EUR F-VL,W/*HR |
1 | ||
| 71073-95J49 |
LH51,61,YH5#,61..J..EUR FB,W/*HR |
1 | ||
| 71073-95J48 |
LH51,61,YH5#,61..J..EUR FB |
1 | ||
| 71073-95J2405 |
LH60,YH50,60..J F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71073-95J44 |
LH51,61,YH50,61..RHD..N1 FB |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95J0905 |
LH50,60,70,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J0705 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) F-VL,BEIGE,BEIGE |
1 | ||
| 71074-95J1005 |
LH50,60,YH50,60..RHD..EUR F-VL,W/*HR,RECLINING,BEIGE,BEIGE |
1 | ||
| 71074-95J1205 |
LH50,60,YH50,60..RHD..N1 FB,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71074-95J1305 |
LH50,60,YH50,60..RHD..N1 FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J1405 |
LH50,60,YH50,6#..RHD..(ARL,EUR) FB,W/RECLINING,*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J1105 |
LH50,60,YH50,60..RHD..N1 FB,BEIGE,BEIGE |
1 | ||
| 71074-95J3105 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 71074-95J3205 |
LH60,YH50,60..J FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J0805 |
LH50,60,YH50,60..RHD..EUR F-VL,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71074-95J50 |
YH51..4H..ARL;LH51,61,71,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR |
1 | ||
| 71074-95J2705 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 71074-95J2805 |
LH60,YH50,60..J F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J58 |
LH51,61,YH50,61..RHD..EUR FB |
1 | ||
| 71074-95J57 |
LH51,61,YH5#,6#..RHD..(EUR,GEN,SA) F-VL |
1 | ||
| 71074-95J65 |
LH51,61,YH5#,61..J..EUR FB,W/*HR |
1 | ||
| 71074-95J55 |
LH51,61,YH5#,61..J..EUR F-VL,W/*HR |
1 | ||
| 71074-95J51 |
LH51,61,YH50,61..RHD..EUR F-VL,W/*HR,RECLINING |
1 | ||
| 71074-95J54 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 71074-95J64 |
LH51,61,YH5#,61..J..EUR FB |
1 | ||
| 71074-95J49 |
LH51,61,YH50,61..RHD..EUR F-VL,W/RECLINING |
1 | ||
| 71074-95J61 |
LH51,61,YH50,61..RHD..(ARL,EUR) FB,W/RECLINING,*HR |
1 | ||
| 71074-95J59 |
LH51,61,YH50,61..RHD..N1 FB,W/RECLINING |
1 | ||
| 71074-95J60 |
LH51,61,YH50,61..RHD..N1 FB,W/*HR |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95J0905 |
LH50,60,70,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J0705 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) F-VL,BEIGE,BEIGE |
1 | ||
| 71074-95J1005 |
LH50,60,YH50,60..RHD..EUR F-VL,W/*HR,RECLINING,BEIGE,BEIGE |
1 | ||
| 71074-95J1205 |
LH50,60,YH50,60..RHD..N1 FB,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71074-95J1305 |
LH50,60,YH50,60..RHD..N1 FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J1405 |
LH50,60,YH50,6#..RHD..(ARL,EUR) FB,W/RECLINING,*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J1105 |
LH50,60,YH50,60..RHD..N1 FB,BEIGE,BEIGE |
1 | ||
| 71074-95J3105 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 71074-95J3205 |
LH60,YH50,60..J FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J0805 |
LH50,60,YH50,60..RHD..EUR F-VL,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71074-95J50 |
YH51..4H..ARL;LH51,61,71,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR |
1 | ||
| 71074-95J2705 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 71074-95J2805 |
LH60,YH50,60..J F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71074-95J58 |
LH51,61,YH50,61..RHD..EUR FB |
1 | ||
| 71074-95J57 |
LH51,61,YH5#,6#..RHD..(EUR,GEN,SA) F-VL |
1 | ||
| 71074-95J65 |
LH51,61,YH5#,61..J..EUR FB,W/*HR |
1 | ||
| 71074-95J55 |
LH51,61,YH5#,61..J..EUR F-VL,W/*HR |
1 | ||
| 71074-95J51 |
LH51,61,YH50,61..RHD..EUR F-VL,W/*HR,RECLINING |
1 | ||
| 71074-95J54 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 71074-95J64 |
LH51,61,YH5#,61..J..EUR FB |
1 | ||
| 71074-95J49 |
LH51,61,YH50,61..RHD..EUR F-VL,W/RECLINING |
1 | ||
| 71074-95J61 |
LH51,61,YH50,61..RHD..(ARL,EUR) FB,W/RECLINING,*HR |
1 | ||
| 71074-95J59 |
LH51,61,YH50,61..RHD..N1 FB,W/RECLINING |
1 | ||
| 71074-95J60 |
LH51,61,YH50,61..RHD..N1 FB,W/*HR |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0015 |
LH51,61,71,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 71274-95J0005 |
LH50,60,70,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71280-95J00 |
YH61..03S..ARL;YH61..RHD..(EUR,GEN,SA);LH51,61,71,YH50,51,53,60,63,7#..RHD..(4H,4HC,5H) |
1 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71301-95J01 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 72310-95J0105 |
LH50,60,70,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 72310-95J0115 |
LH51,61,71,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 71310S - CUSHION ASSY, FRONT SEAT, CENTER | ||||
| 71310-95J0805 |
LH50,60,70,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71310-95J0705 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,BEIGE,BEIGE |
1 | ||
| 71310-95J0815 |
LH51,61,71,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71310-95J12 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB |
1 | ||
| 71318 - PAD, CENTER SEAT CUSHION | ||||
| 71318-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-95J0705 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,BEIGE,BEIGE |
1 | ||
| 71350-95J0815 |
LH51,61,71,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71350-95J0805 |
LH50,60,70,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71350-95J12 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71358-95J02 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 71361 - BRACKET, FRONT SEAT SET, NO.1 | ||||
| 71361-95J00 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 71364 - BRACKET, FRONT SEAT SET, NO.4 | ||||
| 71364-95J00 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J0705 |
LH50,60,70,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71410-95J0905 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,BEIGE,BEIGE |
1 | ||
| 71410-95J27 |
LH51,61,71,YH5#,6#,71..RHD F-VL |
1 | ||
| 71410-95J28 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J0705 |
LH50,60,70,YH5#,6#,71..RHD F-VL,BEIGE,BEIGE |
1 | ||
| 71420-95J0905 |
LH50,60,YH50,60..RHD..N1 FB,BEIGE,BEIGE |
1 | ||
| 71420-95J0805 |
LH50,60,YH50,60..RHD..EUR F-VL,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71420-95J1005 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71420-95J32 |
LH51,61,71,YH5#,6#,71..RHD F-VL |
1 | ||
| 71420-95J34 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB,W/RECLINING |
1 | ||
| 71420-95J29 |
LH51,61,YH50,61..RHD..EUR F-VL,W/RECLINING |
1 | ||
| 71420-95J33 |
LH51,61,YH50,61..RHD..N1 FB |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95J0905 |
LH50,60,YH50,60..RHD..N1 FB,BEIGE,BEIGE |
1 | ||
| 71401-95J0705 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) F-VL,BEIGE,BEIGE |
1 | ||
| 71401-95J1505 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 71401-95J0805 |
LH50,60,70,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71401-95J1605 |
LH60,YH50,60..J F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71401-95J1705 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 71401-95J1005 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71401-95J31 |
YH51..4H..ARL;LH51,61,71,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR |
1 | ||
| 71401-95J1805 |
LH60,YH50,60..J FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71401-95J34 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 71401-95J37 |
LH51,61,YH5#,6#..RHD..(EUR,GEN,SA) F-VL |
1 | ||
| 71401-95J43 |
LH51,61,YH5#,61..J..EUR FB,W/*HR |
1 | ||
| 71401-95J42 |
LH51,61,YH5#,61..J..EUR FB |
1 | ||
| 71401-95J38 |
LH51,61,YH50,61..RHD..N1 FB |
1 | ||
| 71401-95J35 |
LH51,61,YH5#,61..J..EUR F-VL,W/*HR |
1 | ||
| 71401-95J39 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB,W/*HR |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95J0705 |
LH50,60,YH5#,6#..RHD..(EUR,GEN,SA) F-VL,BEIGE,BEIGE |
1 | ||
| 71402-95J0905 |
LH50,60,70,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71402-95J1305 |
LH50,60,YH50,60..RHD..N1 FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71402-95J1105 |
LH50,60,YH50,60..RHD..N1 FB,BEIGE,BEIGE |
1 | ||
| 71402-95J0805 |
LH50,60,YH50,60..RHD..EUR F-VL,RECLINING,BEIGE,BEIGE |
1 | ||
| 71402-95J1205 |
LH50,60,YH50,60..RHD..N1 FB,W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71402-95J1005 |
LH50,60,YH50,60..RHD..EUR F-VL,W/*HR,RECLINING,BEIGE,BEIGE |
1 | ||
| 71402-95J2005 |
LH60,YH50,60..J F-VL,W/*HR,BEIGE,BEIGE |
1 | ||
| 71402-95J1405 |
LH50,60,YH50,6#..RHD..V..(ARL,EUR) FB,W/*HR,RECLINING,BEIGE,BEIGE |
1 | ||
| 71402-95J1905 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 71402-95J2105 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 71402-95J2205 |
LH60,YH50,60..J FB,W/*HR,BEIGE,BEIGE |
1 | ||
| 71402-95J33 |
LH51,61,YH50,61..RHD..EUR F-VL,W/RECLINING |
1 | ||
| 71402-95J35 |
LH51,61,YH50,61..RHD..EUR F-VL,W/*HR,RECLINING |
1 | ||
| 71402-95J34 |
YH51..4H..ARL;LH51,61,71,YH50,6#,71..RHD..(ARL,EUR,GEN) F-VL,W/*HR |
1 | ||
| 71402-95J42 |
LH51,61,YH50,61..RHD..N1 FB |
1 | ||
| 71402-95J39 |
LH51,61,YH5#,61..J..EUR F-VL,W/*HR |
1 | ||
| 71402-95J45 |
LH51,61,YH50,61..RHD..V..(ARL,EUR) FB,W/*HR,RECLINING |
1 | ||
| 71402-95J38 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 71402-95J41 |
LH51,61,YH5#,6#..RHD..(EUR,GEN,SA) F-VL |
1 | ||
| 71402-95J43 |
LH51,61,YH50,61..RHD..N1 FB,W/RECLINING |
1 | ||
| 71402-95J49 |
LH51,61,YH5#,61..J..EUR FB,W/*HR |
1 | ||
| 71402-95J48 |
LH51,61,YH5#,61..J..EUR FB |
1 | ||
| 71402-95J44 |
LH51,61,YH50,61..RHD..N1 FB,W/*HR |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J03 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-95J02 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J06 |
LH5#,6#,YH5#,6#..RHD..(EUR,GEN,SA) |
1 | ||
| 71551-95J02 |
YH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..RHD..(ARL,EUR,GEN) W/*HR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J05 |
YH61..03S..ARL;YH61..RHD..(EUR,GEN);YH51..RHD..MTM..STD..(ARL,EUR,GEN);LH50,51,60,61,7#,YH50,53,60,63,7#..RHD..STD..(ARL,EUR,GEN) W/*HR |
1 | ||
| 71551-95J04 |
YH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR);LH50,51,60,61,YH50,60,61,63..RHD..(ARL,EUR) W/*HR & RECLINING |
1 | ||
| 71551-95J08 |
LH50,51,60,61,YH50,51,53,60,61,63..RHD..STD..(EUR,GEN,SA) |
1 | ||
| 71551-95J07 |
LH50,51,60,61,YH50,51,60,61..RHD..EUR W/RECLINING |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0005 |
LH50,60,70,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 71811-95J0015 |
LH51,61,71,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,7#,YH5#,6#,7# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95J0015 |
YH51..4H..ARL;LH51,61,YH50,61..RHD..(ARL,EUR) W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71812-95J0005 |
LH50,60,YH50,6#..RHD..(ARL,EUR) W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J0005 |
LH50,60,70,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 71815-95J0015 |
LH51,61,71,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 71816A - COVER, FRONT SEAT CUSHION HINGE, LH | ||||
| 71816-95J0015 |
YH51..4H..ARL;LH51,61,YH50,61..RHD..(ARL,EUR) W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71816-95J0005 |
LH50,60,YH50,6#..RHD..(ARL,EUR) W/RECLINING,BEIGE,BEIGE |
1 | ||
| 71832C - COVER, FRONT LH SEAT HINGE | ||||
| 71832-95J0005 |
LH50,60,70,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 71832-95J0015 |
LH51,61,71,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J0205 |
LH50,60,70,YH50,6#,71..ARL,EUR,GEN BEIGE,BEIGE |
2 | ||
| 71910-95J0215 |
YH51..N1;YH51..4H..ARL;LH51,61,71,YH50,6#,71..ARL,EUR,GEN BEIGE,BEIGE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002025 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN W/O(LOCK),W/O LOCK,BEIGE,BEIGE |
2 | ||
| 71990-3002025 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN W(LOCK),W/LOCK,BEIGE,BEIGE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002025 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN W/O(LOCK),W/O LOCK,BEIGE,BEIGE |
2 | ||
| 71990-3002025 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN W(LOCK),W/LOCK,BEIGE,BEIGE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002025 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN W/O(LOCK),W/O LOCK,BEIGE,BEIGE |
2 | ||
| 71990-3002025 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN W(LOCK),W/LOCK,BEIGE,BEIGE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002025 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN W/O(LOCK),W/O LOCK,BEIGE,BEIGE |
2 | ||
| 71990-3002025 |
YH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN W(LOCK),W/LOCK,BEIGE,BEIGE |
2 | ||
| 71975A - WASHER, PLATE | ||||
| 81917-95J0015 |
LH51,61,71,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 81917-95J0005 |
LH50,60,70,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-95J00 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 72130S - TRACK ASSY, RH SEAT, INNER (FOR SEPARATE SEAT) | ||||
| 72130-95J00 |
LH5#,6#,7#,YH5#,6#,71..RHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95J0105 |
LH50,60,70,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 72510-95J0115 |
LH51,61,71,YH5#,6#,71..RHD BEIGE,BEIGE |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-95J0005 |
LH50,60,YH50,6#..RHD..(ARL,EUR) W/RECLINING,BEIGE,BEIGE |
1 | ||
| 72520-95J0215 |
LH51,61,YH50,61..RHD..(ARL,EUR) W/RECLINING,BEIGE,BEIGE |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0005 |
LH50,60,70,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72525-95J0015 |
LH51,61,71,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0005 |
LH50,60,70,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72525-95J0015 |
LH51,61,71,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-10116 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90386-12018 | ||||
| 90461-10595 | ||||
| 90523-08001 | ||||
| 91611-60818 | ||||
| 91611-61020 | ||||
| 91651-40814 | ||||
| 91655-61020 | ||||
| 94180-41000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8212-8508)J..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 64102-95J00 |
LH51,6#,YH5#,6#..J |
1 | ||
| 71716 - SPRING, JACK HANDLE SUPPORT | ||||
| 64102-95J00 |
LH51,6#,YH5#,6#..J |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-9570015 |
LH51,61,YH5#,61..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0005 |
YH50,60..J NO.1 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0105 |
LH60,YH50,60..J NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0115 |
LH51,61,YH5#,61..J..EUR NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-9570005 |
LH60,YH5#,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0015 |
LH51,61,YH5#,61..J..EUR NO.1 SEAT,BEIGE,BEIGE |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-9570015 |
LH51,61,YH5#,61..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0005 |
YH50,60..J NO.1 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0105 |
LH60,YH50,60..J NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0115 |
LH51,61,YH5#,61..J..EUR NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-9570005 |
LH60,YH5#,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0015 |
LH51,61,YH5#,61..J..EUR NO.1 SEAT,BEIGE,BEIGE |
1 | ||
| 71835D - COVER, REAR SEAT RECLINING, LOWER RH | ||||
| 71835-9570015 |
LH51,61,YH5#,61..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0005 |
YH50,60..J NO.1 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0105 |
LH60,YH50,60..J NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0115 |
LH51,61,YH5#,61..J..EUR NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-9570005 |
LH60,YH5#,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71835-95J0015 |
LH51,61,YH5#,61..J..EUR NO.1 SEAT,BEIGE,BEIGE |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-9570005 |
LH60,YH5#,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71836-95J0205 |
LH60,YH50,60..J NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71836-95J0215 |
LH51,61,YH5#,61..J..EUR NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71836-9570015 |
LH51,61,YH5#,61..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71836D - COVER, REAR SEAT RECLINING, LOWER LH | ||||
| 71836-9570005 |
LH60,YH5#,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71836-95J0205 |
LH60,YH50,60..J NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71836-95J0215 |
LH51,61,YH5#,61..J..EUR NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71836-9570015 |
LH51,61,YH5#,61..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J0005 |
LH60,YH5#,60..J NO.1,NO.2 SEAT,BEIGE,BEIGE |
2 | ||
| 71837-95J0015 |
LH51,61,YH5#,61..J NO.1,NO.2 SEAT,BEIGE,BEIGE |
2 | ||
| 72708-95J0015 |
LH51,61,YH5#,61..J..EUR NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 72708-95J0005 |
LH60,YH50,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J0005 |
LH60,YH5#,60..J NO.1,NO.2 SEAT,BEIGE,BEIGE |
2 | ||
| 71837-95J0015 |
LH51,61,YH5#,61..J NO.1,NO.2 SEAT,BEIGE,BEIGE |
2 | ||
| 72708-95J0015 |
LH51,61,YH5#,61..J..EUR NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 72708-95J0005 |
LH60,YH50,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71837D - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71837-95J0005 |
LH60,YH5#,60..J NO.1,NO.2 SEAT,BEIGE,BEIGE |
2 | ||
| 71837-95J0015 |
LH51,61,YH5#,61..J NO.1,NO.2 SEAT,BEIGE,BEIGE |
2 | ||
| 72708-95J0015 |
LH51,61,YH5#,61..J..EUR NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 72708-95J0005 |
LH60,YH50,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 72709-95J0005 |
LH60,YH5#,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71838-95J0015 |
LH51,61,YH5#,61..J..EUR NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71838-95J0005 |
LH60,YH50,60..J NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 72709-95J0015 |
LH51,61,YH5#,61..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71838D - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 72709-95J0005 |
LH60,YH5#,60..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71838-95J0015 |
LH51,61,YH5#,61..J..EUR NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 71838-95J0005 |
LH60,YH50,60..J NO.2 SEAT,BEIGE,BEIGE |
1 | ||
| 72709-95J0015 |
LH51,61,YH5#,61..J NO.3 SEAT,BEIGE,BEIGE |
1 | ||
| 71845A - COVER, REAR SEAT RECLINING, UPPER RH | ||||
| 71845-9570015 |
LH51,61,YH5#,61..J BEIGE,BEIGE |
1 | ||
| 71845-9570005 |
LH60,YH5#,60..J BEIGE,BEIGE |
1 | ||
| 71846A - COVER, REAR SEAT RECLINING, UPPER LH | ||||
| 71846-9570015 |
LH51,61,YH5#,61..J BEIGE,BEIGE |
1 | ||
| 71846-9570005 |
LH60,YH5#,60..J BEIGE,BEIGE |
1 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72150-95J02 |
LH51,6#,YH5#,6#..J NO.1 SEAT |
1 | ||
| 72150-95J03 |
LH51,6#,YH5#,6#..J NO.2 SEAT |
1 | ||
| 72150A - TRACK ASSY, REAR SEAT, RH | ||||
| 72150-95J02 |
LH51,6#,YH5#,6#..J NO.1 SEAT |
1 | ||
| 72150-95J03 |
LH51,6#,YH5#,6#..J NO.2 SEAT |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72160-95J02 |
LH51,6#,YH5#,6#..J NO.2 SEAT |
1 | ||
| 72160-95J01 |
LH51,6#,YH5#,6#..J NO.1 SEAT |
1 | ||
| 72160A - TRACK ASSY, REAR SEAT, LH | ||||
| 72160-95J02 |
LH51,6#,YH5#,6#..J NO.2 SEAT |
1 | ||
| 72160-95J01 |
LH51,6#,YH5#,6#..J NO.1 SEAT |
1 | ||
| 72255 - CABLE, REAR SEAT TRACK LEVER | ||||
| 72255-95J01 |
LH51,6#,YH5#,6#..J |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0005 |
LH50,60,70,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72525-95J0015 |
LH51,61,71,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0005 |
LH50,60,70,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72525-95J0015 |
LH51,61,71,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0005 |
LH50,60,70,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72525-95J0015 |
LH51,61,71,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0005 |
LH50,60,70,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72525-95J0015 |
LH51,61,71,YH5#,6#,71 BEIGE,BEIGE |
1 | ||
| 72710A - PROTECTOR, REAR SEAT RECLINING ADJUSTER | ||||
| 58426-95700 |
LH51,6#,YH5#,6#..J..EUR |
3 | ||
| 72710A - PROTECTOR, REAR SEAT RECLINING ADJUSTER | ||||
| 58426-95700 |
LH51,6#,YH5#,6#..J..EUR |
3 | ||
| 72710A - PROTECTOR, REAR SEAT RECLINING ADJUSTER | ||||
| 58426-95700 |
LH51,6#,YH5#,6#..J..EUR |
3 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72710-95J0005 |
LH60,YH50,60..J BEIGE,BEIGE |
1 | ||
| 72710-95J0015 |
LH51,61,YH5#,61..J..EUR BEIGE,BEIGE |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-95J01 |
LH51,6#,YH5#,6#..J..EUR |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-95J0115 |
LH51,61,YH5#,61..J..EUR BEIGE,BEIGE |
1 | ||
| 72740-95J0105 |
LH60,YH50,60..J BEIGE,BEIGE |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-95J0015 |
LH51,61,YH5#,61..J BEIGE,BEIGE |
1 | ||
| 72750-95J0005 |
LH60,YH5#,60..J BEIGE,BEIGE |
1 | ||
| 72750-95J0105 |
LH51,61,YH5#,61..J BEIGE,BEIGE |
1 | ||
| 72750-95J0015 |
LH51,61,YH5#,61..J..EUR BEIGE,BEIGE |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-95J0015 |
LH51,61,YH5#,61..J BEIGE,BEIGE |
1 | ||
| 72760-95J0005 |
LH60,YH5#,60..J BEIGE,BEIGE |
1 | ||
| 72760-95J0105 |
LH51,61,YH5#,61..J BEIGE,BEIGE |
1 | ||
| 72760-95J0015 |
LH51,61,YH5#,61..J..EUR BEIGE,BEIGE |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95J0305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79011-95J0915 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79011-95J0905 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79011-95J30 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J0305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79013-95J0715 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79013-95J0705 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79013-95J23 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-95J0305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79021-95J0715 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79021-95J0705 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79021-95J17 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-95J0305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79023-95J0415 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79023-95J0405 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79023-95J14 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-95J0405 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79031-95J1505 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79031-95J1405 |
LH51,61,YH5#,61..J..EUR F-VL,BEIGE,BEIGE |
1 | ||
| 79031-95J0415 |
LH61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79031-95J12 |
LH61,YH5#,61..J..EUR F-VL |
1 | ||
| 79031-95J0305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79033-95J03 |
LH60,YH5#,60..J F-VL |
1 | ||
| 79033-95J0405 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79033-95J0415 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79033-95J10 |
LH51,61,YH5#,61..J F-VL |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-95J0005 |
LH60,YH5#,60..J BEIGE,BEIGE |
1 | ||
| 79109-95J0015 |
LH51,61,YH5#,61..J BEIGE,BEIGE |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95J0305 |
LH60,YH50,60..J F-VL,BEIGE |
1 | ||
| 79120-95J1105 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79120-95J1115 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79120-95J31 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 79126 - CABLE, NO.1 SEAT LOCK | ||||
| 79126-95J02 |
LH51,6#,YH5#,6#..J..EUR |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J02 |
LH51,6#,YH5#,6#..J..EUR |
1 | ||
| 79137 - COVER, NO.1 SEAT HINGE | ||||
| 79137-95J0015 |
LH51,61,YH5#,61..J BEIGE,BEIGE |
1 | ||
| 79137-95J0005 |
LH60,YH5#..J BEIGE,BEIGE |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95J0305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79140-95J0705 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79140-95J0715 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79140-95J29 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J01 |
LH51,6#,YH5#,6#..J..EUR |
1 | ||
| 79160-95J09 |
LH61..R;YH61..4H..06S;YH50,61..V4D..R;LH61,YH51..06S..N1;YH61..V4D..06S..N1;YH50..VSG..5H..(03S,06S);LH51,YH61..V5D..VSG..(4HC,5H)..EUR |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-95J00 |
LH51,61,YH5#,61..J NO.2 SEAT |
1 | ||
| 79169-95J01 |
LH51,61,YH5#,61..J NO.3 SEAT |
1 | ||
| 72753-95J01 |
LH6#,YH5#,6#..J NO.3 SEAT |
1 | ||
| 72753-95J00 |
LH6#,YH5#,6#..J NO.2 SEAT |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-95J00 |
LH51,61,YH5#,61..J NO.2 SEAT |
1 | ||
| 79169-95J01 |
LH51,61,YH5#,61..J NO.3 SEAT |
1 | ||
| 72753-95J01 |
LH6#,YH5#,6#..J NO.3 SEAT |
1 | ||
| 72753-95J00 |
LH6#,YH5#,6#..J NO.2 SEAT |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J01 |
LH51,6#,YH5#,6#..J |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J02 |
LH51,6#,YH5#,6#..J..EUR |
1 | ||
| 79180-95J03 |
YH61..G,R;YH50..4H..06S;YH50..V4D..(G,R);LH51,61,YH51,56,66..MTM..R;YH50..VSG..(4HC,5H)..(03S,06S);LH50,51,60,61,YH51,60,61..06S..(EUR,GEN) |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79209-95J0205 |
LH60,YH50,60..J BEIGE,BEIGE |
1 | ||
| 79209-95J0215 |
LH51,61,YH5#,61..J..EUR BEIGE |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-95J0705 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79220-95J0715 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79220-95J17 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 79220-95J0305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79235-95J01 |
LH51,6#,YH5#,6#..J |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79240-95J0405 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79240-95J0305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79240-95J14 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 79240-95J0415 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79260-95J00 |
LH51,6#,YH5#,6#..J |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79275-95J01 |
LH51,6#,YH5#,6#..J |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-95J00 |
LH51,6#,YH5#,6#..J |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79309-95J0005 |
LH60,YH5#,60..J BEIGE,BEIGE |
1 | ||
| 79309-95J0015 |
LH51,61,YH5#,61..J BEIGE,BEIGE |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-95J1405 |
LH51,61,YH5#,61..J..EUR F-VL,BEIGE,BEIGE |
1 | ||
| 79320-95J12 |
LH61,YH5#,61..J..EUR F-VL |
1 | ||
| 79320-95J0405 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79320-95J0415 |
LH61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79320-95J0305 |
LH60,YH50,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79320-95J1505 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79335-95J01 |
LH6#,YH5#,6#..J |
1 | ||
| 79335-95J03 |
LH51,61,YH5#,61..J..EUR |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79340-95J0405 |
LH60,YH50,60..J FB,BEIGE,BEIGE |
1 | ||
| 79340-95J0305 |
LH60,YH5#,60..J F-VL,BEIGE,BEIGE |
1 | ||
| 79340-95J1215 |
LH51,61,YH5#,61..J..EUR FB,BEIGE,BEIGE |
1 | ||
| 79340-95J13 |
LH51,61,YH5#,61..J..EUR F-VL |
1 | ||
| 79360 - SPRING ASSY, NO.3 SEAT CUSHION | ||||
| 79360-95J01 |
LH51,6#,YH5#,6#..J..EUR |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79375-95J01 |
LH60,YH50,60..J |
1 | ||
| 79375-95J04 |
LH51,61,YH5#,61..J..EUR |
1 | ||
| 79376 - PAD, NO.3 SEAT BACK SIDE | ||||
| 79376-95J00 |
LH6#,YH5#,6#..J |
2 | ||
| 79380 - SPRING ASSY, NO.3 SEAT BACK | ||||
| 79380-95J02 |
LH60,YH5#,60..J |
1 | ||
| 79721 - STOPPER, NO.3 SEAT | ||||
| 79721-95J00 |
LH51,6#,YH5#,6#..J |
2 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10116 | ||||
| 90119-10315 | ||||
| 90154-80045 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90386-12018 | ||||
| 90464-00156 | ||||
| 90468-18071 | ||||
| 90506-18042 | ||||
| 90523-08001 | ||||
| 91616-61025 | ||||
| 91651-61030 | ||||
| 93249-55010 | ||||
| 93510-14008 | ||||
| 93560-15020 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
