YH50RB-JR (1982)
Toyota Hiace Van,Commuter
(8212- )YH63..GEN ; (8212- )YH61..4HC..GEN; (8212- )LH50,51,60,61,YH50,51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J01 |
LH50,51,60,61,YH50,51,60,61..RHD..COM..GEN RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J11 |
YH50,60..RHD..COM..GEN |
1 | ||
| 88510-95J17 |
YH50,60..RHD..COM..GEN FR,W/*BV |
1 | ||
| 88510-95J03 |
LH50,51,60,61,YH50,51,60,61..RHD..COM..GEN RR |
1 | ||
| 88510F - HOLDER, FUSE | ||||
| 82630-95J00 |
YH50,51,60,61..COM..GEN |
1 | ||
| 88510H - PLATE, COOLER UNIT, NO.1 | ||||
| 88688-95J23 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95A03 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-95703 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J10 |
YH50,60..RHD..COM..GEN FR |
1 | ||
| 88605-95J21 |
YH50,60..RHD..COM..GEN FR,W/*BV |
1 | ||
| 88605-95J03 |
LH50,51,60,61,YH50,51,60,61..RHD..COM..GEN RR |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-95J00 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN FR |
1 | ||
| 88610-95A04 |
LH50,51,60,61,YH50,51,60,61..COM..GEN RR |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
3 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
3 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-03001 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 85913-30020 |
LH50,51,60,61,YH50,51,60,61..COM..GEN NO.1 |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-95J31 |
YH50,51,60,61..COM..GEN |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-95J08 |
LH50,51,60,61,YH50,51,60,61..GEN W/*BV & COOLER |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J00 |
YH50,60..COM..GEN |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J00 |
YH50,60..COM..GEN |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88899-95J03 |
YH51..RHD..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..RHD..(ARL,GEN) |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J10 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN FR |
1 | ||
| 88899-95J09 |
LH50,51,60,61,YH50,51,60,61..COM..GEN RR |
1 | ||
| Common parts | ||||
| 67773-95600 | ||||
| 82711-12120 | ||||
| 88718-22420 | ||||
| 90044-64009 | ||||
| 90093-00609 | ||||
| 90099-00149 | ||||
| 90099-00930 | ||||
| 90119-08157 | ||||
| 90159-50108 | ||||
| 90159-60069 | ||||
| 90179-08123 | ||||
| 90189-06018 | ||||
| 91655-40616 | ||||
| 93381-16016 | ||||
| 93385-18016 | ||||
| 93560-55014 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8715 | ||||

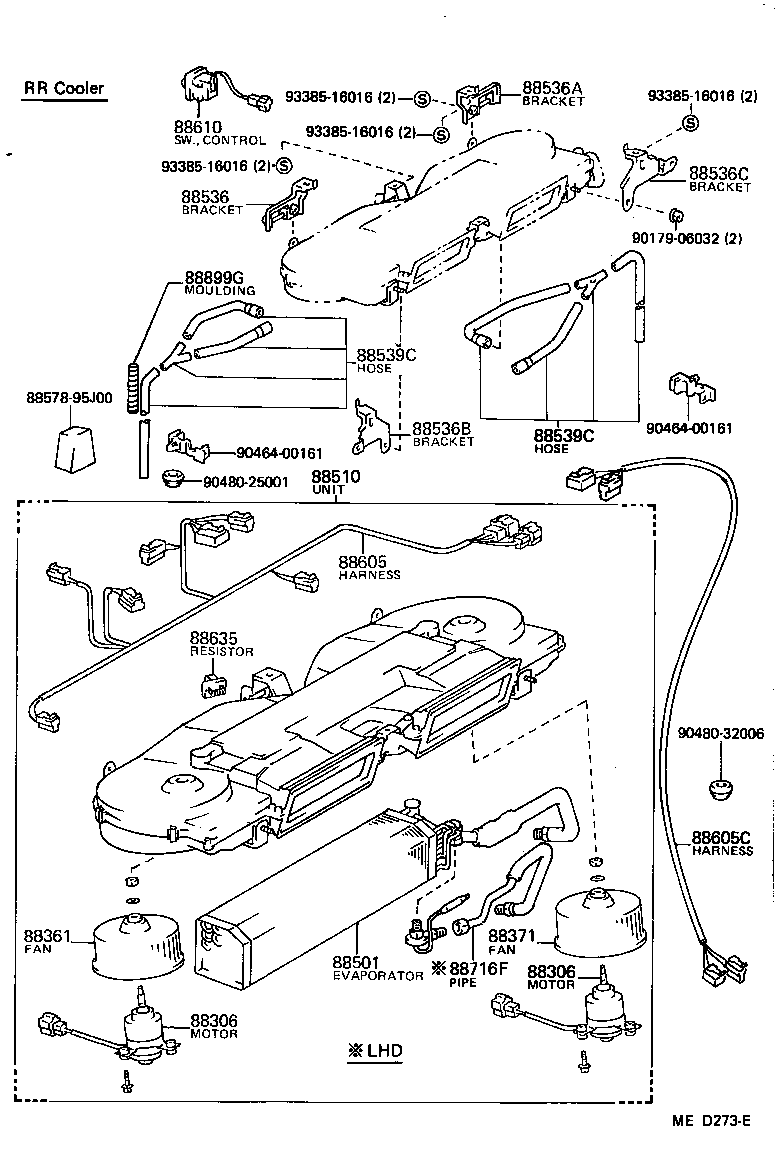

(8212- )COM..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95J00 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
2 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95J00 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-95J00 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
1 | ||
| 88371 - FAN, COOLER BLOWER, NO.2 | ||||
| 87105-95J00 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J01 |
LH50,51,60,61,YH50,51,60,61..RHD..COM..GEN RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J11 |
YH50,60..RHD..COM..GEN |
1 | ||
| 88510-95J17 |
YH50,60..RHD..COM..GEN FR,W/*BV |
1 | ||
| 88510-95J03 |
LH50,51,60,61,YH50,51,60,61..RHD..COM..GEN RR |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J00 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J01 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95J02 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88536-95J03 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J10 |
YH50,60..RHD..COM..GEN FR |
1 | ||
| 88605-95J21 |
YH50,60..RHD..COM..GEN FR,W/*BV |
1 | ||
| 88605-95J03 |
LH50,51,60,61,YH50,51,60,61..RHD..COM..GEN RR |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88648-95J09 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-95J00 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN FR |
1 | ||
| 88610-95A04 |
LH50,51,60,61,YH50,51,60,61..COM..GEN RR |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-95J00 |
LH50,51,60,61,YH50,51,60,61..COM..GEN |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-95J10 |
YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN FR |
1 | ||
| 88899-95J09 |
LH50,51,60,61,YH50,51,60,61..COM..GEN RR |
1 | ||
| Common parts | ||||
| 88578-95J00 | ||||
| 90179-06032 | ||||
| 90464-00161 | ||||
| 90480-25001 | ||||
| 90480-32006 | ||||
| 93385-16016 | ||||
