YH50LV-JRBF (1982)

Toyota Hiace Van,Commuter

Production Dec 1982 - Aug 1986
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )YH50,51,56,60,61,66..LHD

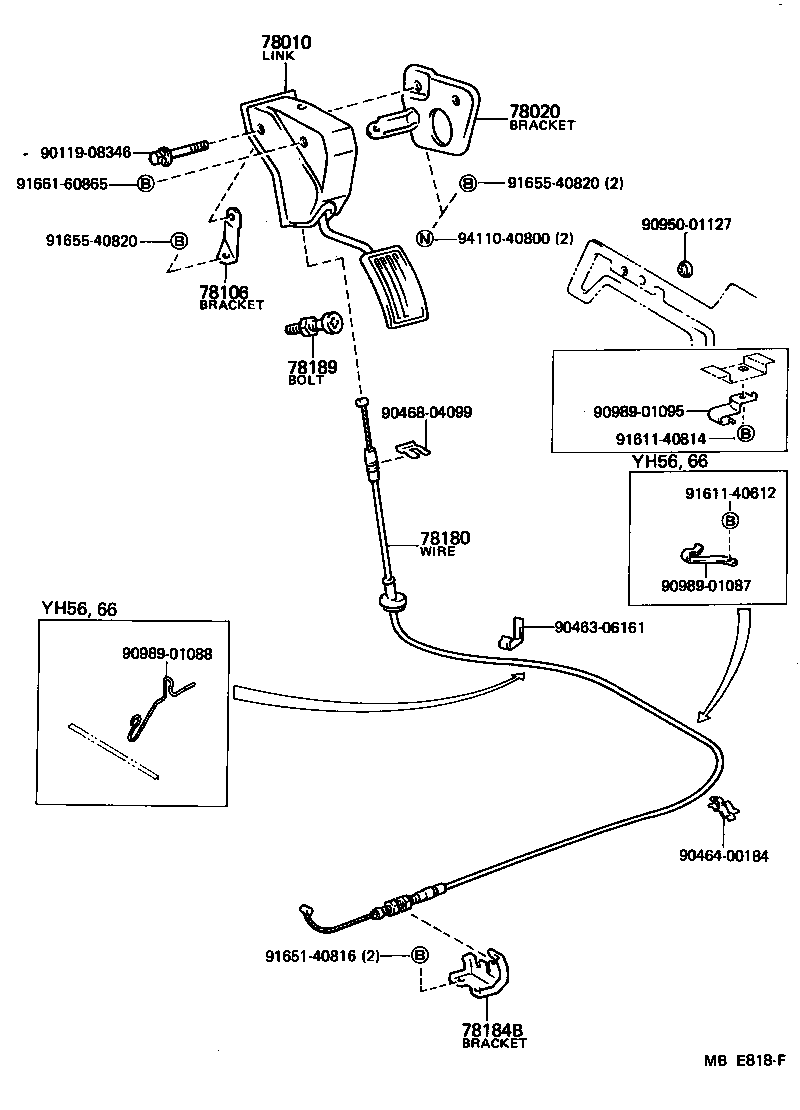

Click highlighted areas on diagram

diagram 78010 78020 78106 78180 78184B 78189 9011908346 9046306161 9046400184 9046804099 9095001127 9098901087 9098901088 9098901095 9161140612 9161140814 9165140816 9165540820 9165540820 9166160865 9411040800
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95J01

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
78020 - BRACKET ASSY, ACCELERATOR CONTROL
78014-95J00

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78114-95J01

LH5#,6#,YH50,51,56,60,61,66..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95J02

YH50,51,60,61..LHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95J00

YH5#,6#,7#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95J00

LH5#,6#,7#,YH5#,6#,7#

 1
Common parts
90119-08346
90463-06161
90464-00184
90468-04099
90950-01127
90989-01087
90989-01088
90989-01095
91611-40612
91611-40814
91651-40816
91655-40820
91661-60865
94110-40800
