Toyota Hiace van,commuter RZH125 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
HIACE VAN,COMMUTER
RZH125R-ZRMRSQ (1989)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

RZH125R-ZRMRSQ (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 1998

Engine 2RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(8908- )

Click highlighted areas on diagram

REAR UNIT(DEALER OPT)

Part #	Description	Period	Qty
88510T - UNIT ASSY, COOLING (REAR)
88510-26440	LH125,RZH125..ARL	08/1993 - 08/1998	1
88510-95N04	LH125,RZH125	08/1989 - 08/1993	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90C01	LH114,125,RZH114,125..HRF RH	08/1993 - 01/1994	1
88539-90C01	LH125,RZH125;RZH114..HRF..4F RH	08/1989 - 08/1993	1
88539-90C00	LH125..ARL;LH114,RZH114,115,125..HRF LH	08/1989 - 07/1999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90C01	LH114,125,RZH114,125..HRF RH	08/1993 - 01/1994	1
88539-90C01	LH125,RZH125;RZH114..HRF..4F RH	08/1989 - 08/1993	1
88539-90C00	LH125..ARL;LH114,RZH114,115,125..HRF LH	08/1989 - 07/1999	1
88539J - HOSE, DRAIN COOLER
88539-90701	LH125,RZH125..ARL	08/1989 - 07/1999	2
88539J - HOSE, DRAIN COOLER
88539-90701	LH125,RZH125..ARL	08/1989 - 07/1999	2
88539K - HOSE, DRAIN COOLER
88539-95703	LH125,RZH125..ARL RH REAR	08/1989 - 07/1999	1
88539-95J06	LH125,RZH125..ARL LH,REAR	08/1989 - 07/1999	1
88539-95701	LH125,RZH125..ARL	08/1996 - 08/1998	1
88539-95J07	LH125,RZH103,125..SG..ARL FRONT	08/1989 - 07/1999	2
88539K - HOSE, DRAIN COOLER
88539-95703	LH125,RZH125..ARL RH REAR	08/1989 - 07/1999	1
88539-95J06	LH125,RZH125..ARL LH,REAR	08/1989 - 07/1999	1
88539-95701	LH125,RZH125..ARL	08/1996 - 08/1998	1
88539-95J07	LH125,RZH103,125..SG..ARL FRONT	08/1989 - 07/1999	2
88539K - HOSE, DRAIN COOLER
88539-95703	LH125,RZH125..ARL RH REAR	08/1989 - 07/1999	1
88539-95J06	LH125,RZH125..ARL LH,REAR	08/1989 - 07/1999	1
88539-95701	LH125,RZH125..ARL	08/1996 - 08/1998	1
88539-95J07	LH125,RZH103,125..SG..ARL FRONT	08/1989 - 07/1999	2
88539K - HOSE, DRAIN COOLER
88539-95703	LH125,RZH125..ARL RH REAR	08/1989 - 07/1999	1
88539-95J06	LH125,RZH125..ARL LH,REAR	08/1989 - 07/1999	1
88539-95701	LH125,RZH125..ARL	08/1996 - 08/1998	1
88539-95J07	LH125,RZH103,125..SG..ARL FRONT	08/1989 - 07/1999	2
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-95N07	LH104,105,114,115,125,RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-95N17	LH104,105,114,115,125,RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88605-26320	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	1
88605-26320	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	1
88635R - RESISTOR, BLOWER
88635-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	1
88635-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	1
88898D - GROMMET
88898-90C00B0	LH125,RZH125 GRAY,TRIM1#	08/1989 - 08/1993	1
88899G - MOULDING, PROTECTOR
88896-90703B0	LH125..ARL;LH114,RZH114,125..HRF GRAY,TRIM1#	08/1993 - 08/1998	1
Common parts
82711-95704
88569-95J00
88578-95J01
88578-95J09
88897-87101
88899-95J19
90413-15001
90480-20013
90480-26022
93385-16014
93540-14012
93540-15020

ILLUST NO. 1 OF 4(9308- )RHD

Click highlighted areas on diagram

FRONT--DUAL

Part #	Description	Period	Qty
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH125,RZH103,125..SG..ARL 20A	08/1989 - 08/1993	2
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26150	LH103,113,125,RZH103,113,125..ARL	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J86	RZH103,104,114,125..RHD..4D..SG W(HEATER)	08/1989 - 08/1993	1
88605-95N02	LH104,105,114,115,125..RHD W(HEATER)	08/1989 - 08/1993	1
88605-26370	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1993 - 08/1994	1
88605-26740	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1994 - 08/1995	1
88605-2F090	LH113,114,115,125..RHD..SG..STD W(DUAL AIR CONDITIONER W/HEATER)	03/1997 - 08/1998	1
88630 - RELAY ASSY, COOLER
88630-14030	LH103,113,125,RZH103,113..ARL	08/1993 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	RZH125 DEALER OPTION	08/1993 - 08/1995	1
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88630B - RELAY ASSY, COOLER
90987-04002	RZH113..ARL;LH112,125,RZH113..09S,14S;LH103,104,105,113,114,115,RZH103,104,105,114,115,125..4D..(03S,12S,14S,15S)	08/1993 - 08/1995	1
88630-16090	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) DUAL AIR CONDITIONER	03/1997 - 08/1998	2
90987-04002	LH103,113,125,RZH103,113,125..ARL	08/1995 - 08/1996	1
88630-16090	LH125..ARL;LH102,104,114,115,RZH10#,114,115,125..09S,12S,14S,15S DUAL AIR CONDITIONER	08/1995 - 03/1997	2
88630-16090	LH125,RZH103,125..SG..ARL DUAL AIR CONDITIONER	08/1989 - 08/1995	2
88630B - RELAY ASSY, COOLER
90987-04002	RZH113..ARL;LH112,125,RZH113..09S,14S;LH103,104,105,113,114,115,RZH103,104,105,114,115,125..4D..(03S,12S,14S,15S)	08/1993 - 08/1995	1
88630-16090	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) DUAL AIR CONDITIONER	03/1997 - 08/1998	2
90987-04002	LH103,113,125,RZH103,113,125..ARL	08/1995 - 08/1996	1
88630-16090	LH125..ARL;LH102,104,114,115,RZH10#,114,115,125..09S,12S,14S,15S DUAL AIR CONDITIONER	08/1995 - 03/1997	2
88630-16090	LH125,RZH103,125..SG..ARL DUAL AIR CONDITIONER	08/1989 - 08/1995	2
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-95J12	RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88650-26080	RZH104,114,125..RHD	08/1993 - 08/1994	1
88650-95J16	LH104,105,114,115,125	08/1989 - 08/1993	1
88650-26130	RZH104,105,114,115,125	08/1994 - 08/1995	1
88650-26270	LH113,125..SG..STD;LH102,104,114,115..09S,12S,15S DUAL AIR CONDITIONER	03/1997 - 08/1998	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
Common parts
88569-26030
88578-26010
88688-26260
88688-26360
88688-26410
88688-95J75
88891-26140
88891-26150
88895-95J10
90094-90413
90099-00149
90099-00930
90119-06120
90159-60096
90189-06084
90468-05047
91651-40616
91652-60616
93315-15010
93386-16016
93560-55016

ILLUST NO. 1 OF 4(9308- )

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J11	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88501-26031	LH103,113,125,RZH103,113,125..ARL	08/1993 - 11/1994	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88515 - VALVE, COOLER EXPANSION
88515-28020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88578C - PACKING, COOLING UNIT, NO.2
88578-12490	RZH103..GL,SGL,STD;LH113,125..(03S,06S,14S)..STD;LH10#,112,114,115,RZH102,104,105,11#,125	08/1993 - 08/1998	1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88625-26030	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) REAR	03/1997 - 07/1998	1
88625-26030	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S REAR	08/1993 - 03/1997	1
88625-26020	LH125..ARL;LH10#,11#,RZH10#,11#,125 FRONT	08/1993 - 08/1996	1
88625-26030	LH125,RZH125..ARL REAR	07/1998 - 08/1998	1
88626A - HOLDER, THERMISTOR
88626-33010	RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,05S,06S,09S,10S,12S)..(CBR,DSL)	08/1989 - 08/2001	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26010	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
Common parts
87116-14010
90099-00968
90099-04381
90099-14119
90099-14121

ILLUST NO. 1 OF 4(8908-9308)

Click highlighted areas on diagram

FRONT(DEALER OPT)

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J11	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88501-26031	LH103,113,125,RZH103,113,125..ARL	08/1993 - 11/1994	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88515 - VALVE, COOLER EXPANSION
88515-28020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88625-26030	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) REAR	03/1997 - 07/1998	1
88625-26030	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S REAR	08/1993 - 03/1997	1
88625-26020	LH125..ARL;LH10#,11#,RZH10#,11#,125 FRONT	08/1993 - 08/1996	1
88625-26030	LH125,RZH125..ARL REAR	07/1998 - 08/1998	1
88626A - HOLDER, THERMISTOR
88626-33010	RZH115..CBR;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH10#,112,114,115,166,176,RZH102,104,112,114,125;LH113,125,RZH103..(03S,06S,14S)..(DX,STD)..(DSL,EFI);LH174,RZH103,105,113..(03S,05S,06S,09S,10S,12S)..(CBR,DSL)	08/1989 - 08/2001	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26010	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
Common parts
87116-14010
88899-95J20
90099-00930
90099-00968
90099-04381
93315-15010

ILLUST NO. 1 OF 4(8908-9508)

Click highlighted areas on diagram

FRONT(MAKER OPT)

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95J11	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88501-26031	LH103,113,125,RZH103,113,125..ARL	08/1993 - 11/1994	1
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88515 - VALVE, COOLER EXPANSION
88515-28020	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26150	LH103,113,125,RZH103,113,125..ARL	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J86	RZH103,104,114,125..RHD..4D..SG W(HEATER)	08/1989 - 08/1993	1
88605-95N02	LH104,105,114,115,125..RHD W(HEATER)	08/1989 - 08/1993	1
88605-26370	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1993 - 08/1994	1
88605-26740	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1994 - 08/1995	1
88605-2F090	LH113,114,115,125..RHD..SG..STD W(DUAL AIR CONDITIONER W/HEATER)	03/1997 - 08/1998	1
88630 - RELAY ASSY, COOLER
88630-14030	LH103,113,125,RZH103,113..ARL	08/1993 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	RZH125 DEALER OPTION	08/1993 - 08/1995	1
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88630B - RELAY ASSY, COOLER
90987-04002	RZH113..ARL;LH112,125,RZH113..09S,14S;LH103,104,105,113,114,115,RZH103,104,105,114,115,125..4D..(03S,12S,14S,15S)	08/1993 - 08/1995	1
88630-16090	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) DUAL AIR CONDITIONER	03/1997 - 08/1998	2
90987-04002	LH103,113,125,RZH103,113,125..ARL	08/1995 - 08/1996	1
88630-16090	LH125..ARL;LH102,104,114,115,RZH10#,114,115,125..09S,12S,14S,15S DUAL AIR CONDITIONER	08/1995 - 03/1997	2
88630-16090	LH125,RZH103,125..SG..ARL DUAL AIR CONDITIONER	08/1989 - 08/1995	2
88630B - RELAY ASSY, COOLER
90987-04002	RZH113..ARL;LH112,125,RZH113..09S,14S;LH103,104,105,113,114,115,RZH103,104,105,114,115,125..4D..(03S,12S,14S,15S)	08/1993 - 08/1995	1
88630-16090	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) DUAL AIR CONDITIONER	03/1997 - 08/1998	2
90987-04002	LH103,113,125,RZH103,113,125..ARL	08/1995 - 08/1996	1
88630-16090	LH125..ARL;LH102,104,114,115,RZH10#,114,115,125..09S,12S,14S,15S DUAL AIR CONDITIONER	08/1995 - 03/1997	2
88630-16090	LH125,RZH103,125..SG..ARL DUAL AIR CONDITIONER	08/1989 - 08/1995	2
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-95J12	RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88650-26080	RZH104,114,125..RHD	08/1993 - 08/1994	1
88650-95J16	LH104,105,114,115,125	08/1989 - 08/1993	1
88650-26130	RZH104,105,114,115,125	08/1994 - 08/1995	1
88650-26270	LH113,125..SG..STD;LH102,104,114,115..09S,12S,15S DUAL AIR CONDITIONER	03/1997 - 08/1998	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-26010	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
Common parts
82715-95J27
82715-95J28
88688-95J75
88688-95J85
88899-26030
90119-06361
90159-60096
90189-06084
90468-05047
91651-40616
93560-55016

ILLUST NO. 2 OF 4(8908-9308)

Click highlighted areas on diagram

REAR UNIT(MAKER OPT)

Part #	Description	Period	Qty
87105C - FAN SUB-ASSY, BLOWER, REAR
88541-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) LH	03/1997 - 08/1998	1
87105-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) RH	03/1997 - 08/1998	1
88541-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S LH	08/1993 - 03/1997	1
87105-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S RH	08/1993 - 03/1997	1
87105C - FAN SUB-ASSY, BLOWER, REAR
88541-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) LH	03/1997 - 08/1998	1
87105-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) RH	03/1997 - 08/1998	1
88541-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S LH	08/1993 - 03/1997	1
87105-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S RH	08/1993 - 03/1997	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-26070	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	1
88501-26070	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	1
88510T - UNIT ASSY, COOLING (REAR)
88510-26440	LH125,RZH125..ARL	08/1993 - 08/1998	1
88510-95N04	LH125,RZH125	08/1989 - 08/1993	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90C01	LH114,125,RZH114,125..HRF RH	08/1993 - 01/1994	1
88539-90C01	LH125,RZH125;RZH114..HRF..4F RH	08/1989 - 08/1993	1
88539-90C00	LH125..ARL;LH114,RZH114,115,125..HRF LH	08/1989 - 07/1999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90C01	LH114,125,RZH114,125..HRF RH	08/1993 - 01/1994	1
88539-90C01	LH125,RZH125;RZH114..HRF..4F RH	08/1989 - 08/1993	1
88539-90C00	LH125..ARL;LH114,RZH114,115,125..HRF LH	08/1989 - 07/1999	1
88550B - MOTOR ASSY, BLOWER
88550-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	2
88550-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	2
88550B - MOTOR ASSY, BLOWER
88550-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	2
88550-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	2
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-95N07	LH104,105,114,115,125,RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-95N17	LH104,105,114,115,125,RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88605-26320	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	1
88605-26320	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	1
88635R - RESISTOR, BLOWER
88635-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	1
88635-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	1
88898D - GROMMET
88898-90C00B0	LH125,RZH125 GRAY,TRIM1#	08/1989 - 08/1993	1
88899G - MOULDING, PROTECTOR
88896-90703B0	LH125..ARL;LH114,RZH114,125..HRF GRAY,TRIM1#	08/1993 - 08/1998	1
Common parts
88515-95J00
88578-95J01
90413-15001
90480-26022
93530-55016
Linked diagrams
8718

ILLUST NO. 2 OF 4(9308- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

REAR UNIT

Part #	Description	Period	Qty
87105C - FAN SUB-ASSY, BLOWER, REAR
88541-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) LH	03/1997 - 08/1998	1
87105-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) RH	03/1997 - 08/1998	1
88541-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S LH	08/1993 - 03/1997	1
87105-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S RH	08/1993 - 03/1997	1
87105C - FAN SUB-ASSY, BLOWER, REAR
88541-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) LH	03/1997 - 08/1998	1
87105-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) RH	03/1997 - 08/1998	1
88541-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S LH	08/1993 - 03/1997	1
87105-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S RH	08/1993 - 03/1997	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-26070	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	1
88501-26070	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	1
88510T - UNIT ASSY, COOLING (REAR)
88510-26440	LH125,RZH125..ARL	08/1993 - 08/1998	1
88510-95N04	LH125,RZH125	08/1989 - 08/1993	1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-26020	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	1
88515-26020	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90C01	LH114,125,RZH114,125..HRF RH	08/1993 - 01/1994	1
88539-90C01	LH125,RZH125;RZH114..HRF..4F RH	08/1989 - 08/1993	1
88539-90C00	LH125..ARL;LH114,RZH114,115,125..HRF LH	08/1989 - 07/1999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90C01	LH114,125,RZH114,125..HRF RH	08/1993 - 01/1994	1
88539-90C01	LH125,RZH125;RZH114..HRF..4F RH	08/1989 - 08/1993	1
88539-90C00	LH125..ARL;LH114,RZH114,115,125..HRF LH	08/1989 - 07/1999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90C01	LH114,125,RZH114,125..HRF RH	08/1993 - 01/1994	1
88539-90C01	LH125,RZH125;RZH114..HRF..4F RH	08/1989 - 08/1993	1
88539-90C00	LH125..ARL;LH114,RZH114,115,125..HRF LH	08/1989 - 07/1999	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90C01	LH114,125,RZH114,125..HRF RH	08/1993 - 01/1994	1
88539-90C01	LH125,RZH125;RZH114..HRF..4F RH	08/1989 - 08/1993	1
88539-90C00	LH125..ARL;LH114,RZH114,115,125..HRF LH	08/1989 - 07/1999	1
88550B - MOTOR ASSY, BLOWER
88550-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	2
88550-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	2
88550B - MOTOR ASSY, BLOWER
88550-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	2
88550-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	2
88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-95N17	LH104,105,114,115,125,RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88605-26320	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	1
88605-26320	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	1
88635R - RESISTOR, BLOWER
88635-95J00	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S)	03/1997 - 08/1998	1
88635-95J00	LH125..ARL;LH102,104,105,112,114,115,RZH10#,113,114,115,125..09S,12S,14S,15S	08/1993 - 03/1997	1
Common parts
63249-95700
82711-95704
88899-95J19
90099-00931
90099-02210
90099-05164
90099-32138
90183-06020
90480-20013
90480-26022
93530-55016
93540-55014
Linked diagrams
8718

ILLUST NO. 3 OF 4(8908- )

Click highlighted areas on diagram

REAR UNIT BRACKET(DEALER OPT)

Part #	Description	Period	Qty
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95J41	LH114,125,RZH114,125..HRF	08/1989 - 12/1993	2
88536B - BRACKET, COOLING UNIT, NO.3
88536-95J41	LH114,125,RZH114,125..HRF	08/1989 - 12/1993	2
Common parts
88688-26010
90091-20604
90179-06274
93385-16014
93540-15012

ILLUST NO. 1 OF 4(9308- )RHD

Click highlighted areas on diagram

FRONT--SINGLE

Part #	Description	Period	Qty
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH125,RZH103,125..SG..ARL 20A	08/1989 - 08/1993	2
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26150	LH103,113,125,RZH103,113,125..ARL	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J86	RZH103,104,114,125..RHD..4D..SG W(HEATER)	08/1989 - 08/1993	1
88605-95N02	LH104,105,114,115,125..RHD W(HEATER)	08/1989 - 08/1993	1
88605-26370	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1993 - 08/1994	1
88605-26740	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1994 - 08/1995	1
88605-2F090	LH113,114,115,125..RHD..SG..STD W(DUAL AIR CONDITIONER W/HEATER)	03/1997 - 08/1998	1
88630 - RELAY ASSY, COOLER
88630-14030	LH103,113,125,RZH103,113..ARL	08/1993 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	RZH125 DEALER OPTION	08/1993 - 08/1995	1
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-95J12	RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88650-26080	RZH104,114,125..RHD	08/1993 - 08/1994	1
88650-95J16	LH104,105,114,115,125	08/1989 - 08/1993	1
88650-26130	RZH104,105,114,115,125	08/1994 - 08/1995	1
88650-26270	LH113,125..SG..STD;LH102,104,114,115..09S,12S,15S DUAL AIR CONDITIONER	03/1997 - 08/1998	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
Common parts
88569-26030
88578-26010
88688-26260
88688-26410
88688-95J75
88688-95J86
88891-26140
88891-26150
88895-95J10
90094-90413
90099-00149
90099-00930
90119-06361
90159-60096
90189-06084
90468-05047
91651-40616
91652-60616
93315-15010
93385-16020
93386-16016
93560-55016

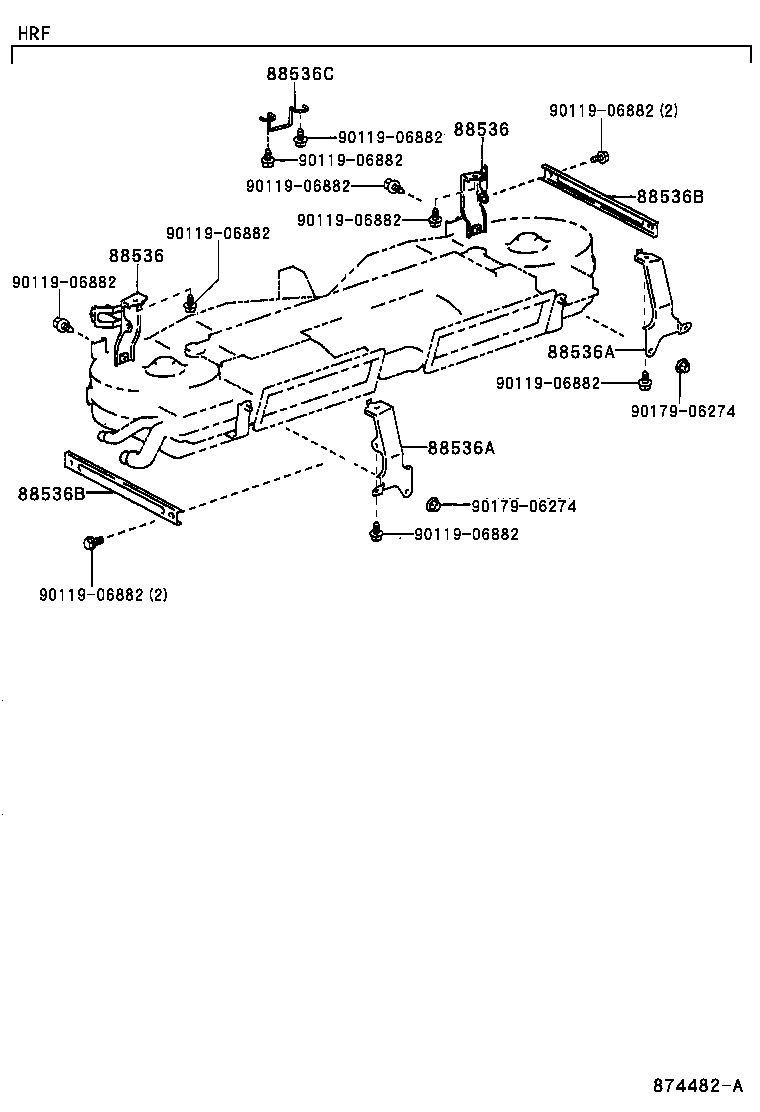

ILLUST NO. 3 OF 4(9308- )LH112,113,114,125,172,174,184,RZH114,115,125..HRF..03S,14S,15S

Click highlighted areas on diagram

REAR UNIT BRACKET(MAKER OPT)

Part #	Description	Period	Qty
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95J41	LH114,125,RZH114,125..HRF	08/1989 - 12/1993	2
88536B - BRACKET, COOLING UNIT, NO.3
88536-95J41	LH114,125,RZH114,125..HRF	08/1989 - 12/1993	2
Common parts
90119-06882
90179-06274

ILLUST NO. 4 OF 4(9308- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 3 OF 4(8908-9308)

Click highlighted areas on diagram

REAR UNIT BRACKET(MAKER OPT)

Part #	Description	Period	Qty
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95J16	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536-95J17	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95J19	LH114,125,RZH114,125..HRF LH	08/1989 - 12/1993	1
88536-95J18	LH114,125,RZH114,125..HRF RH	08/1989 - 12/1993	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95J41	LH114,125,RZH114,125..HRF	08/1989 - 12/1993	2
88536B - BRACKET, COOLING UNIT, NO.3
88536-95J41	LH114,125,RZH114,125..HRF	08/1989 - 12/1993	2
Common parts
90119-06572
90179-06274

ILLUST NO. 1 OF 4(8908-9308)

Click highlighted areas on diagram

FRONT--SINGLE(DEALER OPT)

Part #	Description	Period	Qty
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH125,RZH103,125..SG..ARL 20A	08/1989 - 08/1993	2
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26150	LH103,113,125,RZH103,113,125..ARL	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J86	RZH103,104,114,125..RHD..4D..SG W(HEATER)	08/1989 - 08/1993	1
88605-95N02	LH104,105,114,115,125..RHD W(HEATER)	08/1989 - 08/1993	1
88605-26370	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1993 - 08/1994	1
88605-26740	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1994 - 08/1995	1
88605-2F090	LH113,114,115,125..RHD..SG..STD W(DUAL AIR CONDITIONER W/HEATER)	03/1997 - 08/1998	1
88630 - RELAY ASSY, COOLER
88630-14030	LH103,113,125,RZH103,113..ARL	08/1993 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	RZH125 DEALER OPTION	08/1993 - 08/1995	1
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88630C - BRACKET, COOLER RELAY
88631-95J00	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD	08/1989 - 08/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-95J12	RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88650-26080	RZH104,114,125..RHD	08/1993 - 08/1994	1
88650-95J16	LH104,105,114,115,125	08/1989 - 08/1993	1
88650-26130	RZH104,105,114,115,125	08/1994 - 08/1995	1
88650-26270	LH113,125..SG..STD;LH102,104,114,115..09S,12S,15S DUAL AIR CONDITIONER	03/1997 - 08/1998	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88631-95J02	LH125,RZH103,125..SG..ARL	08/1989 - 08/1993	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
Common parts
82715-95J27
88569-95J01
88578-26010
88578-26020
88688-95J75
88688-95N04
88895-95J10
90099-00149
90099-00930
93385-16020
93386-16016
93560-55016

ILLUST NO. 1 OF 4(8908-9308)

Click highlighted areas on diagram

FRONT--DUAL(DEALER OPT)

Part #	Description	Period	Qty
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH125,RZH103,125..SG..ARL 20A	08/1989 - 08/1993	2
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-35010	LH125,RZH103,125..SG..ARL 20A	08/1989 - 08/1993	2
88510 - UNIT ASSY, COOLER
88510-95J58	LH10#,11#,125,RZH10#,11#,125..RHD	08/1989 - 08/1993	1
88510F - HOLDER, FUSE
82630-95J03	LH125,RZH103,125..SG..ARL	08/1989 - 08/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26150	LH103,113,125,RZH103,113,125..ARL	08/1993 - 08/1995	1
88539-95701	LH10#,11#,125,RZH10#,11#,125	08/1989 - 08/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J86	RZH103,104,114,125..RHD..4D..SG W(HEATER)	08/1989 - 08/1993	1
88605-95N02	LH104,105,114,115,125..RHD W(HEATER)	08/1989 - 08/1993	1
88605-26370	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1993 - 08/1994	1
88605-26740	LH125..ARL;LH114,115,RZH104,114,125..RHD W(HEATER)	08/1994 - 08/1995	1
88605-2F090	LH113,114,115,125..RHD..SG..STD W(DUAL AIR CONDITIONER W/HEATER)	03/1997 - 08/1998	1
88630 - RELAY ASSY, COOLER
88630-14030	LH103,113,125,RZH103,113..ARL	08/1993 - 08/1995	1
88630-14030	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
88630-14030	RZH125 DEALER OPTION	08/1993 - 08/1995	1
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88630A - RELAY ASSY, COOLER
88630-95702	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	2
88630-95702	RZH125 DEALER OPTION	08/1996 - 08/1998	2
88630-95702	RZH125 DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH103,113,125,RZH103,113..ARL DEALER OPTION	08/1993 - 08/1995	2
88630-95702	LH125,RZH125..ARL DEALER OPTION	08/1995 - 08/1996	2
88630B - RELAY ASSY, COOLER
90987-04002	RZH113..ARL;LH112,125,RZH113..09S,14S;LH103,104,105,113,114,115,RZH103,104,105,114,115,125..4D..(03S,12S,14S,15S)	08/1993 - 08/1995	1
88630-16090	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) DUAL AIR CONDITIONER	03/1997 - 08/1998	2
90987-04002	LH103,113,125,RZH103,113,125..ARL	08/1995 - 08/1996	1
88630-16090	LH125..ARL;LH102,104,114,115,RZH10#,114,115,125..09S,12S,14S,15S DUAL AIR CONDITIONER	08/1995 - 03/1997	2
88630-16090	LH125,RZH103,125..SG..ARL DUAL AIR CONDITIONER	08/1989 - 08/1995	2
88630B - RELAY ASSY, COOLER
90987-04002	RZH113..ARL;LH112,125,RZH113..09S,14S;LH103,104,105,113,114,115,RZH103,104,105,114,115,125..4D..(03S,12S,14S,15S)	08/1993 - 08/1995	1
88630-16090	LH113,125..SG..STD;LH102,104,114,115,RZH103,104,105,114,115,125..SG..(03S,09S,12S,14S,15S) DUAL AIR CONDITIONER	03/1997 - 08/1998	2
90987-04002	LH103,113,125,RZH103,113,125..ARL	08/1995 - 08/1996	1
88630-16090	LH125..ARL;LH102,104,114,115,RZH10#,114,115,125..09S,12S,14S,15S DUAL AIR CONDITIONER	08/1995 - 03/1997	2
88630-16090	LH125,RZH103,125..SG..ARL DUAL AIR CONDITIONER	08/1989 - 08/1995	2
88630C - BRACKET, COOLER RELAY
88631-95J00	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD	08/1989 - 08/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-95J12	RZH103,104,114,125..4D..SG	08/1989 - 08/1993	1
88650-26080	RZH104,114,125..RHD	08/1993 - 08/1994	1
88650-95J16	LH104,105,114,115,125	08/1989 - 08/1993	1
88650-26130	RZH104,105,114,115,125	08/1994 - 08/1995	1
88650-26270	LH113,125..SG..STD;LH102,104,114,115..09S,12S,15S DUAL AIR CONDITIONER	03/1997 - 08/1998	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88631-95J02	LH125,RZH103,125..SG..ARL	08/1989 - 08/1993	1
88899B - COVER, COOLER CONTROL
88891-26050	LH103..ARL;LH102,103,112,125,RZH125..SG;LH113,RZH102,103,112,113..RHD DEALER OPTION	08/1989 - 08/1993	1
Common parts
82715-95J27
88569-95J00
88578-26010
88578-26020
88688-95J31
88688-95J75
88688-95N04
88895-95J10
90099-00149
90099-00930
93385-16020
93386-16016
93560-55016

RZH125R-ZRMRSQ (1989)

ILLUST NO. 2 OF 4(8908- )

ILLUST NO. 1 OF 4(9308- )RHD

ILLUST NO. 1 OF 4(9308- )

ILLUST NO. 1 OF 4(8908-9308)

ILLUST NO. 1 OF 4(8908-9508)

ILLUST NO. 2 OF 4(8908-9308)

ILLUST NO. 2 OF 4(9308- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

ILLUST NO. 3 OF 4(8908- )

ILLUST NO. 1 OF 4(9308- )RHD

ILLUST NO. 3 OF 4(9308- )LH112,113,114,125,172,174,184,RZH114,115,125..HRF..03S,14S,15S

ILLUST NO. 4 OF 4(9308- )

ILLUST NO. 3 OF 4(8908-9308)

ILLUST NO. 1 OF 4(8908-9308)

ILLUST NO. 1 OF 4(8908-9308)

Part Price Details
