RZH125R-ZRMREQ (1998)
Toyota Hiace Van,Commuter

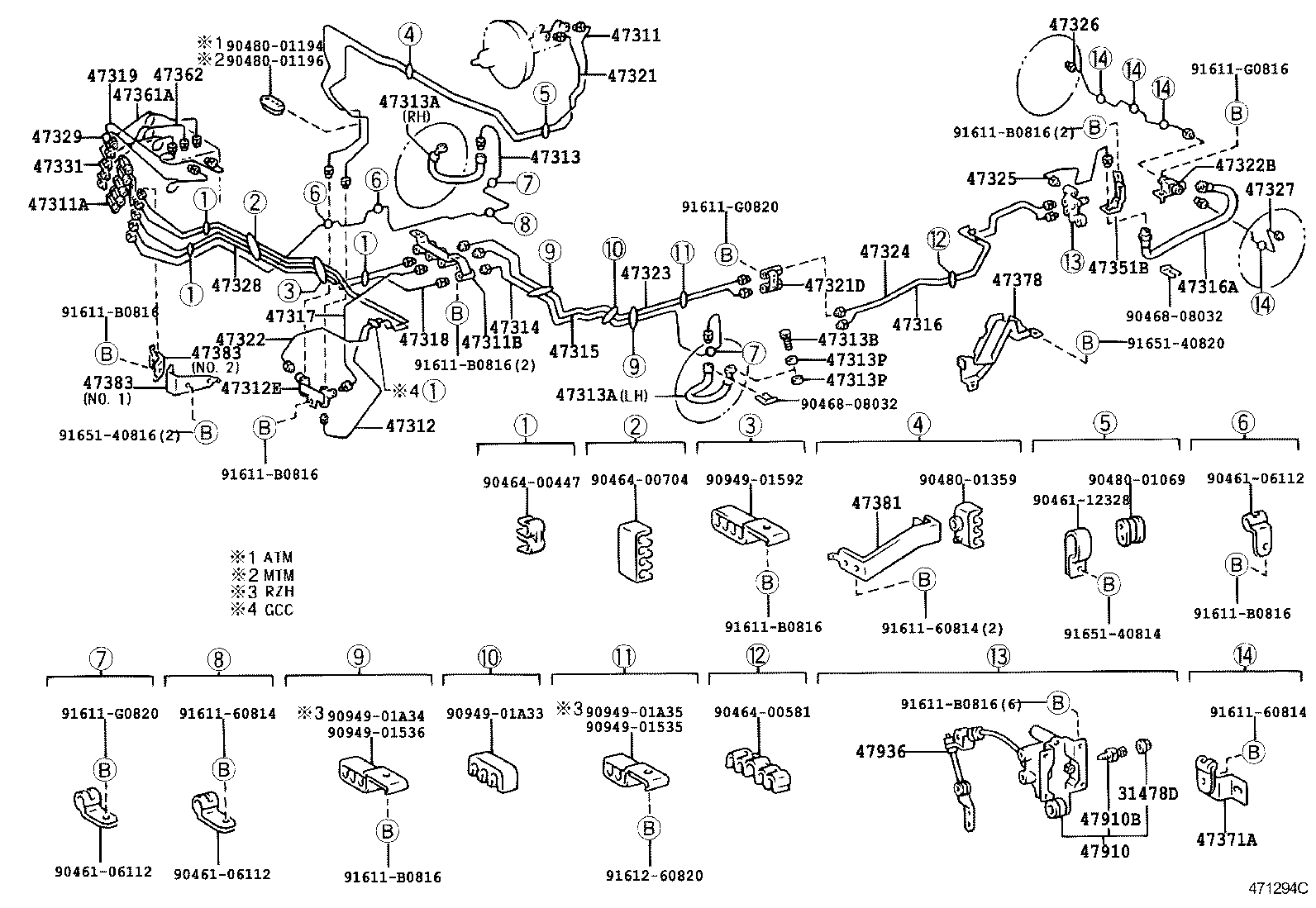

ILLUST NO. 1 OF 3(9808- )GCC ; (0108- )ARL
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26360 |
RZH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47311-26340 |
LH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47311-2F020 |
LH162,172,184,RZH103,113,125..ARL W(ABS) |
1 | ||
| 47311-26431 |
RZH112..RHD..03S;RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 47311-26441 |
LH103,11#,125,162,172,174,184..RHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-12046 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90414-10019 |
LH10#,11#,125,RZH10#,11#,125..4F,5F |
1 | ||
| 90904-12010 |
RZH103,113,125..5F..ARL W(ABS) |
1 | ||
| 90414-10019 |
RZH112..5D;RZH112..03S;LH10#,11#,125,RZH10#,113,114,115,125,135,15#..5F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26300 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-13001 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26141 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 47313-26140 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 47313-26180 |
RZH103,113..5F..ARL;LH162,172,184,RZH125..ARL W(ABS) |
1 | ||
| 47313-26141 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02591 |
LH10#,11#,125,RZH10#,11#,125 LH |
1 | ||
| 90947-02590 |
LH10#,11#,125,RZH10#,11#,125 RH |
1 | ||
| 90947-02C04 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(195/70R15C TIRE),RH |
1 | ||
| 90947-02C11 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN RH |
1 | ||
| 90947-02C05 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(195/70R15C TIRE),LH |
1 | ||
| 90947-02C12 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02591 |
LH10#,11#,125,RZH10#,11#,125 LH |
1 | ||
| 90947-02590 |
LH10#,11#,125,RZH10#,11#,125 RH |
1 | ||
| 90947-02C04 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(195/70R15C TIRE),RH |
1 | ||
| 90947-02C11 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN RH |
1 | ||
| 90947-02C05 |
LH172..HRF;RZH112..LHD;LH172..03S..GL;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,RZH115..LHD..4D..(03S,12S);LH172,RZH115..(ARL,CIS,GCC)..(DSL,EFI);LH172,174,RZH115..(06S,10S,15S)..(CBR,DEFI,DSL);LH10#,11#,125,154,162,164,184,RZH10#,113,114,125,135,15# W(195/70R15C TIRE),LH |
1 | ||
| 90947-02C12 |
LH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
2 | ||
| 90401-10015 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 90430-10074 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
4 | ||
| 90430-10074 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26140 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47314-26190 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 47314-26180 |
LH162,172,184,RZH103,113,125..ARL W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26140 |
LH162,172,184,RZH103,113,125..ARL W(ABS) |
1 | ||
| 47315-26120 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47315-26150 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26160 |
LH125,184,RZH125 |
1 | ||
| 47316-26160 |
LH125,184,RZH125 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33456 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 96940-33457 |
LH103,113,125,162,172,184,RZH103,113,125..ARL |
1 | ||
| 96940-32757 |
LH162,172,184,RZH103,113,125..ARL |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-26140 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-26040 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-26090 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26250 |
LH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47321-26341 |
RZH112..RHD..03S;RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 47321-26351 |
LH103,11#,125,162,172,174,184..RHD |
1 | ||
| 47321-26680 |
RZH103,113..5F..ARL;LH162,172,184,RZH125..ARL W(ABS) |
1 | ||
| 47321-26270 |
RZH10#,11#,125..RHD W(FRONT DISC BRAKE) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90412-10166 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26210 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10243 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
1 | ||
| 90413-10243 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26310 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47323-26340 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26200 |
LH125,184,RZH125 |
1 | ||
| 47324-26200 |
LH125,184,RZH125 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26250 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47325-26350 |
LH162,172,184,RZH103,113,125..ARL |
1 | ||
| 47325-26340 |
RZH115..CBR;RZH103..RHD..SG;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..(GL,STD);LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,184,RZH102,104,112,113,114,125..GL,STD |
1 | ||
| 47325-26340 |
LH103,113,125,162,172,184,RZH103,113,125..ARL |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26270 |
LH10#,11#,125,RZH102,103,104,11#,125..RHD |
1 | ||
| 47326-26360 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 47326-26360 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH103,11#,125,RZH102,103,104,114,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26120 |
LH10#,11#,125,RZH102,103,104,11#,125..RHD |
1 | ||
| 47327-26210 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 47327-26281 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26030 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-26090 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-26080 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26120 |
LH10#,11#,125,172,174,184,RZH10#,11#,125 |
1 | ||
| 47351-26120 |
LH103,113,125,162,172,184,RZH103,113,125..ARL |
1 | ||
| 47351-26171 |
LH162,172,184,RZH103,113,125..ARL |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-26040 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-26040 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-26180 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
4 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26020 |
RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH10#,125,RZH104,125;LH112,114,RZH112,114..LHD |
1 | ||
| 47378-26020 |
LH103..4FC;RZH103..ARL;LH103..03S..GEN;LH102,104,105,11#,166,174,176,RZH105,11#..LHD;LH125,184,RZH102,104,125,135,153..03S,06S,12S,14S,15S AMBULANCE |
1 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-26050 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-26050 |
LH184,RZH125..ARL;LH172,RZH113..5F..ARL |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26180 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47910-26261 |
RZH112..5D;RZH112..03S;LH10#,11#,125,162,164,172,174,184,RZH10#,113,114,115,125 |
1 | ||
| 47910-26261 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,RZH103,104,114,125..03S,06S,12S,14S,15S;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL) |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27030 |
RZH112..5D;RZH112..03S;LH10#,11#,125,162,164,172,174,184,RZH10#,113,114,115,125 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26020 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125..03S,06S,12S,14S,15S |
1 | ||
| 47936-35040 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 47936-26020 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-12328 | ||||
| 90464-00447 | ||||
| 90464-00581 | ||||
| 90464-00704 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01194 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01535 | ||||
| 90949-01536 | ||||
| 90949-01592 | ||||
| 90949-01A33 | ||||
| 90949-01A34 | ||||
| 90949-01A35 | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 91611-G0816 | ||||
| 91611-G0820 | ||||
| 91612-60820 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
