RZH125R-ZRMREQ (1998)
Toyota Hiace Van,Commuter

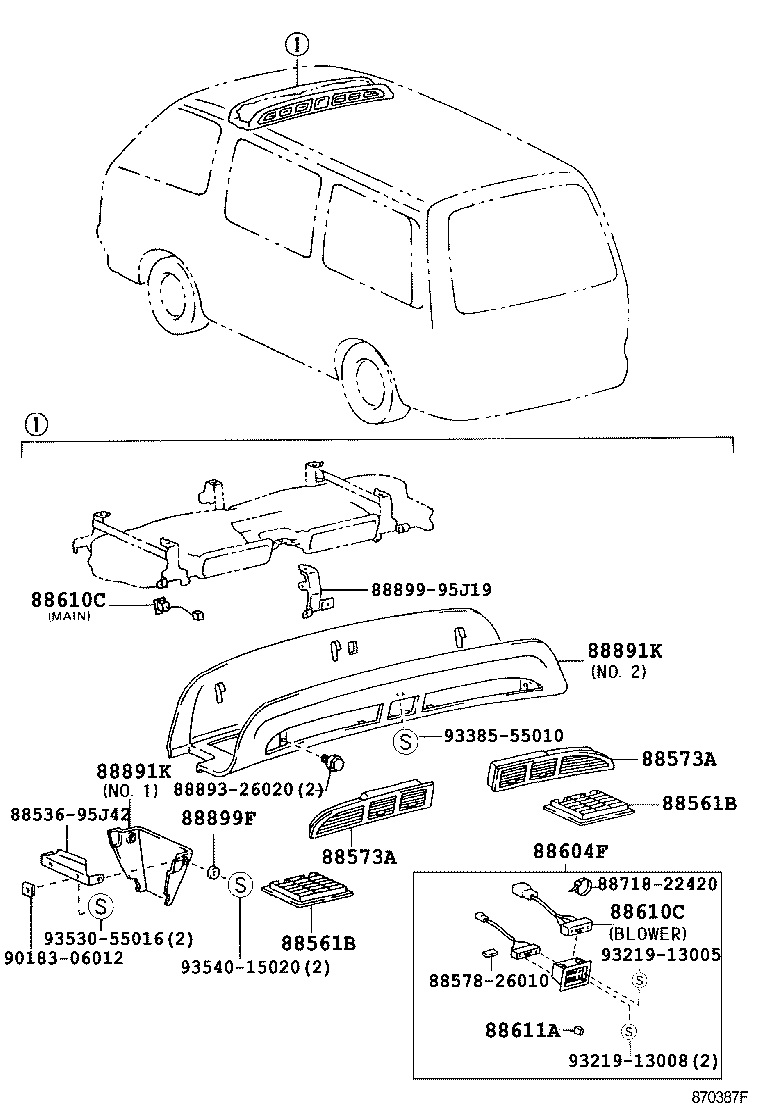

ILLUST NO. 4 OF 4(8908- )LH125,RZH125
REAR COOLER DUCT(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH125,RZH114,125..HRF..5F IVORY,TRIM1# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH125,RZH114,125..HRF..5F IVORY,TRIM1# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH |
1 | ||
| 88573-95J00A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH |
1 | ||
| 88573-95J01B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 88573-95J00B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH |
1 | ||
| 88573-95J00A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH |
1 | ||
| 88573-95J01B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 88573-95J00B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG IVORY,TRIM1# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH125,RZH103,125..SG..ARL BLOWER |
1 | ||
| 88610-95J0208 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1# |
1 | ||
| 88610-26040 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG |
1 | ||
| 88610-95J02B1 |
RZH102..GL;LH104,105,114,115,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 88610-95J02B1 |
LH113,125..SG..5F LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-95J02B1 |
LH125,RZH125;LH184..5F..ARL LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-26040 |
LH125,RZH125;LH184..5F..ARL BLOWER |
1 | ||
| 88610-26040 |
RZH125 BLOWER |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH125,RZH103,125..SG..ARL BLOWER |
1 | ||
| 88610-95J0208 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1# |
1 | ||
| 88610-26040 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG |
1 | ||
| 88610-95J02B1 |
RZH102..GL;LH104,105,114,115,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 88610-95J02B1 |
LH113,125..SG..5F LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-95J02B1 |
LH125,RZH125;LH184..5F..ARL LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-26040 |
LH125,RZH125;LH184..5F..ARL BLOWER |
1 | ||
| 88610-26040 |
RZH125 BLOWER |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH125,RZH103,125..SG..ARL |
2 | ||
| 88611-95A01 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG |
2 | ||
| 88891K - COVER, COOLER | ||||
| 88891-95J1008 |
LH125,RZH125 IVORY,TRIM1#,NO.1 |
1 | ||
| 88891-95J1208 |
LH125,RZH125 IVORY,TRIM1#,NO.2 |
1 | ||
| 88891-95J10B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88891-95J12B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 88891-95J12 |
LH125,RZH125;LH184..5F..ARL NO.2 |
1 | ||
| 88891-95J10 |
LH125,RZH125 NO.1 |
1 | ||
| 88891K - COVER, COOLER | ||||
| 88891-95J1008 |
LH125,RZH125 IVORY,TRIM1#,NO.1 |
1 | ||
| 88891-95J1208 |
LH125,RZH125 IVORY,TRIM1#,NO.2 |
1 | ||
| 88891-95J10B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88891-95J12B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 88891-95J12 |
LH125,RZH125;LH184..5F..ARL NO.2 |
1 | ||
| 88891-95J10 |
LH125,RZH125 NO.1 |
1 | ||
| Common parts | ||||
| 88536-95J42 | ||||
| 88578-26010 | ||||
| 88718-22420 | ||||
| 88893-26020 | ||||
| 88899-95J19 | ||||
| 90183-06012 | ||||
| 93219-13005 | ||||
| 93219-13008 | ||||
| 93385-55010 | ||||
| 93530-55016 | ||||
| 93540-15020 | ||||

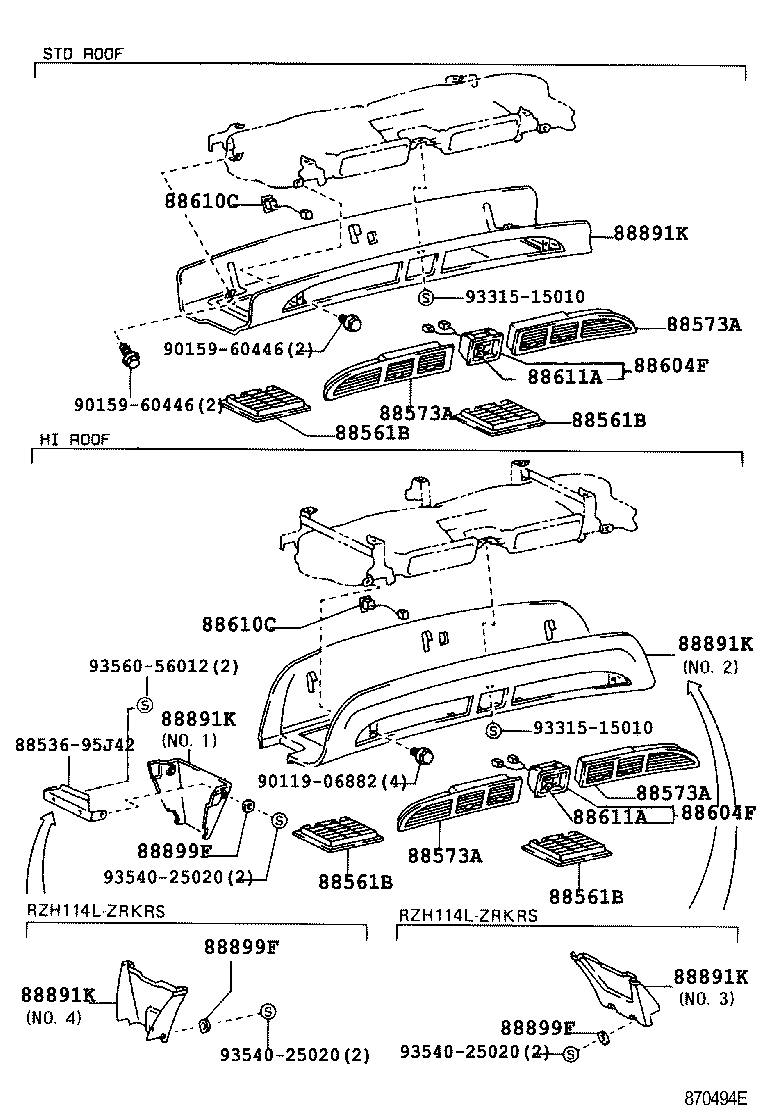

ILLUST NO. 4 OF 4(8908- )
REAR COOLER DUCT(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH125,RZH114,125..HRF..5F IVORY,TRIM1# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH125,RZH114,125..HRF..5F IVORY,TRIM1# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH125,RZH114,125..HRF..5F IVORY,TRIM1# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH125,RZH114,125..HRF..5F IVORY,TRIM1# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH |
1 | ||
| 88573-95J00A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH |
1 | ||
| 88573-95J01B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 88573-95J00B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH |
1 | ||
| 88573-95J00A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH |
1 | ||
| 88573-95J01B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 88573-95J00B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH |
1 | ||
| 88573-95J00A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH |
1 | ||
| 88573-95J01B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 88573-95J00B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH |
1 | ||
| 88573-95J00A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH |
1 | ||
| 88573-95J01B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 88573-95J00B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG IVORY,TRIM1# |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG IVORY,TRIM1# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH125,RZH103,125..SG..ARL BLOWER |
1 | ||
| 88610-95J0208 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1# |
1 | ||
| 88610-26040 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG |
1 | ||
| 88610-95J02B1 |
RZH102..GL;LH104,105,114,115,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 88610-95J02B1 |
LH113,125..SG..5F LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-95J02B1 |
LH125,RZH125;LH184..5F..ARL LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-26040 |
LH125,RZH125;LH184..5F..ARL BLOWER |
1 | ||
| 88610-26040 |
RZH125 BLOWER |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH125,RZH103,125..SG..ARL BLOWER |
1 | ||
| 88610-95J0208 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1# |
1 | ||
| 88610-26040 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG |
1 | ||
| 88610-95J02B1 |
RZH102..GL;LH104,105,114,115,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 88610-95J02B1 |
LH113,125..SG..5F LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-95J02B1 |
LH125,RZH125;LH184..5F..ARL LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-26040 |
LH125,RZH125;LH184..5F..ARL BLOWER |
1 | ||
| 88610-26040 |
RZH125 BLOWER |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH125,RZH103,125..SG..ARL |
2 | ||
| 88611-95A01 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG |
2 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH125,RZH103,125..SG..ARL |
2 | ||
| 88611-95A01 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG |
2 | ||
| 88891K - COVER, COOLER | ||||
| 88891-95J1008 |
LH125,RZH125 IVORY,TRIM1#,NO.1 |
1 | ||
| 88891-95J1208 |
LH125,RZH125 IVORY,TRIM1#,NO.2 |
1 | ||
| 88891-95J10B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88891-95J12B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 88891-95J12 |
LH125,RZH125;LH184..5F..ARL NO.2 |
1 | ||
| 88891-95J10 |
LH125,RZH125 NO.1 |
1 | ||
| 88891K - COVER, COOLER | ||||
| 88891-95J1008 |
LH125,RZH125 IVORY,TRIM1#,NO.1 |
1 | ||
| 88891-95J1208 |
LH125,RZH125 IVORY,TRIM1#,NO.2 |
1 | ||
| 88891-95J10B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88891-95J12B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 88891-95J12 |
LH125,RZH125;LH184..5F..ARL NO.2 |
1 | ||
| 88891-95J10 |
LH125,RZH125 NO.1 |
1 | ||
| 88891K - COVER, COOLER | ||||
| 88891-95J1008 |
LH125,RZH125 IVORY,TRIM1#,NO.1 |
1 | ||
| 88891-95J1208 |
LH125,RZH125 IVORY,TRIM1#,NO.2 |
1 | ||
| 88891-95J10B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88891-95J12B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 88891-95J12 |
LH125,RZH125;LH184..5F..ARL NO.2 |
1 | ||
| 88891-95J10 |
LH125,RZH125 NO.1 |
1 | ||
| 88891K - COVER, COOLER | ||||
| 88891-95J1008 |
LH125,RZH125 IVORY,TRIM1#,NO.1 |
1 | ||
| 88891-95J1208 |
LH125,RZH125 IVORY,TRIM1#,NO.2 |
1 | ||
| 88891-95J10B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88891-95J12B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 88891-95J12 |
LH125,RZH125;LH184..5F..ARL NO.2 |
1 | ||
| 88891-95J10 |
LH125,RZH125 NO.1 |
1 | ||
| 88891K - COVER, COOLER | ||||
| 88891-95J1008 |
LH125,RZH125 IVORY,TRIM1#,NO.1 |
1 | ||
| 88891-95J1208 |
LH125,RZH125 IVORY,TRIM1#,NO.2 |
1 | ||
| 88891-95J10B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88891-95J12B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 88891-95J12 |
LH125,RZH125;LH184..5F..ARL NO.2 |
1 | ||
| 88891-95J10 |
LH125,RZH125 NO.1 |
1 | ||
| Common parts | ||||
| 88536-95J42 | ||||
| 90119-06882 | ||||
| 90159-60446 | ||||
| 93315-15010 | ||||
| 93540-25020 | ||||
| 93560-56012 | ||||

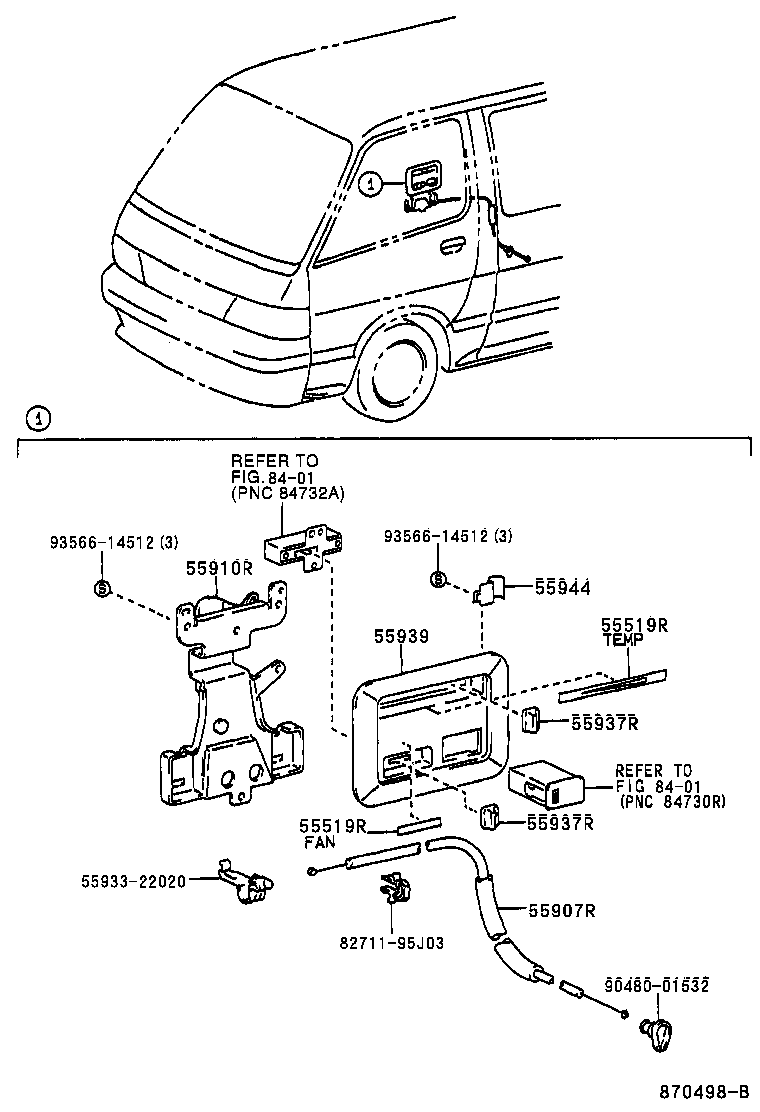

ILLUST NO. 2 OF 4(8908- )LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,153
REAR CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55933-22020 | ||||
| 82711-95J03 | ||||
| 90480-01532 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||

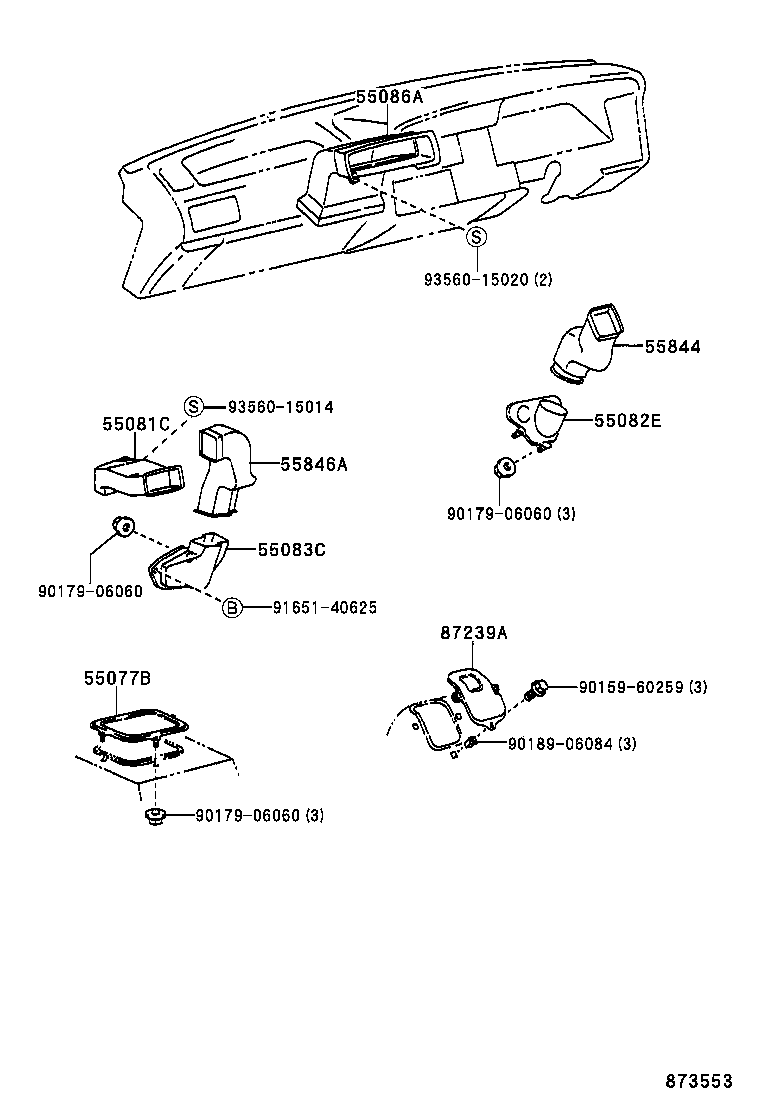

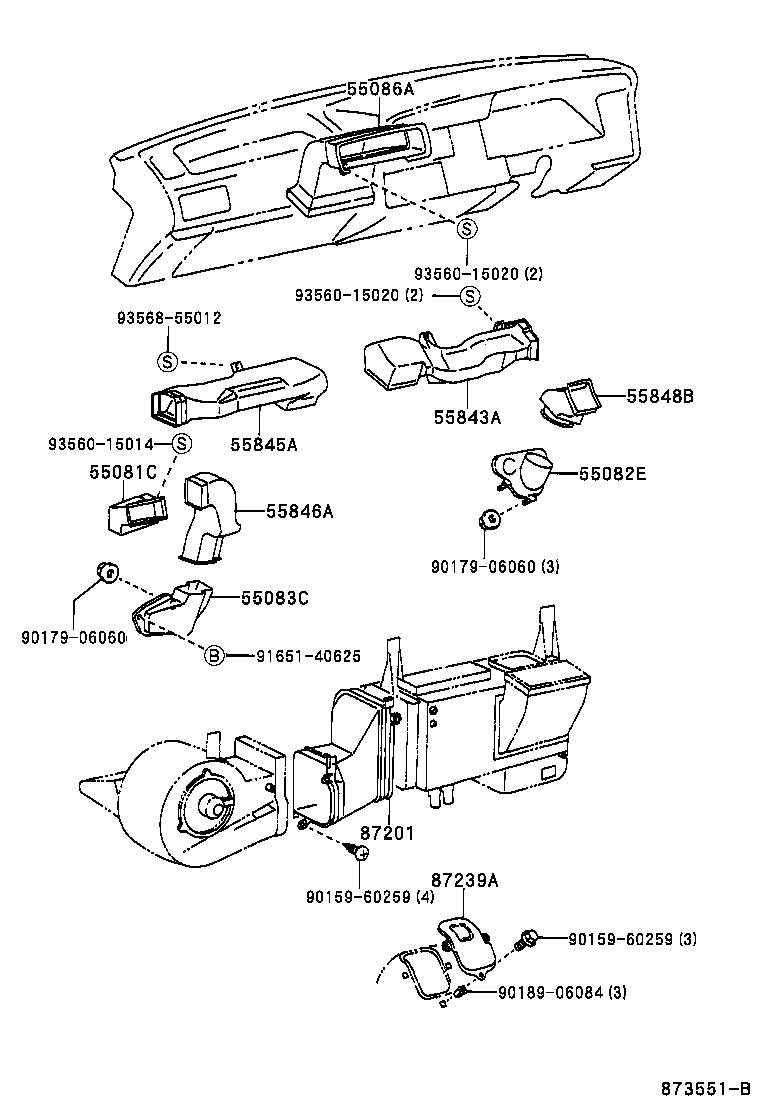

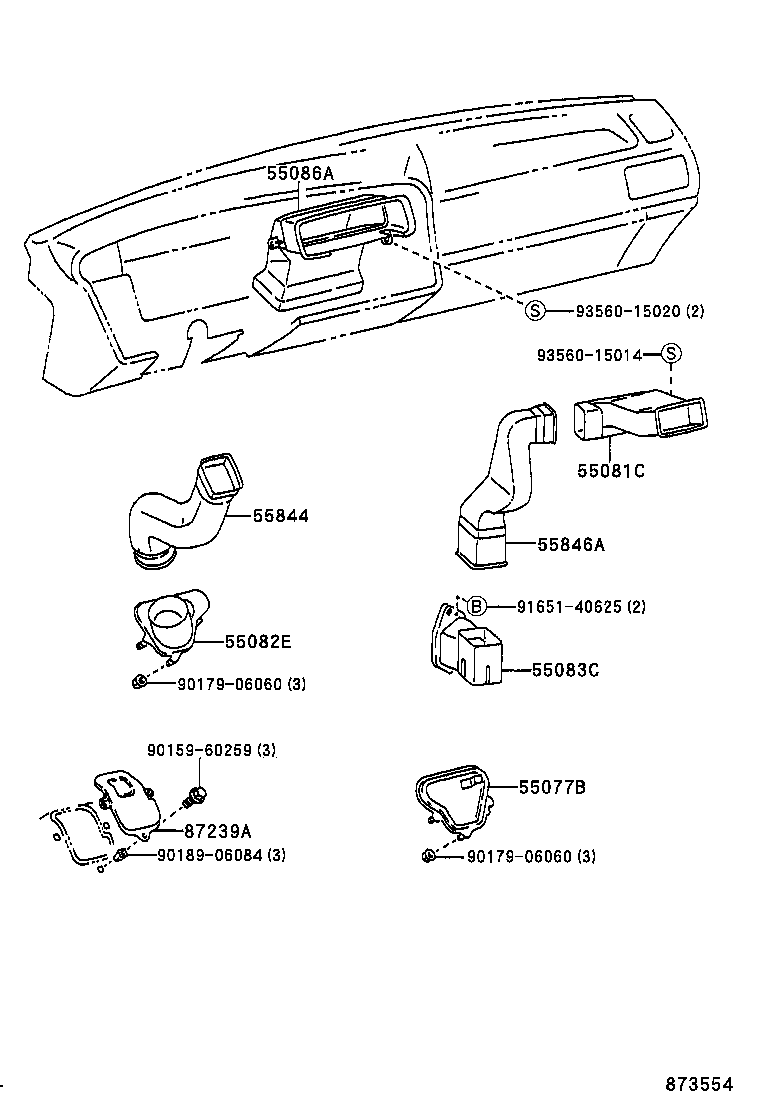

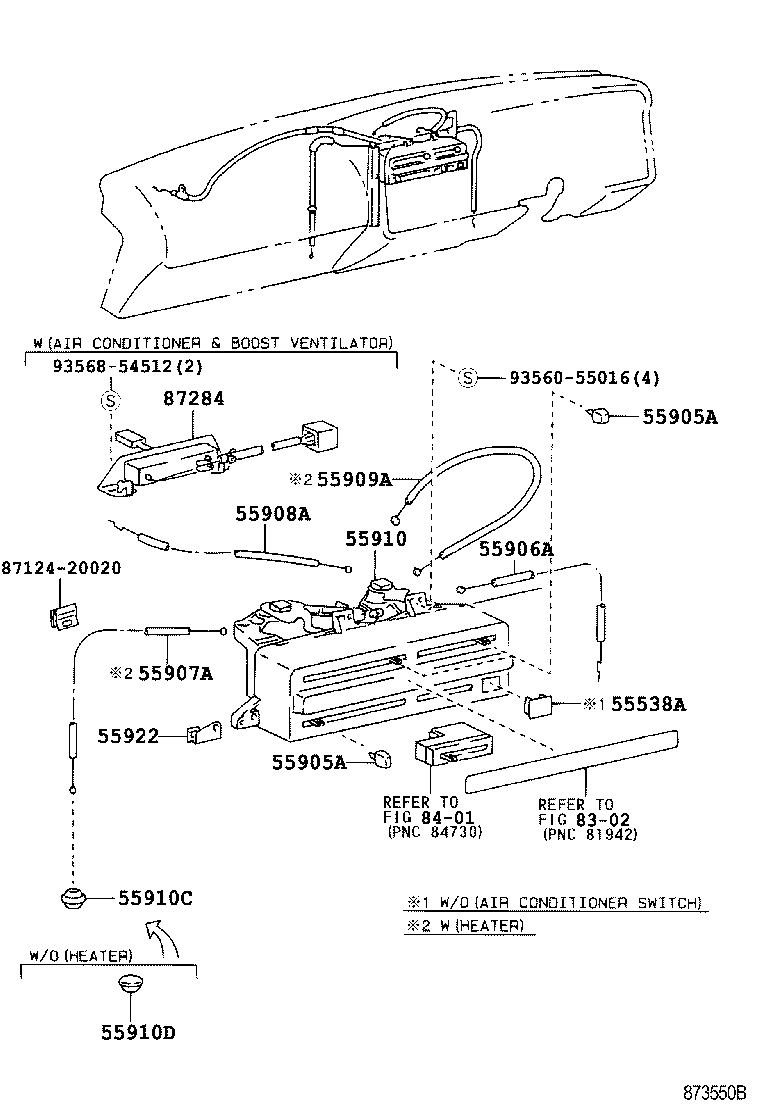

ILLUST NO. 1 OF 4(8908- )
FRONT CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-22060 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD |
1 | ||
| 55538-22060 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,153 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD BLOWER & TEMP |
2 | ||
| 55905-22280 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD MODE,FRS/REC |
2 | ||
| 55905-22280 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# MODE,FRS/REC |
2 | ||
| 55905-22260 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# BLOWER & TEMP |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22260 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD BLOWER & TEMP |
2 | ||
| 55905-22280 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD MODE,FRS/REC |
2 | ||
| 55905-22280 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# MODE,FRS/REC |
2 | ||
| 55905-22260 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# BLOWER & TEMP |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95J03 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 55906-26010 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95J09 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55907-26170 |
LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..RHD..(03S,06S,15S)..STD;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55908-26100 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55909-95J01 |
LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..RHD..(03S,06S,15S)..STD;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95J09 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD W(HEATER) |
1 | ||
| 55910-26080 |
LH172..GL..DEFI;RZH112..RHD..SP;LH172..RHD..STD..GEN;LH162,174,184..RHD..(03S,06S,15S)..GEN;LH103,11#,125,RZH103,104,105,113,114,125..RHD W(HEATER) |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-13013 |
RZH112..LHD;LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..(03S,06S,15S)..STD;LH10#,11#,125,16#,176,184,RZH10#,113,114,115,125,155 |
1 | ||
| 90480-13013 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 55922 - BRACKET, HEATER CONTROL BASE | ||||
| 55922-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55922-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95J03 |
RZH125;LH125..4FC |
1 | ||
| 88032-95J03 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG..5F W(DUAL AIR CONDITIONER W/O HEATER) |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 93560-55016 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(8908- )RHD
FRONT DUCT-W(HEATER) & W(B/V)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55081C - DUCT SUB-ASSY, COWL TO REGISTER, NO.1 | ||||
| 55081-95J04 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD W(HEATER) |
1 | ||
| 55081-95J04 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(HEATER) |
1 | ||
| 55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2 | ||||
| 55082-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55082-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 55083C - DUCT SUB-ASSY, FRONT VENTILATOR | ||||
| 55083-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55083-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-95J03 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55086-95J03 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-95J07 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55843-95J07 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-95J04 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55845-95J04 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 55845-26020 |
LH172,RZH113..ARL;LH162,184,RZH103,125,153..4D..(03S,14S);LH162,172,RZH103,113..RHD..06S..STD..(DSL,EFI) W(*80) |
1 | ||
| 55845-95J03 |
RZH103,113..5F..ARL;LH162,172,184,RZH125..ARL W(ABS) |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-95J02 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55846-95J02 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55848-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 87201-95J01 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH103,11#,125,RZH102,103,104,112,114,125,135,153..RHD |
1 | ||
| 87201-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 87239A - COVER, HEATER INLET HOLE | ||||
| 87239-95J04 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 87239-26010 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN;LH103,11#,125,RZH102,103,104,112,114,125,135,153..RHD |
1 | ||
| 87239-26010 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| Common parts | ||||
| 90159-60259 | ||||
| 90179-06060 | ||||
| 90189-06084 | ||||
| 91651-40625 | ||||
| 93560-15014 | ||||
| 93560-15020 | ||||
| 93568-55012 | ||||
ILLUST NO. 3 OF 4(8908- )RHD
FRONT DUCT-W/O(HEATER) & W/O(B/V)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55081C - DUCT SUB-ASSY, COWL TO REGISTER, NO.1 | ||||
| 55081-95J04 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD W(HEATER) |
1 | ||
| 55081-95J04 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(HEATER) |
1 | ||
| 55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2 | ||||
| 55082-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55082-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 55083C - DUCT SUB-ASSY, FRONT VENTILATOR | ||||
| 55083-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55083-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-95J03 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55086-95J03 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-95J02 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55846-95J02 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 87239A - COVER, HEATER INLET HOLE | ||||
| 87239-95J04 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 87239-26010 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN;LH103,11#,125,RZH102,103,104,112,114,125,135,153..RHD |
1 | ||
| 87239-26010 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| Common parts | ||||
| 90159-60259 | ||||
| 90179-06060 | ||||
| 90189-06084 | ||||
| 91651-40625 | ||||
| 93560-15014 | ||||
| 93560-15020 | ||||
ILLUST NO. 3 OF 4(8908- )
FRONT DUCT-W/O(HEATER) & W/O(B/V)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55081C - DUCT SUB-ASSY, COWL TO REGISTER, NO.1 | ||||
| 55081-95J04 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD W(HEATER) |
1 | ||
| 55081-95J04 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) W(HEATER) |
1 | ||
| 55082E - DUCT SUB-ASSY, COWL TO REGISTER, NO.2 | ||||
| 55082-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55082-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 55083C - DUCT SUB-ASSY, FRONT VENTILATOR | ||||
| 55083-95J01 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55083-95J01 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-95J03 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55086-95J03 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-95J02 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 55846-95J02 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD) |
1 | ||
| 87239A - COVER, HEATER INLET HOLE | ||||
| 87239-95J04 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 87239-26010 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN;LH103,11#,125,RZH102,103,104,112,114,125,135,153..RHD |
1 | ||
| 87239-26010 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| Common parts | ||||
| 90159-60259 | ||||
| 90179-06060 | ||||
| 90189-06084 | ||||
| 91651-40625 | ||||
| 93560-15014 | ||||
| 93560-15020 | ||||
ILLUST NO. 4 OF 4(9907- )
REAR COOLER DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95J03 |
RZH125;LH125..4FC |
1 | ||
| 88032-95J03 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG..5F W(DUAL AIR CONDITIONER W/O HEATER) |
1 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH125,RZH114,125..HRF..5F IVORY,TRIM1# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH125,RZH114,125..HRF..5F IVORY,TRIM1# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH |
1 | ||
| 88573-95J00A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH |
1 | ||
| 88573-95J01B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 88573-95J00B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,LH |
1 | ||
| 88573-95J00A0 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1#,RH |
1 | ||
| 88573-95J01B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 88573-95J00B1 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG IVORY,TRIM1# |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH104,105,114,115,125,RZH103,104,114,125..4D..SG IVORY,TRIM1# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH125,RZH103,125..SG..ARL BLOWER |
1 | ||
| 88610-95J0208 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1# |
1 | ||
| 88610-26040 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG |
1 | ||
| 88610-95J02B1 |
RZH102..GL;LH104,105,114,115,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 88610-95J02B1 |
LH113,125..SG..5F LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-95J02B1 |
LH125,RZH125;LH184..5F..ARL LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-26040 |
LH125,RZH125;LH184..5F..ARL BLOWER |
1 | ||
| 88610-26040 |
RZH125 BLOWER |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH125,RZH103,125..SG..ARL BLOWER |
1 | ||
| 88610-95J0208 |
LH104,105,114,115,125,RZH104,114,125 IVORY,TRIM1# |
1 | ||
| 88610-26040 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG |
1 | ||
| 88610-95J02B1 |
RZH102..GL;LH104,105,114,115,166,17#,RZH103,104,105,114,115,125..4D..SG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 88610-95J02B1 |
LH113,125..SG..5F LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-95J02B1 |
LH125,RZH125;LH184..5F..ARL LT.BLUISH GRAY,TRIM1#,MAIN |
1 | ||
| 88610-26040 |
LH125,RZH125;LH184..5F..ARL BLOWER |
1 | ||
| 88610-26040 |
RZH125 BLOWER |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH125,RZH103,125..SG..ARL |
2 | ||
| 88611-95A01 |
RZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115,125..4D..SG |
2 | ||
| 88891K - COVER, COOLER | ||||
| 88891-95J1008 |
LH125,RZH125 IVORY,TRIM1#,NO.1 |
1 | ||
| 88891-95J1208 |
LH125,RZH125 IVORY,TRIM1#,NO.2 |
1 | ||
| 88891-95J10B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88891-95J12B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 88891-95J12 |
LH125,RZH125;LH184..5F..ARL NO.2 |
1 | ||
| 88891-95J10 |
LH125,RZH125 NO.1 |
1 | ||
| 88891K - COVER, COOLER | ||||
| 88891-95J1008 |
LH125,RZH125 IVORY,TRIM1#,NO.1 |
1 | ||
| 88891-95J1208 |
LH125,RZH125 IVORY,TRIM1#,NO.2 |
1 | ||
| 88891-95J10B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 88891-95J12B4 |
LH125,RZH125 LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 88891-95J12 |
LH125,RZH125;LH184..5F..ARL NO.2 |
1 | ||
| 88891-95J10 |
LH125,RZH125 NO.1 |
1 | ||
| Common parts | ||||
| 88536-95J42 | ||||
| 88578-26010 | ||||
| 88718-22420 | ||||
| 88899-95J19 | ||||
| 90119-06882 | ||||
| 93219-13005 | ||||
| 93219-13008 | ||||
| 93315-15010 | ||||
| 93540-55020 | ||||
| 93560-56012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
