RZH125R-ZRMREQ (1998)
Toyota Hiace Van,Commuter

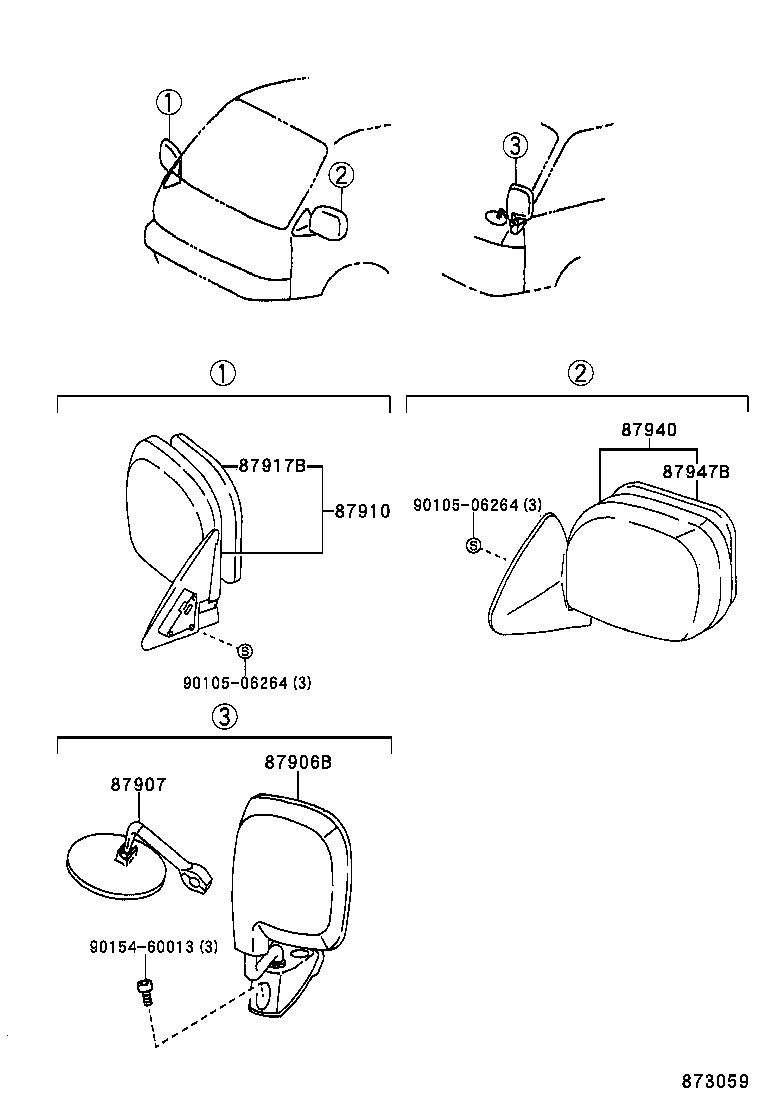

ILLUST NO. 2 OF 3(8908- )
OUTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-95J38 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 87910-26200 |
LH125,RZH103,125..STD;LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN ELECTRIC REMOTE CONTROL |
1 | ||
| 87910-26200 |
LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,125,162,184,RZH103,113,125..RHD..SG..STD ELECTRIC REMOTE CONTROL |
1 | ||
| 87910-95J38 |
LH103,113,125,162,172,184,RZH103,113,125..ARL |
1 | ||
| 87917B - MIRROR, OUTER REAR VIEW, RH | ||||
| 87917-95J38 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 87931-26200 |
RZH113..4D..06S;LH103,113,125..SG..5F;LH103,113,RZH103,113,125..ARL ELECTRIC REMOTE CONTROL |
1 | ||
| 87917-95J38 |
LH103,113,125,162,172,184,RZH103,113,125..ARL |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-95J37 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 87940-26250 |
LH125,RZH103,125..STD;LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN ELECTRIC REMOTE CONTROL |
1 | ||
| 87940-95J37 |
LH103,113,125,162,172,184,RZH103,113,125..ARL |
1 | ||
| 87940-26250 |
LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,125,162,184,RZH103,113,125..RHD..SG..STD ELECTRIC REMOTE CONTROL |
1 | ||
| 87947B - MIRROR, OUTER REAR VIEW, LH | ||||
| 87947-95J37 |
LH103,113,125,162,172,184,RZH103,113,125..ARL |
1 | ||
| 87961-26250 |
LH125,RZH103,125..STD;LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN ELECTRIC REMOTE CONTROL |
1 | ||
| 87947-95J37 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| Common parts | ||||
| 90105-06264 | ||||
| 90154-60013 | ||||
ILLUST NO. 1 OF 3(8908- )
INNER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95J0901 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 87810-95J1001 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD W(DAY & NIGHT MIRROR),BLACK,TRIM1# |
1 | ||
| 87810-95J09 |
LH10#,11#,125,166,172,176,RZH10#,11#,125..(03S,06S,12S,14S,15S)..(ARL,CIS,GEN) |
1 | ||
| 87810-95J10 |
RZH112..5D;RZH115..15S..GL;LH172,RZH113..RHD;LH172,RZH113..LHD..4D..GEN;RZH112,115..(03S,15S)..GEN..CBR;LH102,103,104,11#,125,162,174,184,RZH10#,114,125,135,153..ARL,GEN DAY & NIGHT MIRROR |
1 | ||
| 87810-95J09 |
RZH115..15S..GL;LH172,RZH113..RHD;LH172,RZH113..LHD..4D..GEN;RZH112,115..LHD..SG..GEN..CBR;RZH104,105,112,114..(03S,12S,15S)..GEN;LH102,103,104,11#,125,162,174,184,RZH102,103,125..STD..(ARL,GEN) |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95J0901 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S BLACK,TRIM1# |
1 | ||
| 87810-95J1001 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD W(DAY & NIGHT MIRROR),BLACK,TRIM1# |
1 | ||
| 87810-95J09 |
LH10#,11#,125,166,172,176,RZH10#,11#,125..(03S,06S,12S,14S,15S)..(ARL,CIS,GEN) |
1 | ||
| 87810-95J10 |
RZH112..5D;RZH115..15S..GL;LH172,RZH113..RHD;LH172,RZH113..LHD..4D..GEN;RZH112,115..(03S,15S)..GEN..CBR;LH102,103,104,11#,125,162,174,184,RZH10#,114,125,135,153..ARL,GEN DAY & NIGHT MIRROR |
1 | ||
| 87810-95J09 |
RZH115..15S..GL;LH172,RZH113..RHD;LH172,RZH113..LHD..4D..GEN;RZH112,115..LHD..SG..GEN..CBR;RZH104,105,112,114..(03S,12S,15S)..GEN;LH102,103,104,11#,125,162,174,184,RZH102,103,125..STD..(ARL,GEN) |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 12V 10W |
1 | ||
| 99132-12100 |
LH172..RHD;RZH112..5D;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH112,115..(03S,15S)..CBR;LH172,RZH113..LHD..4D..GEN;RZH115..(10S,15S)..(GL,SGL);LH172,RZH115..STD..(CIS,GCC)..(DSL,EFI);LH10#,11#,125,16#,174,176,184,RZH10#,114,125,135,153 12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-30010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=44 |
1 | ||
| 87828-10010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=41 |
1 | ||
| 87828-32010 |
LH10#,11#,125,RZH10#,11#,125 L=47 |
1 | ||
| 87828-22020 |
RZH112..5D;RZH115..15S..GL;LH172,RZH113..RHD;RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH113,155..LHD..4D..(CIS,GEN);LH102,103,104,11#,125,154,162,174,184,RZH10#,114,125,135,153..ARL,GEN L=35.8 |
1 | ||
| 87828-10010 |
RZH112..5D;RZH115..15S..GL;LH172,RZH113..RHD;RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH113,155..LHD..4D..(CIS,GEN);LH102,103,104,11#,125,154,162,174,184,RZH10#,114,125,135,153..ARL,GEN L=41 |
1 | ||
| 87828-30010 |
RZH112..5D;RZH115..15S..GL;LH172,RZH113..RHD;RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH113,155..LHD..4D..(CIS,GEN);LH102,103,104,11#,125,154,162,174,184,RZH10#,114,125,135,153..ARL,GEN L=44 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-30010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=44 |
1 | ||
| 87828-10010 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD L=41 |
1 | ||
| 87828-32010 |
LH10#,11#,125,RZH10#,11#,125 L=47 |
1 | ||
| 87828-22020 |
RZH112..5D;RZH115..15S..GL;LH172,RZH113..RHD;RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH113,155..LHD..4D..(CIS,GEN);LH102,103,104,11#,125,154,162,174,184,RZH10#,114,125,135,153..ARL,GEN L=35.8 |
1 | ||
| 87828-10010 |
RZH112..5D;RZH115..15S..GL;LH172,RZH113..RHD;RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH113,155..LHD..4D..(CIS,GEN);LH102,103,104,11#,125,154,162,174,184,RZH10#,114,125,135,153..ARL,GEN L=41 |
1 | ||
| 87828-30010 |
RZH112..5D;RZH115..15S..GL;LH172,RZH113..RHD;RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH113,155..LHD..4D..(CIS,GEN);LH102,103,104,11#,125,154,162,174,184,RZH10#,114,125,135,153..ARL,GEN L=44 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81241-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 81241-95J03 |
LH172..RHD;RZH112..5D;RZH113..ARL,GCC;RZH113..RHD..GEN;RZH112,115..(03S,15S)..CBR;LH172,RZH113..LHD..4D..GEN;RZH115..(10S,15S)..(GL,SGL);LH172,RZH115..STD..(CIS,GCC)..(DSL,EFI);LH10#,11#,125,16#,174,176,184,RZH10#,114,125,135,153 |
1 | ||
| Common parts | ||||
| 90152-60008 | ||||
