RZH125R-ZRMREQ (1998)

Toyota Hiace Van,Commuter

Production Aug 1998 - Jan 2005
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9808-9907)ARL,GCC ; (9907- )RZH153 ; (9907-)RZH105,115,155..LHD..11S,12S ;

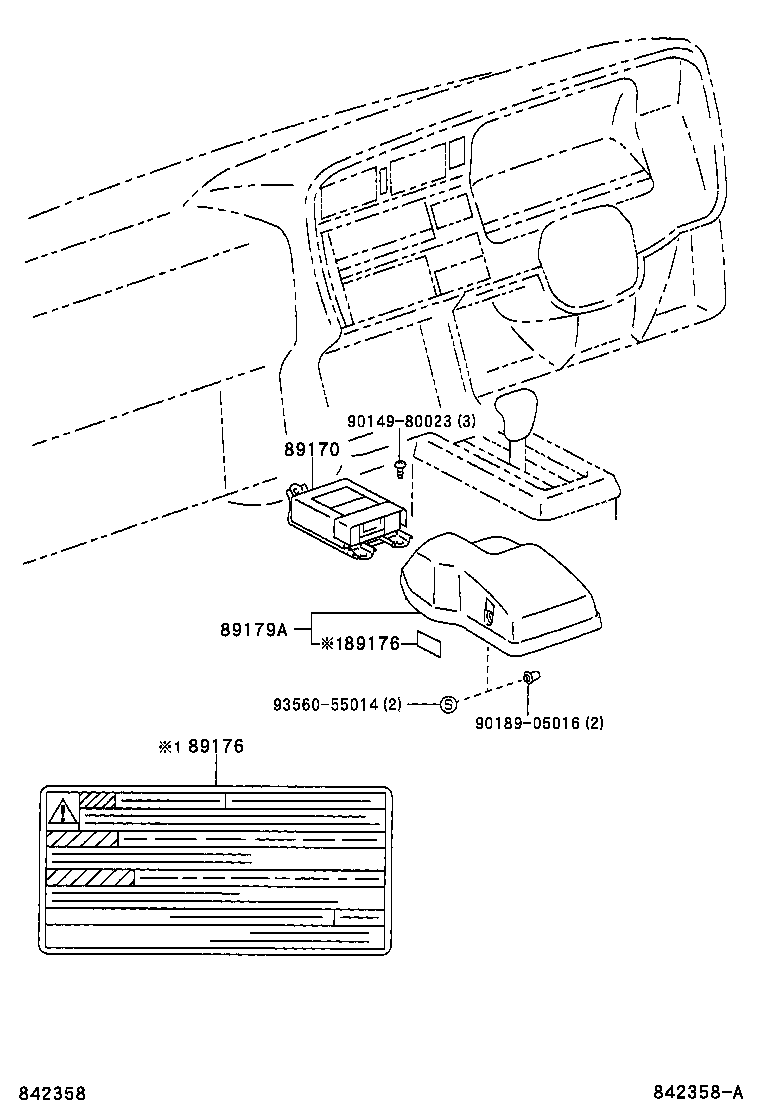

Click highlighted areas on diagram

diagram 89170 89176 89176 89179A 9014980023 9018905016 9356055014
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-26180

RZH103..06S;RZH103,113..ARL;LH172,RZH113,125..4D..SG..STD..(DSL,EFI)

W(*80,DRIVER SIDE & PASSENGER SIDE)

 1
89170-26180

RZH103..06S;RZH103,113..ARL;LH172,RZH113,125..4D..SG..STD..(DSL,EFI)

W(*80,DRIVER SIDE & PASSENGER SIDE)

 1
89170-26190

LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC

W(*80,DRIVER SIDE)

 1
89170-26190

LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC

W(*80,DRIVER SIDE)

 1
89176 - LABEL, AIR BAG SENSOR COVER CAUTION
89176-26030

LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC

 1
89176-26030

LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC

 1
89176 - LABEL, AIR BAG SENSOR COVER CAUTION
89176-26030

LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC

 1
89176-26030

LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC

 1
89179A - COVER, AIR BAG SENSOR
89179-26070B0

LH103,113..06S;LH103,113,115,125..ARL,GCC

BLUISH GRAY,TRIM1#

 1
89179-26070B0

LH103,113..06S;LH103,113,115,125..ARL,GCC

BLUISH GRAY,TRIM1#

 1
89179-26070B0

LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC

BLUISH GRAY,TRIM1#

 1
89179-26070B0

LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC

BLUISH GRAY,TRIM1#

 1
89179-26070B0

LH172..5D..06S;RZH113..RHD..06S;LH172,RZH113..5F..(ARL,GCC);LH174,184,RZH115,125..ARL,GCC

BLUISH GRAY,TRIM1#

 1
89179-26070B0

LH172..5D..06S;RZH113..RHD..06S;LH172,RZH113..5F..(ARL,GCC);LH174,184,RZH115,125..ARL,GCC

BLUISH GRAY,TRIM1#

 1
Common parts
90149-80023
90189-05016
93560-55014
