RZH125R-ZRMREQ (1998)

Toyota Hiace Van,Commuter

Production Aug 1998 - Jan 2005
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )ARL,GCC

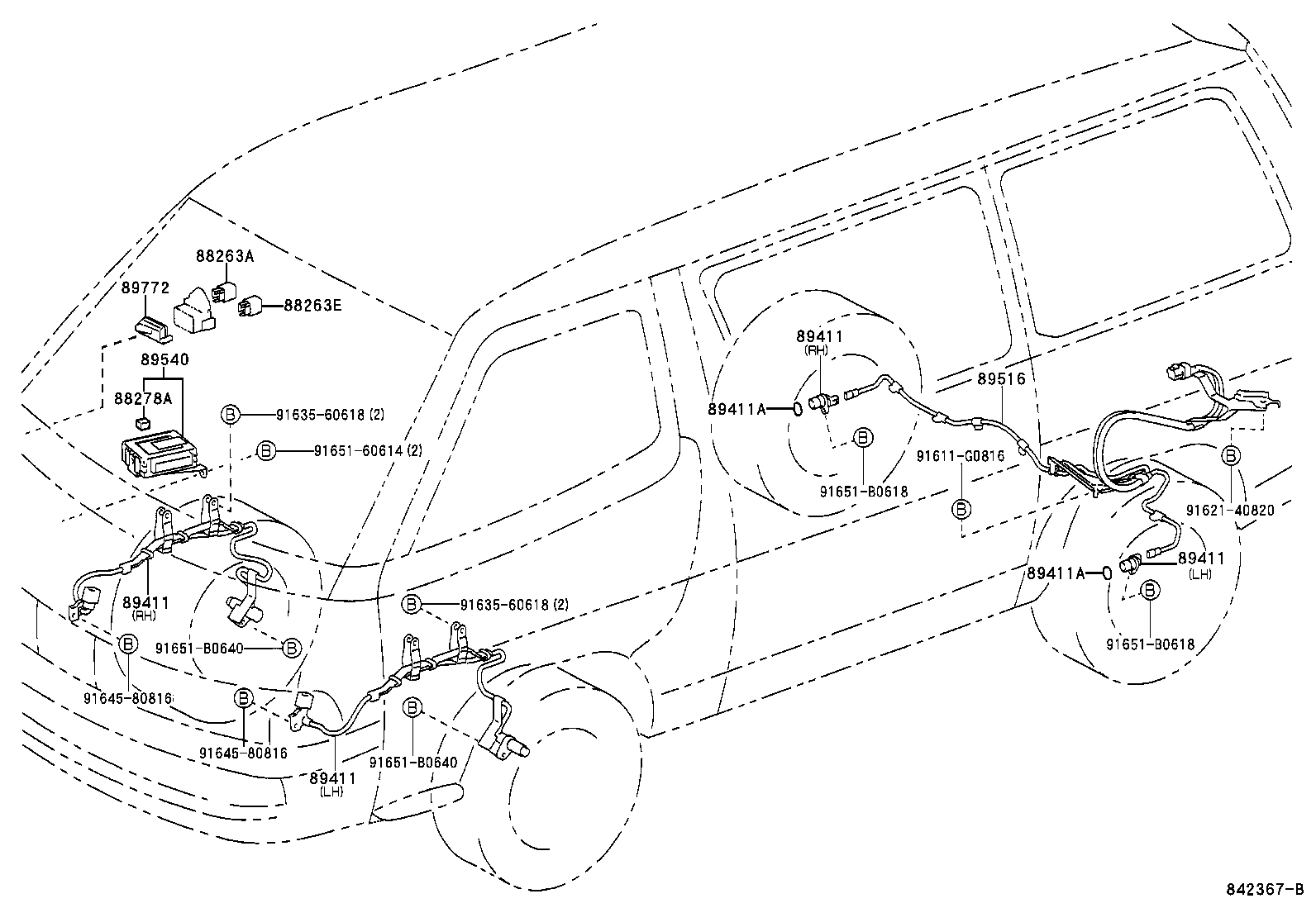

Click highlighted areas on diagram

diagram 88263A 88263E 88278A 89411 89411 89411 89411 89411A 89411A 89516 89540 89772 91611G0816 9162140820 9163560618 9163560618 9164580816 9164580816 9165160614 91651B0618 91651B0618 91651B0640 91651B0640
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-24030

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

 1
88263E - RELAY, SKID CONTROL NO.2
88263-14110

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

 1
88278A - CUSHION, SKID CONTROL COMPUTER
88278-50010

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

 1
89411 - SENSOR, SPEED
89542-26090

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

FRONT RH

 1
89543-26090

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

FRONT LH

 1
89545-35020

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

REAR RH

 1
89546-35020

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

REAR LH

 1
89411 - SENSOR, SPEED
89542-26090

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

FRONT RH

 1
89543-26090

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

FRONT LH

 1
89545-35020

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

REAR RH

 1
89546-35020

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

REAR LH

 1
89411 - SENSOR, SPEED
89542-26090

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

FRONT RH

 1
89543-26090

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

FRONT LH

 1
89545-35020

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

REAR RH

 1
89546-35020

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

REAR LH

 1
89411 - SENSOR, SPEED
89542-26090

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

FRONT RH

 1
89543-26090

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

FRONT LH

 1
89545-35020

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

REAR RH

 1
89546-35020

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

REAR LH

 1
89411A - RING, O (FOR SPEED SENSOR)
96723-19021

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

 2
89411A - RING, O (FOR SPEED SENSOR)
96723-19021

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

 2
89516 - WIRE, SKID CONTROL SENSOR
89516-26040

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-26230

LH184,RZH125..ARL;LH172,RZH113..5F..ARL

 1
Common parts
91611-G0816
91621-40820
91635-60618
91645-80816
91651-60614
91651-B0618
91651-B0640
