RZH125R-ZRMREQ (1998)
Toyota Hiace Van,Commuter

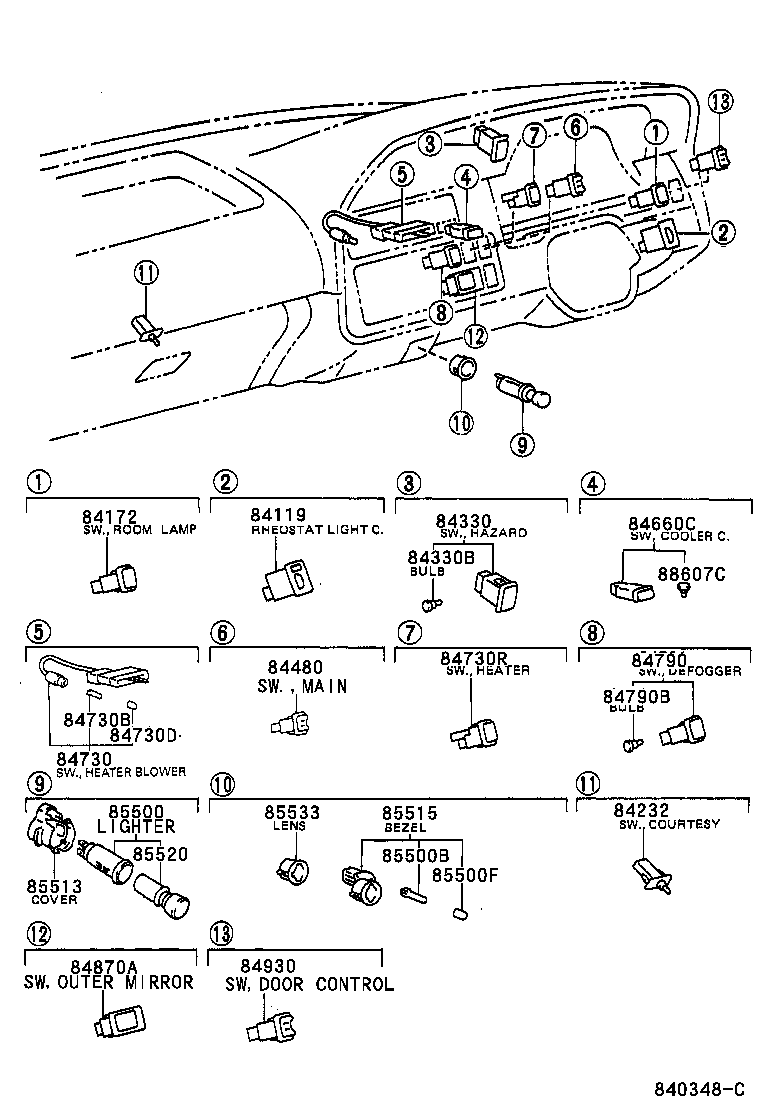

ILLUST NO. 2 OF 9(8908- )RHD
INSTRUMENT PANEL SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-95J03 |
LH103,113..ARL;LH103,113,125..SG |
1 | ||
| 84119-95J03 |
LH103,113,125,RZH103,113,125..ARL |
1 | ||
| 84119-95J03 |
LH172..5D..06S;LH172,RZH113..5F..ARL;LH184,RZH113,125..RHD..SG..STD |
1 | ||
| 84172 - SWITCH, ROOM LAMP | ||||
| 84172-95J07 |
LH125..ARL;LH104,105,114,115,RZH104,105,114,115,125 |
1 | ||
| 84172-95J07 |
LH174,RZH114,115..15S;LH104,105,114,115,125,164,166,176,184,RZH104,105,125 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95J02 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 84332-26080 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# 14V 0.84W |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-26030 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22130 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 84732-22130 |
RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 14V 1.4W |
1 | ||
| 90981-11014 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 84998-10050 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-95J01 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 84790-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,12S,14S,15S |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..03S,06S,09S,12S,14S,15S 14V 0.84W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-26010 |
LH103,113..ARL;LH103,113,125,174,RZH115..06S,10S,14S |
1 | ||
| 84870-26010 |
RZH115..GL;LH172..5D..06S;RZH113..RHD..06S;LH172,RZH113..5F..ARL;LH154,184,RZH125,155..(10S,11S,12S,14S)..(ARL,GEN) |
1 | ||
| 84870-26010 |
LH125,RZH103,125..STD;LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17060 |
RZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 85500-17060 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 85500-12250 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28020 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30040 |
LH10#,11#,125,RZH10#,11#,125..STD |
1 | ||
| 85533-28020 |
RZH112..5D;RZH112,114..03S,15S;LH174,RZH102,115..STD;LH10#,11#,125,16#,172,176,184,RZH103,104,105,113,125..03S,06S,10S,12S,14S,15S |
1 | ||
ILLUST NO. 7 OF 9(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153
ROOF, FRONT FLOOR RELAY & SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-54190 |
LH10#,11#,125 |
1 | ||
| 85335-75010 |
RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 82711-26120 | ||||
| 90119-06171 | ||||
| 93566-14512 | ||||
ILLUST NO. 1 OF 9(8908- )RZH10#,11#,125,135,15#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83420-16040 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113,114,125..4D..(GL,STD)..(ARL,GEN);RZH102,103,104,112,135,153..(SMRF,SRF)..(03S,06S,10S,12S) |
1 | ||
| 83530-14040 |
RZH10#,11#,125 |
1 | ||
| 83530-30060 |
LH10#,11#,125 YAZAKI |
1 | ||
| 83530-60030 |
LH10#,11#,125,154,16#,17#,184 |
1 | ||
| 83530-28020 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# |
1 | ||
| 83530-60030 |
LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#..5F |
1 | ||
| 84210-12040 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26040 |
RZH10#,11#,125 |
1 | ||
| 89491-26010 |
LH10#,11#,125 |
1 | ||
| 89491-26111 |
LH10#,11#,125,154,162,164,172,174,184 |
1 | ||
| 89491-26062 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26040 |
RZH10#,11#,125 |
1 | ||
| 89491-26010 |
LH10#,11#,125 |
1 | ||
| 89491-26111 |
LH10#,11#,125,154,162,164,172,174,184 |
1 | ||
| 89491-26062 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-10120 |
RZH103,113..ARL;RZH113..4FC..GEN;RZH102,104,112,114,125..RHD |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-10120 |
RZH103,113..ARL;RZH113..4FC..GEN;RZH102,104,112,114,125..RHD |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-10120 |
RZH103,113..ARL;RZH113..4FC..GEN;RZH102,104,112,114,125..RHD |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 82711-26171 | ||||
| 90119-08063 | ||||
| 90179-08101 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 93385-16025 | ||||
ILLUST NO. 8 OF 9(8908- )
DOOR CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-26031 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153..4D |
1 | ||
| 84231-95J02 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D |
1 | ||
| 84231-26110 |
RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..4D |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26070 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153..4D |
1 | ||
| 84261-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D |
1 | ||
| 84261-26071 |
RZH112..SP;LH172..ARL;LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172,174..4D..(06S,10S,15S);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,115,125,135,15#..4D |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-95J03 |
LH125..ARL;LH10#,11#,RZH10#,11#,125..4D |
1 | ||
| 84262-95J03 |
RZH112..SP;LH172..ARL;LH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172,174..4D..(06S,10S,15S);LH10#,11#,125,154,16#,176,184,RZH10#,113,114,115,125,135,15#..4D |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90119-06885 | ||||
| 90119-06911 | ||||
| 90159-60025 | ||||
| 90159-60413 | ||||
| 90179-06274 | ||||
| 90189-05019 | ||||
| 90189-05131 | ||||
| 93530-55020 | ||||
ILLUST NO. 9 OF 9(8908- )
REAR FLOOR, BACK DOOR RELAY & SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80153 |
LH10#,11#,125 |
1 | ||
| 83320-80150 |
RZH10#,11#,125 |
1 | ||
| 83320-80341 |
RZH103,113,125..ARL |
1 | ||
| 83320-80343 |
LH103,113,125,162,172,184..ARL |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 83361-20030 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-95J02 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90161-50004 | ||||
| 90189-05063 | ||||
| 90480-15194 | ||||
| 91651-60614 | ||||
| 93319-A4010 | ||||

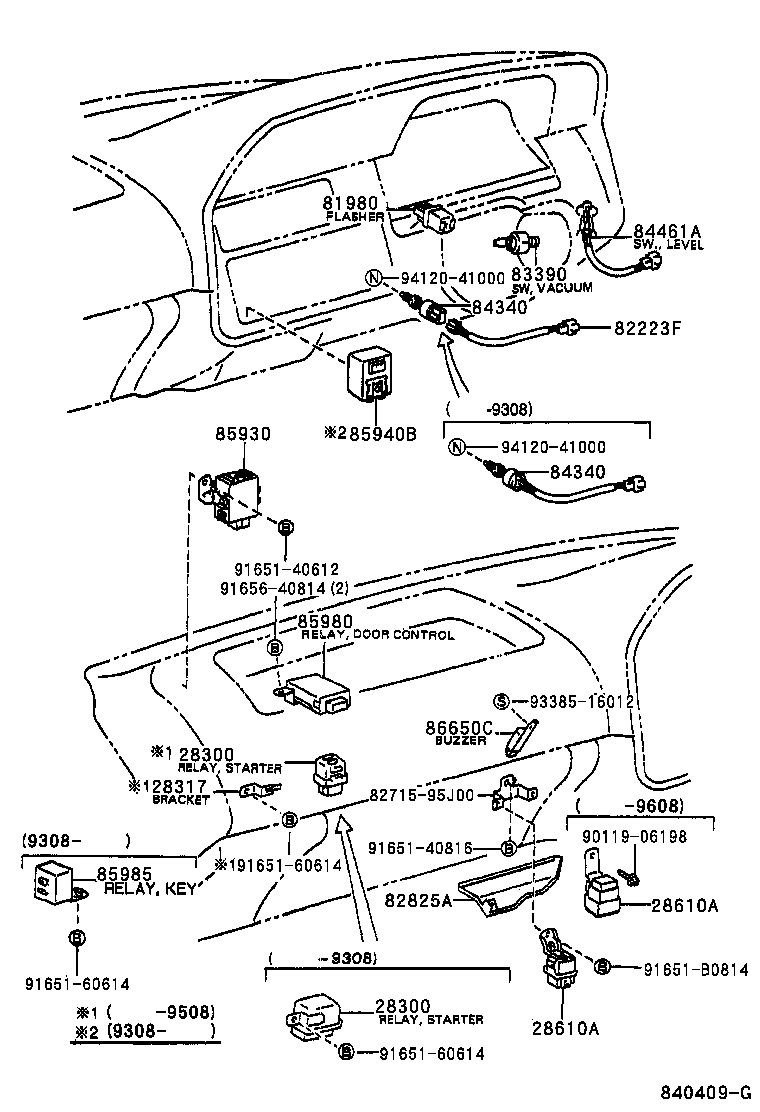

ILLUST NO. 3 OF 9(8908- )RHD
COWL RELAY & SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-75010 |
1RZ..RZH112..5D;5L,1RZ,2RZ#..LH174,184,RZH112,114,115..03S,10S,12S,14S,15S;3L,5L,2RZE..LH103,105,113,115,125,164,166,176,RZH125..ARL,CIS;2L,5L#,1RZ,2RZ#..LH114,154,162,172,RZH10#,113,135,15#..03S,06S,08S,09S,10S,11S,12S |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-75010 |
1RZ..RZH112..5D;5L,1RZ,2RZ#..LH174,184,RZH112,114,115..03S,10S,12S,14S,15S;3L,5L,2RZE..LH103,105,113,115,125,164,166,176,RZH125..ARL,CIS;2L,5L#,1RZ,2RZ#..LH114,154,162,172,RZH10#,113,135,15#..03S,06S,08S,09S,10S,11S,12S |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22110 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 |
1 | ||
| 81980-32010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 82223F - WIRE, SWITCH | ||||
| 82223-26040 |
LH172..STD;LH172..03S..GL;LH172..GL..DEFI;RZH115..CIS,GCC;RZH104..LHD..STD;RZH115..GEN..EFI;LH162,RZH114..4D..5F..STD;LH162,RZH105,114..(03S,06S,12S)..(CIS,GEN);LH10#,11#,125,154,164,166,174,176,184,RZH102,103,112,113,125,135,15# |
1 | ||
| 82825A - COVER, RELAY | ||||
| 82825-26010 |
LH172..ARL;LH172..HRF;LH172..RHD..5D;LH172..GL..DSL;RZH112,113..RHD..SRF..5F;LH172,174..RHD..4D..(06S,15S);LH112,184,RZH125,135,153..RHD |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-32100 |
LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184 |
1 | ||
| 83390-32100 |
LH10#,11#,125,154,16#,17#,184 |
1 | ||
| 83390-30020 |
LH10#,11#,125 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 84340-42010 |
LH172..STD;LH172..03S..GL;LH172..GL..DEFI;RZH115..CIS,GCC;RZH104..LHD..STD;RZH115..GEN..EFI;LH162,RZH114..4D..5F..STD;LH162,RZH105,114..(03S,06S,12S)..(CIS,GEN);LH10#,11#,154,164,166,174,176,184,RZH102,103,112,113,125,135,15# |
1 | ||
| 84340-32090 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 84340-42010 |
LH172..STD;LH172..03S..GL;LH172..GL..DEFI;RZH115..CIS,GCC;RZH104..LHD..STD;RZH115..GEN..EFI;LH162,RZH114..4D..5F..STD;LH162,RZH105,114..(03S,06S,12S)..(CIS,GEN);LH10#,11#,154,164,166,174,176,184,RZH102,103,112,113,125,135,15# |
1 | ||
| 84340-32090 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| 84461A - SWITCH, BRAKE RESERVOIR LEVEL WARNING | ||||
| 84461-26040 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-95J02 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-95J04 |
LH10#,11#,125,RZH102,103,104,11#,125..RHD |
1 | ||
| 85980-26050 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135,153..RHD |
1 | ||
| 85980-26090 |
LH172..ARL;LH172..HRF;LH172..03S..GL;RZH112..RHD..SRF;LH172..RHD..5D..03S;LH172,174..RHD..(06S,15S);LH103,11#,125,162,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-95J06 |
LH10#,11#,125 |
1 | ||
| 83248-20010 |
LH103,113,115,125..ARL,GEN;LH102,112,174..LHD..(06S,10S) |
1 | ||
| Common parts | ||||
| 82715-95J00 | ||||
| 90119-06198 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91651-B0814 | ||||
| 91656-40814 | ||||
| 93385-16012 | ||||
| 94120-41000 | ||||
ILLUST NO. 1 OF 9(8908- )LH10#,11#,125,154,16#,17#,184
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 83420-16040 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113,114,125..4D..(GL,STD)..(ARL,GEN);RZH102,103,104,112,135,153..(SMRF,SRF)..(03S,06S,10S,12S) |
1 | ||
| 83530-14040 |
RZH10#,11#,125 |
1 | ||
| 83530-30060 |
LH10#,11#,125 YAZAKI |
1 | ||
| 83530-60030 |
LH10#,11#,125,154,16#,17#,184 |
1 | ||
| 83530-28020 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# |
1 | ||
| 83530-60030 |
LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#..5F |
1 | ||
| 84210-12040 |
RZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26040 |
RZH10#,11#,125 |
1 | ||
| 89491-26010 |
LH10#,11#,125 |
1 | ||
| 89491-26111 |
LH10#,11#,125,154,162,164,172,174,184 |
1 | ||
| 89491-26062 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26040 |
RZH10#,11#,125 |
1 | ||
| 89491-26010 |
LH10#,11#,125 |
1 | ||
| 89491-26111 |
LH10#,11#,125,154,162,164,172,174,184 |
1 | ||
| 89491-26062 |
RZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15# |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 90116-06095 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 91651-60614 | ||||
| 93319-15008 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||
ILLUST NO. 5 OF 9(9808- )
IGNITION & COMBINATION SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26120 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD |
1 | ||
| 84140-26130 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING) |
1 | ||
| 84140-26150 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135,153..RHD..(03S,06S,12S,14S,15S) W(FRONT FOG LAMP) |
1 | ||
| 84140-26150 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD W(FRONT FOG LAMP) |
1 | ||
| 84140-26180 |
RZH103..ARL;RZH103..RHD..SG;LH103,11#,125,172,RZH102,104,112,113,114,125..RHD..STD |
1 | ||
| 84140-26180 |
LH172..06S..GL;LH174..HRF..15S;LH172..RHD..03S..STD;RZH113..RHD..4D..03S;LH162,172,RZH103..5D..06S;LH162,RZH103,112..RHD..SRF..4D;LH103,11#,125,184,RZH104,114,125..RHD..STD;LH172,RZH113..RHD..SG..(DX,STD)..(DEFI,EFI) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-35030 |
LH103,113,115,125,RZH103,105,113,115,125..ARL,GCC |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26380 |
LH103,113,125,RZH103,113,125..STD..ARL W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84310-26390 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-26370 |
RZH113..ARL;RZH102..RHD..4F;LH10#,11#,125,RZH103,104,112,114,125..RHD..STD W(INTERMITTENT WIPER) |
1 | ||
| 84310-26400 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-2F210 |
LH103,11#,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) W(INTERMITTENT WIPER) |
1 | ||
| 84310-2F240 |
LH103,11#,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) W(INTERMITTENT WIPER & REAR WIPER & FRONT FOG LAMP) |
1 | ||
| 84310-2F220 |
LH103,11#,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) W(INTERMITTENT WIPER & FRONT FOG LAMP) |
1 | ||
| 84310-2F280 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER & *80) |
1 | ||
| 84310-2F260 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING & INTERMITTENT WIPER & FRONT FOG LAMP & *80) |
1 | ||
| 84310-2F250 |
RZH103..ARL;RZH103..RHD..SG;LH103,11#,125,172,RZH102,104,112,113,114,125..RHD..STD W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-2F300 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER & FRONT FOG LAMP & *80) |
1 | ||
| 84310-2F270 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING & INTERMITTENT WIPER & *80) |
1 | ||
| 84310-2F380 |
LH103,113,125..ARL W(TILT STEERING & *80) |
1 | ||
| 84310-2F390 |
LH103,113,125..ARL W(TILT STEERING & FRONT FOG LAMP & *80) |
1 | ||
| 84310-2F410 |
LH162..06S..5F;RZH103,113..ARL;RZH113..4D..06S;LH103,113,RZH103,125..SG..STD W(TILT STEERING & REAR WINDOW DEFOGGER & INTERMITTENT WIPER & *80) |
1 | ||
| 84310-2F420 |
LH172..5D..06S;RZH103,113..ARL;LH103,113,162,RZH103,113,125..RHD..SG..STD W(TILT STEERING & REAR WINDOW DEFOGGER & INTERMITTENT WIPER & FRONT FOG LAMP *80) |
1 | ||
| 84310-2F210 |
LH174..HRF;LH172..RHD..5D;LH162,RZH103,113..RHD..06S;LH103,11#,125,RZH104,112,114..RHD;LH172,RZH113..RHD..4D..03S..STD..GEN W(INTERMITTENT WIPER) |
1 | ||
| 84310-2F250 |
LH162..4FC;RZH113..RHD..SG;RZH113..RHD..4D..03S;LH172,RZH103..5D..06S;LH162,RZH112..RHD..SRF..4D..5F;LH172,RZH103..RHD..SRF..4D..STD;LH103,11#,125,184,RZH104,114,125..RHD..STD W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84310-2F220 |
LH174..HRF;LH172..RHD..5D;LH162,RZH103,113..RHD..06S;LH103,11#,125,RZH104,112,114..RHD;LH172,RZH113..RHD..4D..03S..STD..GEN W(INTERMITTENT WIPER & FRONT FOG LAMP) |
1 | ||
| 84310-2F240 |
RZH103,125..SG..STD;RZH103,113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN..DSL;LH103,11#,RZH104,112,114..RHD..SRF..GEN W(INTERMITTENT WIPER & REAR WIPER & FRONT FOG LAMP) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
LH10#,11#,125,RZH10#,11#,125,135,153 |
1 | ||
| 84312-26010 |
RZH115..STD..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;RZH102,105,112,113,115..SRF..(03S,06S,10S,12S)..CBR;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,114,125,135,153..03S,06S,12S,14S,15S |
1 | ||
| 84312-26010 |
RZH115..CBR;RZH115..12S;RZH115..(CIS,GCC)..EFI;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,114,125,135,15# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-26050 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26200 |
LH103,113,125,RZH103,113,125..ARL W(TILT STEERING & INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-26260 |
LH103,113,125,RZH103,113,125..STD..ARL W(TILT STEERING & INTERMITTENT WIPER) |
1 | ||
| 84652-26240 |
LH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD..STD W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-26210 |
RZH102..4D;RZH103,113..STD..ARL;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114,125..RHD..STD W(INTERMITTENT WIPER) |
1 | ||
| 84652-10640 |
LH103,11#,125,172,RZH102,103,104,112,113,114,125..RHD..(DX,STD) W(INTERMITTENT WIPER) |
1 | ||
| 84652-26520 |
RZH103..ARL;RZH103..RHD..SG;LH103,11#,125,172,RZH102,104,112,113,114,125..RHD..STD W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-26520 |
RZH103..06S;RZH103,113..RHD..4D..STD;LH103,11#,125,RZH104,114,125..RHD;LH172,174,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL) W(INTERMITTENT WIPER & REAR WIPER) |
1 | ||
| 84652-10640 |
LH172..RHD..5D;LH174..HRF..15S;RZH112..RHD..SRF;LH162,RZH103,113..RHD..06S;LH103,11#,125,RZH104,114..RHD;LH172,RZH113..RHD..4D..03S..STD..GEN W(INTERMITTENT WIPER) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-22010 |
RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL);LH103,11#,125,RZH102,103,104,114,125,135,153..RHD |
1 | ||
| 85432-22010 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 89435 - BRACKET, CONNECTOR COVER | ||||
| 89435-26090 |
RZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,05S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S |
1 | ||
| 89435-26090 |
LH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15# |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 91651-40816 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
ILLUST NO. 6 OF 9(8908- )
FRONT DOOR SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-75010 |
1RZ..RZH112..5D;5L,1RZ,2RZ#..LH174,184,RZH112,114,115..03S,10S,12S,14S,15S;3L,5L,2RZE..LH103,105,113,115,125,164,166,176,RZH125..ARL,CIS;2L,5L#,1RZ,2RZ#..LH114,154,162,172,RZH10#,113,135,15#..03S,06S,08S,09S,10S,11S,12S |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26320 |
RZH113..ARL,GCC;RZH113..RHD..GEN;RZH112,155..03S,11S,12S;RZH112,113..LHD..06S..GEN;LH102,103,104,11#,125,154,162,172,174,184,RZH10#,114,115,125,135,153..ARL,GCC,GEN |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-26020 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-26040 |
RZH112..5D;RZH105,112,115,155..03S,10S,11S,12S,15S;LH102,103,104,11#,125,154,162,172,174,184,RZH102,103,104,113,114,125,135,153..ARL,GCC,GEN |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-26081 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 |
2 | ||
| 84231-26100 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 84231-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-26081 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153 |
2 | ||
| 84231-26100 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
2 | ||
| 84231-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 84550-16060 |
LH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135,153..RHD |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125 |
1 | ||
| 84810-32070 |
LH172..ARL;LH172..HRF;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;LH172..RHD..5D..03S;LH172,174..RHD..(06S,15S)..DSL;LH103,11#,125,162,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
LH10#,11#,125,166,17#,184,RZH10#,11#,125 |
1 | ||
| 84810-32070 |
LH172..ARL;LH172..HRF;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;LH172..RHD..5D..03S;LH172,174..RHD..(06S,15S)..DSL;LH103,11#,125,162,184,RZH103,104,105,113,114,125,135,153..RHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26130 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 84820-26150 |
LH172..ARL;LH172..HRF;LH172..RHD..5D;LH174..RHD..15S;RZH112..RHD..SP;LH172..STD..DEFI;LH172,184..(SMRF,SRF)..GL;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD..STD W(POWER WINDOW) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26130 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 84820-26150 |
LH172..ARL;LH172..HRF;LH172..RHD..5D;LH174..RHD..15S;RZH112..RHD..SP;LH172..STD..DEFI;LH172,184..(SMRF,SRF)..GL;LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD..STD W(POWER WINDOW) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-95J04 |
LH10#,11#,125,RZH10#,11#,125..RHD RH |
1 | ||
| 84931-26010 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125..RHD RH |
1 | ||
| 84931-26010 |
LH172..ARL;LH172..HRF;LH172..03S..GL;RZH112..RHD..SP;LH172..RHD..5D..03S;LH172,174..RHD..(06S,15S);LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-95J04 |
LH10#,11#,125,RZH10#,11#,125..RHD RH |
1 | ||
| 84931-26010 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125..RHD RH |
1 | ||
| 84931-26010 |
LH172..ARL;LH172..HRF;LH172..03S..GL;RZH112..RHD..SP;LH172..RHD..5D..03S;LH172,174..RHD..(06S,15S);LH103,11#,125,162,184,RZH103,104,105,113,114,125..RHD |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-26180 |
RZH103,113,125..ARL |
1 | ||
| Common parts | ||||
| 84819-26010 | ||||
| 84819-26020 | ||||
| 89667-26090 | ||||
| 89668-26090 | ||||
| 90109-06296 | ||||
| 90164-30003 | ||||
| 90164-40100 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93315-14014 | ||||
| 93319-15010 | ||||
| 93510-16012 | ||||
| 93540-16012 | ||||
| 93540-54014 | ||||
| 93590-16014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
