RZH125R-ZRMREQ (1998)
Toyota Hiace Van,Commuter
ILLUST NO. 1 OF 2(8908- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73013-95J0003 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD W(CENTER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73013-95J00C0 |
LH172..HRF;LH172..RHD..5D;LH172..GL..DSL;LH172,RZH103..ARL;LH172..4D..06S..DSL;RZH103,113..RHD..06S;RZH112,113..RHD..4D..SP;LH11#,162,174,184,RZH114,125..RHD..(03S,06S,14S,15S) W(CENTER SEAT BELT),BLACK,TRIM1# |
1 | ||
| 73146 - COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, RH | ||||
| 73146-95J0003 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 73146-95J00B1 |
RZH114..15S;RZH112..RHD..03S;RZH115..STD..CIS;LH103,112,172,RZH113..RHD;RZH115..(10S,15S)..(GL,SGL);LH174,RZH102,115..(10S,12S,15S)..(CIS,GEN)..(CBR,DSL);LH104,105,113,114,115,125,154,16#,176,184,RZH103,104,105,125,135,155..(03S,06S,09S,11S,12S,14S,15S)..(ARL,CIS,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 73160A - SEAT BELT ASSY, FRONT CENTER, RH | ||||
| 73130-26040B0 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 73160-95J1303 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD GRAY,TRIM1# |
1 | ||
| 73130-26040B1 |
LH172..HRF;LH172..03S..GL;LH172,RZH103..ARL;LH172..RHD..5D..03S;RZH112,113..RHD..4D..SP;LH103,11#,125,162,184,RZH104,114,125..RHD;LH172,174,RZH103,113..RHD..(06S,15S)..(DSL,EFI) SHADOW GRAY,TRIM1# |
1 | ||
| 73170 - BELT ASSY, FRONT CENTER, LH | ||||
| 73170-95J1503 |
RZH103,113..STD;RZH102..RHD..06S..5F;LH103,113,125,RZH125..ARL GRAY,TRIM1# |
1 | ||
| 73170-26110B0 |
LH125,RZH103,125..STD;LH103,113,RZH113..ARL;LH103,113,RZH113..06S..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 73170-26110B1 |
LH172..5D..06S;LH103,113,162,172,RZH103,113..ARL;LH103,113,125,162,184,RZH103,113,125..RHD..SG..STD BLUISH GRAY,TRIM1# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 73178-95J00 |
RZH102..RHD;RZH115..GEN..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH102,103,105..(03S,09S,10S,12S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..(03S,06S,12S,14S,15S)..(ARL,CIS,GEN) |
1 | ||
| 73178-95J00 |
LH172,RZH105..RHD;RZH112,115..LHD..(06S,10S,12S);RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH102,155..LHD..4D..(03S,10S,11S);LH102,103,104,11#,125,154,162,174,184,RZH103,104,113,114,125,135,153..ARL,GEN |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
2 | ||
| 73178-95J00 |
RZH102..RHD;RZH115..GEN..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH102,103,105..(03S,09S,10S,12S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..(03S,06S,12S,14S,15S)..(ARL,CIS,GEN) |
1 | ||
| 73178-95J00 |
LH172,RZH105..RHD;RZH112,115..LHD..(06S,10S,12S);RZH112,115..(03S,15S)..GEN..CBR;LH172,RZH102,155..LHD..4D..(03S,10S,11S);LH102,103,104,11#,125,154,162,174,184,RZH103,104,113,114,125,135,153..ARL,GEN |
1 | ||
| 73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH | ||||
| 73011-12040 |
RZH114..15S;RZH112..RHD..03S;RZH115..STD..CIS;LH112,172,RZH113..RHD;RZH115..(10S,15S)..(GL,SGL);LH154,174,RZH102,115..(10S,11S,12S,15S)..(CIS,GEN)..(CBR,DSL);LH103,104,105,113,114,115,125,16#,176,184,RZH103,104,105,125,135,15#..(03S,06S,09S,11S,12S,14S,15S)..(ARL,CIS,GEN) |
1 | ||
| 73011-12040 |
LH10#,11#,125,RZH10#,11#,125..RHD |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-95J0008 |
LH125,RZH125..ARL IVORY,TRIM1# |
2 | ||
| 73200-95J00B5 |
LH125,RZH125,135 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-95J3203 |
LH103,113,125,RZH103,113,125..STD..ARL W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
1 | ||
| 73210-95J3303 |
RZH103,113..STD;RZH102..RHD..06S..5F;LH103,113,125,RZH125..ARL GRAY,TRIM1# |
1 | ||
| 73210-26250B0 |
LH103,113,125,RZH103,113,125..ARL MARK Q:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1# |
1 | ||
| 73210-26390B0 |
LH103,113,125,RZH103,113,125..ARL W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1# |
1 | ||
| 73210-26250B1 |
LH113,162..06S;LH172,RZH113..RHD..5D..06S;LH103,113,125,162,172,184,RZH103,113,125..ARL MARK Q:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-95J3203 |
LH103,113,125,RZH103,113,125..STD..ARL W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1# |
1 | ||
| 73210-95J3303 |
RZH103,113..STD;RZH102..RHD..06S..5F;LH103,113,125,RZH125..ARL GRAY,TRIM1# |
1 | ||
| 73220-26180B0 |
LH103,113,125,RZH103,113,125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73220-26290B0 |
LH103,113,125,RZH103,113,125..ARL W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1# |
1 | ||
| 73220-26180B1 |
LH113..06S;LH162..4FC;LH162..5F..ARL;LH172,RZH113..RHD..5D..06S;LH103,113,125,172,184,RZH103,113,125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-95J01 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-95J00 |
LH125..ARL;LH10#,11#,RZH10#,11#,125 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-95J1603 |
LH10#,11#,125,RZH10#,11#,125..RHD GRAY,TRIM1# |
1 | ||
| 73230-26130B0 |
LH113..CIS;LH112,113,RZH102,112,113..RHD;RZH102,114,115..(10S,15S)..(CIS,GEN);LH103,104,105,114,115,125,166,17#,184,RZH103,104,105,125,135,153..ARL,CIS,GEN W(PASSENGER SEAT=ADJUSTER TYPE),BLUISH GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-95J2803 |
LH10#,11#,125,RZH10#,11#,125..RHD..STD TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1# |
1 | ||
| 73240-26040B0 |
LH103,11#,125,172,184,RZH102,103,104,112,113,114,125..RHD TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1# |
1 | ||
| 73252A - COVER, SHOULDER BELT ANCHOR ADJUST | ||||
| 73252-95J0008 |
LH125,RZH125 IVORY,TRIM1# |
2 | ||
| 73252-95J00B4 |
LH125,RZH125,135 LT.BLUISH GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90119-10492 | ||||
| 90159-60389 | ||||
| 90333-40001 | ||||
| 90461-10595 | ||||
| 90950-01126 | ||||
| 91651-40612 | ||||
| 93540-54012 | ||||
ILLUST NO. 2 OF 2(8908-9907)LH125,RZH125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH | ||||
| 73330-95J1903 |
LH125,RZH125 GRAY,TRIM1# |
3 | ||
| 73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH | ||||
| 73330-95J1903 |
LH125,RZH125 GRAY,TRIM1# |
3 | ||
| 73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH | ||||
| 73330-95J1903 |
LH125,RZH125 GRAY,TRIM1# |
3 | ||
| 73330E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, RH | ||||
| 73330-95J1903 |
LH125,RZH125 GRAY,TRIM1# |
3 | ||
| 73340E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, LH | ||||
| 73340-95J1303 |
LH125,RZH125 GRAY,TRIM1# |
2 | ||
| 73340E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, LH | ||||
| 73340-95J1303 |
LH125,RZH125 GRAY,TRIM1# |
2 | ||
| 73340E - BELT ASSY, REAR NO.1 SEAT LAP TYPE, LH | ||||
| 73340-95J1303 |
LH125,RZH125 GRAY,TRIM1# |
2 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-95J1003 |
LH125,RZH125 GRAY,TRIM1# |
3 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-95J1003 |
LH125,RZH125 GRAY,TRIM1# |
3 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-95J1003 |
LH125,RZH125 GRAY,TRIM1# |
3 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-95J1203 |
LH125,RZH125 GRAY,TRIM1# |
1 | ||
| 73530-95J1103 |
LH125,RZH125 W(FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-95J0903 |
LH125,RZH125 GRAY,TRIM1# |
1 | ||
| 73540-95J0803 |
LH125,RZH125 W(FOLDING REAR SEAT),GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90333-30002 | ||||

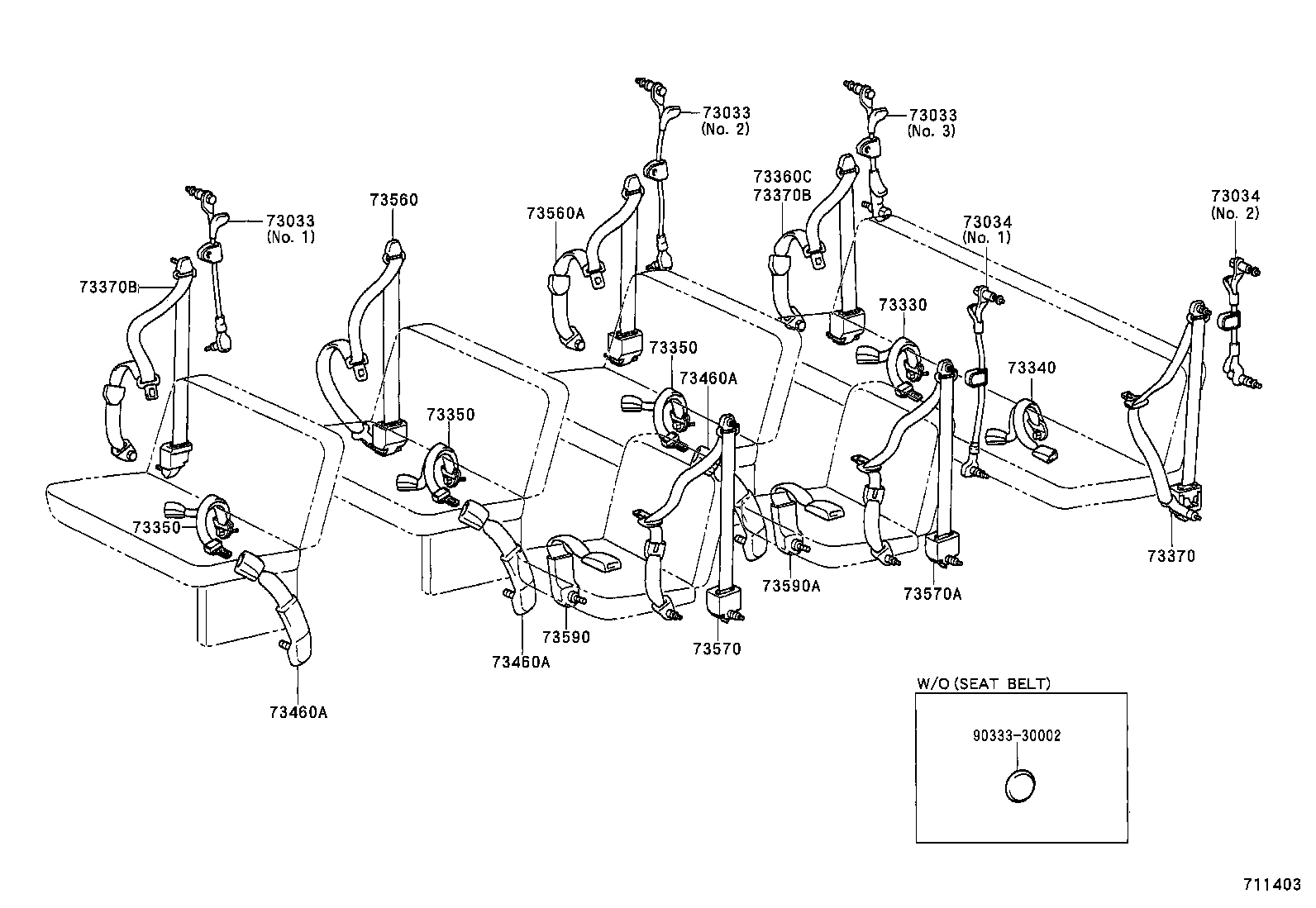

ILLUST NO. 2 OF 2(9907- )LH125,184,RZH125..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73033 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, RH | ||||
| 73033-26060 |
LH125,184,RZH125..ARL NO.2 |
1 | ||
| 73033-26070 |
LH125,184,RZH125..ARL NO.3 |
1 | ||
| C7608-20010 |
LH125,184,RZH125..ARL NO.1 |
1 | ||
| 73033 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, RH | ||||
| 73033-26060 |
LH125,184,RZH125..ARL NO.2 |
1 | ||
| 73033-26070 |
LH125,184,RZH125..ARL NO.3 |
1 | ||
| C7608-20010 |
LH125,184,RZH125..ARL NO.1 |
1 | ||
| 73033 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, RH | ||||
| 73033-26060 |
LH125,184,RZH125..ARL NO.2 |
1 | ||
| 73033-26070 |
LH125,184,RZH125..ARL NO.3 |
1 | ||
| C7608-20010 |
LH125,184,RZH125..ARL NO.1 |
1 | ||
| 73034 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, LH | ||||
| 73034-26050 |
LH125,184,RZH125..ARL NO.2 |
1 | ||
| 73034-26100 |
LH125,184,RZH125..ARL NO.1 |
1 | ||
| 73034 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, LH | ||||
| 73034-26050 |
LH125,184,RZH125..ARL NO.2 |
1 | ||
| 73034-26100 |
LH125,184,RZH125..ARL NO.1 |
1 | ||
| 73330 - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73330-26120B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73340 - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73340-26020B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-26190B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
3 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-26190B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
3 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-26190B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
3 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-26370B0 |
LH125,184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-26220B0 |
LH125,184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-26370B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-26370B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73460A - BELT ASSY, REAR SEAT CENTER, INNER | ||||
| 73460-26010B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
3 | ||
| 73460A - BELT ASSY, REAR SEAT CENTER, INNER | ||||
| 73460-26010B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
3 | ||
| 73460A - BELT ASSY, REAR SEAT CENTER, INNER | ||||
| 73460-26010B0 |
LH184,RZH125..ARL BLUISH GRAY,TRIM1# |
3 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-26190B0 |
LH125,184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73560A - BELT ASSY, NO.3 SEAT, OUTER RH | ||||
| 73360-26360B0 |
LH125,184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-26160B0 |
LH125,184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73570A - BELT ASSY, NO.3 SEAT, OUTER LH | ||||
| 73370-26210B0 |
LH125,184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-26190B0 |
LH125,184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73590-26190B0 |
LH125,184,RZH125..ARL BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90333-30002 | ||||
