RZH125R-ZRMREQ (1998)

Toyota Hiace Van,Commuter

Production Aug 1998 - Jan 2005
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )DX,SGL,STD

Click highlighted areas on diagram

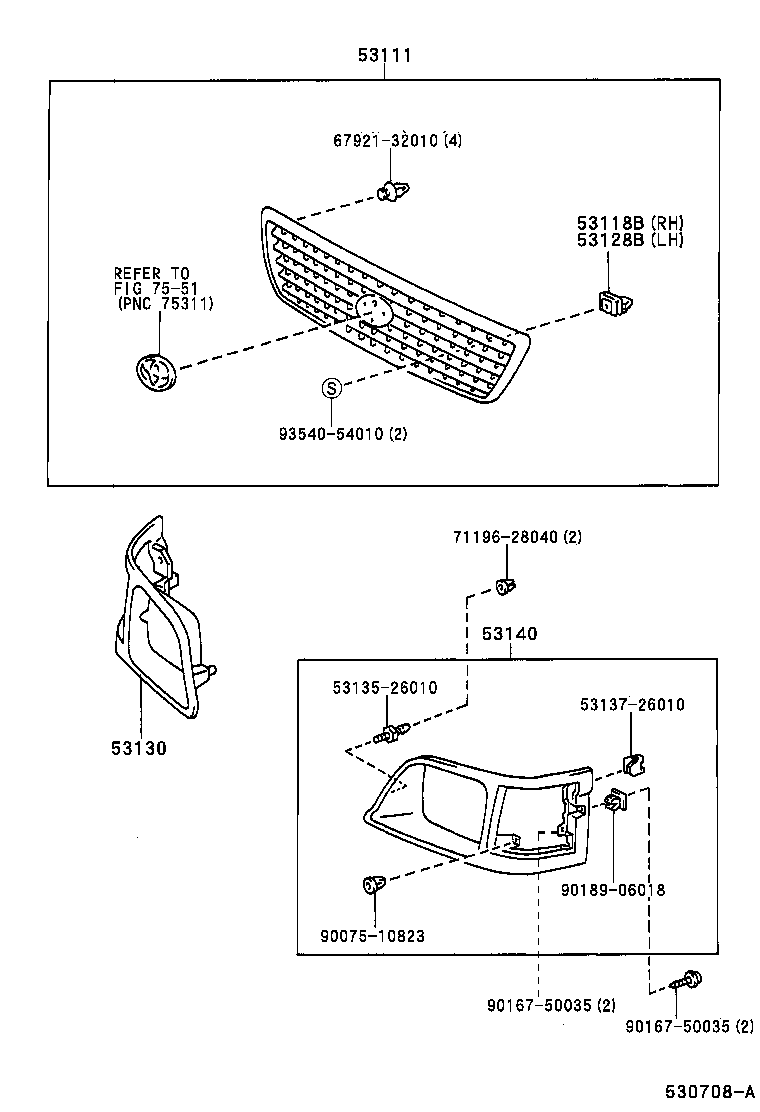

diagram 53111 53118B 53128B 53130 5313526010 5313726010 53140 6792132010 7119628040 7551 9007510823 9016750035 9016750035 9018906018 9354054010
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-95J22

LH10#,11#,125,RZH10#,11#,125..STD

 1
53100-26110

RZH114..15S;RZH115..STD;RZH115..12S;LH10#,11#,125,166,172,176,184,RZH10#,112,113,125..03S,06S,12S,14S,15S

 1
53100-26110

RZH112..5D;RZH112,115..(03S,15S)..CBR;RZH115..STD..(CIS,GCC)..EFI;LH10#,11#,125,16#,17#,184,RZH10#,113,114,125..DX,STD

 1
53118B - RETAINER, RADIATOR GRILLE, NO.2 RH
53118-26030

RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S

 1
53118-26030

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
53128B - RETAINER, RADIATOR GRILLE, NO.2 LH
53128-26010

RZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH103,104,112,114,125,135,153..03S,06S,12S,14S,15S

 1
53128-26010

RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#

 1
53130 - ORNAMENT ASSY, HEADLAMP, RH
53130-26010

RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD

 1
53130-26010

RZH105..LHD..STD;RZH115..STD..CIS;RZH113,115..STD..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH102,103,104,112,114,125..(03S,06S,12S,14S,15S)..(DX,STD)

 1
53140 - ORNAMENT ASSY, HEADLAMP, LH
53140-26010

RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD

 1
53140-26010

RZH105..LHD..STD;RZH115..STD..CIS;RZH113,115..STD..CBR;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH102,103,104,112,114,125..(03S,06S,12S,14S,15S)..(DX,STD)

 1
Common parts
53135-26010
53137-26010
67921-32010
71196-28040
90075-10823
90167-50035
90189-06018
93540-54010
Linked diagrams
7551
